3.3V, HcMOS, Tight Stability, SMD Oscilla
tor
Model: F4100 SERiES
Page 2 of 3
RoHS compliant / Pb Free
Rev. 2/26/2008
http://www.foxonline.com/need_a_sample.htm
FEATURES
•
•
•
•
•
Tight Stability
3.3V Operation
HCMOS Output
Standby Function
Tape and Reel
(2,000 pcs. STD)
• PART nUMbER SElEcTiOn
Learn More - Internet Required
Part Number
549-Frequency-xxxxx
544-Frequency-xxxxx
565-Frequency-xxxxx
545-Frequency-xxxxx
Model
Number
F4108R
F4107
F4107R
F4109
Frequency
Stability
1
±20PPM
±15PPM
±15PPM
±10PPM
Operating
Temperature (ºC)
-40 ~ +85
-10 ~ +70
-40 ~ +85
-10 ~ +70
Frequency
Range (MHz)
1.800 ~ 50.000
1.800 ~ 50.000
1.800 ~ 50.000
1.800 ~ 50.000
• ElEcTRicAl cHARAcTERiSTicS
PARAMETERS
Frequency Range (F
o
)
Storage Temperature Range (T
stg
)
Supply Voltage
(V
dd
)
Input Current
(I
dd
)
Output Symmetry (50% V
dd
)
Rise Time (10% ~ 90% V
dd
) (T
r
)
Fall Time (90% ~ 10% V
dd
) (T
f
)
Output Voltage
(V
ol
)
(V
oh
)
Output Current
(I
ol
)
(I
oh
)
Output Load
(HCMOS)
Standby Current
Start-up Time
(T
s
)
Output Disable Time
2
Output Enable Time
2
1
MAX
(unless otherwise noted)
1.800 ~ 50.000 MHz
-55ºC ~ +125ºC
3.3V ± 5%
22 mA
45% ~ 55%
5nS
5nS
10% V
dd
90% V
dd
Min
8mA Min
4mA Min
15pF
50µA
5mS
150nS
5mS
Inclusive of 25ºC tolerance, operating temperature range, input voltage change, load change, aging,
shock, and vibration.
2
An internal pullup resistor from pin 1 to pin 4 allows active output if pin 1 is left open.
Note: A 0.01µF bypass capacitor should be placed between VDD (Pin 4) and GND (Pin 2) to
minimize power supply line noise.

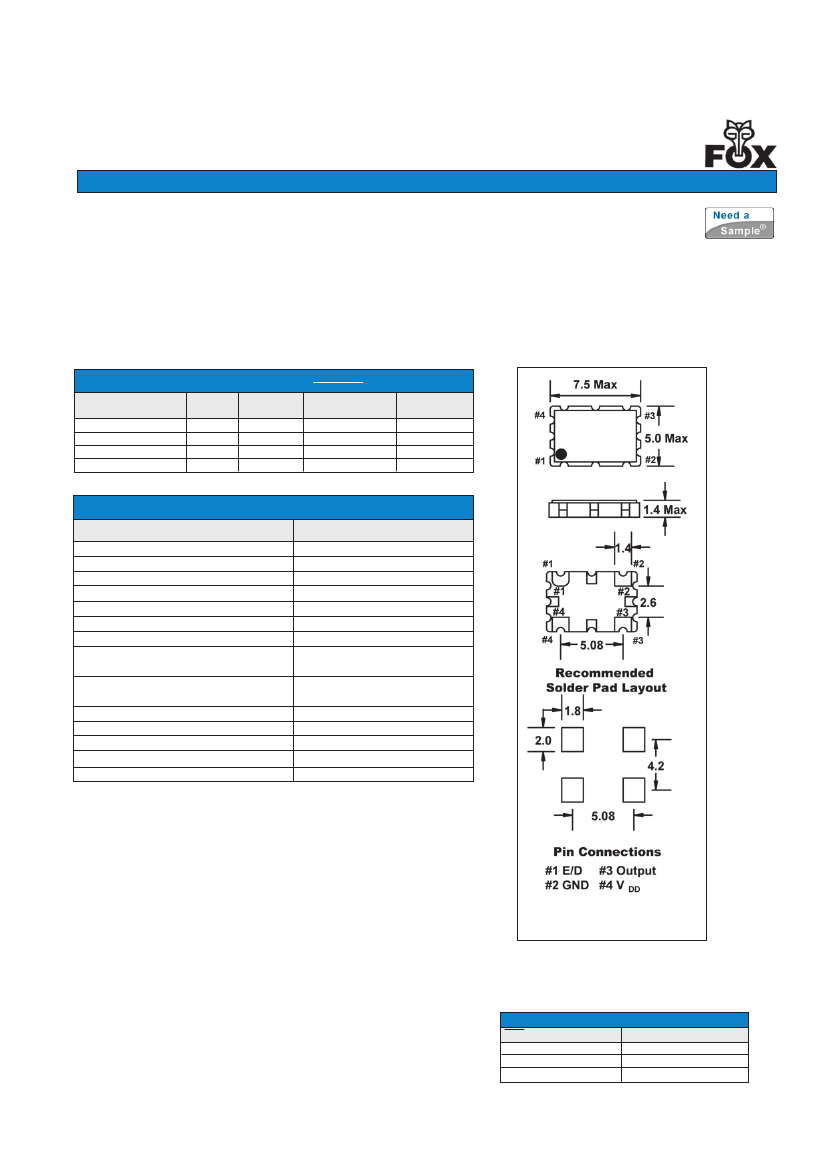

Drawing is for reference to critical specifications defined by size measurements.
Certain non-critical visual attributes, such as side castellations, reference pin shape, etc. may
vary. All specifications subject to change without notice.
All dimensions are in millimeters.
• EnAblE / DiSAblE FUncTiOn
INH (Pin 1)
OUTPUT (Pin 3)
OPEN
2
ACTIVE
'1' Level V
ih
≥
70% V
dd
ACTIVE
'0' Level V
il
≤
30% V
dd
High Z
FOXElectronics
5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554
http://www.foxonline.com
© 2008 FOX ELECTRONICS | ISO9001:2000 Certified
EMEA
Tel/Fax: +44 .1767.312632 |
Asia
Hong Kong Tel: +852.2854.4285 Fax +852.2854.4282 |
Taiwan
Tel: +886.2.22073427 Fax +886.2.22073486
|
Japan
Tel: +81.3.3374/2079 Fax: +81.3.3374.5221
59
3.3V, HcMOS, SMD Oscillator
Model: F4100 SERiES
Page 3 of 3
RoHS compliant / Pb Free
Rev. 2/26/2008
http://www.foxonline.com/need_a_sample.htm

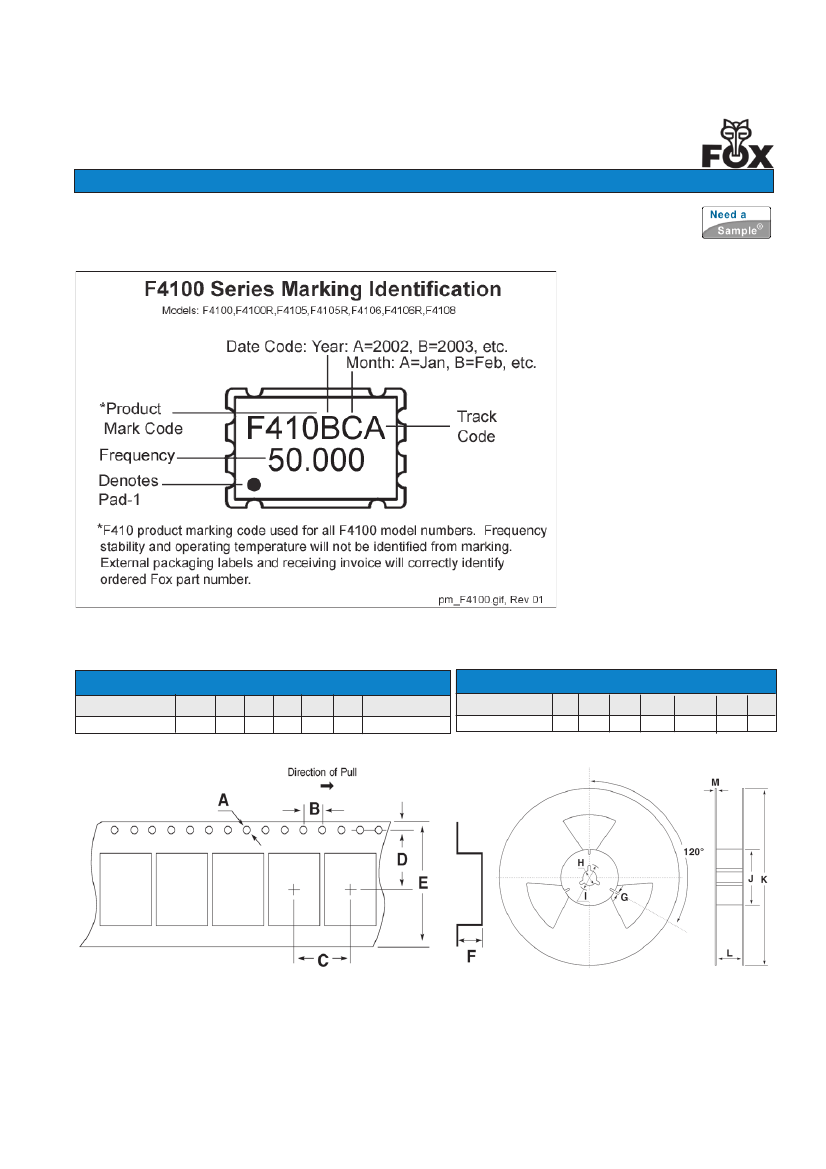

• TAPE SPEciFicATiOnS
