71607-416LF datasheet, PDF - EEWORLD Datasheet

71607-416LF: DescriptionDubox® 2.54mm, Board to Board Connector, PCB Mounted Receptacle, Right Angle, Surface Mount, Single row ,16 Positions, 2.54mm (0.100in) Pitch; CategoryThe connector The connector; File Size76KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

71607-416LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	71607-416LF	-	-	View	Buy Now

Dubox® 2.54mm, Board to Board Connector, PCB Mounted Receptacle, Right Angle, Surface Mount, Single row ,16 Positions, 2.54mm (0.100in) Pitch

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	2144793748
package instruction	ROHS COMPLIANT
Contacts	16
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	9.1
body width	0.137 inch
subject depth	0.429 inch
body length	1.597 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	MATTE TIN OVER NICKEL
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	1.4734 N
Insulation resistance	100000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYETHYLENE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	71607
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	9.652 mm
Plating thickness	197u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	16
UL Flammability Code	94V-0
Evacuation force-minimum value	.3058 N

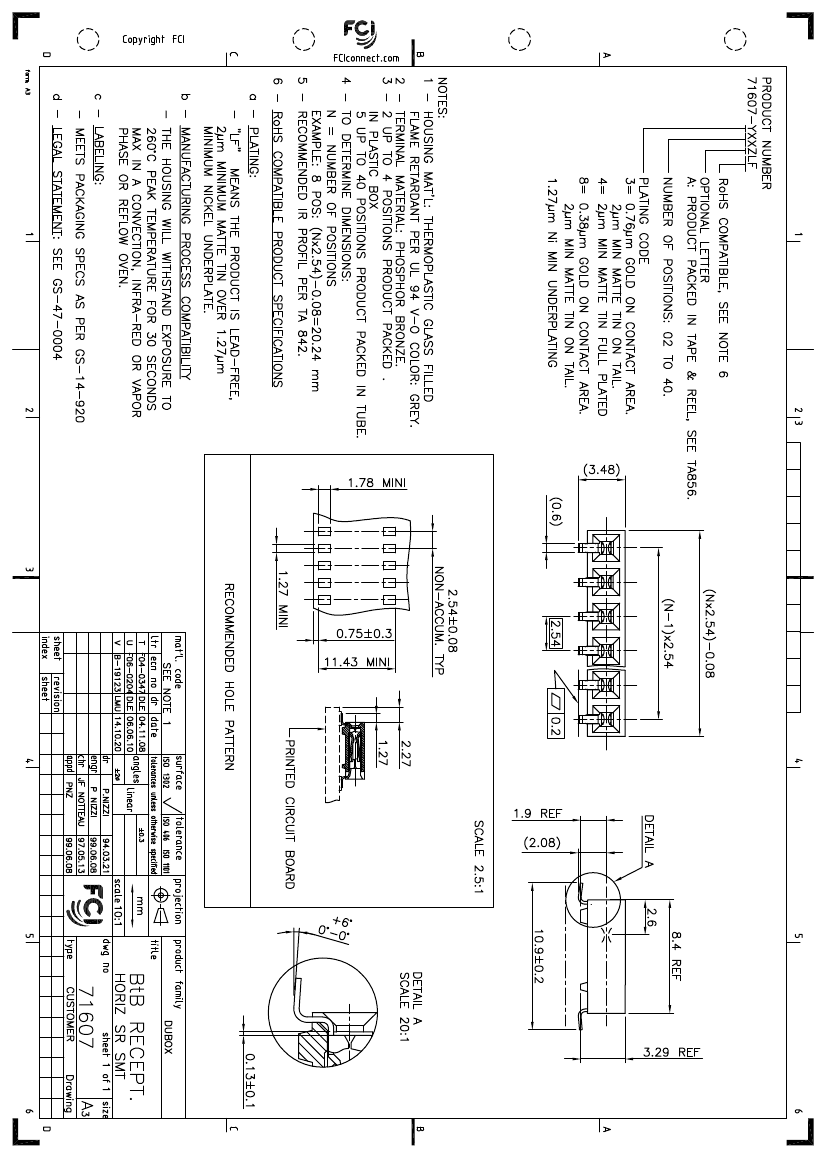

PDS: Rev :W

STATUS:Released

Printed: Oct 29, 2014
