D37S91C6PX3FLF

Description
D Subminiature Connector, 37 Contact(s), Female, 0.108 inch Pitch, Press Fit Terminal, #4-40, ROHS COMPLIANT
CategoryThe connector    The connector
File Size78KB,1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

D37S91C6PX3FLF Overview

D Subminiature Connector, 37 Contact(s), Female, 0.108 inch Pitch, Press Fit Terminal, #4-40, ROHS COMPLIANT

D37S91C6PX3FLF Parametric

Parameter NameAttribute value
MakerAmphenol
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
body width0.494 inch
subject depth0.236 inch
body length2.729 inch
Connector typeD SUBMINIATURE CONNECTOR
Contact to complete cooperationGOLD (30) OVER NICKEL
Contact completed and terminatedMATTE TIN OVER NICKEL
Contact point genderFEMALE
contact modeSTAGGERED
Contact styleRND PIN-SKT
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
insulator materialPOLYETHYLENE
JESD-609 codee3
MIL complianceNO
Manufacturer's serial numberD
Plug contact pitch0.108 inch
Match contact row spacing0.112 inch
Mixed contactsNO
Installation option 1#4-40
Installation option 2THREADED INSERT
Installation methodSTRAIGHT
Installation typeBOARD
PCB row number2
Number of rows loaded2
OptionsGENERAL PURPOSE
PCB contact patternSTAGGERED
PCB contact row spacing2.8448 mm
Plating thickness30u inch
reliabilityCOMMERCIAL
Shell surfaceNICKEL
Shell materialSTEEL
Housing size4/C
Terminal length0.118 inch
Terminal pitch2.7432 mm
Termination typePRESS FIT
Total number of contacts37
UL Flammability Code94V-0
Base Number Matches1

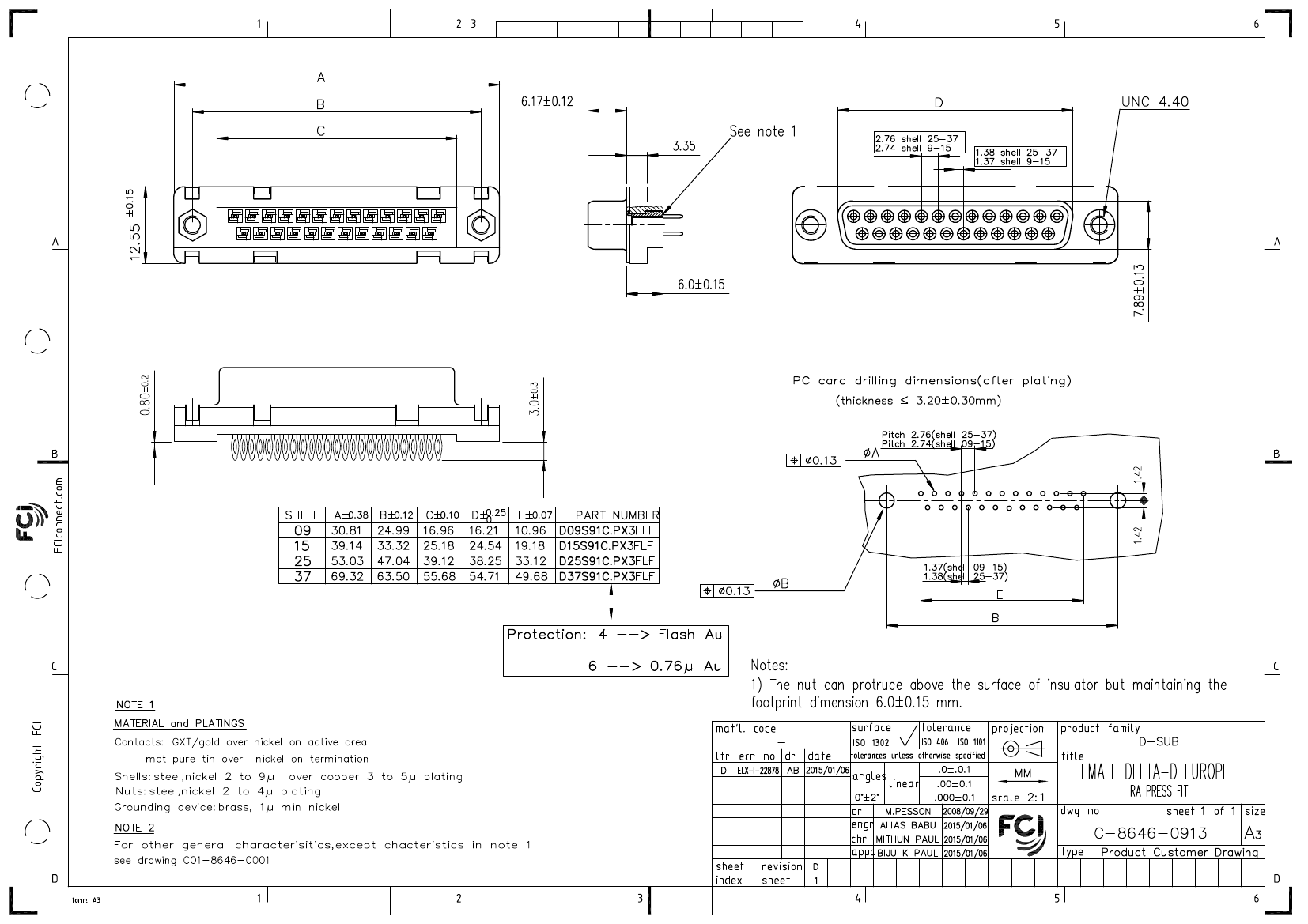

PDS: Rev :D
STATUS:Released
Printed: Jan 07, 2016

D37S91C6PX3FLF Related Products

D37S91C6PX3FLF D09S91C4PX3FLF D15S91C6PX3FLF
Description D Subminiature Connector, 37 Contact(s), Female, 0.108 inch Pitch, Press Fit Terminal, #4-40, ROHS COMPLIANT D Subminiature Connector, 9 Contact(s), Female, 0.108 inch Pitch, Press Fit Terminal, #4-40, ROHS COMPLIANT D Subminiature Connector, 15 Contact(s), Female, 0.108 inch Pitch, Press Fit Terminal, #4-40, ROHS COMPLIANT
Maker Amphenol Amphenol Amphenol
package instruction ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT
Reach Compliance Code compliant compliant compliant
body width 0.494 inch 0.494 inch 0.494 inch
subject depth 0.236 inch 0.236 inch 0.236 inch
body length 2.729 inch 1.213 inch 1.541 inch
Connector type D SUBMINIATURE CONNECTOR D SUBMINIATURE CONNECTOR D SUBMINIATURE CONNECTOR
Contact to complete cooperation GOLD (30) OVER NICKEL GOLD FLASH OVER NICKEL GOLD (30) OVER NICKEL
Contact completed and terminated MATTE TIN OVER NICKEL MATTE TIN OVER NICKEL MATTE TIN OVER NICKEL
Contact point gender FEMALE FEMALE FEMALE
contact mode STAGGERED STAGGERED STAGGERED
Contact style RND PIN-SKT RND PIN-SKT RND PIN-SKT
DIN compliance NO NO NO
empty shell NO NO NO
Filter function NO NO NO
IEC compliance NO NO NO
insulator material POLYETHYLENE POLYETHYLENE POLYETHYLENE
JESD-609 code e3 e3 e3
MIL compliance NO NO NO
Manufacturer's serial number D D D
Plug contact pitch 0.108 inch 0.108 inch 0.108 inch
Match contact row spacing 0.112 inch 0.112 inch 0.112 inch
Mixed contacts NO NO NO
Installation option 1 #4-40 #4-40 #4-40
Installation option 2 THREADED INSERT THREADED INSERT THREADED INSERT
Installation method STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD
PCB row number 2 2 2
Number of rows loaded 2 2 2
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
PCB contact pattern STAGGERED STAGGERED STAGGERED
PCB contact row spacing 2.8448 mm 2.8448 mm 2.8448 mm
Plating thickness 30u inch FLASH inch 30u inch
reliability COMMERCIAL COMMERCIAL COMMERCIAL
Shell surface NICKEL NICKEL NICKEL
Shell material STEEL STEEL STEEL
Housing size 4/C 1/E 2/A
Terminal length 0.118 inch 0.118 inch 0.118 inch
Terminal pitch 2.7432 mm 2.7432 mm 2.7432 mm
Termination type PRESS FIT PRESS FIT PRESS FIT
Total number of contacts 37 9 15
UL Flammability Code 94V-0 94V-0 94V-0
Base Number Matches 1 1 1
