DSP56304GC66 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> DSP56304GC66

DSP56304GC66: Description24-BIT, 66MHz, OTHER DSP, PBGA196, PLASTIC, BGA-196; CategoryThe embedded processor and controller Microcontrollers and processors; File Size13MB，165 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric View All

DSP56304GC66 Overview

24-BIT, 66MHz, OTHER DSP, PBGA196, PLASTIC, BGA-196

DSP56304GC66 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
package instruction	PLASTIC, BGA-196
Reach Compliance Code	unknown
ECCN code	3A001.A.3
Address bus width	18
barrel shifter	YES
bit size	24
boundary scan	YES
maximum clock frequency	66 MHz
External data bus width	24
Format	FIXED POINT
Integrated cache	NO
Internal bus architecture	MULTIPLE
JESD-30 code	S-PBGA-B196
JESD-609 code	e0
length	15 mm
low power mode	YES
Number of DMA channels	6
Number of external interrupt devices	5
Number of serial I/Os	2
Number of terminals	196
Number of timers	3
On-chip data RAM width	24
On-chip program ROM width	24
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	BGA
Encapsulate equivalent code	BGA196,14X14,40
Package shape	SQUARE
Package form	GRID ARRAY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3 V
Certification status	Not Qualified
RAM (number of words)	5020
ROM programmability	MROM
Maximum seat height	1.75 mm
Maximum slew rate	120 mA
Maximum supply voltage	3.6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	BALL
Terminal pitch	1 mm
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15 mm
uPs/uCs/peripheral integrated circuit type	DIGITAL SIGNAL PROCESSOR, OTHER
Base Number Matches	1

Preview

Download Datasheet

View All

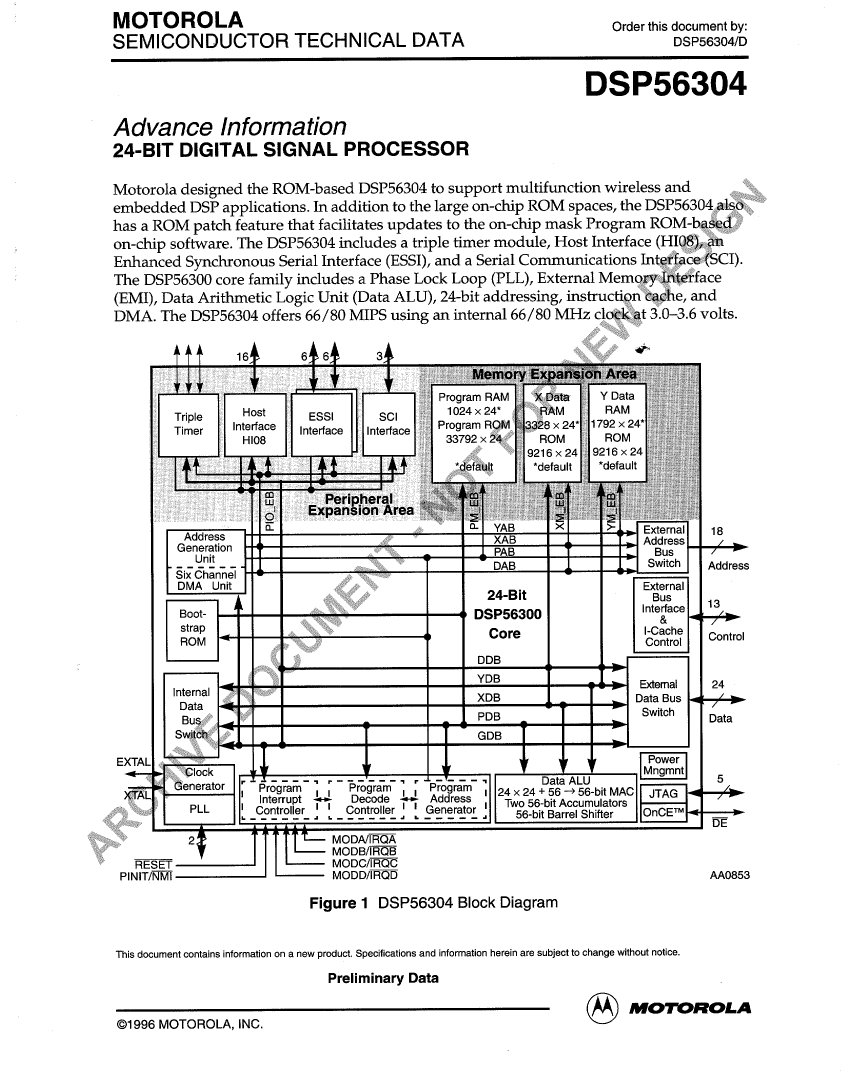

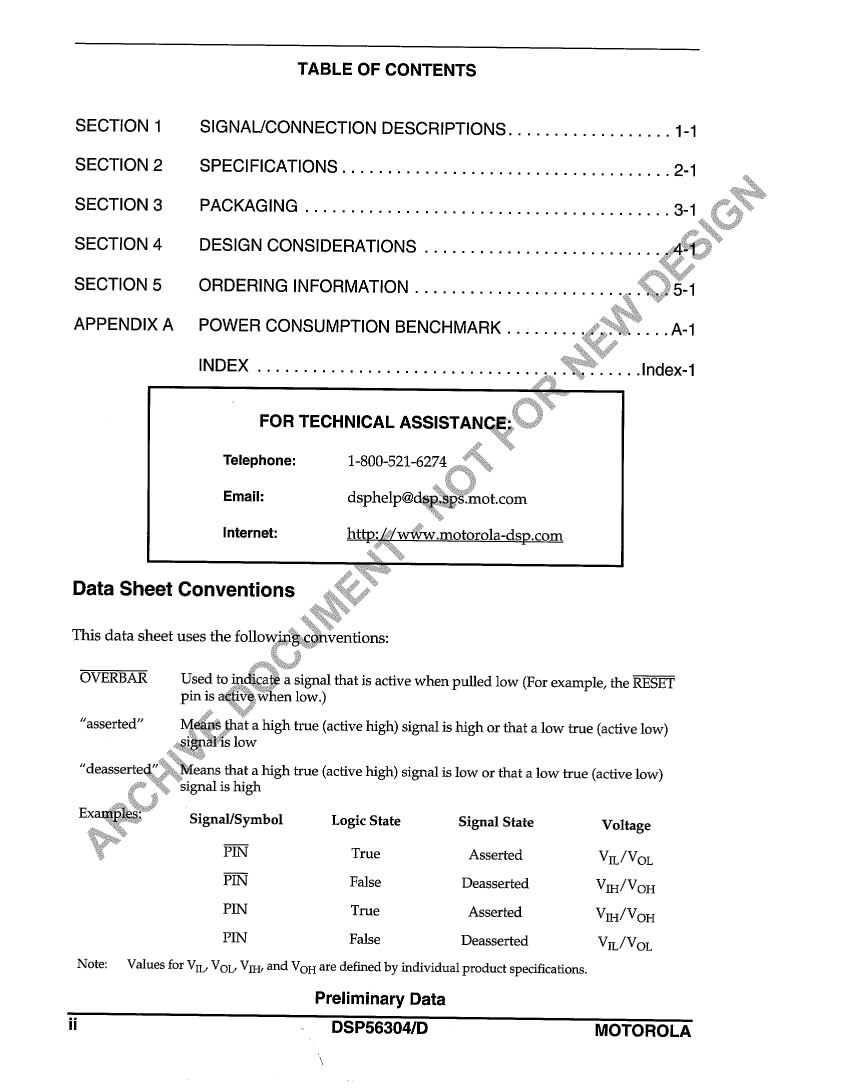

MOTOROLA

SEMICONDUCTOR

TECHNICAL

DATA

Order this document by:

DSP56304/D

DSP56304

Advance Information

24-BIT DIGITAL SIGNAL PROCESSOR

,*!.

‘*{,3,

Motorola designed the ROM-based DSP56304 to support multifunction wireless and

eg$\.*:<2~,

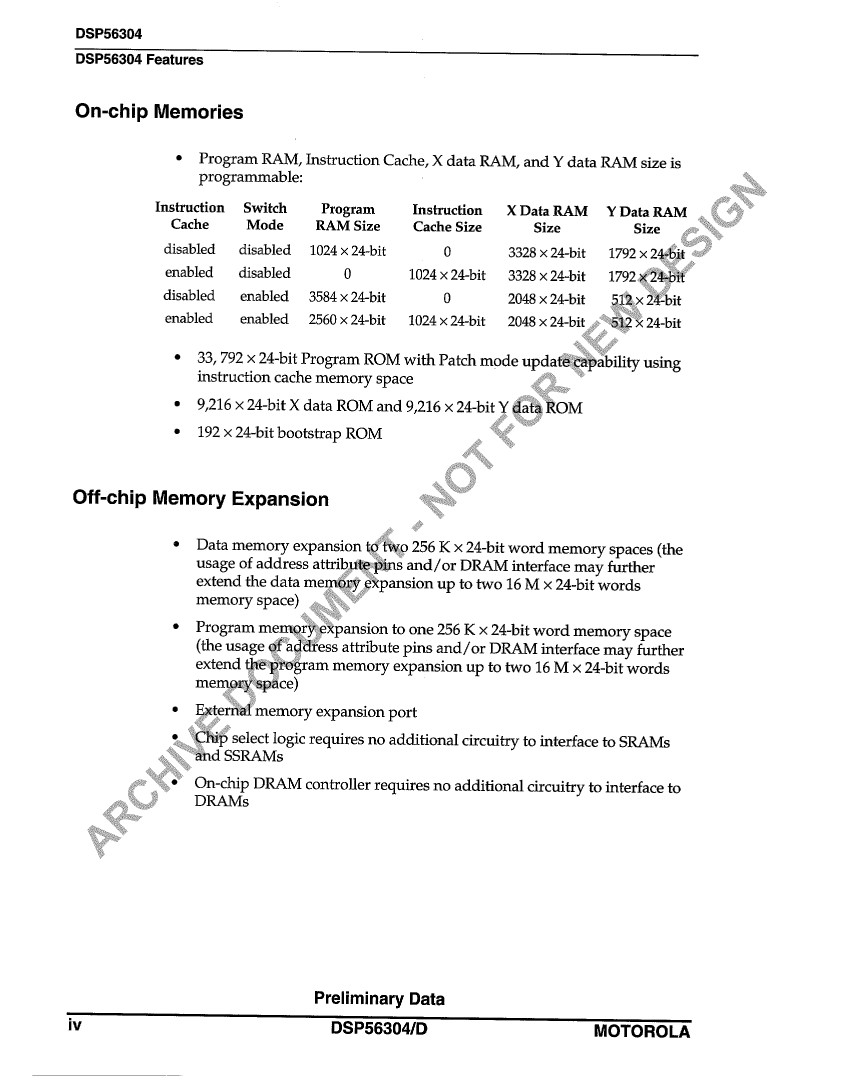

embedded DSP applications. In addition to the large on-tip ROM spaces, the DSP56304,@~~~}t.”

has a ROM patch feature that facilitates updates to tie on-cfip mask program ROM-@~~@

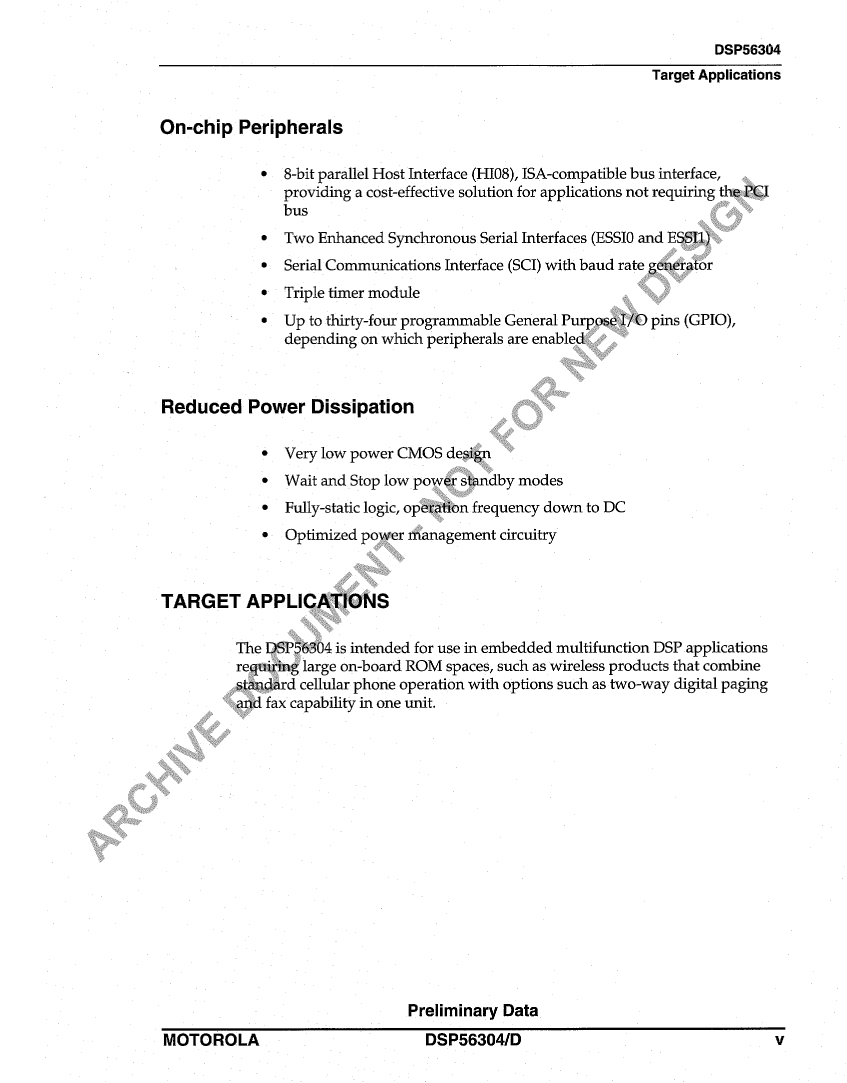

on-chip software. The DSP56304 includes a triple timer module, Host Interface (HI@j~~n

Enhanced Synchronous Serial Interface (ESSI), and a Serial Communications

kt~~[ac@@CI).

Mernq@+@%~faCe

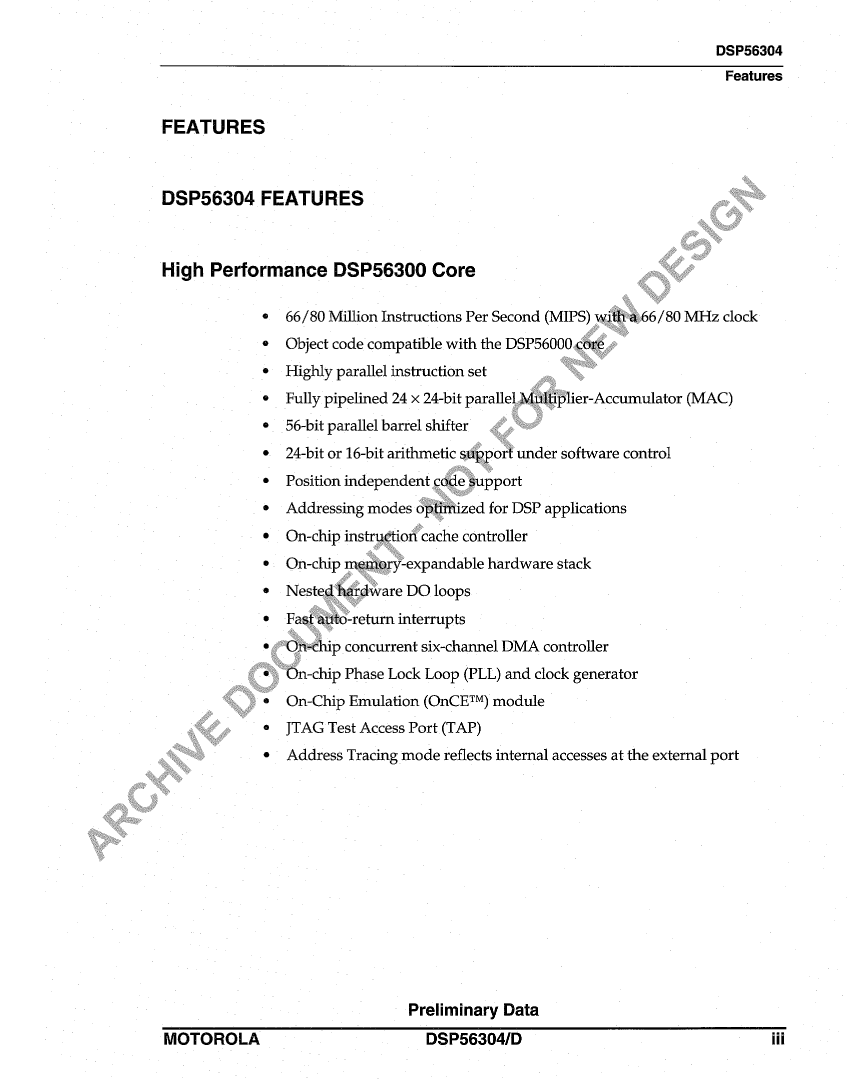

The DSP56300 core family includes a Phase Lock

Loop (pLL), External

(EMI), Data Arithmetic Logic Unit (Data ALU), 24-bit addressing, instruc~nq@e,

and

3.0–3.6

volts.

DMA. The DSP56304 offers 66/80 MIPS using an kternal 66/80

MHz cl.~~gt

..,.’,

!, \t::”\:

‘

Internal

DDB

External

Bus

Inteflace

l-C~che

Control

‘3

Control

Data Bus

Switch

Data

Power

Mngmnt

JTAG

EXTA

[-=r--

‘v

I-

I ~

Program- ~ ~ P70~r=m- ~ 24x

24 +D~&~k~-bit

MAC

Decode -

Address

Two 56-bit Accumulators

Controller I ‘ Generator ‘

56-bit Barrel Shifier

-----

----

-J

———----

OnCETM

,;...

PINM~

MoDB/m

MODD/~

MODC,I.QC

AA0853

Figure 1 DSP56304

Block Diagram

This document contains information on a new product. Specifications and information herein are subject to change without notice.

Prelimina~

Data

M~-LA

01996

MOTOROLA,

INC.
