BTFN10S-3SB7LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BTFN10S-3SB7LF

BTFN10S-3SB7LF: DescriptionDIP Connector, 10 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size94KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

BTFN10S-3SB7LF Overview

DIP Connector, 10 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle, LEAD FREE

BTFN10S-3SB7LF Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	unknown
Body/casing type	RECEPTACLE
Connector type	DIP CONNECTOR
Contact to complete cooperation	TIN OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	BTFN10S
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	10
UL Flammability Code	94V-0
Base Number Matches	1

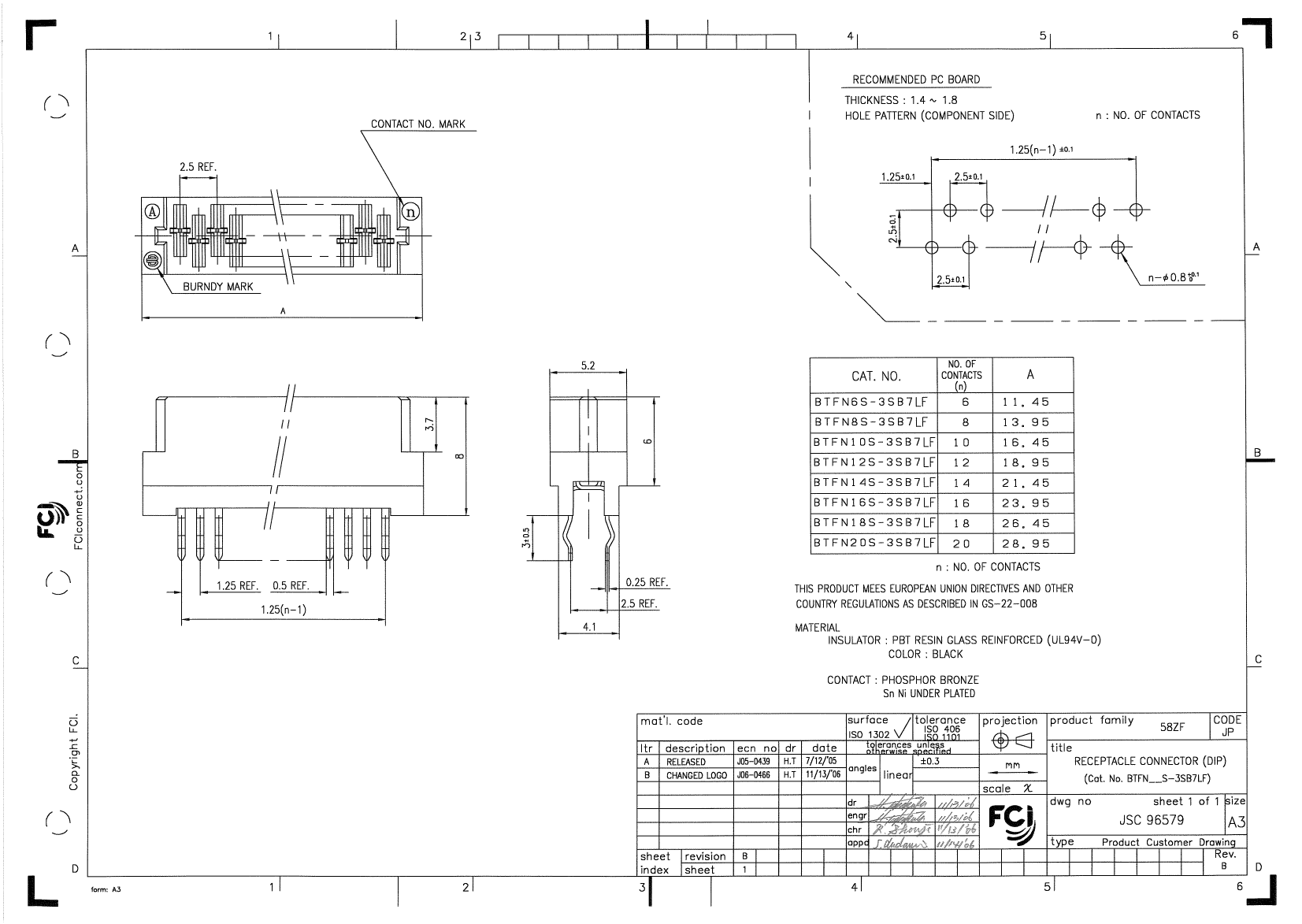

Preview

Download Datasheet

View All

PDM: Rev:B

STATUS:

Released

Printed: Jan 31, 2009

BTFN10S-3SB7LF Related Products

	BTFN10S-3SB7LF	BTFN16S-3SB7LF	BTFN14S-3SB7LF	BTFN18S-3SB7LF	BTFN20S-3SB7LF	BTFN6S-3SB7LF	BTFN8S-3SB7LF
Description	DIP Connector, 10 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle, LEAD FREE	DIP Connector, 16 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle, LEAD FREE	DIP Connector, 14 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle, LEAD FREE	DIP Connector, 18 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle, LEAD FREE	DIP Connector, 20 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle, LEAD FREE	DIP Connector, 6 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle, LEAD FREE	DIP Connector, 8 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle, LEAD FREE
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	DIP CONNECTOR	DIP CONNECTOR	DIP CONNECTOR	DIP CONNECTOR	DIP CONNECTOR	DIP CONNECTOR	DIP CONNECTOR
Contact to complete cooperation	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	BTFN10S	BTFN16S	BTFN14S	BTFN18S	BTFN20S	BTFN6S	BTFN8S
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	10	16	14	18	20	6	8
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1
