BAT85S
Vishay Telefunken
Small Signal Schottky Barrier Diode
Features
D
Integrated protection ring against static
discharge
D
Very low forward voltage
Applications
Applications where a very low forward voltage
is required
94 9367
Order Instruction
Type
BAT85S
Type Differentiation
V
R
= 30 V
Ordering Code
BAT85S–TAP
BAT85S–TR
Remarks
Ammopack
Tape and Reel
Absolute Maximum Ratings
T
j
= 25
_
C
Parameter
Reverse voltage
Peak forward surge current
Repetitive peak forward current
Forward current
Average forward current
Junction temperature
Storage temperature range
Test Conditions
t
p
≤
10 ms
t
p
≤1s
PCB mounting, l=4 mm;
V
RWM
=25 V, T
amb
=50
°
C
Type
Symbol
V
R
I
FSM
I
FRM
I
F
I
FAV
T
j
T
stg
Value
30
5
300
200
200
125
–65...+150
Unit
V
A
mA
mA
mA
°
C
°
C
Maximum Thermal Resistance
T
j
= 25
_
C
Parameter
Junction ambient
Test Conditions
l=4 mm, T
L
=constant
Symbol
R
thJA
Value
350
Unit
K/W
Document Number 85513
Rev. 4, 12-Feb-01
www.vishay.com
1 (4)
BAT85S
Vishay Telefunken

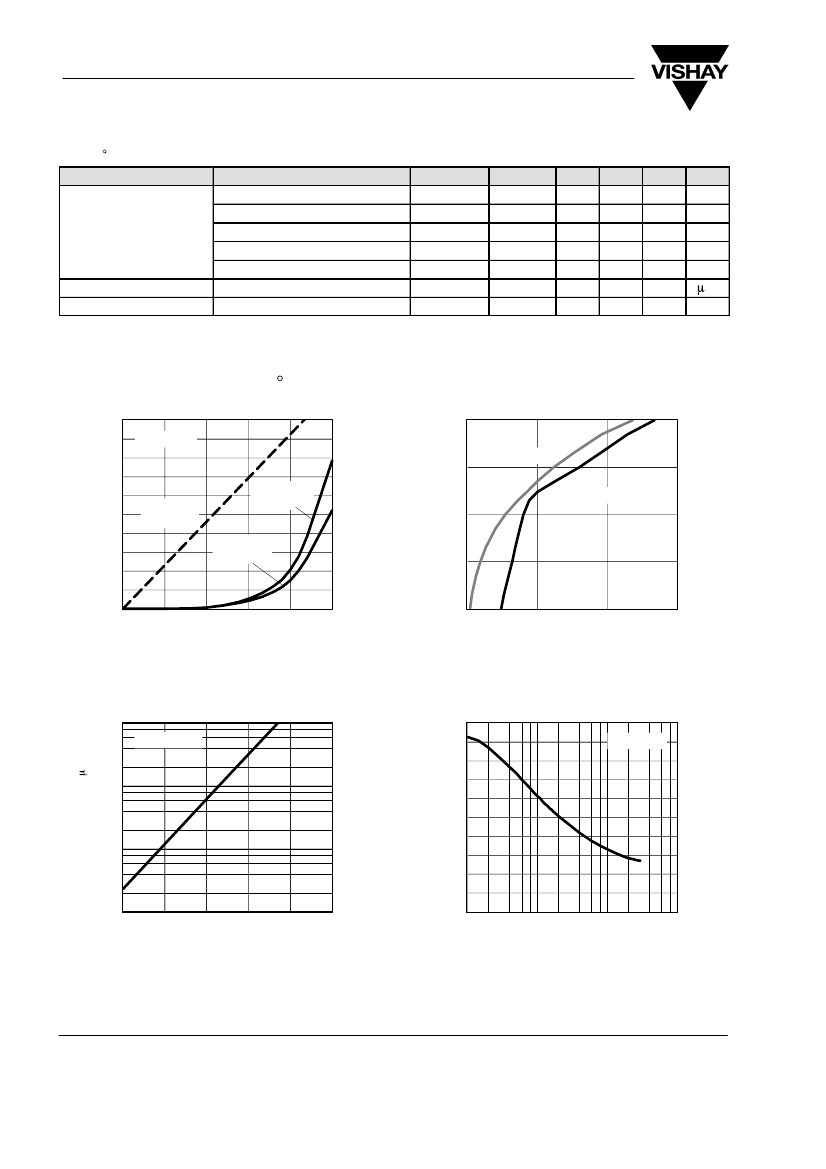

Electrical Characteristics
T
j
= 25
_
C
Parameter
Test Conditions
I
F
=0.1mA
I
F
=1mA
I
F
=10mA
I
F
=30mA
I
F
=100mA
V
R
=25 V
V
R
=1 V, f=1MHz
Type
Symbol
V
F
V
F
V
F
V
F
V
F
I
R
C
D
Min
Typ
Max
240
320
400
500
800
2
10
Unit
mV
mV
mV
mV
mV
m
A
pF
Forward voltage
g
Reverse current
Diode capacitance
Characteristics
(T
j
= 25
_
C unless otherwise specified)
200
P
R
– Reverse Power Dissipation ( mW )
180
160
140
120
100
80
60
40
20
0
25
15822
1000
V
R
= 30 V
I
F
– Forward Current ( A )
100
T
j
= 150°C
R
thJA
=
540K/W
P
R
–Limit
@100%V
R
T
j
= 25°C
10
P
R
–Limit
@80%V
R
1
0.1
50
75
100
125
150
15824
0
0.5
1.0
1.5
T
j
– Junction Temperature (
°C
)
V
F
– Forward Voltage ( V )
Figure 1. Max. Reverse Power Dissipation vs.
Junction Temperature
1000
V
R
= V
RRM
Figure 3. Forward Current vs. Forward Voltage
10
9
C
D
– Diode Capacitance ( pF )
8
7
6
5
4
3
2
1
0
0.1
15825
f=1MHz
I
R
– Reverse Current (
m
A )
100
10
1
25
15823
50
75
100
125
150
1.0
10.0
100.0
T
j
– Junction Temperature (
°C
)
V
R
– Reverse Voltage ( V )
Figure 2. Reverse Current vs. Junction Temperature
Figure 4. Diode Capacitance vs. Reverse Voltage
www.vishay.com
2 (4)
Document Number 85513
Rev. 4, 12-Feb-01
BAT85S
Vishay Telefunken
