SN74LS147JD

Description
Encoder, LS Series, 9-Bit, TTL, CDIP16, CERAMIC, DIP-16
Categorylogic    logic
File Size205KB,5 Pages
ManufacturerMotorola ( NXP )
Websitehttps://www.nxp.com
Download Datasheet Parametric View All

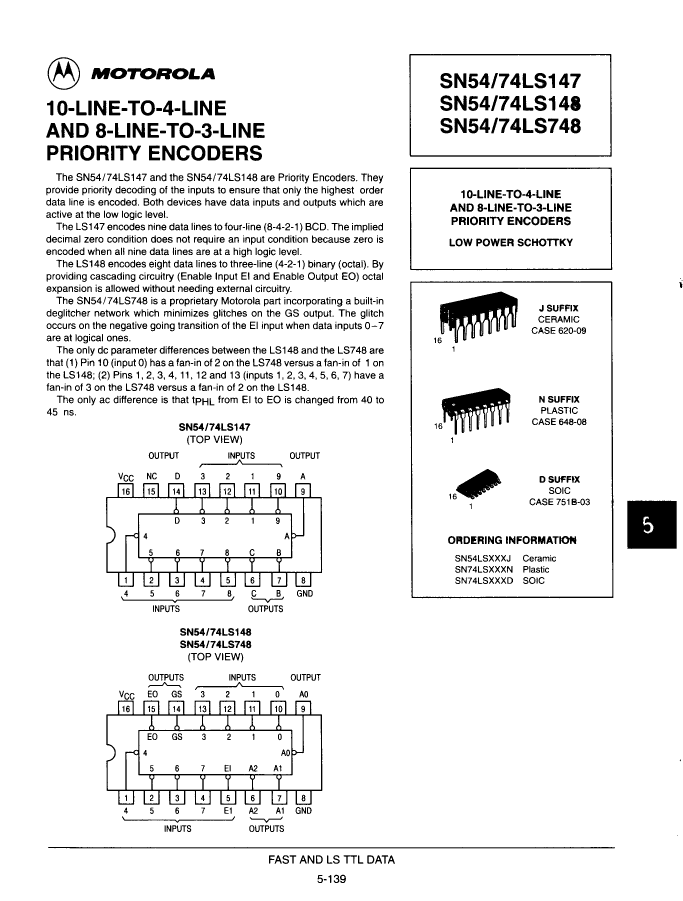

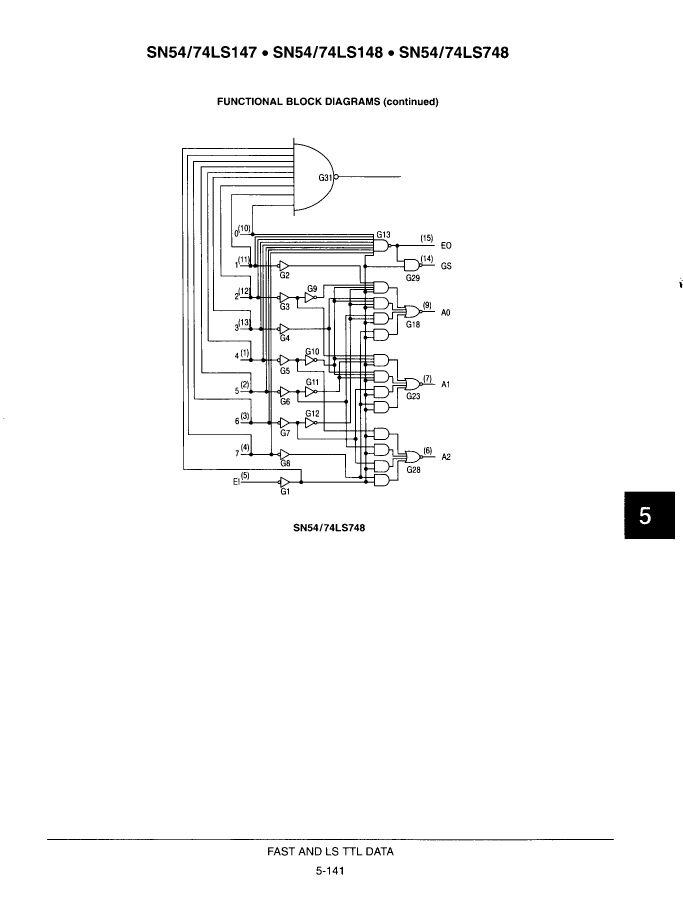

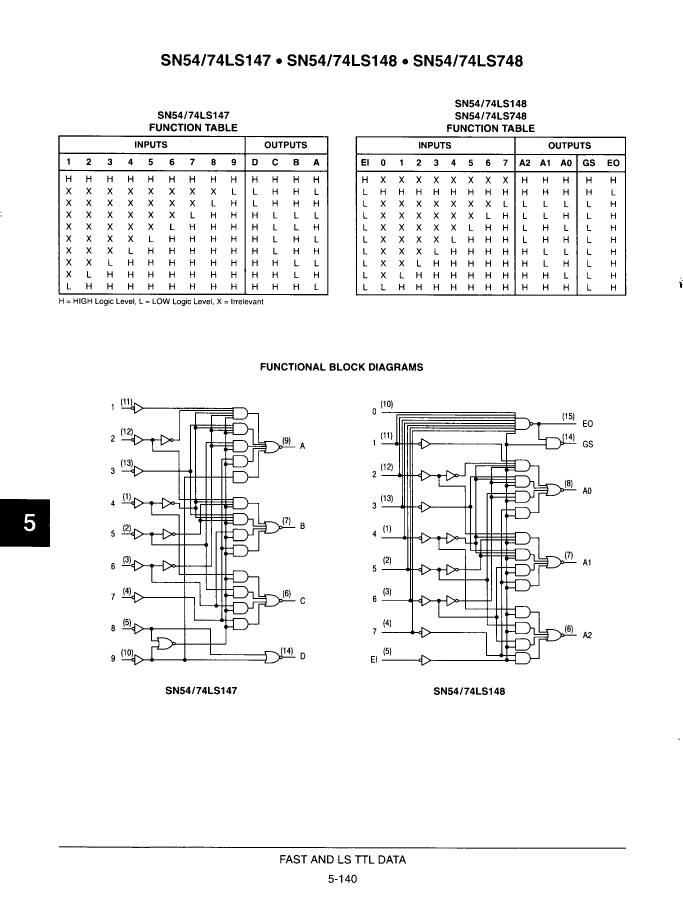

SN74LS147JD Overview

Encoder, LS Series, 9-Bit, TTL, CDIP16, CERAMIC, DIP-16

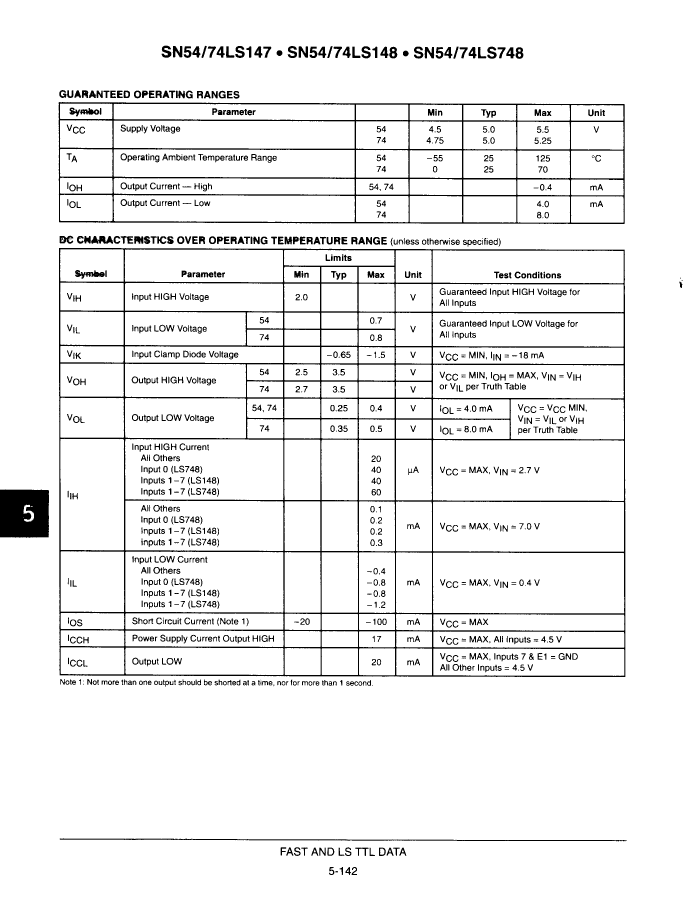

SN74LS147JD Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerMotorola ( NXP )
Parts packaging codeDIP
package instructionDIP, DIP16,.3
Contacts16
Reach Compliance Codeunknown
Other features9 TO 4 LINE PRIORITY ENCODER
seriesLS
JESD-30 codeR-GDIP-T16
JESD-609 codee0
length19.495 mm
Logic integrated circuit typeENCODER
Number of digits9
Number of functions1
Number of terminals16
Maximum operating temperature70 °C
Minimum operating temperature
Package body materialCERAMIC, GLASS-SEALED
encapsulated codeDIP
Encapsulate equivalent codeDIP16,.3
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply5 V

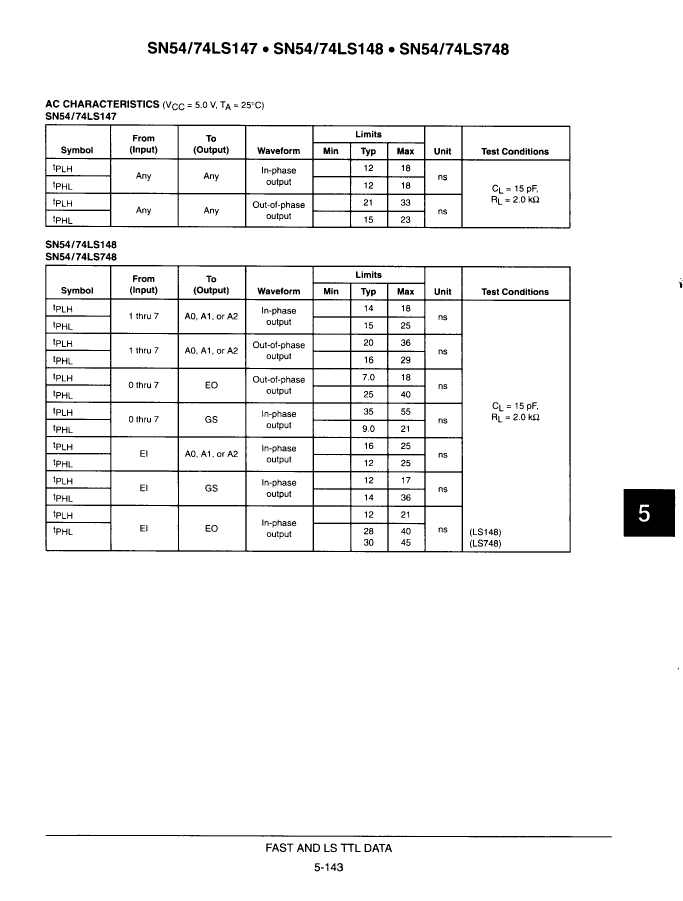

propagation delay (tpd)23 ns
Certification statusNot Qualified
Maximum seat height5.08 mm
Maximum supply voltage (Vsup)5.25 V
Minimum supply voltage (Vsup)4.75 V
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyTTL
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width7.62 mm
Base Number Matches1
