SN74LS192DR2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> SN74LS192DR2

SN74LS192DR2: DescriptionLS SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT BIDIRECTIONAL DECADE COUNTER, PDSO16, PLASTIC, SOIC-16; Categorylogic logic; File Size165KB，7 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

SN74LS192DR2 Overview

LS SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT BIDIRECTIONAL DECADE COUNTER, PDSO16, PLASTIC, SOIC-16

SN74LS192DR2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	SOIC
package instruction	SOP, SOP16,.25
Contacts	16
Reach Compliance Code	unknown
Other features	TCO UP AND TCO DOWN OUTPUTS; SEPARATE UP/DOWN CLOCK
Counting direction	BIDIRECTIONAL
series	LS
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
length	9.9 mm
Load capacitance (CL)	15 pF
Load/preset input	YES
Logic integrated circuit type	DECADE COUNTER
Maximum Frequency@Nom-Sup	25000000 Hz
MaximumI(ol)	0.008 A
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
method of packing	TAPE AND REEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	34 mA
propagation delay (tpd)	47 ns
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	POSITIVE EDGE
width	3.9 mm
minfmax	25 MHz
Base Number Matches	1

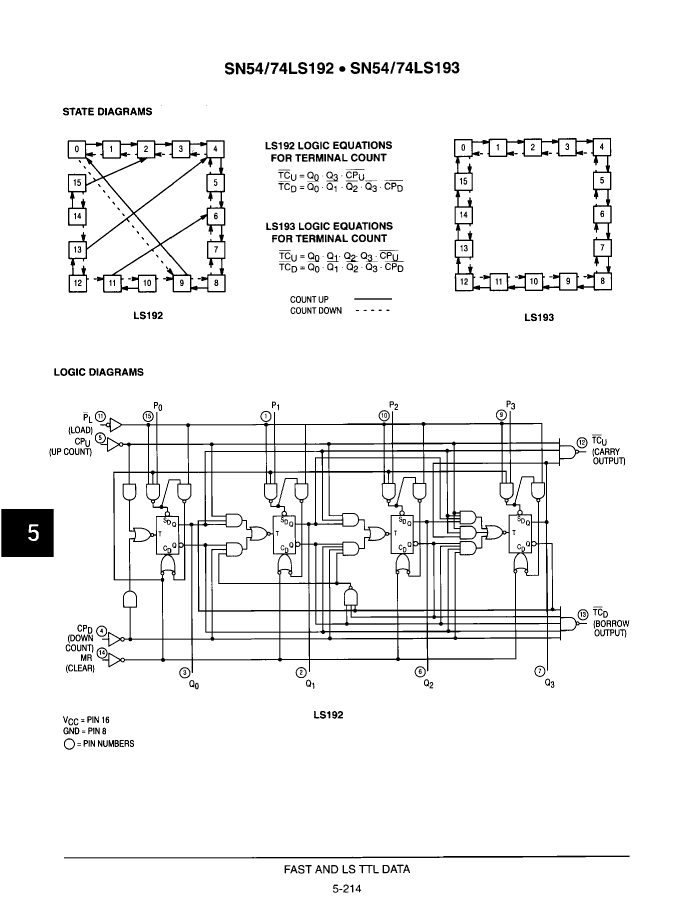

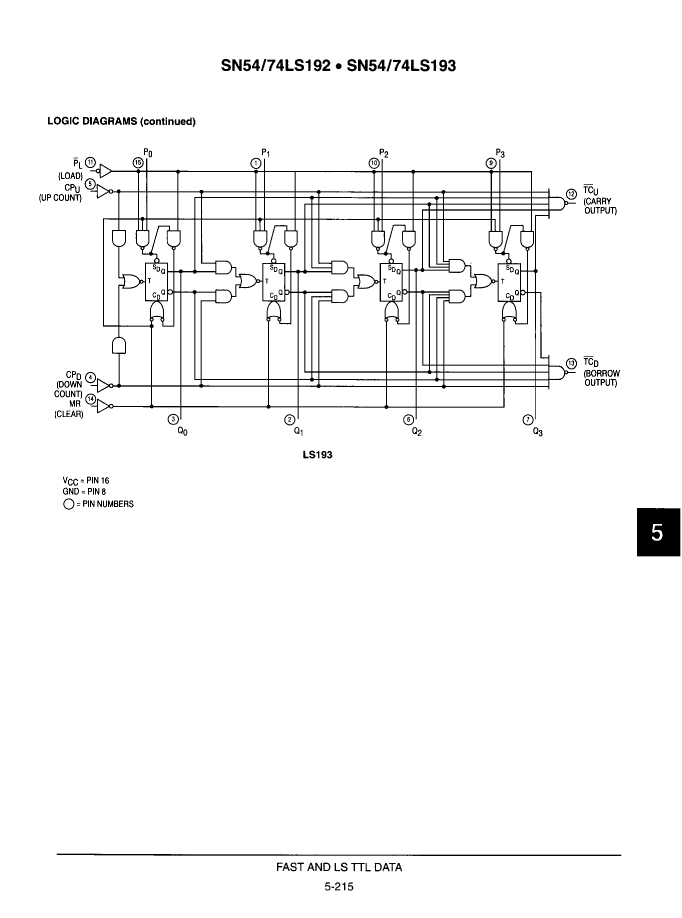

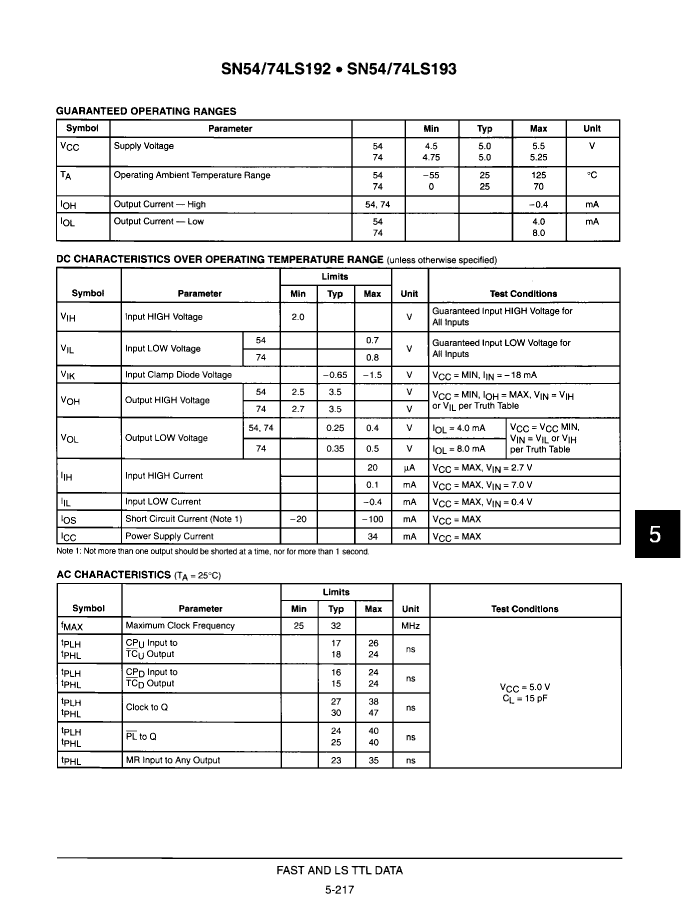

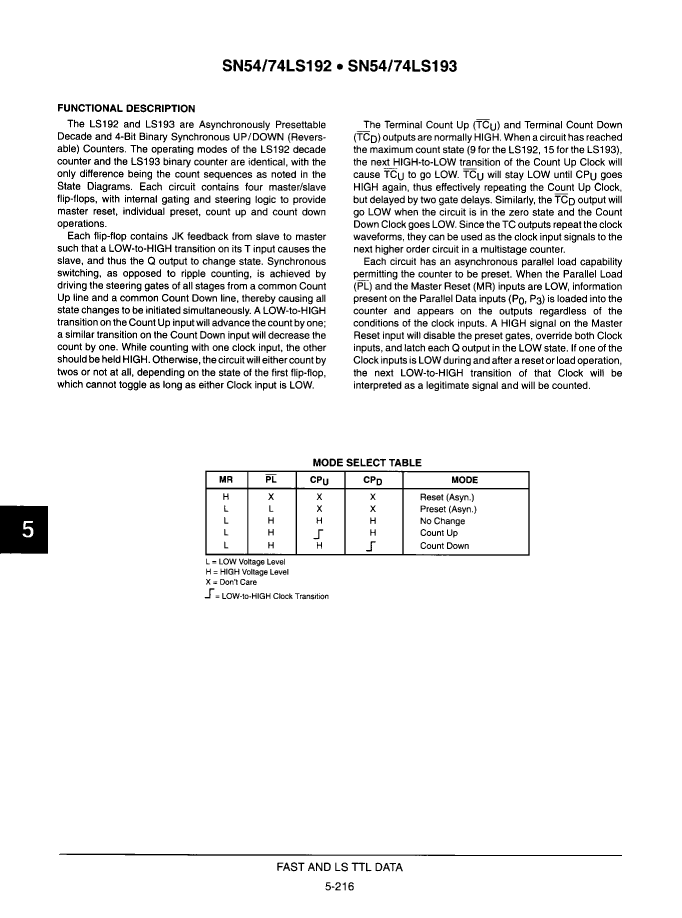

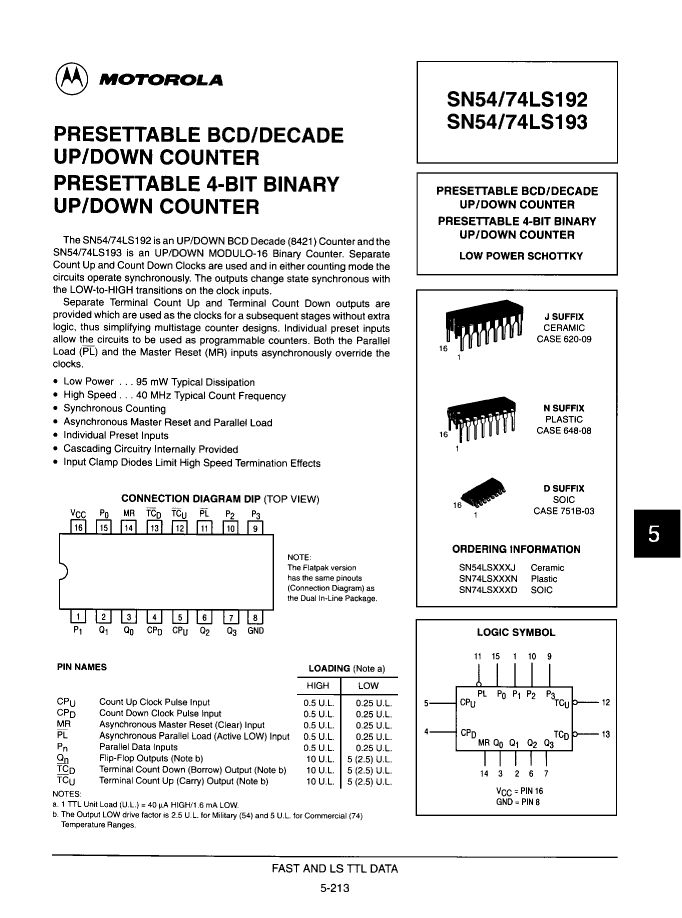

Preview

Download Datasheet

View All

SN74LS192DR2 Related Products

	SN74LS192DR2	SN54LS193JD	SN54LS192JD	SN74LS192ND	SN74LS193DR2
Description	LS SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT BIDIRECTIONAL DECADE COUNTER, PDSO16, PLASTIC, SOIC-16	LS SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT BIDIRECTIONAL BINARY COUNTER, CDIP16, CERAMIC, DIP-16	LS SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT BIDIRECTIONAL DECADE COUNTER, CDIP16, CERAMIC, DIP-16	LS SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT BIDIRECTIONAL DECADE COUNTER, PDIP16, PLASTIC, DIP-16	LS SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT BIDIRECTIONAL BINARY COUNTER, PDSO16, PLASTIC, SOIC-16
Parts packaging code	SOIC	DIP	DIP	DIP	SOIC
package instruction	SOP, SOP16,.25	DIP,	DIP,	DIP, DIP16,.3	SOP, SOP16,.25
Contacts	16	16	16	16	16
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Base Number Matches	1	1	1	1	1
Other features	TCO UP AND TCO DOWN OUTPUTS; SEPARATE UP/DOWN CLOCK	TCO UP AND TCO DOWN OUTPUTS; SEPARATE UP/DOWN CLOCK	TCO UP AND TCO DOWN OUTPUTS; SEPARATE UP/DOWN CLOCK	-	TCO UP AND TCO DOWN OUTPUTS; SEPARATE UP/DOWN CLOCK
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	-	BIDIRECTIONAL
series	LS	LS	LS	-	LS
JESD-30 code	R-PDSO-G16	R-GDIP-T16	R-GDIP-T16	-	R-PDSO-G16
length	9.9 mm	19.3 mm	19.3 mm	-	9.9 mm
Load capacitance (CL)	15 pF	15 pF	15 pF	-	15 pF
Load/preset input	YES	YES	YES	-	YES
Logic integrated circuit type	DECADE COUNTER	BINARY COUNTER	DECADE COUNTER	-	BINARY COUNTER
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	-	SYNCHRONOUS
Number of digits	4	4	4	-	4
Number of functions	1	1	1	-	1
Number of terminals	16	16	16	-	16
Maximum operating temperature	70 °C	125 °C	125 °C	-	70 °C
Package body material	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	-	PLASTIC/EPOXY
encapsulated code	SOP	DIP	DIP	-	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	-	SMALL OUTLINE
Maximum supply current (ICC)	34 mA	34 mA	34 mA	-	34 mA
propagation delay (tpd)	47 ns	47 ns	47 ns	-	47 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified
Maximum seat height	1.75 mm	4.19 mm	4.19 mm	-	1.75 mm
Maximum supply voltage (Vsup)	5.25 V	5.5 V	5.5 V	-	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.5 V	4.5 V	-	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	-	5 V
surface mount	YES	NO	NO	-	YES
technology	TTL	TTL	TTL	-	TTL
Temperature level	COMMERCIAL	MILITARY	MILITARY	-	COMMERCIAL
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	-	GULL WING
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	-	1.27 mm
Terminal location	DUAL	DUAL	DUAL	-	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	-	POSITIVE EDGE
width	3.9 mm	7.62 mm	7.62 mm	-	3.9 mm
minfmax	25 MHz	25 MHz	25 MHz	-	25 MHz
