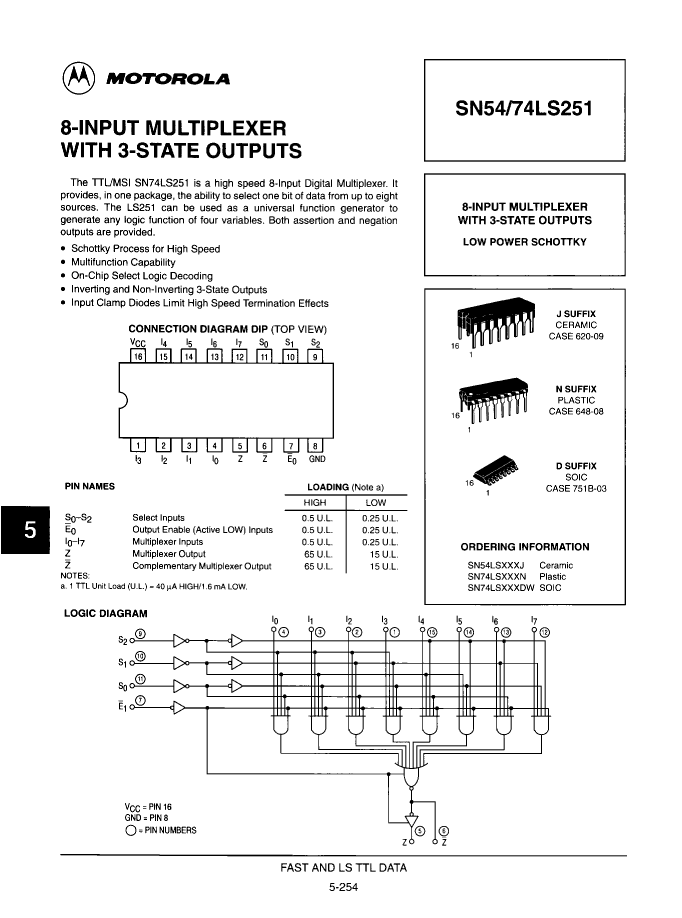

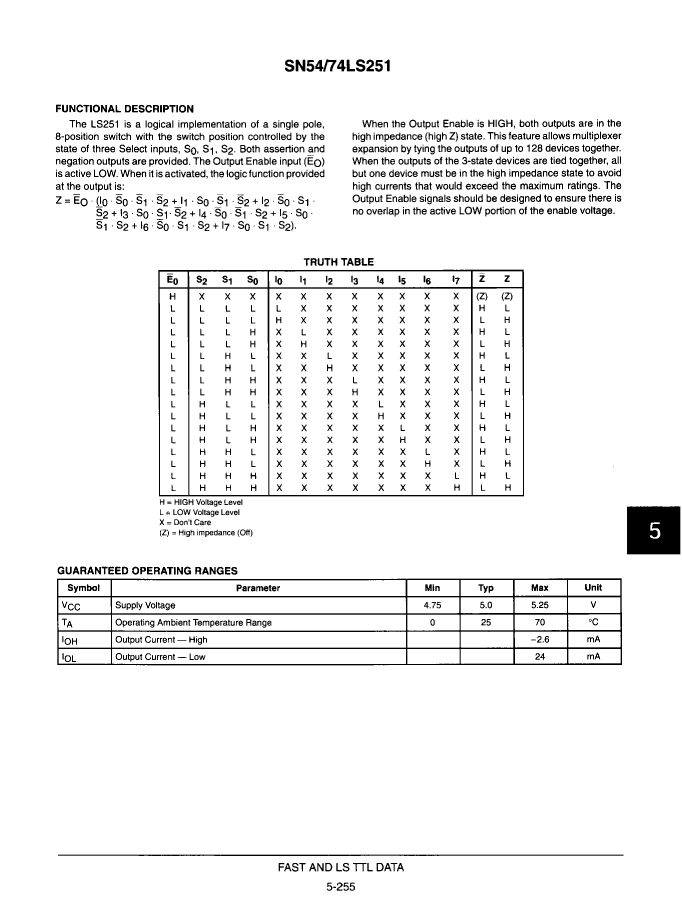

LS SERIES, 8 LINE TO 1 LINE MULTIPLEXER, COMPLEMENTARY OUTPUT, PDSO16, PLASTIC, SOIC-16

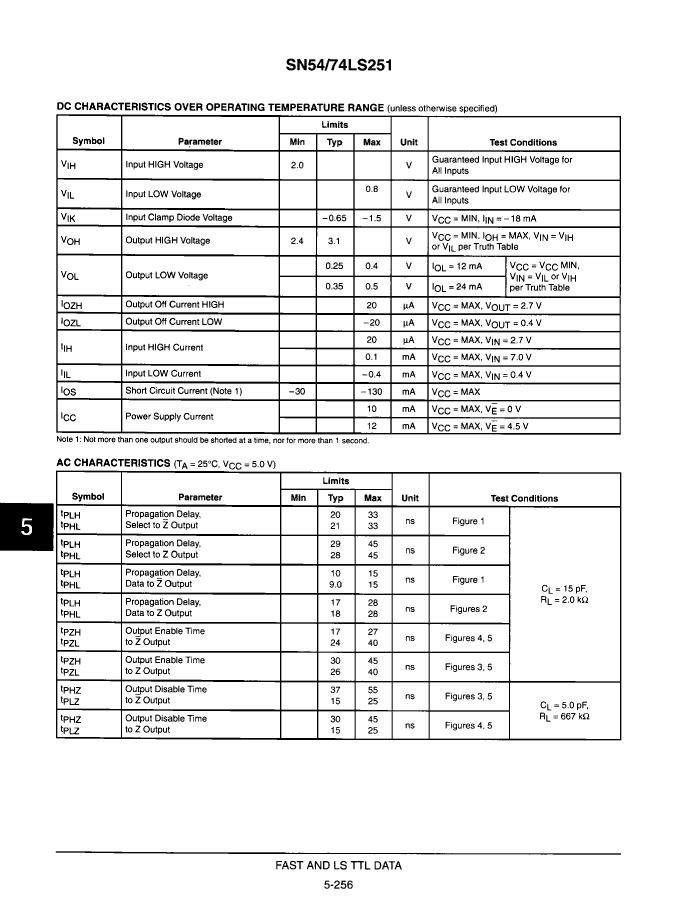

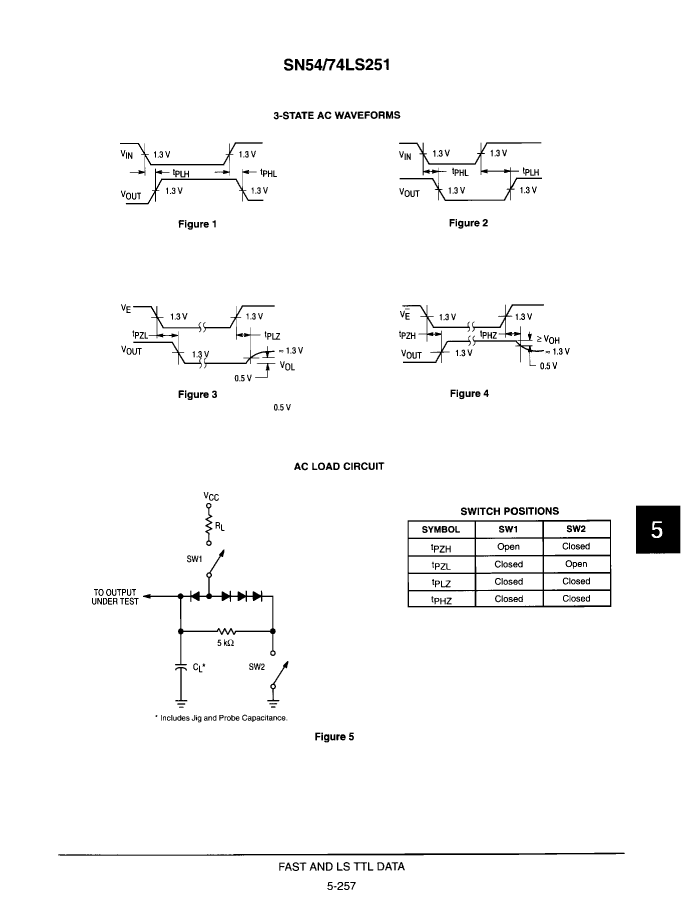

| Parameter Name | Attribute value |
| Parts packaging code | SOIC |
| package instruction | SOP, SOP16,.25 |
| Contacts | 16 |
| Reach Compliance Code | unknown |
| series | LS |
| JESD-30 code | R-PDSO-G16 |
| JESD-609 code | e0 |
| length | 9.9 mm |
| Load capacitance (CL) | 15 pF |
| Logic integrated circuit type | MULTIPLEXER |
| MaximumI(ol) | 0.024 A |
| Number of functions | 1 |
| Number of entries | 8 |
| Output times | 1 |
| Number of terminals | 16 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Output characteristics | 3-STATE |
| Output polarity | COMPLEMENTARY |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Encapsulate equivalent code | SOP16,.25 |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| method of packing | TAPE AND REEL |
| power supply | 5 V |
| Maximum supply current (ICC) | 10 mA |
| Prop。Delay @ Nom-Sup | 45 ns |
| propagation delay (tpd) | 45 ns |
| Certification status | Not Qualified |
| Maximum seat height | 1.75 mm |
| Maximum supply voltage (Vsup) | 5.25 V |
| Minimum supply voltage (Vsup) | 4.75 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| width | 3.9 mm |
| Base Number Matches | 1 |
| SN74LS251DR2 | SN74LS251ND | SN54LS251JD | |
|---|---|---|---|
| Description | LS SERIES, 8 LINE TO 1 LINE MULTIPLEXER, COMPLEMENTARY OUTPUT, PDSO16, PLASTIC, SOIC-16 | LS SERIES, 8 LINE TO 1 LINE MULTIPLEXER, COMPLEMENTARY OUTPUT, PDIP16, PLASTIC, DIP-16 | Multiplexer, LS Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, TTL, CDIP16, CERAMIC, DIP-16 |
| package instruction | SOP, SOP16,.25 | PLASTIC, DIP-16 | DIP, |
| Reach Compliance Code | unknown | unknown | unknown |
| series | LS | LS | LS |
| JESD-30 code | R-PDSO-G16 | R-PDIP-T16 | R-GDIP-T16 |
| length | 9.9 mm | 19.175 mm | 19.3 mm |
| Load capacitance (CL) | 15 pF | 15 pF | 15 pF |
| Logic integrated circuit type | MULTIPLEXER | MULTIPLEXER | MULTIPLEXER |
| Number of functions | 1 | 1 | 1 |
| Number of entries | 8 | 8 | 8 |
| Output times | 1 | 1 | 1 |
| Number of terminals | 16 | 16 | 16 |
| Maximum operating temperature | 70 °C | 70 °C | 125 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | COMPLEMENTARY | COMPLEMENTARY | COMPLEMENTARY |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | CERAMIC, GLASS-SEALED |
| encapsulated code | SOP | DIP | DIP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | IN-LINE | IN-LINE |
| Maximum supply current (ICC) | 10 mA | 10 mA | 10 mA |
| propagation delay (tpd) | 45 ns | 45 ns | 45 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 1.75 mm | 4.44 mm | 4.19 mm |
| Maximum supply voltage (Vsup) | 5.25 V | 5.25 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.75 V | 4.75 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V |
| surface mount | YES | NO | NO |
| technology | TTL | TTL | TTL |
| Temperature level | COMMERCIAL | COMMERCIAL | MILITARY |
| Terminal form | GULL WING | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 1.27 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL |
| width | 3.9 mm | 7.62 mm | 7.62 mm |
| JESD-609 code | e0 | e0 | - |
| MaximumI(ol) | 0.024 A | 0.024 A | - |
| Encapsulate equivalent code | SOP16,.25 | DIP16,.3 | - |
| power supply | 5 V | 5 V | - |
| Prop。Delay @ Nom-Sup | 45 ns | 45 ns | - |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | - |
| Base Number Matches | 1 | 1 | - |
| Maker | - | Motorola ( NXP ) | Motorola ( NXP ) |
