SN74LS540NDS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> SN74LS540NDS

SN74LS540NDS: DescriptionLS SERIES, 8-BIT DRIVER, INVERTED OUTPUT, PDIP20, PLASTIC, DIP-20; Categorylogic logic; File Size76KB，3 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

SN74LS540NDS Overview

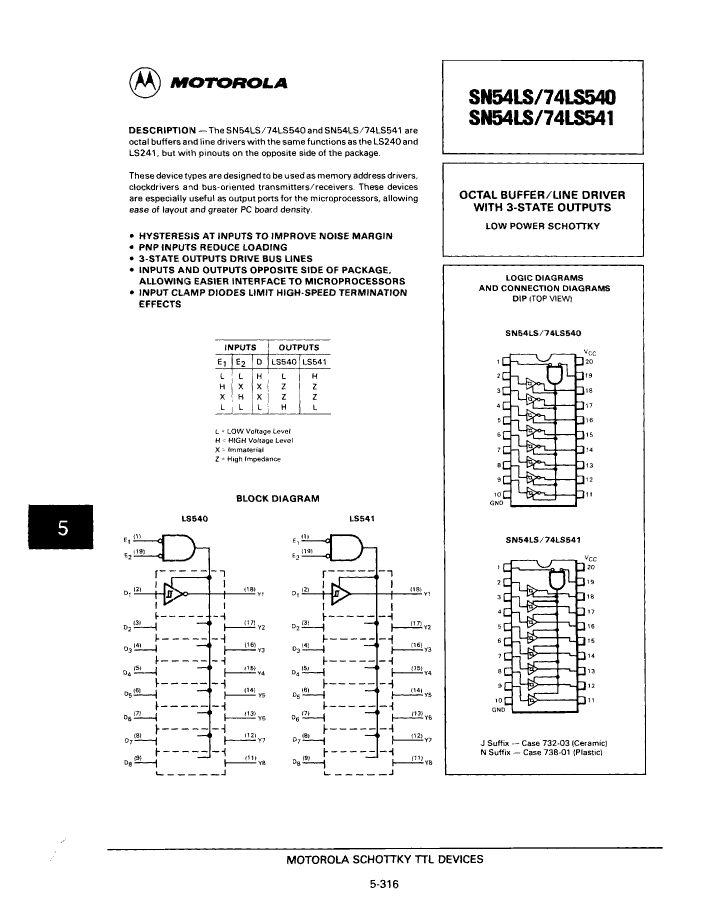

LS SERIES, 8-BIT DRIVER, INVERTED OUTPUT, PDIP20, PLASTIC, DIP-20

SN74LS540NDS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP, DIP20,.3
Contacts	20
Reach Compliance Code	unknown
Other features	WITH DUAL OUTPUT ENABLE
Control type	ENABLE LOW
series	LS
JESD-30 code	R-PDIP-T20
JESD-609 code	e0
length	26.415 mm
Logic integrated circuit type	BUS DRIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
propagation delay (tpd)	15 ns
Certification status	Not Qualified
Maximum seat height	4.19 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

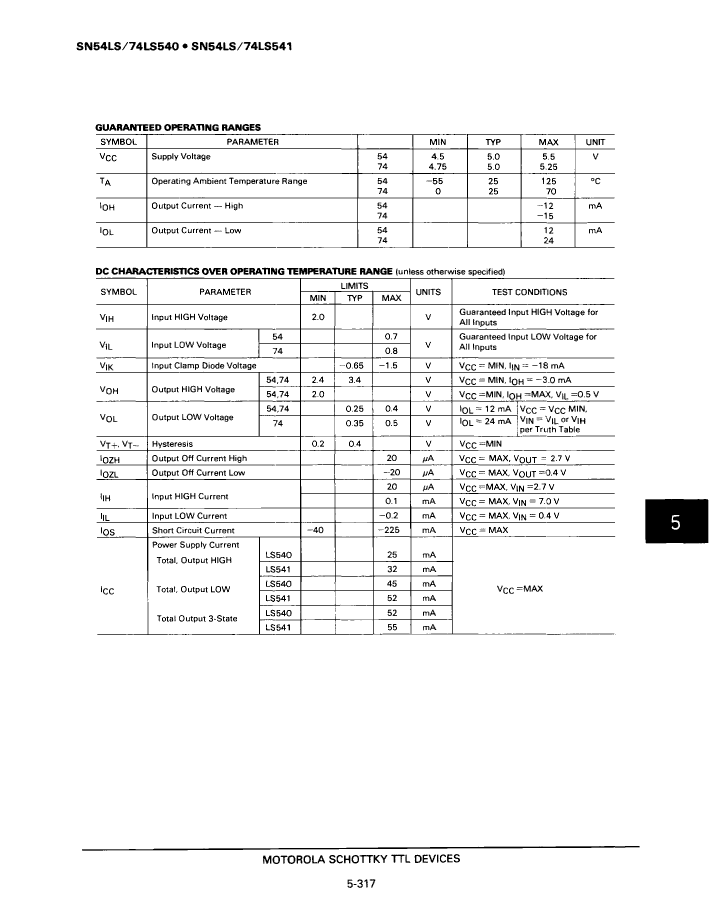

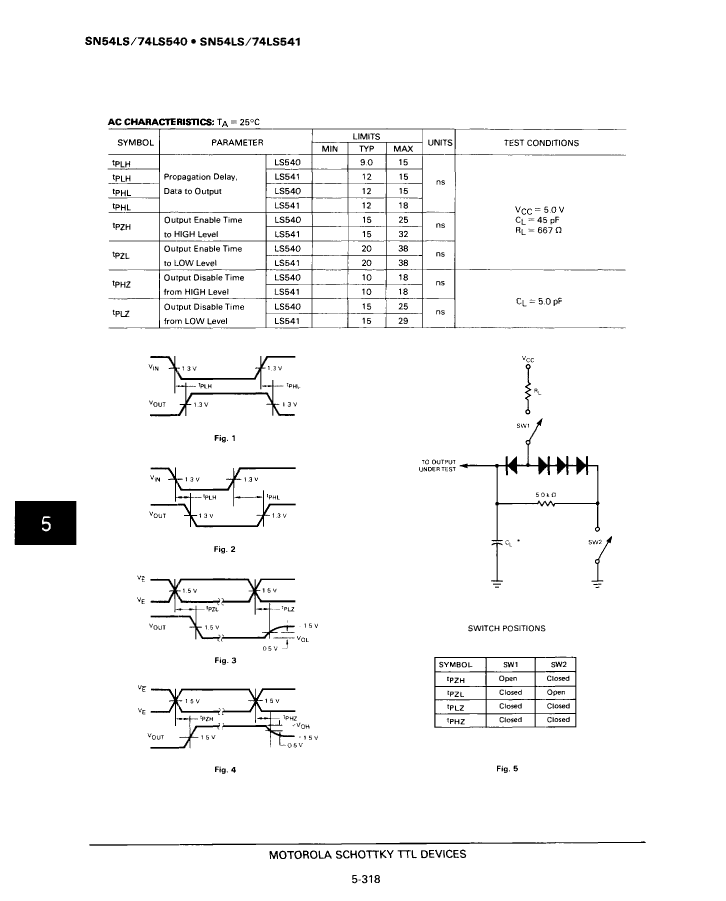

Preview

Download Datasheet

View All

SN74LS540NDS Related Products

	SN74LS540NDS	SN74LS540JD	SN74LS540JDS	SN74LS541NDS	SN74LS541JDS
Description	LS SERIES, 8-BIT DRIVER, INVERTED OUTPUT, PDIP20, PLASTIC, DIP-20	LS SERIES, 8-BIT DRIVER, INVERTED OUTPUT, CDIP20, CERAMIC, DIP-20	LS SERIES, 8-BIT DRIVER, INVERTED OUTPUT, CDIP20, CERAMIC, DIP-20	LS SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDIP20, PLASTIC, DIP-20	LS SERIES, 8-BIT DRIVER, TRUE OUTPUT, CDIP20, CERAMIC, DIP-20
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP20,.3	DIP, DIP20,.3	DIP, DIP20,.3	DIP, DIP20,.3	DIP, DIP20,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Parts packaging code	DIP	-	DIP	DIP	DIP
Contacts	20	-	20	20	20
Other features	WITH DUAL OUTPUT ENABLE	-	WITH DUAL OUTPUT ENABLE	WITH DUAL OUTPUT ENABLE	WITH DUAL OUTPUT ENABLE
Control type	ENABLE LOW	-	ENABLE LOW	ENABLE LOW	ENABLE LOW
series	LS	-	LS	LS	LS
JESD-30 code	R-PDIP-T20	-	R-CDIP-T20	R-PDIP-T20	R-CDIP-T20
JESD-609 code	e0	-	e0	e0	e0
length	26.415 mm	-	24.515 mm	26.415 mm	24.515 mm
Logic integrated circuit type	BUS DRIVER	-	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	8	-	8	8	8
Number of functions	1	-	1	1	1
Number of ports	2	-	2	2	2
Number of terminals	20	-	20	20	20
Maximum operating temperature	70 °C	-	70 °C	70 °C	70 °C
Output characteristics	3-STATE	-	3-STATE	3-STATE	3-STATE
Output polarity	INVERTED	-	INVERTED	TRUE	TRUE
Package body material	PLASTIC/EPOXY	-	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	-	DIP	DIP	DIP
Encapsulate equivalent code	DIP20,.3	-	DIP20,.3	DIP20,.3	DIP20,.3
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	-	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	-	5 V	5 V	5 V
propagation delay (tpd)	15 ns	-	15 ns	18 ns	18 ns
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.19 mm	-	5.08 mm	4.19 mm	5.08 mm
Maximum supply voltage (Vsup)	5.25 V	-	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	-	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	-	5 V	5 V	5 V
surface mount	NO	-	NO	NO	NO
technology	TTL	-	TTL	TTL	TTL
Temperature level	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	-	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	-	7.62 mm	7.62 mm	7.62 mm
Base Number Matches	1	1	1	-	-
Maker	-	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
