CDLL0.2A40: DescriptionRectifier Diode, Schottky, 1 Element, 0.2A, 40V V(RRM), Silicon, DO-213AA, HERMETIC SEALED, GLASS, LL34, MELF-2; CategoryDiscrete semiconductor diode; File Size69KB，2 Pages; ManufacturerCompensated Devices Inc.

Download Datasheet Parametric Compare View All

CDLL0.2A40 Overview

Rectifier Diode, Schottky, 1 Element, 0.2A, 40V V(RRM), Silicon, DO-213AA, HERMETIC SEALED, GLASS, LL34, MELF-2

CDLL0.2A40 Parametric

Parameter Name	Attribute value
Maker	Compensated Devices Inc.
package instruction	HERMETIC SEALED, GLASS, LL34, MELF-2
Reach Compliance Code	unknown
Other features	METALLURGICALLY BONDED
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-213AA
JESD-30 code	O-LELF-R2
JESD-609 code	e0
Number of components	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Maximum output current	0.2 A
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	40 V
surface mount	YES
technology	SCHOTTKY
Terminal surface	TIN LEAD
Terminal form	WRAP AROUND
Terminal location	END
Base Number Matches	1

Preview

Download Datasheet

View All

• 1N6677UR-1 AVAILABLE IN

JAN, JANTX, JANTXV AND JANS

PER MIL-PRF-19500/610

• 0.2 & 0.5 AMP SCHOTTKY BARRIER RECTIFIERS

• HERMETICALLY SEALED

•LEADLESS PACKAGE FOR SURFACE MOUNT

• METALLURGICALLY BONDED

• DOUBLE PLUG CONSTRUCTION

1N6677UR-1

and

CDLL6675 thru CDLL6677

and

CDLL0.2A20

thru

and

CDLL0.5A20 thru 40

MAXIMUM RATINGS, 0.2 AMP DEVICES

Operating Temperature: -65°C to +125°C

Storage Temperature: -65°C to +150°C

Average Rectified Forward Current: 0.2 AMP @ TEC = +100°C

Derating: 8.0 mA / °C above +100°C

ELECTRICAL CHARACTERISTICS

@ 25°C, unless otherwise specified.

CDI

TYPE

NUMBER

WORKING PEAK

REVERSE

VOLTAGE

VRWM

VOLTS

CDLL6675

CDLL6676

CDLL6677

CDLL0.2A20

CDLL0.2A30

CDLL0.2A40

MAXIMUM REVERSE

LEAKAGE CURRENT

AT RATED VOLTAGE

IR @ +25°C

IR @ +100°C

0.6

MAXIMUM

CAPACITANCE @

VR = 0 VOLTS

f =1.0 MHz

PICO FARADS

MAXIMUM FORWARD VOLTAGE

VF @ 20 mA VF @ 200 mA VF @ 630 mA

VOLTS

0.37

VOLTS

0.50

VOLTS

0.70

5.0

DIM

MILLIMETERS

INCHES

MIN MAX MIN MAX

1.60

1.70 0.063 0.067

0.41

0.55 0.016 0.022

3.30

3.70 .130 .146

2.54 REF.

.100 REF.

0.03 MIN.

.001 MIN.

FIGURE 1

DESIGN DATA

MAXIMUM RATINGS, 0.5 AMP DEVICES

Operating Temperature: -65°C to +125°C

Storage Temperature: -65°C to +150°C

Average Rectified Forward Current: 0.5 AMP @ TEC = +75°C

Derating: 6.67 mA / °C above TEC = +75°C

ELECTRICAL CHARACTERISTICS

@ 25°C, unless otherwise specified.

MAXIMUM

CAPACITANCE @

VR = 0 VOLTS

f =1.0 MHz

PICO FARADS

CASE:

DO-213AA, Hermetically sealed

glass case. (MELF, SOD-80, LL34)

LEAD FINISH:

Tin / Lead

THERMAL RESISTANCE: (R

OJEC):

100 ˚C/W maximum at L = 0 inch

THERMAL IMPEDANCE: (Z

JX): 20

˚C/W maximum

POLARITY:

Cathode end is banded.

MOUNTING SURFACE SELECTION:

The Axial Coefficient of Expansion

(COE) Of this Device is Approximately

+6PPM/°C. The COE of the Mounting

Surface System Should Be Selected To

Provide A Suitable Match With This

Device.

CDI

TYPE

NUMBER

WORKING PEAK

REVERSE

VOLTAGE

VRWM

VOLTS

MAXIMUM

FORWARD VOLTAGE

VF @ 0.1A

VOLTS

0.50

VF @ 0.5A

VOLTS

0.65

MAXIMUM REVERSE

LEAKAGE CURRENT

AT RATED VOLTAGE

IR @ +25°C

IR @ +100°C

1.0

10.0

CDLL0.5A20

CDLL0.5A30

CDLL0.5A40

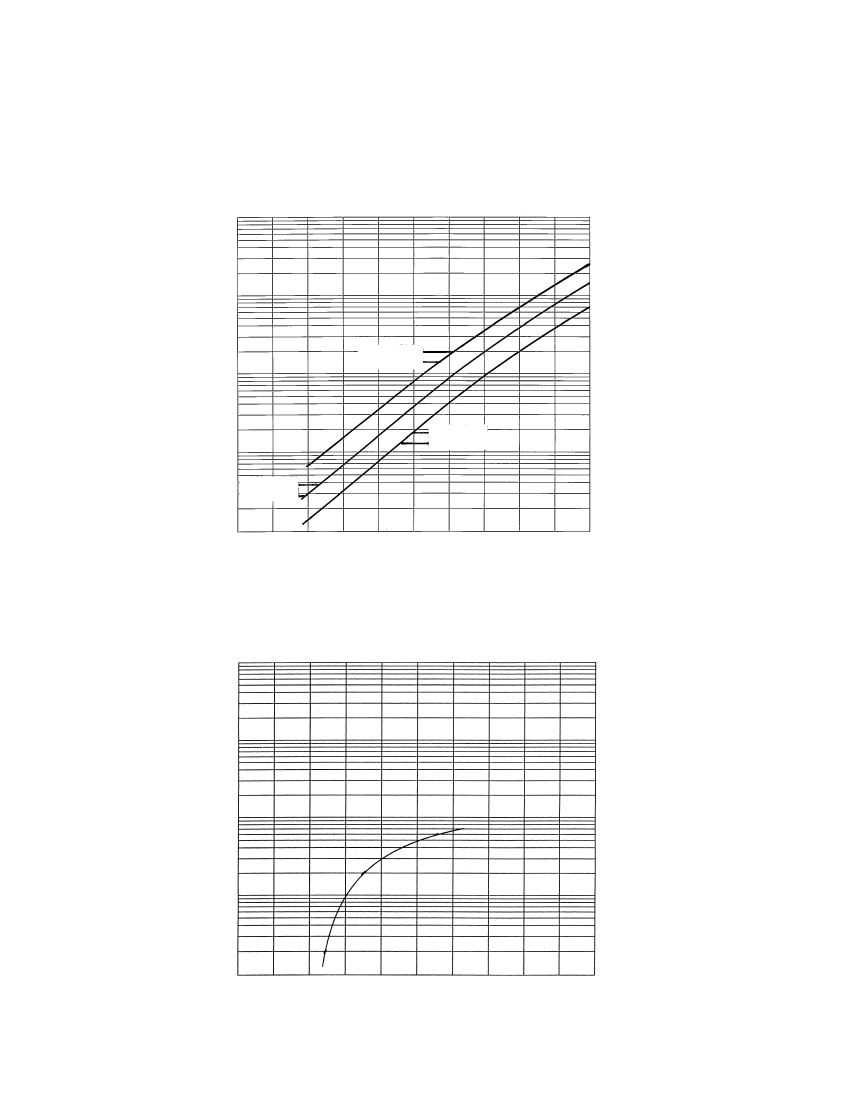

22 COREY STREET, MELROSE, MASSACHUSETTS 02176

PHONE (781) 665-1071

FAX (781) 665-7379

WEBSITE: http://www.cdi-diodes.com

E-mail: mail@cdi-diodes.com
