ALQ07FM48N: DescriptionDC-DC Regulated Power Supply Module, 2 Output, 30W, Hybrid, 1.45 X 2.28 INCH, 0.430 INCH HEIGHT, MODULE-7; CategoryPower/power management The power supply circuit; File Size141KB，2 Pages; ManufacturerArtysen Embedded Technologies

Download Datasheet Parametric View All

ALQ07FM48N Overview

DC-DC Regulated Power Supply Module, 2 Output, 30W, Hybrid, 1.45 X 2.28 INCH, 0.430 INCH HEIGHT, MODULE-7

ALQ07FM48N Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Artysen Embedded Technologies
Parts packaging code	MODULE
package instruction	,
Contacts	7
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ADDITIONAL 1.5V OUTPUT ALSO AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	75 V
Minimum input voltage	48 V
Nominal input voltage	36 V
JESD-30 code	R-XDMA-P7
JESD-609 code	e0
Number of functions	1
Output times	2
Number of terminals	7
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output voltage	3.63 V
Minimum output voltage	2.64 V
Nominal output voltage	3.3 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	30 W
Fine-tuning/adjustable output	YES
Base Number Matches	1

Preview

Download Datasheet

View All

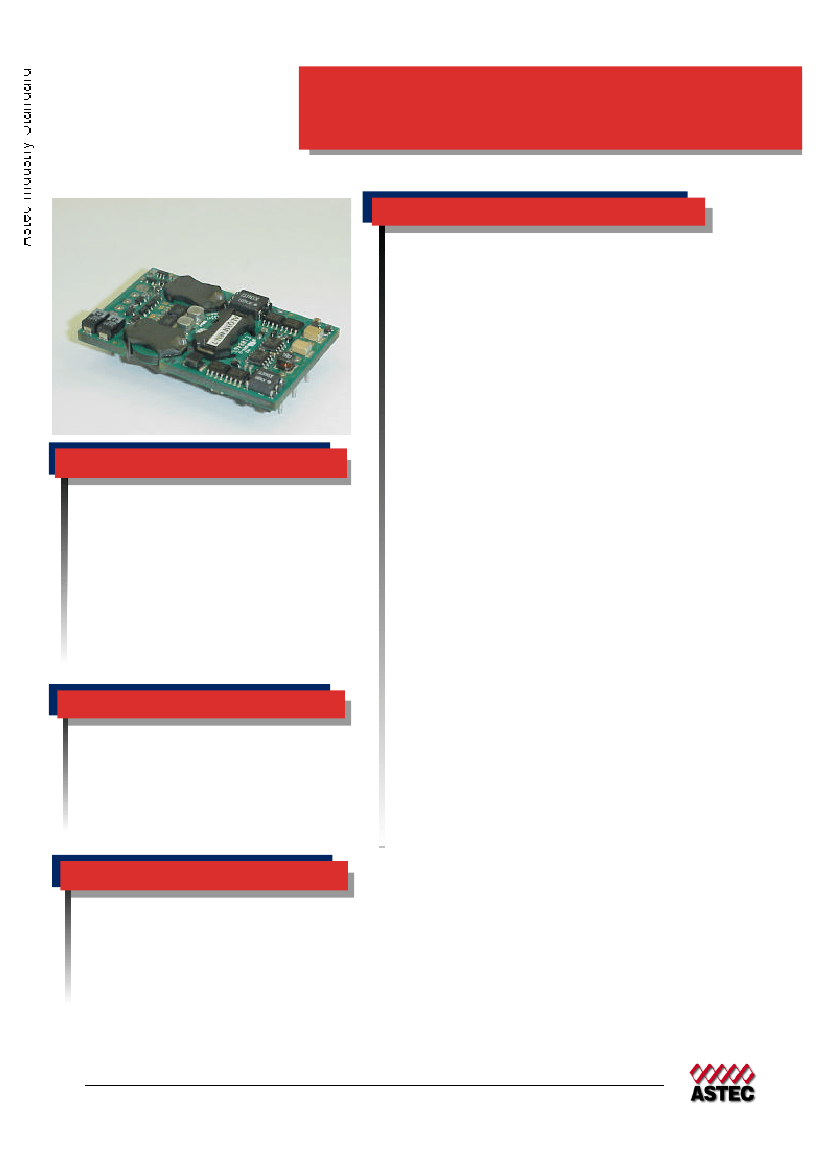

7 Amps

ALQ07-D

Dual output Quarter Brick

Total Power:

Input Voltages:

No. of Outputs:

30W

48V

Dual

Electrical Specs

Input

Input Range

Input Surge

Efficiency

36 to 75 VDC

100V /100ms

82% Typ

Output

Load Regulation

Line Regulation

Cross Regulation

Voltage Tolerance

Noise/Ripple

Transient Response

15mV max

8mV max

0.5% of Vo nom

±1%

50mV max

5% max deviation with 50% to 75% load

200µs (max) recovery

5Vmax for 3.3Vo, 2.26V max for 1.5Vo,

1.8V max for 1.2Vo , 2.6V max for 1.8V0

15A max for Io1 + Io2

360KHz (typ)

Special Features

• High efficiency (82% Typical)

• -40°C to +85°C Ambient Operation (with

airflow)

• Industry standard package

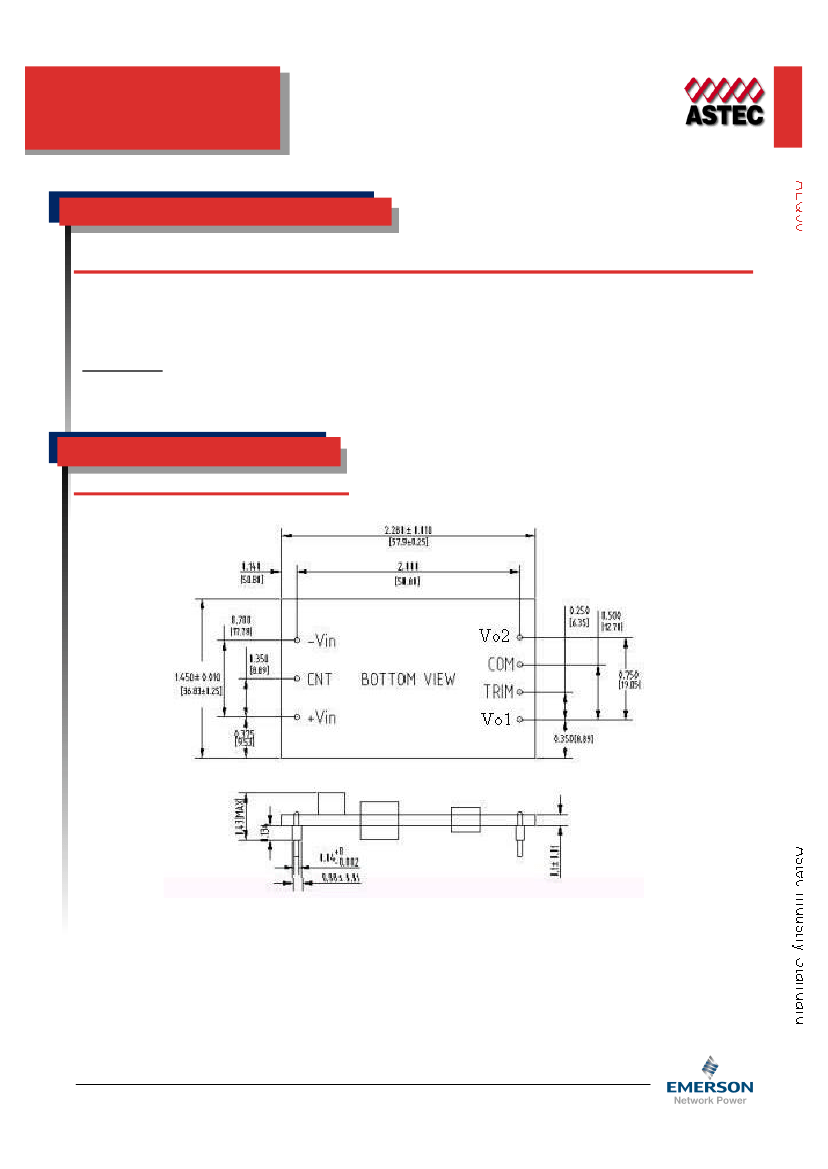

1.45" x 2.28" x 0.43"

• High capacitive load limit on start-up

• Basic insulation

• Regulation to zero load

• Fixed frequency switching (360KHz)

Overvoltage Protection

Current Limit

Switching Frequency

Control

Voltage Adjust

Enable

80 to 110%

TTL compatible

(positive & negative enable options)

Environmental

Ambient air operating temperature range:

-40°C to +85°C (with airflow)

Storage temperature: -55°C to +125°C

Overtemperature protection: 101°C

MTBF: > 1 million hour

Safety

CSA

TUV

60950

EN60950

North America (USA): 1-888-41-ASTEC

Europe (UK): 44 (1384) 842-211Asia (HK): 852-2437-9662
