LD2422H-S01 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> LD2422H-S01

LD2422H-S01: DescriptionBoard Connector, 22 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Press Fit Terminal, Guide Pin, Black Insulator, Receptacle; CategoryThe connector The connector; File Size94KB，1 Pages; ManufacturerFOXCONN; Websitehttp://www.fit-foxconn.com/

Download Datasheet Parametric View All

LD2422H-S01 Overview

Board Connector, 22 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Press Fit Terminal, Guide Pin, Black Insulator, Receptacle

LD2422H-S01 Parametric

Parameter Name	Attribute value
Maker	FOXCONN
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
Board mount options	PEG
body width	0.236 inch
subject depth	0.321 inch
body length	1.684 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	500VAC V
Durability	500 Cycles
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
Manufacturer's serial number	ID
Plug contact pitch	0.05 inch
Installation option 1	GUIDE PIN
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-45 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.125 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	22
Base Number Matches	1

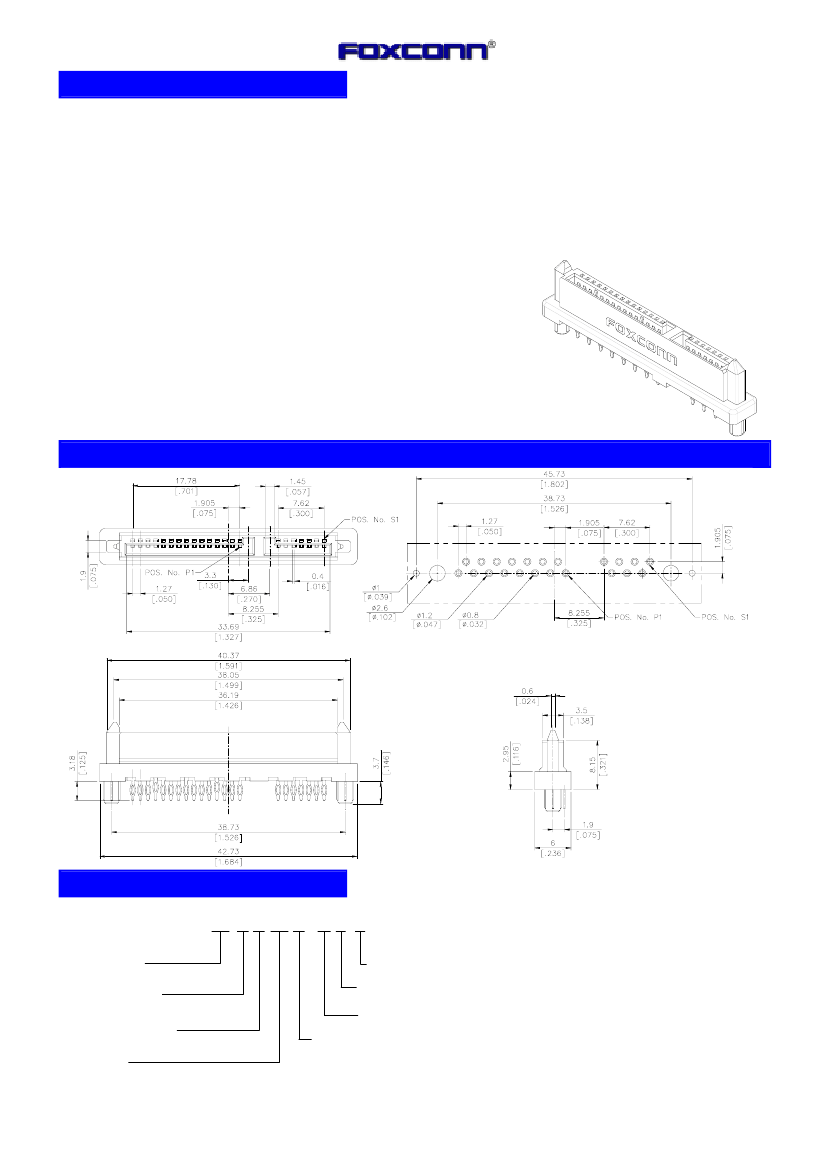

LD2422H-S01 Preview

Download Datasheet

View All

SPECIFICATIONS

S-ATA Connector

lD Series

Press Fit

Receptacle

1.27mm [.050"] Pitch

22 Pos.

Mechanical

Insertion Force:

20N max.

Withdrawal Force:

4N min.

Durability:

500 Cycles.

Electrical

Voltage Rating:

250V.

Current Rating:

1.5A per pin.

Contact Resistance:

30m

Ω

max.

∆

15 m

Ω

max. after stress.

Dielectric Withstanding Voltage:

500V AC.

Insulation Resistance:

1000M

Ω

min.

Physical

Housing:

Thermoplastic, UL 94V-0 rated in black Color

Contact:

Copper alloy

Plating:

See “ORDERING INFORMATION”

Operating Temperature:

-45

℃

to +85

℃

DRAWING

ORDERING

I N FO R M ATIO N

PRODUCT NO. : LD 2 4 22 * - S 0 *

S-ATA Series

Mating End Type

2=Receptacle

Modification Code

Outer Shape

0=Standard Type

S-ATA Specification

S=Serial ATA

Mounting End Type

4=Press fit.

Contact Area Plating

F=Gold Flash Plating With RoHS Compliance

H=30u" Gold Plating With RoHS Compliance

V=15u" Gold Plating With RoHS Compliance

No. of Pos.

22=22 Pos.

All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
