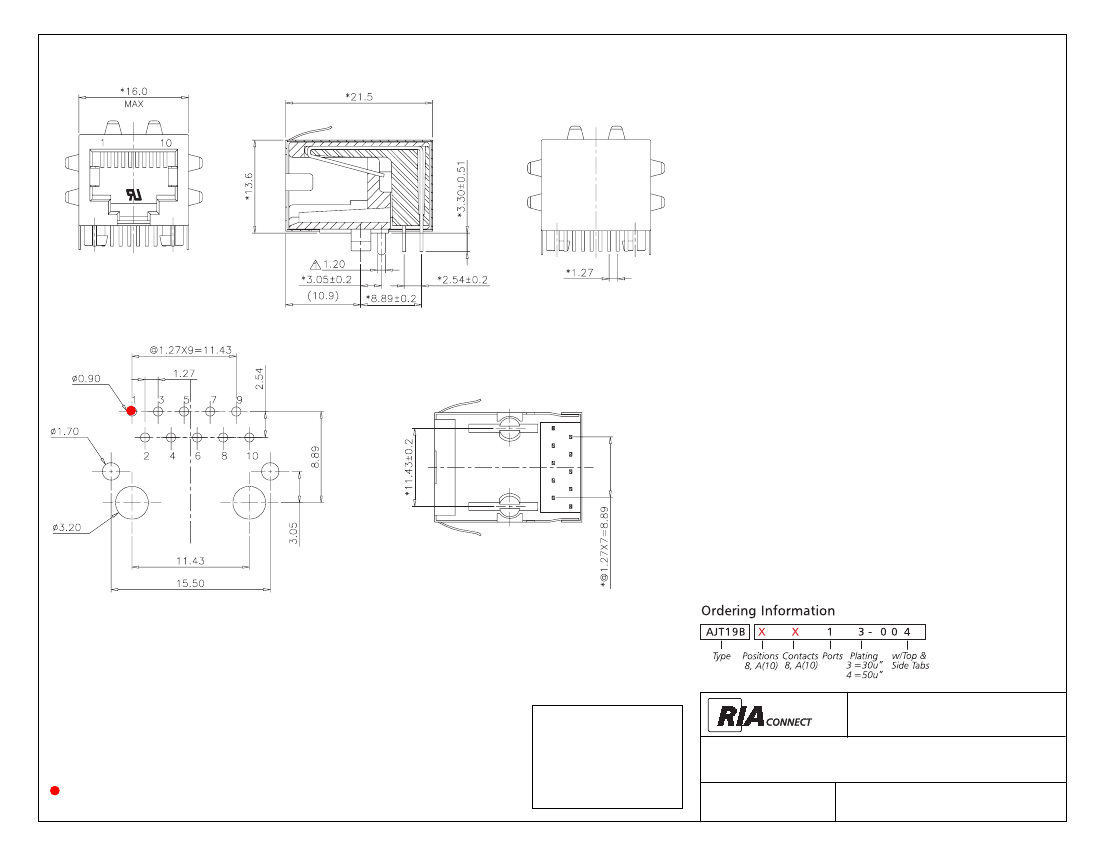

Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack,
| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Maker | METZ CONNECT |
| Reach Compliance Code | compliant |
| Other features | ROHS COMPLIANT |
| Board mount options | SPLIT BOARD LOCK |
| body width | 0.535 inch |
| subject depth | 0.846 inch |
| body length | 0.63 inch |
| Body/casing type | JACK |
| Connector type | TELECOM AND DATACOM CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | FEMALE |
| Contact material | NOT SPECIFIED |
| Contact resistance | 50 mΩ |
| Contact style | TELCOM, MODULAR |
| DIN compliance | NO |
| Dielectric withstand voltage | 1000VAC V |
| Durability | 750 Cycles |
| empty shell | NO |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 22.24 N |
| Insulation resistance | 500000000 Ω |
| Insulator color | BLACK |
| insulator material | GLASS FILLED POLYESTER |
| MIL compliance | NO |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation option 2 | MOUNTING FLANGE |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of ports | 1 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED |
| Plating thickness | 30u inch |
| Rated current (signal) | 1.5 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Shell surface | TIN LEAD |
| Shell material | BRASS |
| Terminal length | 0.13 inch |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 8 |
| UL Flammability Code | 94V-0 |
| Base Number Matches | 1 |
| AJT19B8813-004 | AJT19B8814-004 | AJT19BA814-004 | AJT19BAA13-004 | AJT19BAA14-004 | |
|---|---|---|---|---|---|
| Description | Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack, | Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack, | Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack, | Telecom and Datacom Connector, 10 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack, | Telecom and Datacom Connector, 10 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack, |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant |
| Other features | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT |
| Board mount options | SPLIT BOARD LOCK | SPLIT BOARD LOCK | SPLIT BOARD LOCK | SPLIT BOARD LOCK | SPLIT BOARD LOCK |
| body width | 0.535 inch | 0.535 inch | 0.535 inch | 0.535 inch | 0.535 inch |
| subject depth | 0.846 inch | 0.846 inch | 0.846 inch | 0.846 inch | 0.846 inch |
| body length | 0.63 inch | 0.63 inch | 0.63 inch | 0.63 inch | 0.63 inch |
| Body/casing type | JACK | JACK | JACK | JACK | JACK |
| Connector type | TELECOM AND DATACOM CONNECTOR | TELECOM AND DATACOM CONNECTOR | TELECOM AND DATACOM CONNECTOR | TELECOM AND DATACOM CONNECTOR | TELECOM AND DATACOM CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE |
| Contact material | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Contact resistance | 50 mΩ | 50 mΩ | 50 mΩ | 50 mΩ | 50 mΩ |
| Contact style | TELCOM, MODULAR | TELCOM, MODULAR | TELCOM, MODULAR | TELCOM, MODULAR | TELCOM, MODULAR |
| DIN compliance | NO | NO | NO | NO | NO |
| Dielectric withstand voltage | 1000VAC V | 1000VAC V | 1000VAC V | 1000VAC V | 1000VAC V |
| Durability | 750 Cycles | 750 Cycles | 750 Cycles | 750 Cycles | 750 Cycles |
| empty shell | NO | NO | NO | NO | NO |
| Filter function | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO |
| maximum insertion force | 22.24 N | 22.24 N | 22.24 N | 22.24 N | 22.24 N |
| Insulation resistance | 500000000 Ω | 500000000 Ω | 500000000 Ω | 500000000 Ω | 500000000 Ω |
| Insulator color | BLACK | BLACK | BLACK | BLACK | BLACK |
| insulator material | GLASS FILLED POLYESTER | GLASS FILLED POLYESTER | GLASS FILLED POLYESTER | GLASS FILLED POLYESTER | GLASS FILLED POLYESTER |
| MIL compliance | NO | NO | NO | NO | NO |
| Mixed contacts | NO | NO | NO | NO | NO |
| Installation option 1 | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING |
| Installation option 2 | MOUNTING FLANGE | MOUNTING FLANGE | MOUNTING FLANGE | MOUNTING FLANGE | MOUNTING FLANGE |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of ports | 1 | 1 | 1 | 1 | 1 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED | STAGGERED | STAGGERED | STAGGERED | STAGGERED |
| Plating thickness | 30u inch | 50u inch | 50u inch | 30u inch | 50u inch |
| Rated current (signal) | 1.5 A | 1.5 A | 1.5 A | 1.5 A | 1.5 A |
| Guideline | UL | UL | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Shell surface | TIN LEAD | TIN LEAD | TIN LEAD | TIN LEAD | TIN LEAD |
| Shell material | BRASS | BRASS | BRASS | BRASS | BRASS |
| Terminal length | 0.13 inch | 0.13 inch | 0.13 inch | 0.13 inch | 0.13 inch |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 8 | 8 | 8 | 10 | 10 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Maker | METZ CONNECT | METZ CONNECT | METZ CONNECT | - | - |
| Base Number Matches | 1 | 1 | 1 | - | - |
