54101-G32-00LF datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 54101-G32-00LF

Preview

54101-G32-00LF: DescriptionMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, LEAD FREE; CategoryThe connector The connector; File Size34KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

54101-G32-00LF Overview

MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, LEAD FREE

54101-G32-00LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL/NICKEL PALLADIUM GOLD OVER NICKEL
Contact completed and terminated	TIN (100) OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	54101
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

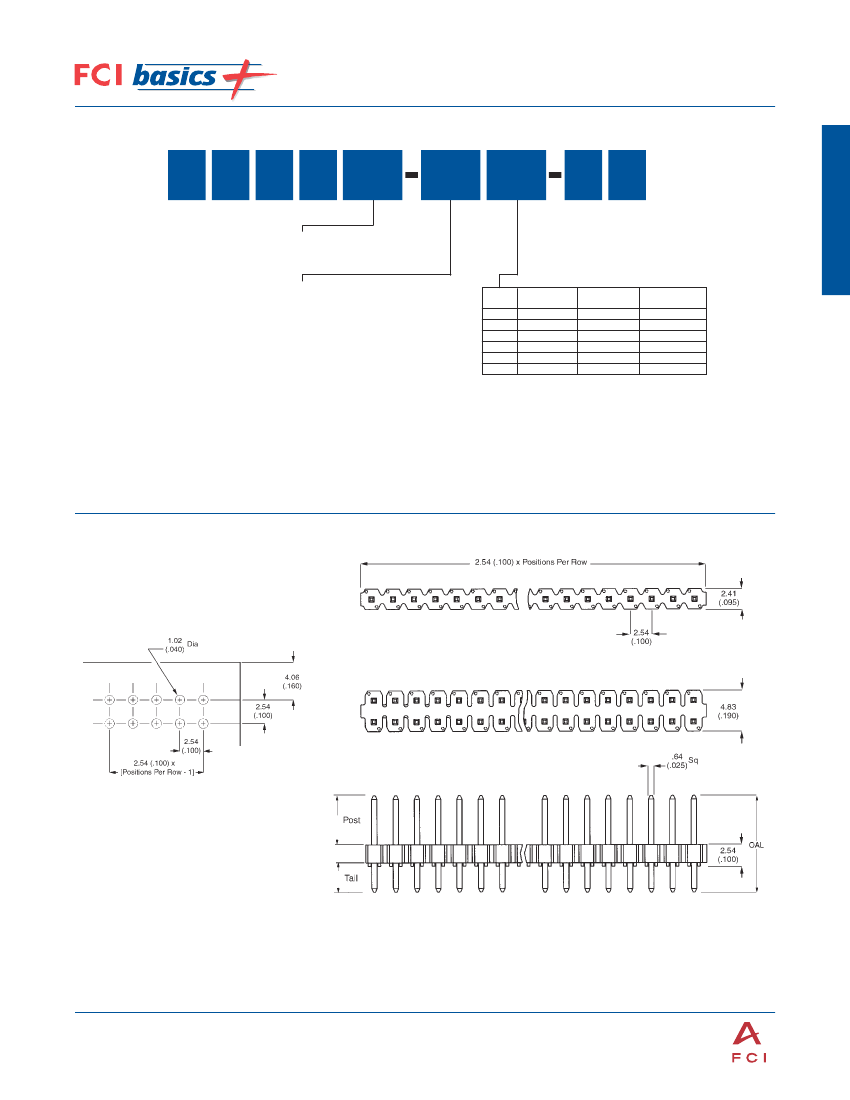

Continuous Unshrouded Headers

2.54 mm (.100" )

Part Number

5

4

1

0

Row

Option

Plating

Pin Style

0

1

= Single

2

= Double

Recommended PCB Layout

Ordering Information: 1-800-237-2374

Samples: www.fciconnect.com or

1-888-499-4FCI

7

SECTION TABS

S

= 15 µ" Gold on contact area,

120 µ" Tin-Lead on tail

G

= 30 µ" Gold on contact area,

120 µ" Tin-Lead on tail

T

= 120 µ" Tin-Lead

Style

05

06

08

10

30

32

Post

mm

(in.)

mm

Tail

(in.)

OAL

mm

(in.)

5.84

8.08

(.230)

(.318)

2.41

2.79

3.05

3.81

3.05

3.81

(.095)

(.110)

(.120)

(.150)

(.120)

(.150)

10.80

11.18

11.43

12.19

13.66

14.43

(.425)

(.440)

(.450)

(.480)

(.538)

(.568)

2.54 mm (.100" )
