SN74LS258BND: DescriptionLS SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, INVERTED OUTPUT, PDIP16, PLASTIC, DIP-16; Categorylogic logic; File Size97KB，4 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

SN74LS258BND Overview

LS SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, INVERTED OUTPUT, PDIP16, PLASTIC, DIP-16

SN74LS258BND Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	unknown
series	LS
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
length	19.175 mm
Load capacitance (CL)	45 pF
Logic integrated circuit type	MULTIPLEXER
MaximumI(ol)	0.024 A
Number of functions	4
Number of entries	2
Output times	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	14 mA
Prop。Delay @ Nom-Sup	21 ns
propagation delay (tpd)	21 ns
Certification status	Not Qualified
Maximum seat height	4.44 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

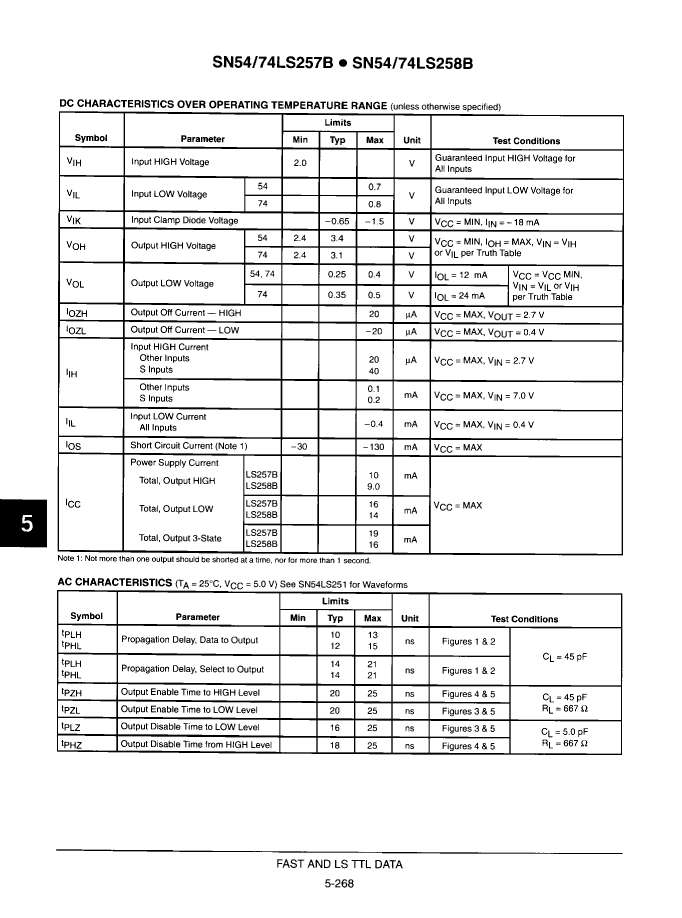

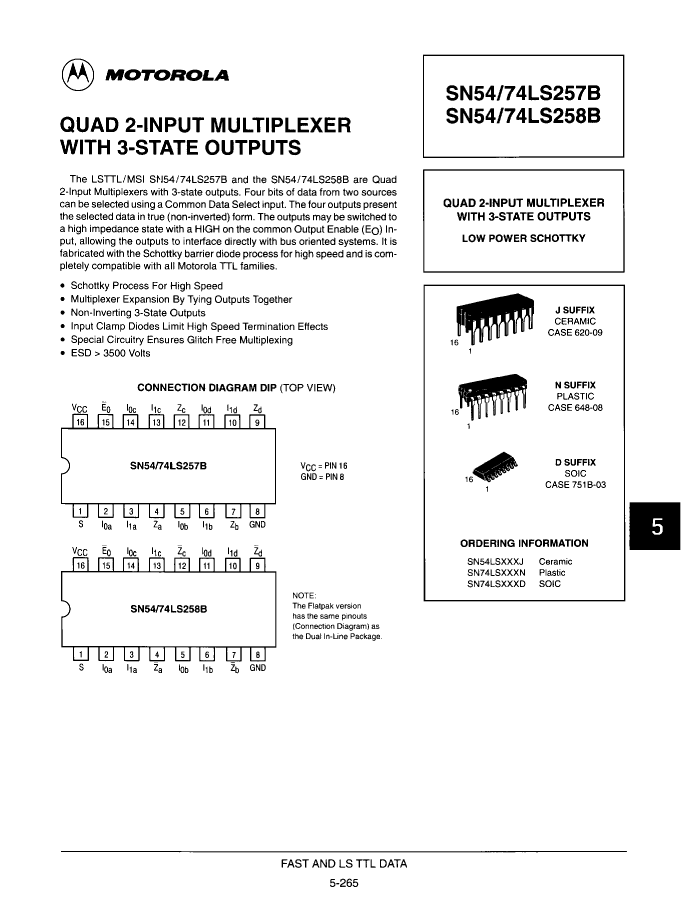

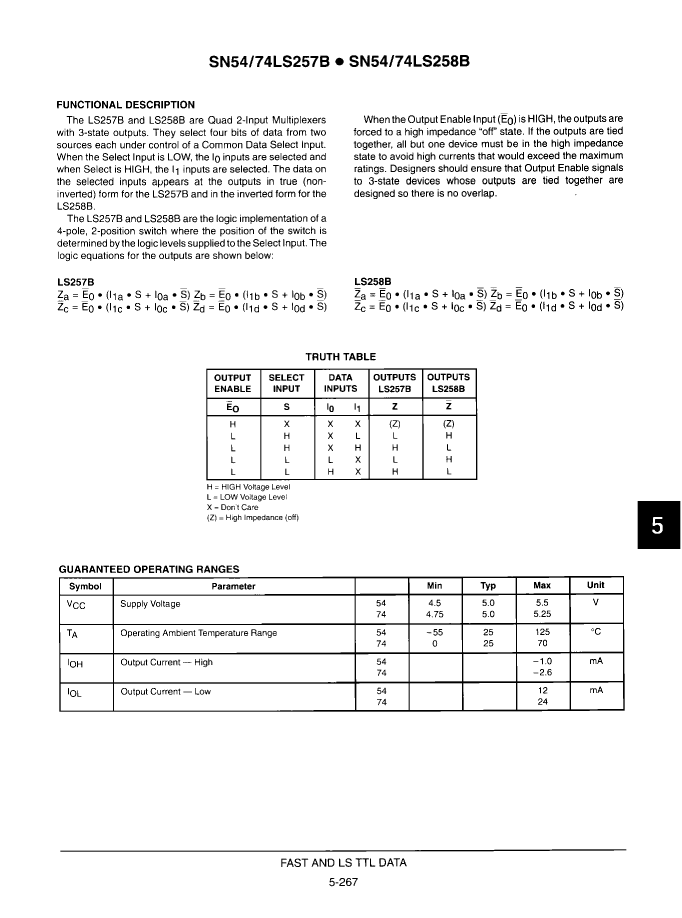

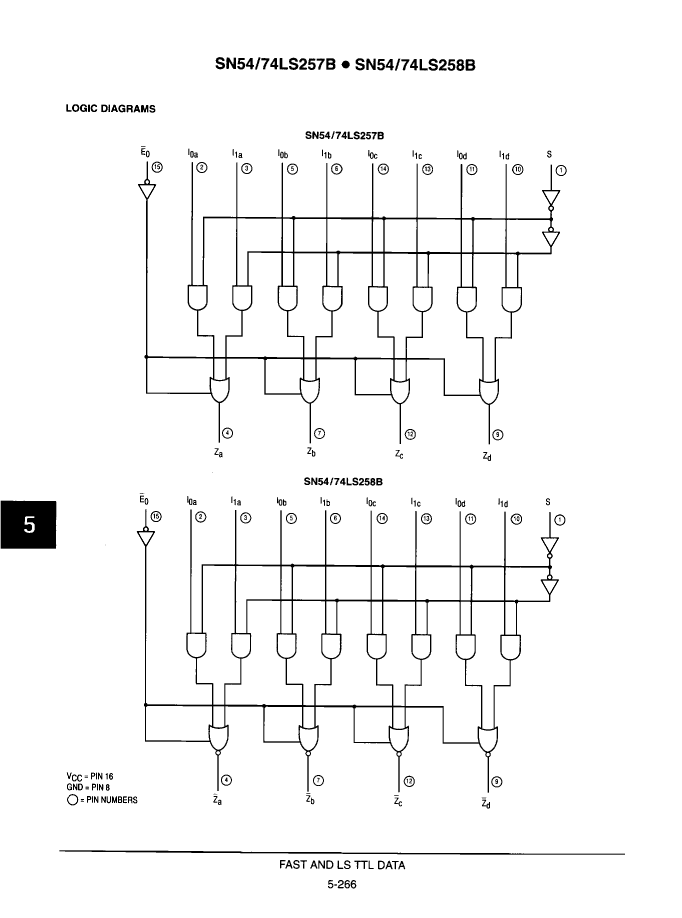

Preview

Download Datasheet

View All

SN74LS258BND Related Products

	SN74LS258BND	SN74LS258BDR2	SN74LS257BDR2	SN54LS257BJD	SN54LS258BJD	SN74LS257BND
Description	LS SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, INVERTED OUTPUT, PDIP16, PLASTIC, DIP-16	LS SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, INVERTED OUTPUT, PDSO16, PLASTIC, SOIC-16	LS SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, PDSO16, PLASTIC, SOIC-16	Multiplexer, LS Series, 4-Func, 2 Line Input, 1 Line Output, True Output, TTL, CDIP16, CERAMIC, DIP-16	LS SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, INVERTED OUTPUT, CDIP16, CERAMIC, DIP-16	LS SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, PDIP16, PLASTIC, DIP-16
package instruction	DIP, DIP16,.3	SOP, SOP16,.25	SOP, SOP16,.25	DIP,	DIP,	DIP, DIP16,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
series	LS	LS	LS	LS	LS	LS
JESD-30 code	R-PDIP-T16	R-PDSO-G16	R-PDSO-G16	R-GDIP-T16	R-GDIP-T16	R-PDIP-T16
length	19.175 mm	9.9 mm	9.9 mm	19.3 mm	19.3 mm	19.175 mm
Load capacitance (CL)	45 pF	45 pF	45 pF	45 pF	45 pF	45 pF
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER
Number of functions	4	4	4	4	4	4
Number of entries	2	2	2	2	2	2
Output times	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16
Maximum operating temperature	70 °C	70 °C	70 °C	125 °C	125 °C	70 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	INVERTED	INVERTED	TRUE	TRUE	INVERTED	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY
encapsulated code	DIP	SOP	SOP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE
Maximum supply current (ICC)	14 mA	14 mA	16 mA	16 mA	14 mA	16 mA
propagation delay (tpd)	21 ns	21 ns	21 ns	21 ns	21 ns	21 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.44 mm	1.75 mm	1.75 mm	4.19 mm	4.19 mm	4.44 mm
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V	5.5 V	5.5 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V	4.5 V	4.5 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO	NO	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL
Terminal form	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.62 mm	3.9 mm	3.9 mm	7.62 mm	7.62 mm	7.62 mm
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	-	Motorola ( NXP )	Motorola ( NXP )
Parts packaging code	DIP	SOIC	SOIC	-	DIP	DIP
Contacts	16	16	16	-	16	16
JESD-609 code	e0	e0	e0	-	-	e0
MaximumI(ol)	0.024 A	0.024 A	0.024 A	-	-	0.024 A
Encapsulate equivalent code	DIP16,.3	SOP16,.25	SOP16,.25	-	-	DIP16,.3
power supply	5 V	5 V	5 V	-	-	5 V
Prop。Delay @ Nom-Sup	21 ns	21 ns	21 ns	-	-	21 ns
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	-	Tin/Lead (Sn/Pb)
Base Number Matches	1	1	1	1	-	-
