32JS101-1

Description
RF SMB Connector, Male, Panel Mount, Cable Mount, Clamp Terminal, Jack
CategoryThe connector    The connector
File Size63KB，1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

32JS101-1 Overview

RF SMB Connector, Male, Panel Mount, Cable Mount, Clamp Terminal, Jack

32JS101-1 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
MakerAmphenol
Reach Compliance Codeunknown
Other featuresINDUSTRY STANDARD:MIL-C-39012, INSERTION LOSS MAX AT 1.5GHZ
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF SMB CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedGOLD
Contact point genderMALE
Coupling typeSNAP
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.3 dB
insulator materialPTFE
JESD-609 codee4
MIL complianceYES
Manufacturer's serial numberSMB
Installation methodSTRAIGHT
Installation typeCABLE
Maximum operating frequency4 GHz
OptionsGENERAL PURPOSE
Panel mountingYES
Termination typeCLAMP
voltage standing wave ratio1.41
Base Number Matches1

Preview

Download Datasheet

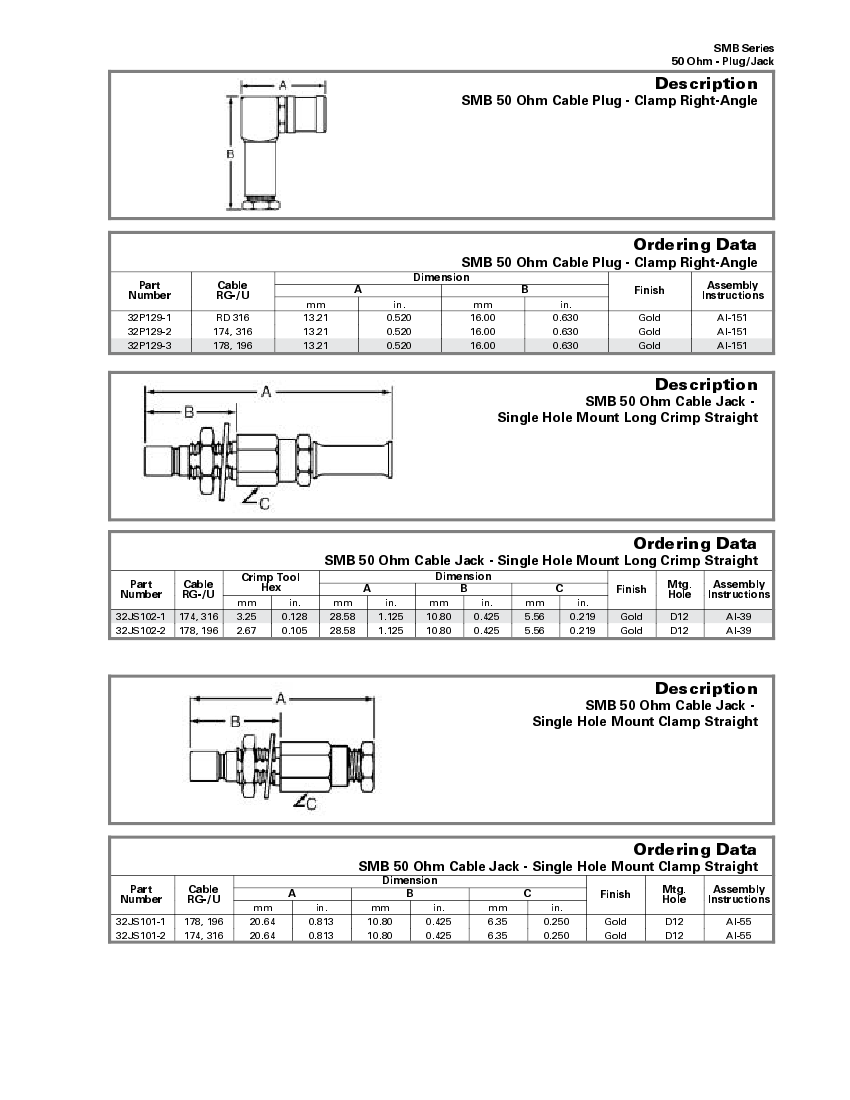

SMB 50 Ohm Cable Plug - Clamp
Ohm - Plug/Jack
50
Right-Angle
Description
SMB Series
SMB Series
50 Ohm - Plug/Jack
RF/Coaxial
32P129-1
32P129-2
32P129-3
Part
Number
RD 316
174, 316
178, 196
Cable
RG-/U
mm
13.21
13.21
13.21
A
Dimension
SMB 50 Ohm Cable Plug - Clamp Right-Angle
Ordering Data
Finish
in.
0.520
0.520
0.520
mm
16.00
16.00
16.00
B
in.
0.630
0.630
0.630
Gold
Gold
Gold
Assembly
Instructions
AI-151
AI-151
AI-151
SMB 50 Ohm Cable Jack -
Single Hole Mount Long Crimp Straight
Description
mm
32JS102-1 174, 316 3.25
32JS102-2 178, 196 2.67
Part
Number
Cable
RG-/U
Crimp Tool
Hex
SMB 50 Ohm Cable Jack - Single Hole Mount Long Crimp Straight
Ordering Data
Mtg.
Hole
in.
0.128
0.105
mm
28.58
28.58
A
in.
1.125
1.125
mm
10.80
10.80
Dimension
B
in.
0.425
0.425
mm
5.56
5.56
C
in.
0.219
0.219
Finish
Gold
Gold
D12
D12
Assembly
Instructions
AI-39
AI-39
SMB 50 Ohm Cable Jack -
Single Hole Mount Clamp Straight
Description
SMB 50 Ohm Cable Jack - Single Hole Mount Clamp Straight
Ordering Data
Mtg.
Hole
32JS101-1 178, 196
32JS101-2 174, 316
Part
Number
Cable
RG-/U
mm
20.64
20.64
A
in.
0.813
0.813
mm
10.80
10.80
Dimension
B
in.
0.425
0.425
mm
6.35
6.35
C
in.
0.250
0.250
Finish
Gold
Gold
D12
D12
Assembly
Instructions
AI-55
AI-55
RF/Coaxial
30-105

32JS101-1 Related Products

32JS101-1 32JS101-2 32P129-1 32P129-2 32P129-3 32JS102-2 32JS102-1
Description RF SMB Connector, Male, Panel Mount, Cable Mount, Clamp Terminal, Jack RF SMB Connector, Male, Panel Mount, Cable Mount, Clamp Terminal, Jack RF SMB Connector, Female, Cable Mount, Clamp Terminal, Plug RF SMB Connector, Female, Cable Mount, Clamp Terminal, Plug RF SMB Connector, Female, Cable Mount, Clamp Terminal, Plug RF SMB Connector, Male, Panel Mount, Cable Mount, Crimp Terminal, Jack RF SMB Connector, Male, Panel Mount, Cable Mount, Crimp Terminal, Jack
Is it lead-free? Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead
Maker Amphenol Amphenol Amphenol Amphenol Amphenol Amphenol Amphenol
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown
Other features INDUSTRY STANDARD:MIL-C-39012, INSERTION LOSS MAX AT 1.5GHZ INDUSTRY STANDARD:MIL-C-39012, INSERTION LOSS MAX AT 1.5GHZ INDUSTRY STANDARD:MIL-C-39012, INSERTION LOSS MAX AT 1.5GHZ INDUSTRY STANDARD:MIL-C-39012, INSERTION LOSS MAX AT 1.5GHZ INDUSTRY STANDARD:MIL-C-39012, INSERTION LOSS MAX AT 1.5GHZ INDUSTRY STANDARD:MIL-C-39012, INSERTION LOSS MAX AT 1.5GHZ INDUSTRY STANDARD:MIL-C-39012, INSERTION LOSS MAX AT 1.5GHZ
Body/casing type JACK JACK PLUG PLUG PLUG JACK JACK
Characteristic impedance 50 Ω 50 Ω 50 Ω 50 Ω 50 Ω 50 Ω 50 Ω
Connector type RF SMB CONNECTOR RF SMB CONNECTOR RF SMB CONNECTOR RF SMB CONNECTOR RF SMB CONNECTOR RF SMB CONNECTOR RF SMB CONNECTOR
Contact to complete cooperation GOLD GOLD GOLD GOLD GOLD GOLD GOLD
Contact completed and terminated GOLD GOLD GOLD GOLD GOLD GOLD GOLD
Contact point gender MALE MALE FEMALE FEMALE FEMALE MALE MALE
Coupling type SNAP SNAP SNAP SNAP SNAP SNAP SNAP
DIN compliance NO NO NO NO NO NO NO
Filter function NO NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO NO
Insertion loss 0.3 dB 0.3 dB 0.3 dB 0.3 dB 0.3 dB 0.3 dB 0.3 dB
insulator material PTFE PTFE PTFE PTFE PTFE PTFE PTFE
JESD-609 code e4 e4 e4 e4 e4 e4 e4
MIL compliance YES YES YES YES YES YES YES
Manufacturer's serial number SMB SMB SMB SMB SMB SMB SMB
Installation method STRAIGHT STRAIGHT RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE STRAIGHT STRAIGHT
Installation type CABLE CABLE CABLE CABLE CABLE CABLE CABLE
Maximum operating frequency 4 GHz 4 GHz 4 GHz 4 GHz 4 GHz 4 GHz 4 GHz
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Panel mounting YES YES NO NO NO YES YES
Termination type CLAMP CLAMP CLAMP CLAMP CLAMP CRIMP CRIMP
voltage standing wave ratio 1.41 1.41 1.41 1.41 1.41 1.41 1.41
Base Number Matches 1 1 1 1 1 1 1
