Astec Industry Standard
60 Amps
AEQ/ALQ60

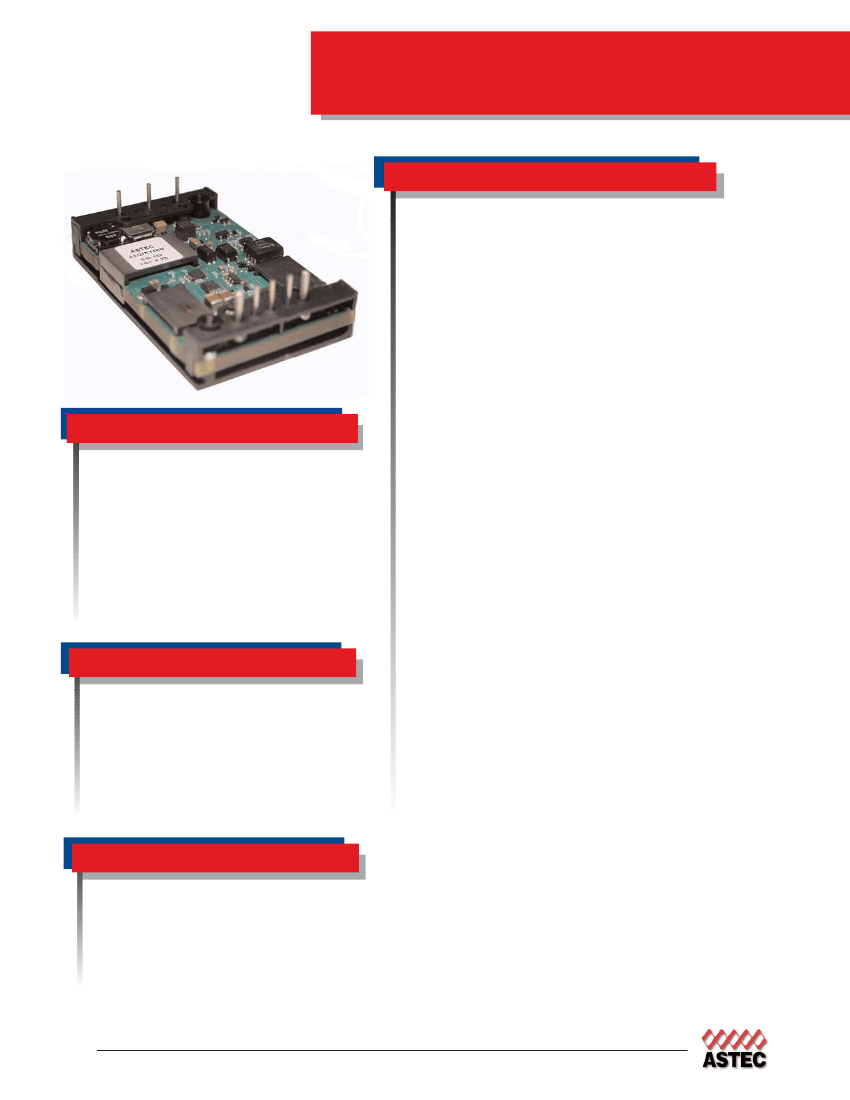

High Efficiency Quarter Brick
Total Power:
Input Voltages:
No. of Outputs:
108W
48V
Single
Electrical Specs
Input
Input Range
Input Surge
Efficiency
36 to 75 VDC
100V /100ms
> 90%@1.8V (50% to 100% load)
Output
Line Regulation
Load Regulation
Noise/Ripple
Remote sense
Transient Response
±0.2%Vo
±0.2%Vo
25mV typ
Up to 10% of Vo
4% deviation typical
50% to 75% Load change
0.1A/µs Slew Rate
150µs recovery
125% Vo
115% nominal output
480kHz
Special Features
• High efficiency
• Industry standard package 1.45" x 2.30"
• Baseplate (AEQ) or Openframe (ALQ)
construction
• High capacitive load limit on start-up
• Remote sense compensation
• Regulation to zero load
• Fixed frequency switching
• Basic insulation
• EU Directive 2002/95/EC Compliant for RoHS
Overvoltage Protection
Current Limit
Switching Frequency
Control
Voltage Adjust
Enable
90 to 110% Vo
TTL compatible
(Positive or Negative enable options)
Environmental
Operating temperature range:
-40°C to +85°C ambient (ALQ - Openframe)
-40°C to +105°C baseplate (AEQ - Baseplate)
Storage temperature: -40°C to +125°C
Overtemperature protection: 115°C PCB
temperature (Typical)
MTBF: > 1 million hours
Safety
UL,cUL 60950
TUV
EN60950
1
North America (USA): 1-888-41-ASTEC
Europe (UK): 44 (1384) 842-211
Asia (HK): 852-2437-9662
AMERICAS
5810 Van Allen Way
Carlsbad, CA 92008
Telephone: 760-930-4600
Facsimile: 760-930-0698
EUROPE
Astec House, Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX, UK
Telephone: 44 (1384) 842-211
Facsimile: 44 (1384) 843-355
ASIA
Units 2111-2116, Level 21
Tower1, Metroplaza
223, Hing Fong Road
Fwai Fong, New Territories
Hong Kong
Telephone: 852-2437-9662
Facsimile: 852-2402-4426
AEQ / ALQ60Y48
Ordering Information
Input
Voltage
36V to 75V
36V to 75V
Output
Voltage
1.8V
1.8V
Output
Current
60A
60A
Efficiency
Model Number
90% Typ
90% Typ
AEQ60Y48(N) - (6)(3)(L)
ALQ60Y48(N) - (6)(3)(L)
OPTIONS
suffix "N" = Negative Logic Enable (without suffix “N” designates Positive Logic Enable)
suffix “6” = 3.7mm pin length (5mm nominal default pin length)
suffix “-3” = single pair of output pins (Pins 4 and 10 unstuffed)
without suffix “-3” = double pair of output pins (Pins 4,5, 9 and 10 are present)
suffix “L” = RoHS compliant (RoHS 6) / “Blank” = RoHS compliant with Lead (Pb) in solder exemption (RoHS 5)

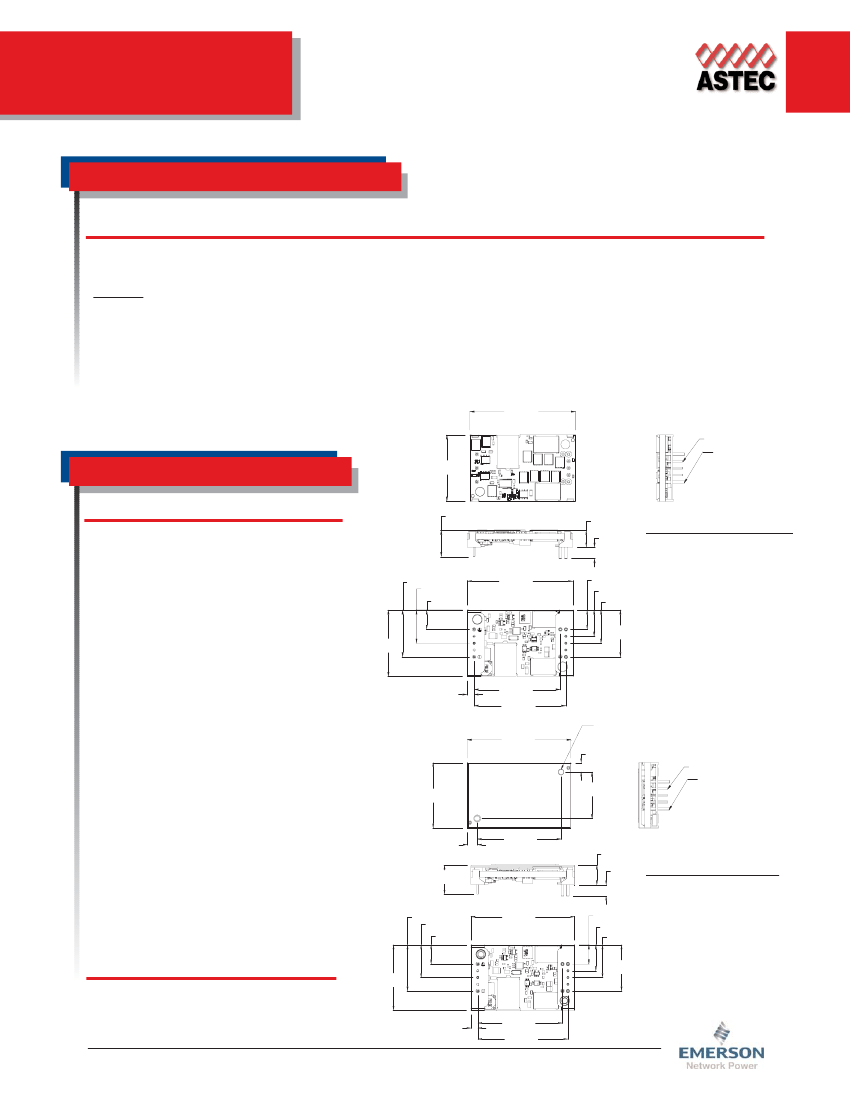

2.30 [58.4]
Pin Assignments
Single Output
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
+Vin
Enable
- Vin
Common
Common
- Sense
Trim
+ Sense
+ Vout
+ Vout
Ø 0.040(1.02) Dia Pins
6 places
Ø 0.060 (1.52) Dia Pins
4 places
1.45 [36.8]
0.58 [14.7]
0.37 [9.4]
0.25 [6.3]
ALQ - Open Frame Series
PINASSIGNMENT
1 + VIN
2 Enable (on/off)
3 -VIN
4 -Vout (optional)
5 -Vout
6 -Sense
7 Trim
8 + Sense
9 + Vout
10+ Vout (optional)
(OPTIONAL)
1.02 [26.0]
0.73 [18.4]
0.42 [10.8]
2.30 [58.4]
0.43 [10.8]
0.57 [14.6]
0.73 [18.4]
All dimensions are in Inches [mm].
Pin placement tolerance 0.005[0.127].
3
4 5
6
7
8
9
1.02 [26.0]
(OPTIONAL)
1.45 [36.8]
2
1
10
NOTES:
ALL DIMENSIONS ARE IN INCHES (MILLIMETERS)
PIN PLACEMENT TOLERANCE : ± 0.005(0.127)
MECHANICAL TOLERANCE ± .002(0.5)
Notes:
1. Nominal values apply with sense pins connected
to +Vout and Ground Return with other control
pins unconnected.
2. Consult the Technical Reference Notes for more
detailed information.
3. Dimensions provided in the mechanical outline
are nominal values.
4. At high line, V
IN
= 75V and no load, V
O
= 0A, the
module requires 1500µF capacitive load to provide
greater than 45° of phase margin.
5. Specifications subject to change without notice.
6. 2 Years warranty.
0.15 [3.8]
1.88 [47.7]
2.00 [50.8]
MOUNTING INSERT (2 PLCS)
M3 X 0.5 THROUGH
MAXIMUM SCREW TORQUE 3.9 IN LBS (0.44 N -m
2.30 [58.4]
0.21 [5.3]
Ø 0.040(1.02) Dia Pins
6 places
Ø 0.060 (1.52) Dia Pins
4 places
1.03 [26.2]
1.45 [36.8]
Astec Industry Standard
1.86 [47.2]
0.22 [5.6]
0.44 [11.2]
0.25 [6.3]
0.65 [16.4]
AEQ - Baseplate Series
1.02 [26.0]
0.73 [18.4]
0.42 [10.8]
2.30 [58.4]
0.43 [10.8]
0.57 [14.6]
0.73 [18.4]
3
1.45 [36.8]
2
1
4 5
6
7
8
9
1.02 [26.0]
* Astec reserves the right to make changes to the information
contained herein without notice and assumes no liability as a
result of its use or application. (REV03: DECEMBER 20, 2006)
0.15 [3.8]
10
1.88 [47.7]
2.00 [50.8]
www.astecpower.com
