Aluminum electrolytic capacitors
For automotive applications,
axial-lead and soldering star,
125
°C
/ 3000 h
Series/Type:
Date:
B41696/B41796
July 2005
© EPCOS AG 2005. Reproduction, publication and dissemination of this data sheet, enclosures hereto and the
information contained therein without EPCOS' prior express consent is prohibited.
Axial-lead and soldering star
Aluminum electrolytic capacitors
Introduction
Axial-lead (B4169x/B43693) and sol-
dering star (B4179x/B43793) capaci-
tors can withstand temperatures up
to 150 °C and vibrations up to 20
g.
They are specified for an extended
useful life, offer outstanding electrical
performance at high reliability and
can withstand temperature changes
specified according to the typical
automotive requirements.
The innovative “automotive grade se-
ries” combines high ripple current
load and very low ESR with a com-
pact design.
The winding element is fixed by the
corrugation in the middle of the can.
Tensile strain applied to the tabs by
vibration stress is eliminated by cor-
rugated tabs. The lead wire (Ø 1 mm)
withstands high mechanical stress.
Moreover, low ESR and an extended
useful life contribute to their high reli-
ability and performance. These new
series from EPCOS have been up-
graded to operating temperatures of
150 °C and are designed for typical
automotive customers’ specifications.
Soldering star aluminum electrolytic
capacitors (with a star connector
terminal) have a comparable internal
winding construction to the axial-lead
types. The center contact acts as the
positive pole and the capacitor case
as the negative pole. The star con-
nector terminal is welded to the case
and so also has negative polarity. A
simple mounting method (pick and
place) is an added advantage of this
design.

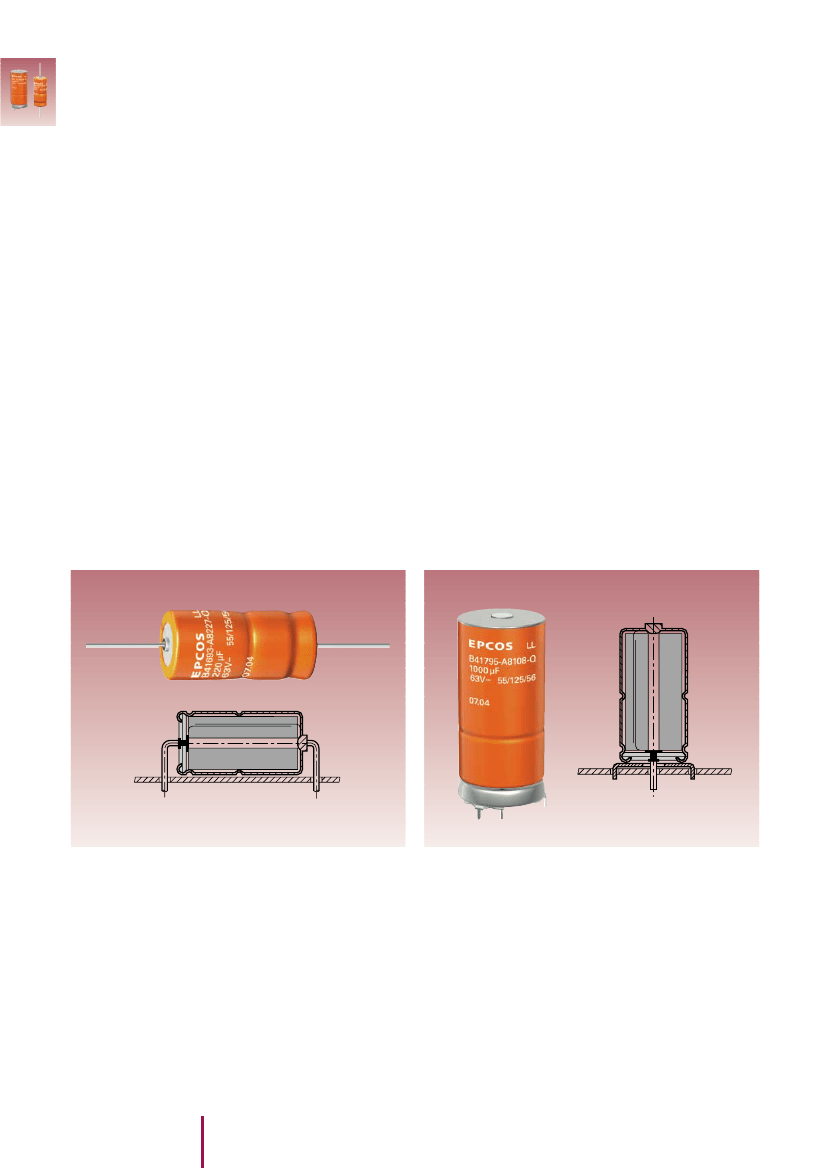

Axial-lead capacitors
Soldering star capacitors
KAL0670-2
KAL0671-A
1 mm wires and corrugation for increased vibration stability, enhanced further by soldering star design.
1
07/05
Please read the important notes, cautions and warnings.
EPCOS AG
Data sheet
B41696/B41796
Specifications and characteristics in brief
brief
Specifications and characteristics in
Rated voltage V
R
Surge voltage V
surge
Rated capacitance C
R
Capacitance tolerance
Leakage current I
leak
(5 min, 20 °C)
Self-inductance ESL
1)
25 and 40 VDC
1.15 · V
R
470 … 3300 µF
–10/+30%
;
Q
I
leak
≤
0.006 · µA
Diameter d
Length
25 mm
30 mm
39 mm
Useful life
125 °C; V
R
; I~
R
85 °C; V
R
; I~
max
40 °C; V
R
; 2.9 · I~
R
Voltage endurance test
125 °C; V
R
> 3 000 h
> 15 000 h
> 200 000 h
Terminal
axial / soldering star
axial / soldering star
axial / soldering star
C
R
V
R
·
µF V
+ 4 µA
12 mm
–/–
21 / 6
–/–
14 mm
22 / 6
24 / 7
–/–
16 mm
26 / 7
29 / 8
33 / 9
18 mm
–/–
34 / 10
38 / 11
Product
approx. ESL (nH)
Requirements:
∆C/C
≤
±30% of initial value
ESR
≤
3 times initial specified limit
I
leak
≤
initial specified limit
Post test requirements:
∆C/C
≤
±10% of initial value
ESR
≤
1.3 times initial specified limit
I
leak
≤
initial specified limit
2 000 h
Vibration resistance
To IEC 60068-2-6, test Fc:
displacement amplitude 1.5 mm, at 10 Hz … 2 kHz,
acceleration max. 20
g,
duration 3 x 2 h
To IEC 60068-1:
55/125/56 (– 55 °C/+125 °C/56 days damp heat test)
Similar to CECC 30301-802
IEC 60384-4
IEC climatic category
Detail specification
Sectional specification
Features
s
High ripple current capability
s
High vibration resistance
s
Very low ESR at temperatures down to –55 °C
s
Compact and small design
s
High reliability
s
Shelf life of the capacitor up to 15 years at storage temperatures up to 40 °C. To ensure solderability,
the capacitors should be built into the application within one year of delivery. After a total of two years’
storage, the operating voltage must be applied for one hour to ensure the specified leakage current.
1)
If optimum circuit design is used, the values are lower by 30%.
EPCOS AG
Please read the important notes, cautions and warnings.
07/05
2
Data sheet
B41696/B41796
Axial-lead capacitors
Specifications and characteristics in brief

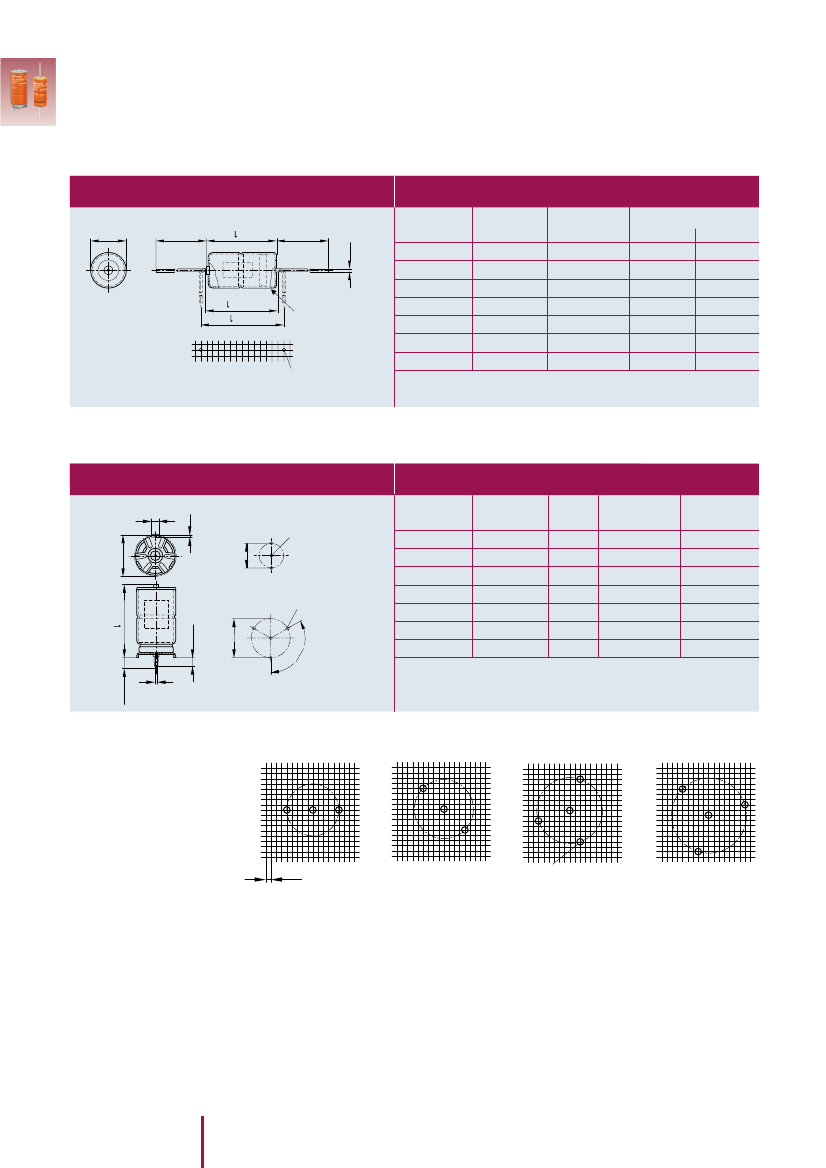

Dimensional drawing
Product
Dimensions, weights and packing units
)
40
_
5
*
)
40
_
5
*
d
max
max
dxl
(mm)
_
0.02
ø1
+0.04
d
max
x l
max
(mm)
12.5 x 30.5
14.5 x 25.5
14.5 x 30.5
16.5 x 30.5
16.5 x 40
18.5 x 30.5
18.5 x 40
Approx. weight Packing units (pieces)
(g)
Pallet
Reel
5.1
5.7
6.8
8.9
11.7
11.1
14.7
288
200
200
180
180
160
160
450
350
350
250
–
–
–
12 x 30
14 x 25
14 x 30
16 x 30
16 x 39
18 x 30
18 x 39
max
+1.5
max
+4
Can diameter
_
<
d
max
+0.3 mm,
in the region of
the curling
*
)
for ø21 mm = 35
_
5
1.3+0.1
KAL0524-S
Soldering star capacitors
Specifications and characteristics in brief
Dimensional drawing
3±0.1
Mounting holes
d = 12 mm ... 14 mm
ø1.3+0.1
Product
Dimensions, weights and packing units
dxl
(mm)
12 x 30
14 x 25
14 x 30
16 x 30
16 x 39
18 x 30
18 x 39
d
max
x l
max
(mm)
13.5 x 32
15.5 x 27
15.5 x 32
17.5 x 32
17.5 x 41.5
19.5 x 32
19.5 x 41.5
c ± 0.1
(mm)
12.5
14.5
14.5
16.5
16.5
18.5
18.5
Approx. weight Packing units
(g)
(pieces)
5.4
6.1
7.2
9.4
12.2
11.8
15.4
480
480
480
300
200
300
200
0.6
Mounting holes
d = 16 mm ... 18 mm
ø1.3+0.1
max
3.1 0.2
c ±0.1
_
c ±0.1
d
max
4.7
_
0.5
_
0.02
ø1
+0.04
KAL0666-9
360
˚
3
The PC board hole arrangement
specified above is based on
circular arcs.
If, however, the mounting holes
have to be matched to a stan-
dard drilling raster, a spacing of
1.27 mm (1/20˝ ) has proved to
be sufficiently accurate if the
following arrangements are used:
d = 12 mm
d = 14 mm
d = 16 mm
d = 18 mm
1.27
KAL0357-R
KAL0852-G
ø1.5+0.1
KAL0358-Z
KAL0359-8
3
07/05
Please read the important notes, cautions and warnings.
EPCOS AG
Data sheet
B41696/B41796
Case dimensions and ordering codes
V
R
VDC
25
C
R
µF
680
1000
1500
2200
3300
470
680
1000
1500
2200
Case dimensions Ordering code
dxl
Axial
mm
pallet package
12 x 30
14 x 25
16 x 30
18 x 30
18 x 39
12 x 30
14 x 30
16 x 30
16 x 39
18 x 39
B41696A5687Q007
B41696A5108Q007
B41696A5158Q007
B41696A5228Q007
B41696A5338Q007
B41696A7477Q007
B41696A7687Q007
B41696A7108Q007
B41696A7158Q007
B41696A7228Q007
Axial
reel
B41696A5687Q009
B41696A5108Q009
B41696A5158Q009
–
–
B41696A7477Q009
B41696A7687Q009
B41696A7108Q009
–
–
Soldering star
B41796A5687Q000
B41796A5108Q000
B41796A5158Q000
B41796A5228Q000
B41796A5338Q000
B41796A7477Q000
B41796A7687Q000
B41796A7108Q000
B41796A7158Q000
B41796A7228Q000
40
Technical data
V
R
VDC
25
C
R
100 Hz
20 °C
µF
680
1000
1500
2200
3300
470
680
1000
1500
2200
ESR
typ
100 Hz
20 °C
mΩ
110
80
55
42
30
110
80
60
40
30
ESR
max
100 Hz
20 °C
mΩ
170
120
85
65
45
180
130
90
63
50
ESR
max
100 Hz
–40 °C
mΩ
1200
650
450
650
200
900
650
450
300
200
ESR
max
10 kHz
20 °C
mΩ
95
70
50
38
25
75
57
45
30
25
Z
max
100 kHz
20 °C
mΩ
90
68
48
37
24
72
55
44
29
24
I~
max
10 kHz
40 °C
A
5.4
5.7
7.7
8.4
11.5
5.8
7.0
8.0
11.0
11.5
I~
max
10 kHz
85 °C
A
4.25
4.50
6.10
6.60
9.20
4.60
5.50
6.30
8.70
9.20
I~
max
10 kHz
105 °C
A
3.2
3.4
4.6
5.0
7.0
3.5
4.2
4.8
6.6
7.0
I~
R
10 kHz
125 °C
A
1.60
1.70
2.30
2.50
3.50
1.75
2.10
2.40
3.30
3.50
I~
max
10 kHz
125 °C
A
1.60
1.70
2.30
2.50
3.50
1.75
2.10
2.40
3.30
3.50
40
EPCOS AG
Please read the important notes, cautions and warnings.
07/05
4
