10079248-10202LF

Description
Card Edge Connector, 240 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Latch & Eject, Black Insulator, Socket, LEAD FREE
CategoryThe connector    The connector
File Size422KB,5 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Environmental Compliance
Download Datasheet Parametric View All

10079248-10202LF Online Shopping

Suppliers Part Number Price MOQ In stock
10079248-10202LF - - View Buy Now

10079248-10202LF Overview

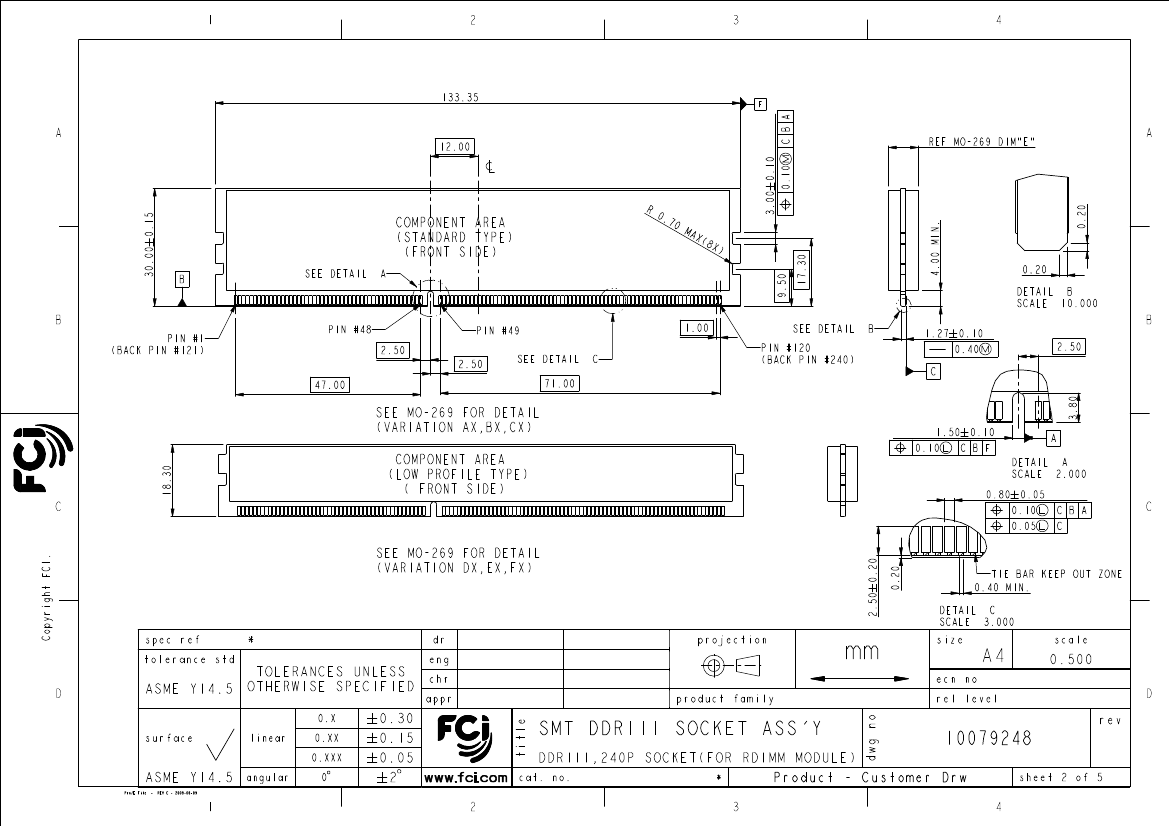

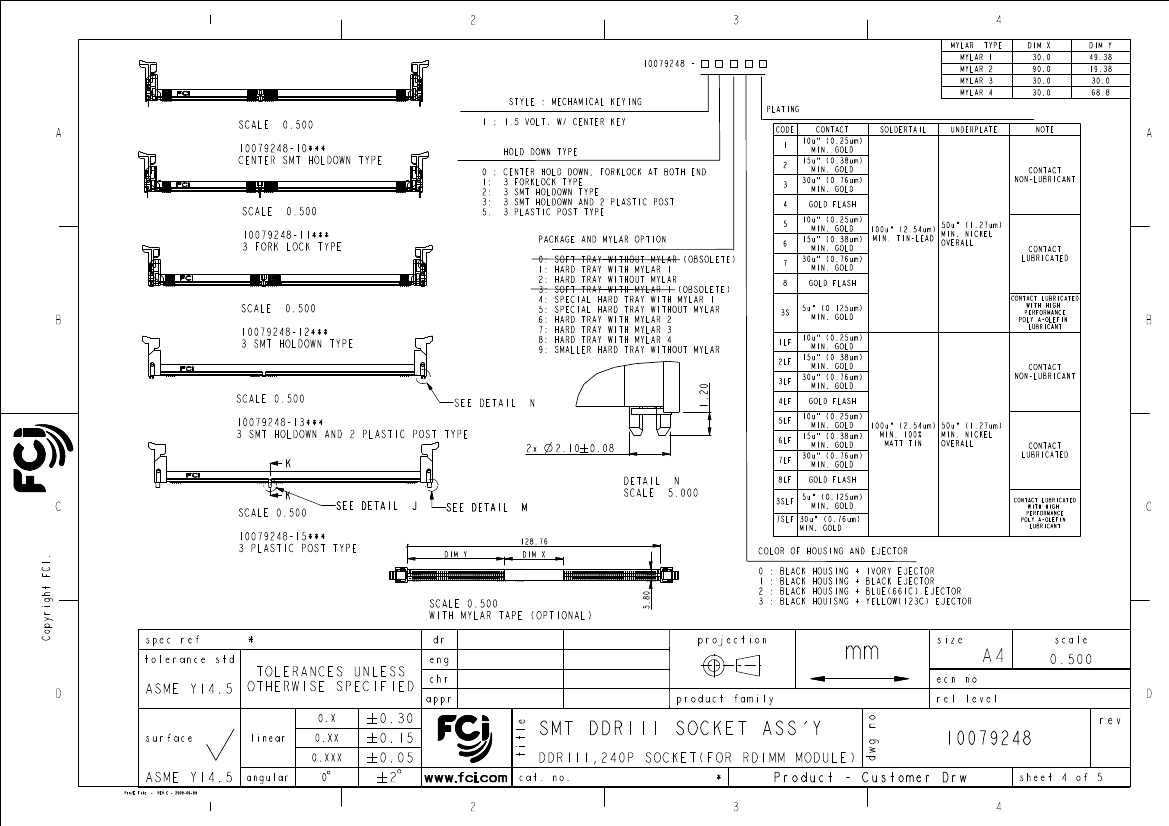

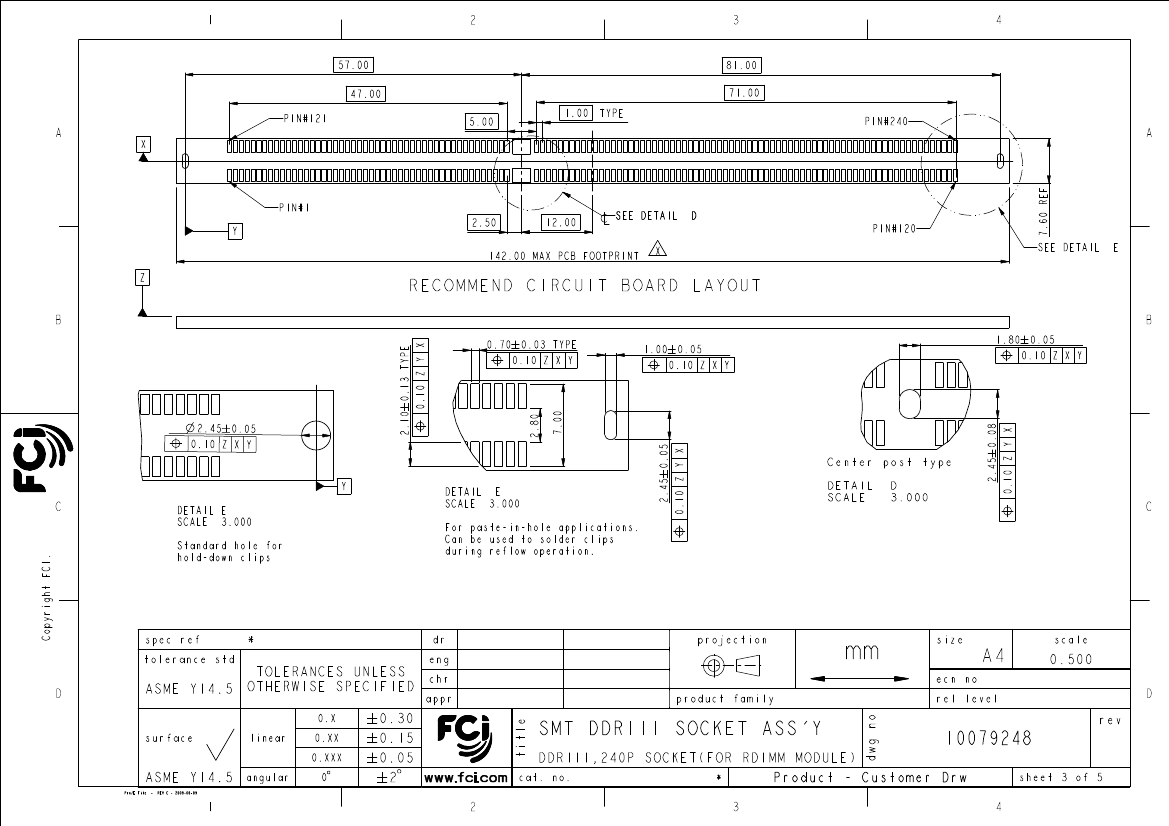

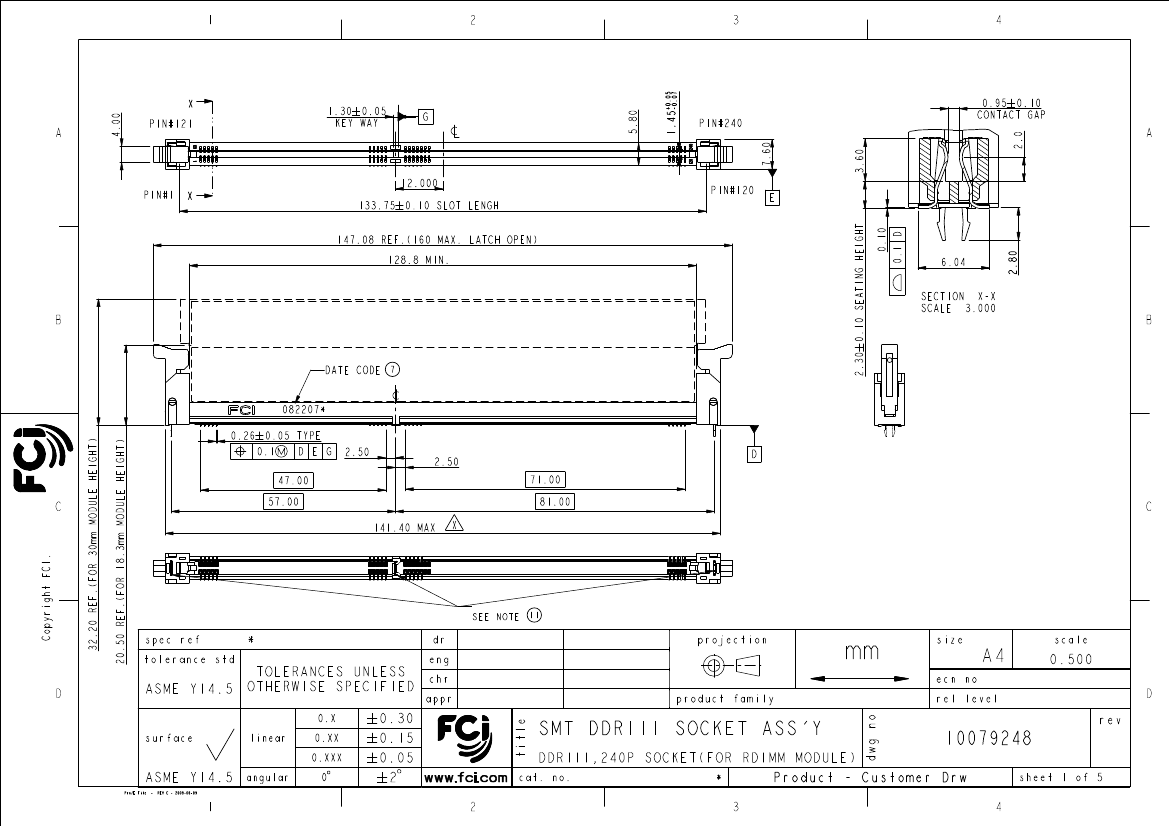

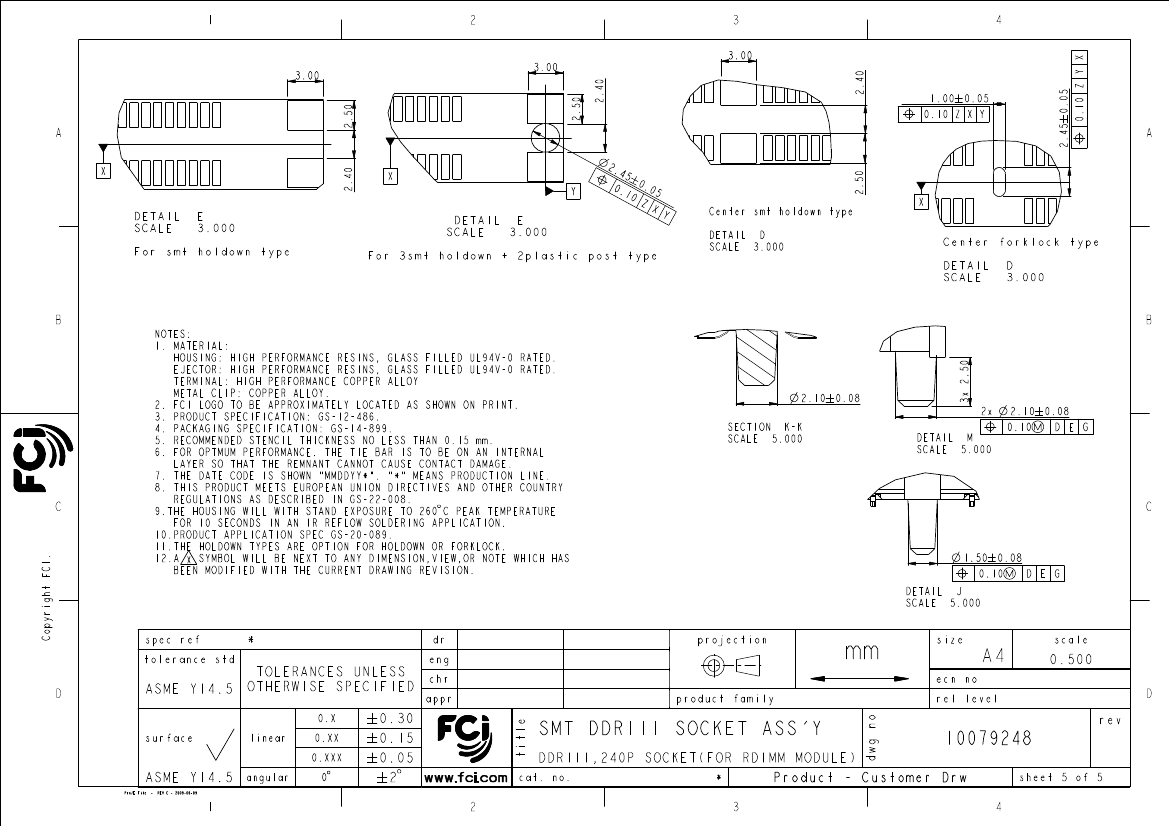

Card Edge Connector, 240 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Latch & Eject, Black Insulator, Socket, LEAD FREE

10079248-10202LF Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerAmphenol
package instructionLEAD FREE
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time5 weeks
Board mount optionsSPLIT BOARD LOCK
body width0.299 inch
subject depth1.268 inch
body length5.567 inch
Body/casing typeSOCKET
Connector typeCARD EDGE CONNECTOR
Contact to complete cooperationGOLD (15) OVER NICKEL (50)
Contact completed and terminatedMatte Tin (Sn) - with Nickel (Ni) barrier
Contact point genderFEMALE
Contact materialCOPPER ALLOY
DIN complianceNO
Filter functionNO
IEC complianceNO
Insulator colorBLACK
JESD-609 codee3
MIL complianceNO
Manufacturer's serial number10079248
Mixed contactsNO
Installation option 1LATCH & EJECT
Installation option 2LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch1 mm
Termination typeSURFACE MOUNT
Total number of contacts240
UL Flammability Code94V-0
Base Number Matches1
