BA590
24V dc
BA591
115V ac
BA592
230V ac

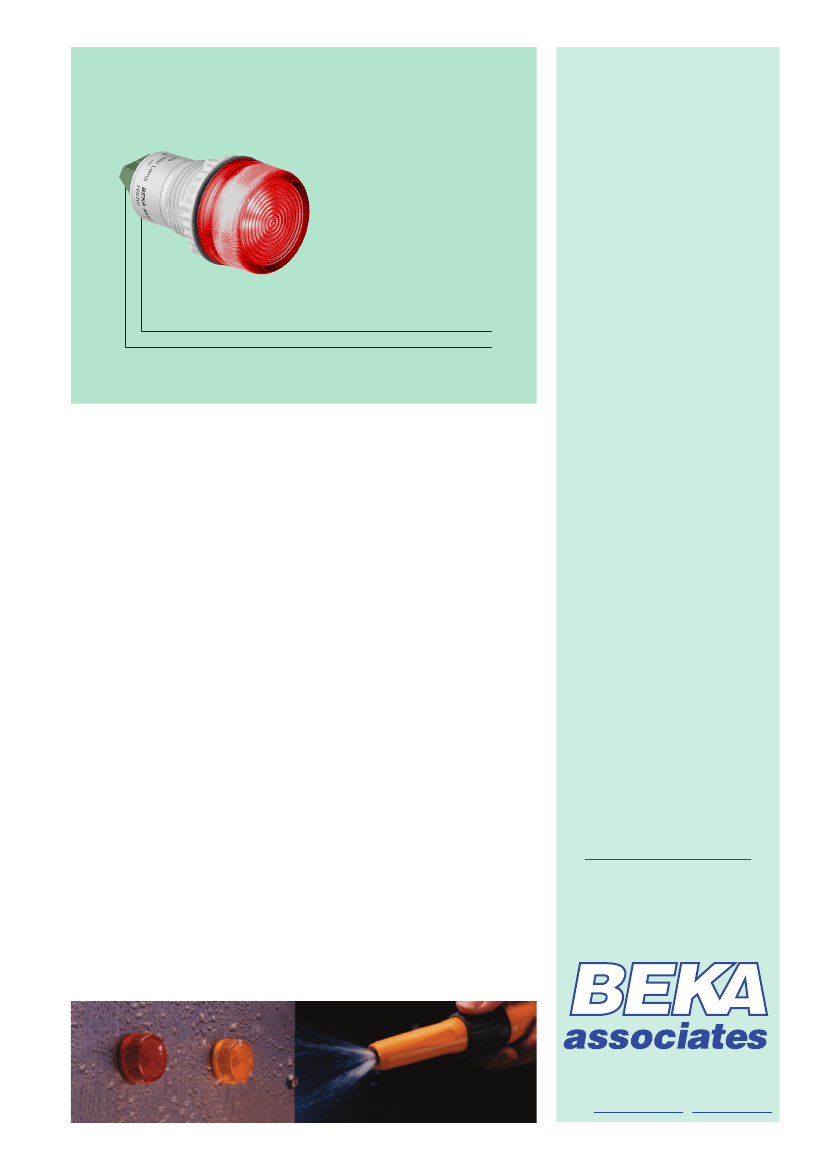

LED Cluster Lamp
General purpose
Supply
u
Red, amber, green,
blue & white models.
BA590 series cluster lamps
are
solid state panel mounting
indicators which offer a high
reliability
alternative
to
conventional panel lamps
incorporating a filament bulb. Very
low current consumption and a
ten year life minimise maintenance
costs by totally eliminating routine
bulb replacement. Each BA590
contains a group of high efficiency
light emitting diodes mounted
behind a coloured diffuser to
produce a bright, uniform output
with a typical life greater than ten
years. All BA590 models contain
a 20mA current regulator which
maintains constant brilliance over
a wide range of supply voltages.
Five well defined colours
- red,
amber, green, blue and white
comply with the indicator light
colour requirements specified in
IEC204-1, allowing all plant
conditions to be annunciated.
IP65 sealing
of the lens and the
joint between the lamp and the
panel makes the BA590 ideal for
installations in areas that will be
hosed, washed or splashed.
When environmental protection
behind the panel is also required,
an optional rear sealing assembly
is available.
Mounting
is via a single industry
standard 22.5mm diameter hole.
The lamp housing, fixing nut and
terminals have a maximum
diameter of 30mm which permits
a very high packing density on the
panel.
To aid identification
from the
rear of the panel, the model
number and suffix which identifies
the colour are marked on the lamp
body close to the terminals.
Reliability is ensured
by an
ISO9001 approved quality control
system supported by a three year
guarantee.
If flammable atmospheres are
present
the complementary
BA390 or BA390S intrinsically
safe cluster lamps should be
used. These have the same
features as the BA590 but have
been certified for installation in all
gas hazardous areas.
u
Long life - typically
more than 10 years.
u
Low cost
u
IP66 front
u
24V dc, 115V ac and
230V ac models.
u
22.5mm hole mounting
u
3 year guarantee
www.beka.co.uk/ba590
BEKA associates Ltd. Old Charlton Rd.
Hitchin, Hertfordshire, SG5 2DA, U.K.
Tel. (01462) 438301 Fax (01462) 453971
e-mail
sales@beka.co.uk www.beka.co.uk
SPECIFICATION
BA590 - 24V dc
Power supply
Voltage
Current
Reverse voltage
Output
Lamp colour
Red
Amber
Green
Blue
White
14 to 30V dc
18 to 22mA
60V max
Typical at 150mm
150 lux
150 lux
250 lux
150 lux
250 lux

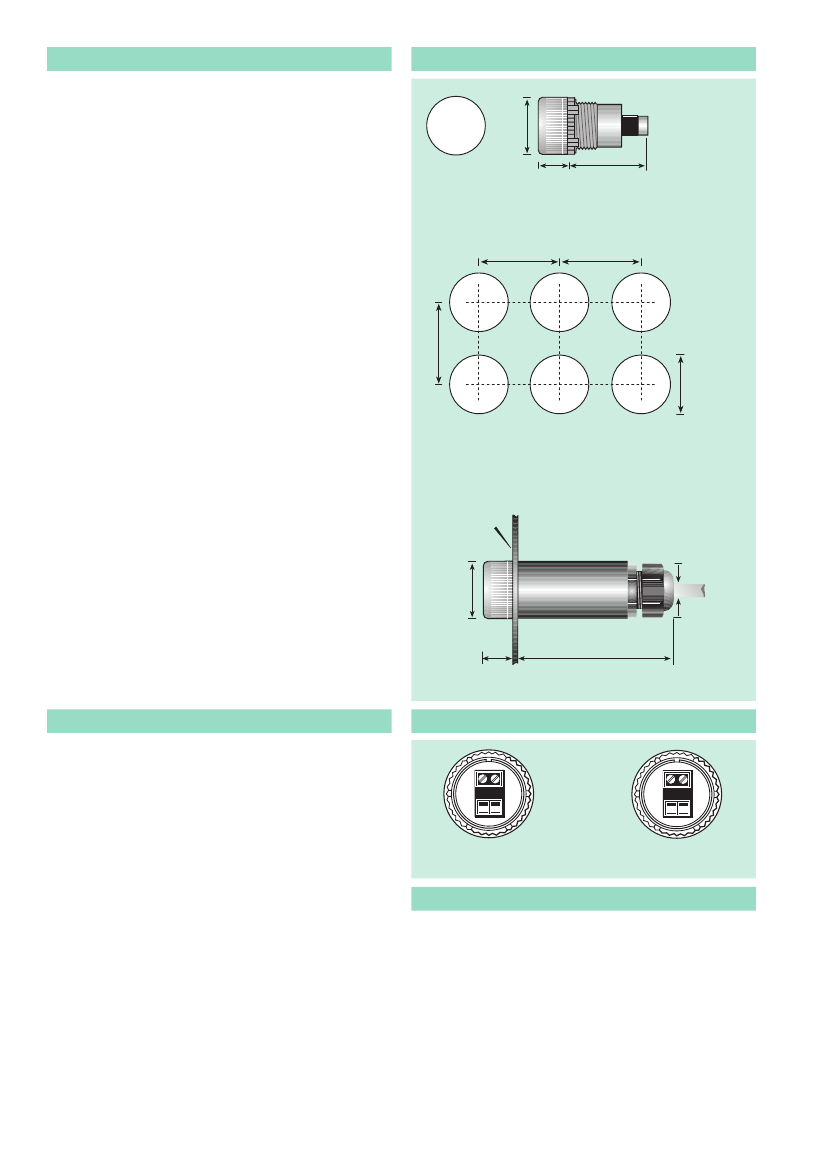

DIMENSIONS (mm)
30
15
42
31
31
BA591 - 115V ac
Power supply
Voltage
Current
Output
Lamp colour
Red
Amber
Green
Blue
White
Repetitive switching
Operating temperature
100 to 127V ac
20mA average 0.7A peak
Typical at 150mm
190 lux
150 lux
250 lux
150 lux
300 lux
Once every 2 seconds max
-20 to 50°C
Fixing centres for maximum packing density.
Special tool may be required to tighten fixing nuts
when minimum spacing is used.
31
Single fixing
hole 22.5mm
±0.2mm
BA592 - 230V ac
Power supply
Voltage
Current
Output
Lamp colour
Red
Amber
Green
Blue
White
Repetitive switching
Operating temperature
200 to 253V ac
20mA average 1.4A peak
Typical at 150mm
190 lux
150 lux
250 lux
150 lux
300 lux
Once every 5 seconds max
-20 to 50°C
30
Panel
7-12
15
80
Optional BA599 rear
sealng assembly
COMMON SPECIFICATION
Environmental
Operating temperature
Storage temperature
Humidity
Operating life
Enclosure
EMC
-20 to 60°C
-40 to 60°C
To 95% at 40°C non-condensing
Typically 100,000 hours
Front IP66
Rear IP20 - see accessories for optional
IP65 rear sealing assembly.
In accordance with EU Directive 89/336/EEC.
No degradation of brightness for 10V/m .
Electromagnetically benign
In accordance with EU Directive 73/23/EEC
Screw clamp for 1.5mm².
Polycarbonate
Nylon 6
18g
TERMINAL CONNECTIONS
+ –
BA590
BA591 & BA592
~
Immunity
Emissions
HOW TO ORDER
Model number
Colour
Red
Amber
Green
Blue
White
Accessories
Rear sealing assembly
Please specify
BA590, BA591 or BA592
Model suffix R
Model suffix A
Model suffix G
Model suffix B
Model suffix W
Please specify if required
BA599 provides IP65 protection for terminals
and rear of the lamp. Supplied with gland for
7 to 12mm diameter cable.
BA590R
09
Electrical safety
Mechanical
Terminals
Lens material
Lamp body
Weight
Example
Model and colour
