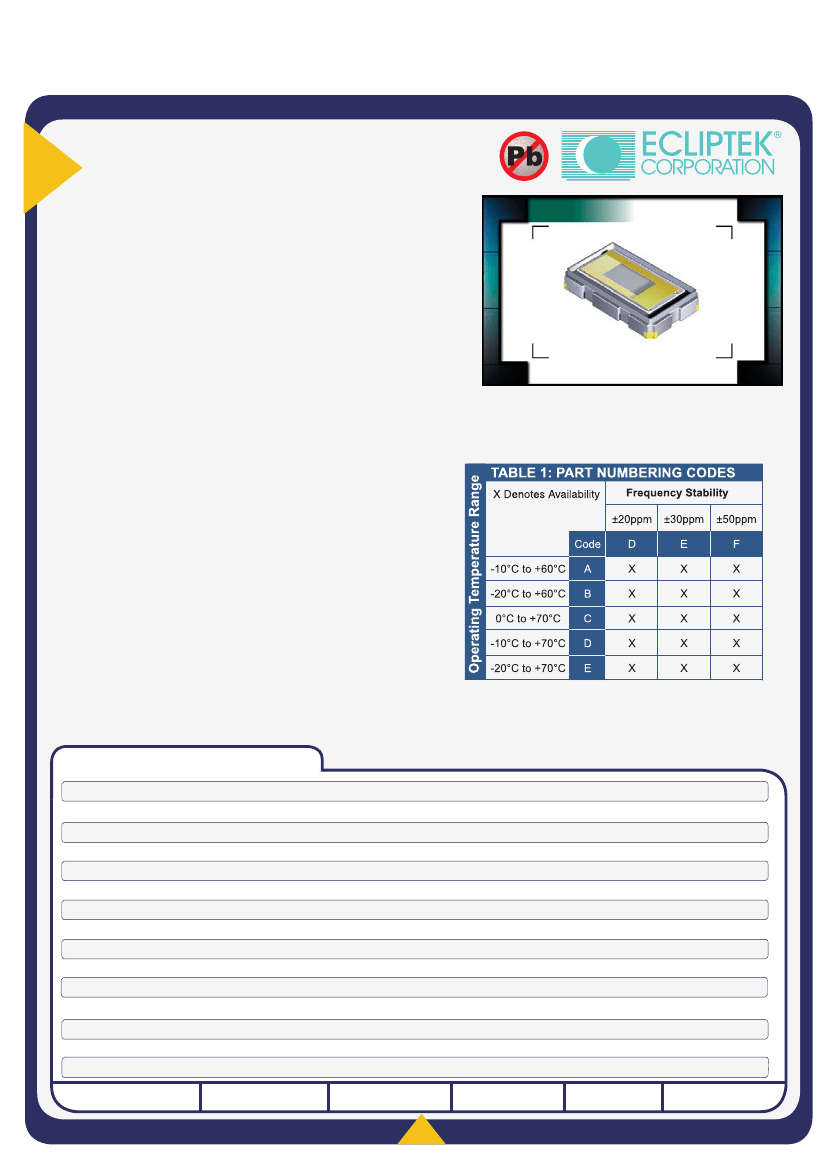

ECCM5B
Series
• RoHS Compliant (Pb-Free)
• Miniature two pad ceramic
surface mount package
• AT cut
• Tight tolerance/stability
• Frequencies to 32.000MHz available
• Tape and reel available
NOTES
_______________________________________________________________________________________________
_______________________________________________________________________________________________
______________________________________________________________________________________________
______________________________________________________________________________________________
ECCM5B
H
L
W
1.0
6.0
3.5
CRYSTAL
_______________________________________________________________________________________________
_______________________________________________________________________________________________
______________________________________________________________________________________________
______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
______________________________________________________________________________________________
______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
______________________________________________________________________________________________
______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
______________________________________________________________________________________________
______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
______________________________________________________________________________________________
______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
______________________________________________________________________________________________
______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
______________________________________________________________________________________________
______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
______________________________________________________________________________________________
______________________________________________________________________________________________
ELECTRICAL SPECIFICATIONS
Frequency Range
Frequency Tolerance
Frequency Stability
Operating Temperature Range
Aging (at 25°C)
Storage Temperature Range
Shunt Capacitance
Insulation Resistance
Drive Level
Load Capacitance (C
L
)
Spurious Response
Frequency Range
11.0592MHz to 24.000MHz
24.001MHz to 32.000MHz
MANUFACTURER
CATEGORY
11.0592MHz to 32.000MHz
±30ppm, or ±50ppm
Per Table 1
Per Table 1
±2ppm / year Maximum
-40°C to 85°C
5pF Maximum
500 Megaohms Minimum at 100V
DC
100 µWatts Maximum
18pF (Standard), C
L
≥10pF,
or Series Resonant
-3dB Minimum; F
0
to F
0
+5000ppm
ESR (Ω)
50 Maximum
40 Maximum
SERIES
PACKAGE
EQUIVALENT SERIES RESISTANCE (ESR), MODE OF OPERATION (MODE), AND CUT
Mode / Cut
Fundamental / AT
Fundamental / AT
CLASS
REV
.
DATE
ECLIPTEK CORP.
CRYSTAL
ECCM5B
CERAMIC
CR39
09/03
800-ECLIPTEK www.ecliptek.com for latest revision
38
Specifications subject to change without notice.
PART NUMBERING GUIDE
ECCM5B 5 D C - 20 - 32.000M TR
FREQUENCY TOLERANCE (AT 25°C)
5=±30ppm, 6=±50ppm
FREQUENCY STABILITY
D=±20ppm, E=±30ppm, F=±50ppm
OPERATING TEMPERATURE RANGE
Per Table 1
PACKAGING OPTIONS
Blank=Bulk, TR=Tape and Reel
FREQUENCY
LOAD CAPACITANCE
Blank=18pF (Standard)
S=Series, XX=XXpF (Custom)

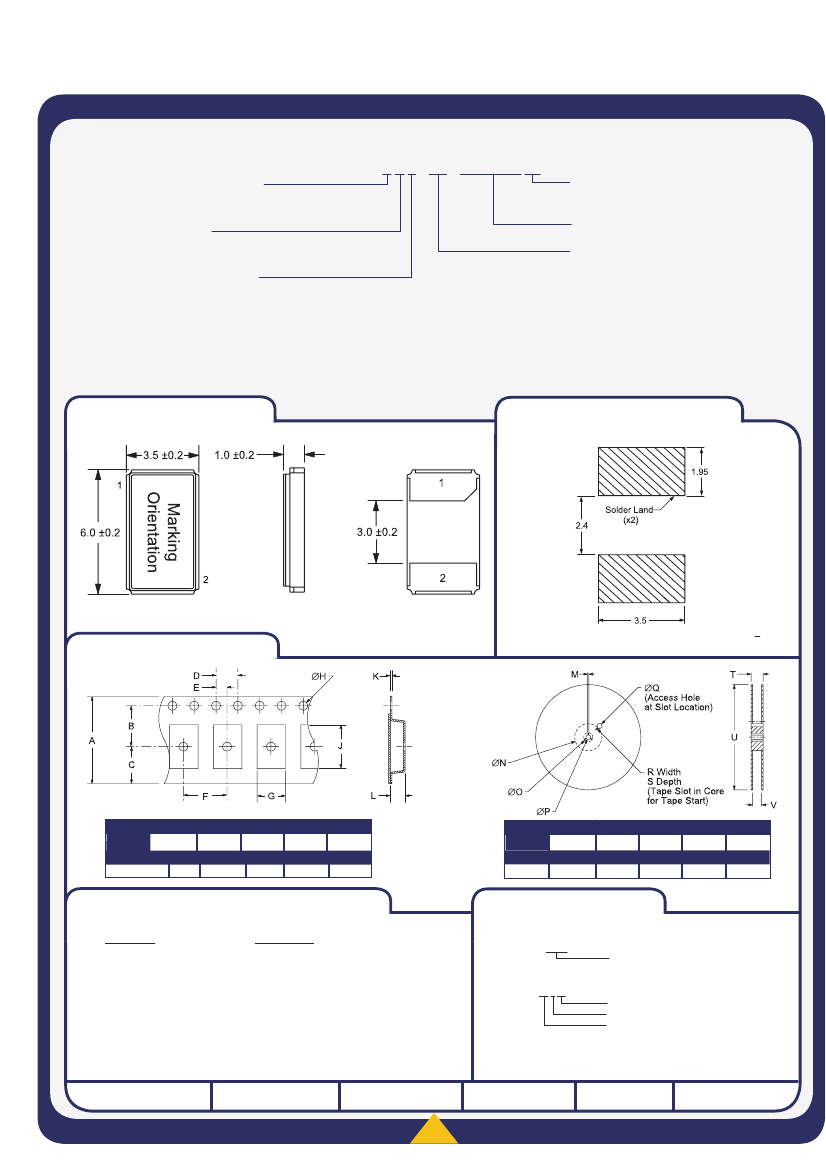

MECHANICAL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
SUGGESTED SOLDER PAD LAYOUT
ALL DIMENSIONS IN MILLIMETERS
TAPE AND REEL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
Pad 1: Input/Output
Pad 2: Input/Output
Tolerance = +0.2
TAPE
A
16±.3
B
7.5±.1
C
6.75±.2
D
4 ±.1
E
2±.05
REEL
M
1.5 MIN
N
50 MIN
O
20.2 MIN
P
13±.2
Q
40 MIN
QTY/REEL
1,000
F
8±.1
G
3.9±.1
H
1.5±.1
J
6.4±.1
K
.3 ±.05
L
1.3±.1
R
2.5 MIN
S
10 MIN
T
22.4 MAX
U
360 MAX
V
16.4+2-0
ENVIRONMENTAL/MECHANICAL SPECIFICATIONS
PARAMETER
SPECIFICATION
MARKING SPECIFICATIONS
*Compliant to EIA-481A
Line 1: E XX.XX
Frequency in MHz
(4 Digits Maximum + Decimal)
Line 2: XX Y ZZ
Week of Year
Last Digit of Year
Ecliptek Manufacturing Identifier
Fine Leak Test
Gross Leak Test
Mechanical Shock
Vibration
Lead Integrity
Solderability
Temperature Cycling
Resistance to Soldering Heat
Resistance to Solvents
MIL-STD-883, Method 1014, Condition A
MIL-STD-883, Method 1014, Condition C
MIL-STD-202, Method 213, Condition C
MIL-STD-883, Method 2007, Condition A
MIL-STD-883, Method 2004
MIL-STD-883, Method 2002
MIL-STD-883, Method 1010
MIL-STD-202, Method 210
MIL-STD-202, Method 215
MANUFACTURER
CATEGORY
SERIES
PACKAGE
CLASS
REV
.
DATE
ECLIPTEK CORP.
CRYSTAL
ECCM5B
CERAMIC
CR39
09/03
800-ECLIPTEK www.ecliptek.com for latest revision
39
Specifications subject to change without notice.
