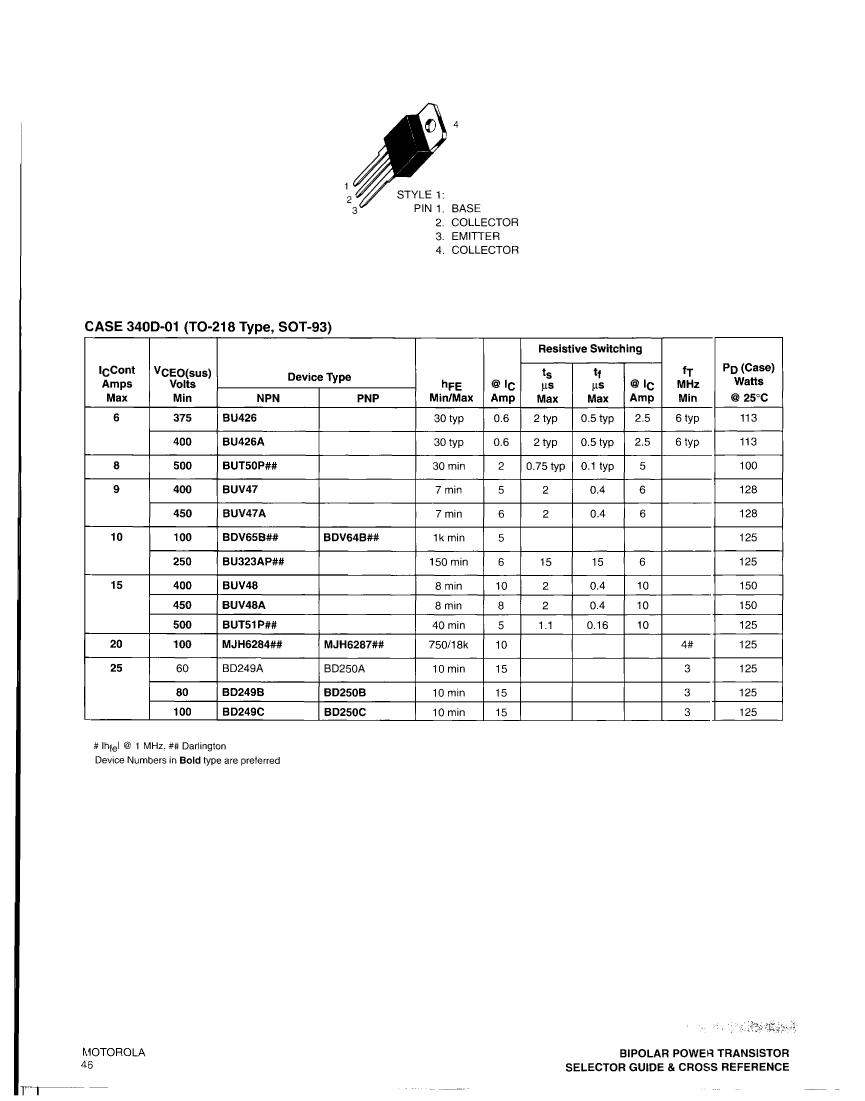

8A, 500V, NPN, Si, POWER TRANSISTOR, TO-218
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Motorola ( NXP ) |
| Reach Compliance Code | unknown |
| Shell connection | COLLECTOR |
| Maximum collector current (IC) | 8 A |
| Collector-emitter maximum voltage | 500 V |
| Configuration | DARLINGTON |
| Minimum DC current gain (hFE) | 30 |
| JEDEC-95 code | TO-218 |
| JESD-30 code | R-PSFM-T3 |
| JESD-609 code | e0 |
| Number of components | 1 |
| Number of terminals | 3 |
| Maximum operating temperature | 150 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Polarity/channel type | NPN |
| Maximum power consumption environment | 100 W |
| Maximum power dissipation(Abs) | 100 W |
| Certification status | Not Qualified |
| surface mount | NO |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal location | SINGLE |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| transistor applications | SWITCHING |
| Transistor component materials | SILICON |
| Base Number Matches | 1 |
| BUT50P | BUV47 | BU426A | BD249B | BD250C | BD250B | |
|---|---|---|---|---|---|---|
| Description | 8A, 500V, NPN, Si, POWER TRANSISTOR, TO-218 | 9A, 400V, NPN, Si, POWER TRANSISTOR, TO-218 | 6A, 400V, NPN, Si, POWER TRANSISTOR, TO-218 | 25A, 80V, NPN, Si, POWER TRANSISTOR, TO-218 | 25A, 100V, PNP, Si, POWER TRANSISTOR, TO-218 | 25A, 80V, PNP, Si, POWER TRANSISTOR, TO-218 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| Shell connection | COLLECTOR | COLLECTOR | COLLECTOR | COLLECTOR | COLLECTOR | COLLECTOR |
| Maximum collector current (IC) | 8 A | 9 A | 6 A | 25 A | 25 A | 25 A |
| Collector-emitter maximum voltage | 500 V | 400 V | 400 V | 80 V | 100 V | 80 V |
| Configuration | DARLINGTON | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| JEDEC-95 code | TO-218 | TO-218 | TO-218 | TO-218 | TO-218 | TO-218 |
| JESD-30 code | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 | 3 | 3 |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Polarity/channel type | NPN | NPN | NPN | NPN | PNP | PNP |
| Maximum power consumption environment | 100 W | 128 W | 113 W | 125 W | 125 W | 125 W |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | NO | NO | NO | NO | NO | NO |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| transistor applications | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING |
| Transistor component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Maker | Motorola ( NXP ) | - | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) |
| Minimum DC current gain (hFE) | 30 | 7 | - | 10 | 10 | 10 |
| package instruction | - | FLANGE MOUNT, R-PSFM-T3 | FLANGE MOUNT, R-PSFM-T3 | FLANGE MOUNT, R-PSFM-T3 | FLANGE MOUNT, R-PSFM-T3 | FLANGE MOUNT, R-PSFM-T3 |
| Nominal transition frequency (fT) | - | - | 6 MHz | 3 MHz | 3 MHz | 3 MHz |
