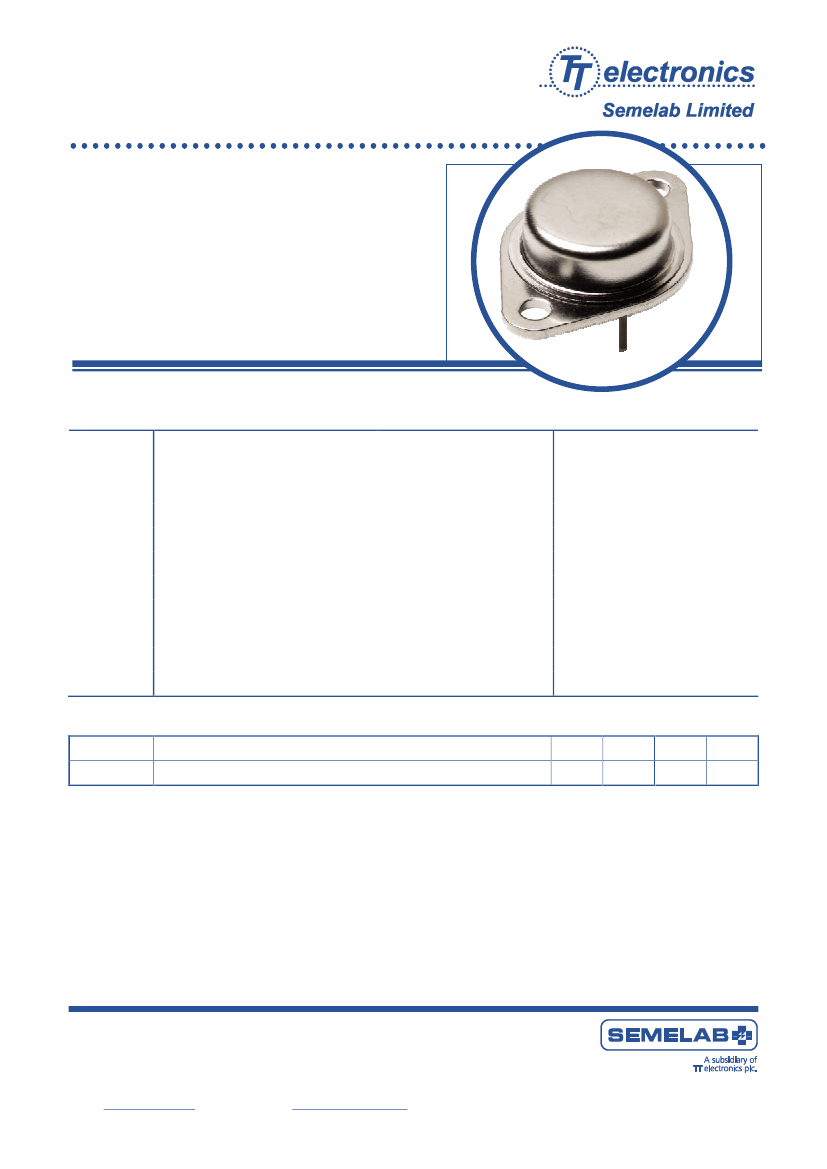

FAST SWITCHING NPN
POWER TRANSISTOR
BUV62A
•
•
•
•
•
•
Fast Switching Times
Low Switching Losses
Low Saturation Voltage
Hermetic TO3 Metal package.
Ideally suited for Motor Control, Switching
and Linear Applications
High Reliability Screening Options Available
ABSOLUTE MAXIMUM RATINGS
(TC = 25°C unless otherwise stated)
VCEV
VCEO
VEBO
IC
ICM
IB
IBM
PD
TJ
Tstg
VBE = -1.5V
Collector – Emitter Voltage
Collector – Emitter Voltage
Emitter – Base Voltage
Continuous Collector Current
Peak Collector Current
Base Current
Base Peak Current
TC = 25°C
Total Power Dissipation at
Derate Above 25°C
Junction Temperature Range
Storage Temperature Range
400V
300V
7V
40A
60A
8A
12A
250W
1.43W/°C
-55 to +200°C
-65 to +200°C
THERMAL PROPERTIES
Symbols
R
θJC
Parameters
Thermal Resistance, Junction To Case
Min.
Typ.
Max.
0.70
Units
°C/W
Semelab Ltd reserves the right to change test conditions, parameter limits and package dimensions without notice.
Information furnished by Semelab is believed to be both accurate and reliable at the time of going to press. However
Semelab assumes no responsibility for any errors or omissions discovered in its use. Semelab encourages customers to
verify that datasheets are current before placing an order.
Semelab Ltd
Telephone +44 (0) 1455 556565
Email:
sales@semelab-tt.com
Coventry Road, Lutterworth, Leicestershire, LE17 4JB
Fax +44 (0) 1455 552612
Website:
http://www.semelab-tt.com
Document Number 8320
Issue 1
Page 1 of 3
FAST SWITCHING NPN
POWER TRANSISTOR
BUV62A
ELECTRICAL CHARACTERISTICS
(TC = 25°C unless otherwise stated)
Symbols
V(BR)CEO
(1)
V(BR)EBO
ICEX
Parameters
Collector-Emitter Breakdown
Voltage
Emitter-Base Breakdown
Voltage
Collector Cut-Off Current
Test Conditions
IC = 10mA
IE = 50mA
VCE = 400V
IB = 0
IC = 0
VBE = -1.5V
Tj = 100°C
VCE = 400V
RBE = 10
Tj = 100°C
VEB = 5V
IC = 15A
IC = 0
IB = 1.5A
Tj = 100°C
IC = 15A
IB = 1.5A
Tj = 100°C
Min.
300
7
Typ.
Max.
Units
V
1.0
4.0
1.0
5.0
1.0
0.9
1.9
1.3
1.3
V
mA
ICER
IEBO
VCE(sat)
(1)
Collector Cut-Off Current
Emitter Cut-Off Current
Collector-Emitter Saturation
Voltage
Base-Emitter Saturation
Voltage
VBE(sat)
(1)
Notes
(1) Pulse Width
≤
300us,
δ ≤
2%
DYNAMIC CHARACTERISTICS
(Inductive Load)
Symbols
ts
tf
tc
Parameters
Storage Time
Fall Time
Crossover Time
Test Conditions
VCC = 250V
IC = 15A
VBB = -5V
LC = 0.83mH
VCC = 50V
VBB = -5V
LC = 0.83mH
Tj = 125°C
Vclamp = 300V
IB = 1.5A
RB2 = 1.6
Tj = 100°C
ICWoff = 22A
IB1 = 1.5A
RBB = 1.6
Min.
Typ.
2.2
0.2
0.3
Max.
Units
µs
VCEW
Maximum Collector Emitter
Voltage without Snubber
300
V
Semelab Ltd
Telephone +44 (0) 1455 556565
Email:
sales@semelab-tt.com
Coventry Road, Lutterworth, Leicestershire, LE17 4JB
Fax +44 (0) 1455 552612
Website:
http://www.semelab-tt.com
Document Number 8320
Issue 1
Page 2 of 3
FAST SWITCHING NPN
POWER TRANSISTOR
BUV62A
MECHANICAL DATA
Dimensions in mm (inches)
3 9 .9 5 (1 .5 7 3 )
m a x .
3 0 .4 0 (1 .1 9 7 )
3 0 .1 5 (1 .1 8 7 )
1 7 .1 5 (0 .6 7 5 )
1 6 .6 4 (0 .6 5 5 )
2 0 .3 2 (0 .8 0 0 )
1 8 .8 0 (0 .7 4 0 )
d ia .
1 1 .1 8 (0 .4 4 0 )
1 0 .6 7 (0 .4 2 0 )
1 .7 8 (0 .0 7 0 )
1 .5 2 (0 .0 6 0 )
1 .5 7 (0 .0 6 2 )
1 .4 7 (0 .0 5 8 )
d ia .
2 p lc s .
TO3 (TO-204AE)
Pin 1 - Base
Pin 2 - Emitter
Case - Collector
Semelab Ltd
Telephone +44 (0) 1455 556565
Email:
sales@semelab-tt.com
Coventry Road, Lutterworth, Leicestershire, LE17 4JB
Fax +44 (0) 1455 552612
Website:
http://www.semelab-tt.com
1 2 .0 7 (0 .4 7 5 )
1 1 .3 0 (0 .4 4 5 )
7 .8 7 (0 .3 1 0 )
6 .9 9 (0 .2 7 5 )
2 6 .6 7 (1 .0 5 0 )
m a x .
4 .0 9 (0 .1 6 1 )
3 .8 4 (0 .1 5 1 )
d ia .
2 p lc s .
Document Number 8320
Issue 1
Page 3 of 3
