EC4SMJ-B-25000MTR datasheet, PDF

Datasheet> All Categories > Passive components> EC4SMJ-B-25000MTR

Preview

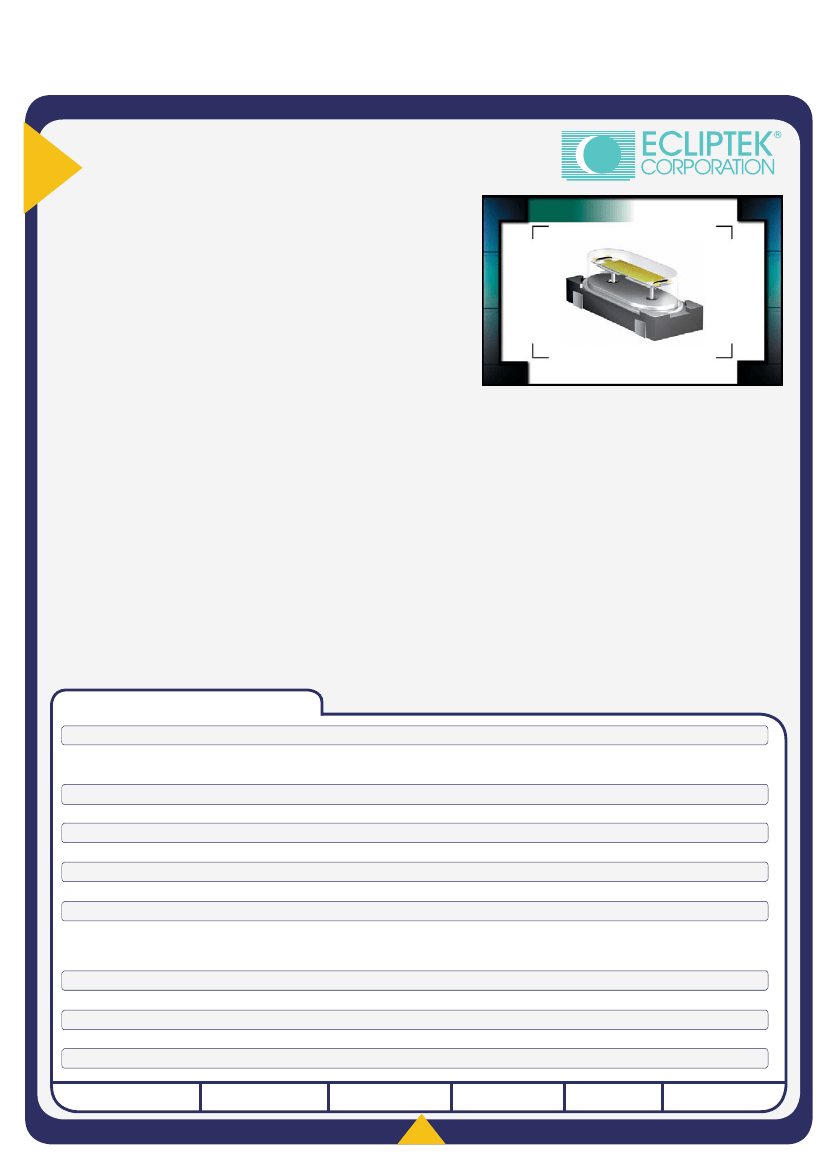

EC4SMJ-B-25000MTR: DescriptionQUARTZ CRYSTAL RESONATOR, 25 MHz; CategoryPassive components; File Size109KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com

Download Datasheet View All

EC4SMJ-B-25000MTR Overview

QUARTZ CRYSTAL RESONATOR, 25 MHz

Preview

Download Datasheet

View All

EC4SM

Series

• Four pad surface mount short package

• AT or BT cut available

• Resistance weld seal

• Tight tolerance/stability

• Interchangeable with plastic

surface mount crystals

• Tape and reel available

NOTES

EC4SM

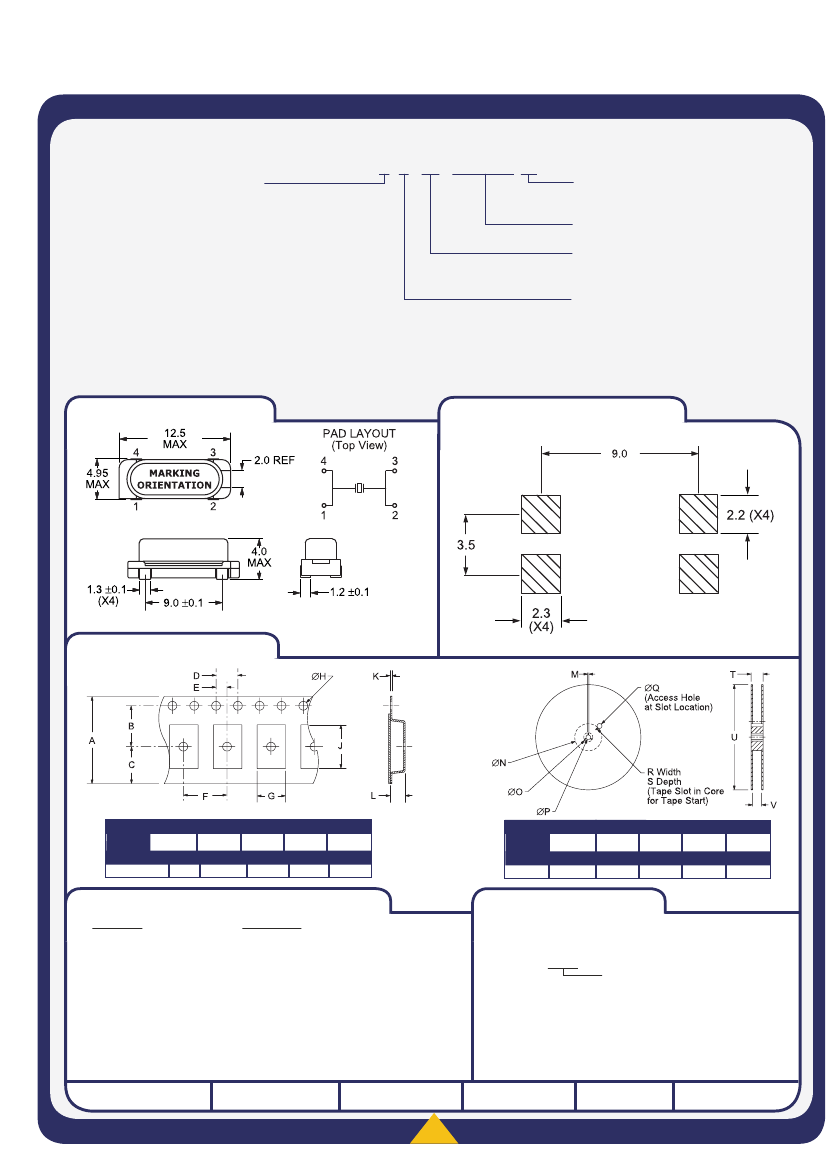

H 4.0

L 12.5

W 4.95

CRYSTAL

_____________________________________________________________________________________________________________________________________________________________________________________________

____________________________________________________________________________________________________________________________________________________________________________________________

_____________________________________________________________________________________________________________________________________________________________________________________________

ELECTRICAL SPECIFICATIONS

Frequency Range

Frequency Tolerance / Stability

Over Operating Temperature Range

Operating Temperature Range

Aging (at 25°C)

Storage Temperature Range

Shunt Capacitance

Insulation Resistance

Drive Level

Load Capacitance (C

)

3.579545MHz to 40.000MHz

±50ppm / ±100ppm (Standard), ±30ppm / ±50ppm (AT cut only), ±15ppm / ±30ppm (AT cut only),

or ±15ppm / ±20ppm (AT cut only)

0°C to 70°C (Standard), -20°C to 70°C (AT cut only), or -40°C to 85°C (AT cut only)

±5ppm / year Maximum

-40°C to 85°C

7pF Maximum

500 Megaohms Minimum at 100V

1 mWatt Maximum

18pF (Standard), Custom C

≥10pF,

or Series Resonant

EQUIVALENT SERIES RESISTANCE (ESR), MODE OF OPERATION (MODE), AND CUT

Frequency Range

3.579545MHz to 4.999MHz

5.000MHz to 5.999MHz

6.000MHz to 7.999MHz

8.000MHz to 8.999MHz

9.000MHz to 9.999MHz

MANUFACTURER

ESR (Ω)

200 Max

150 Max

120 Max

90 Max

80 Max
