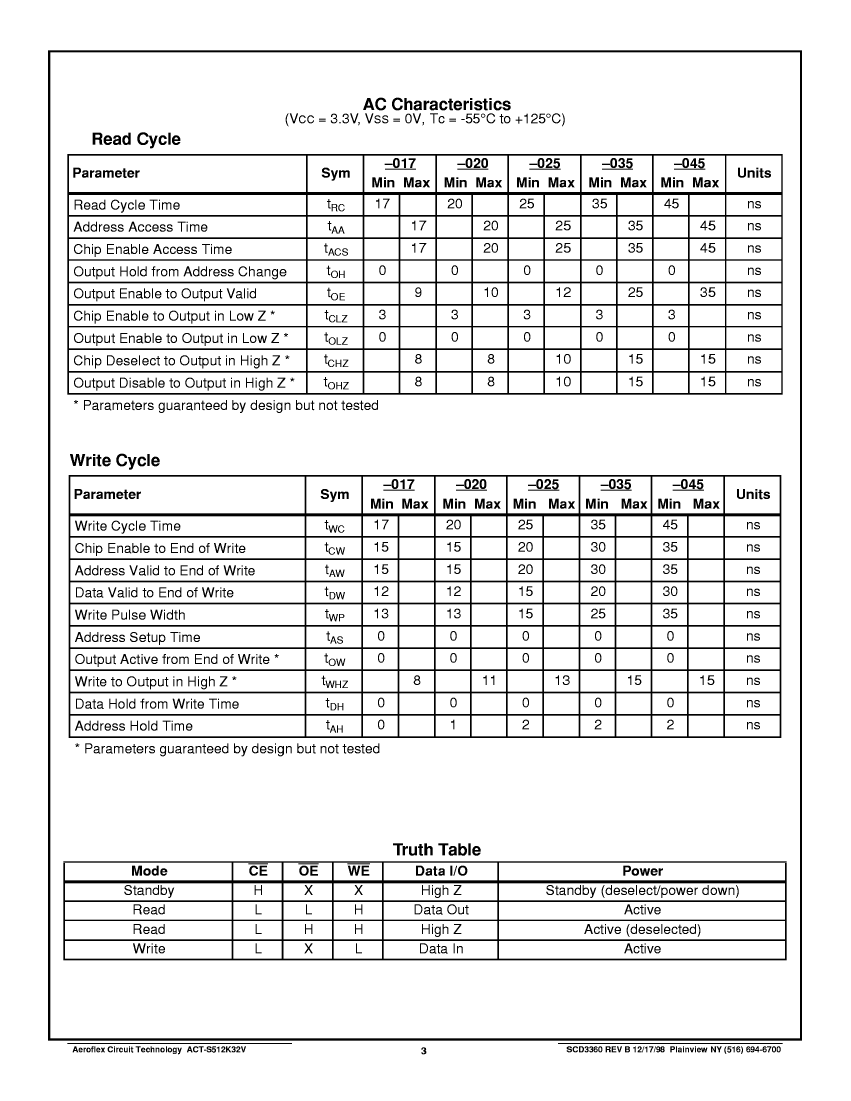

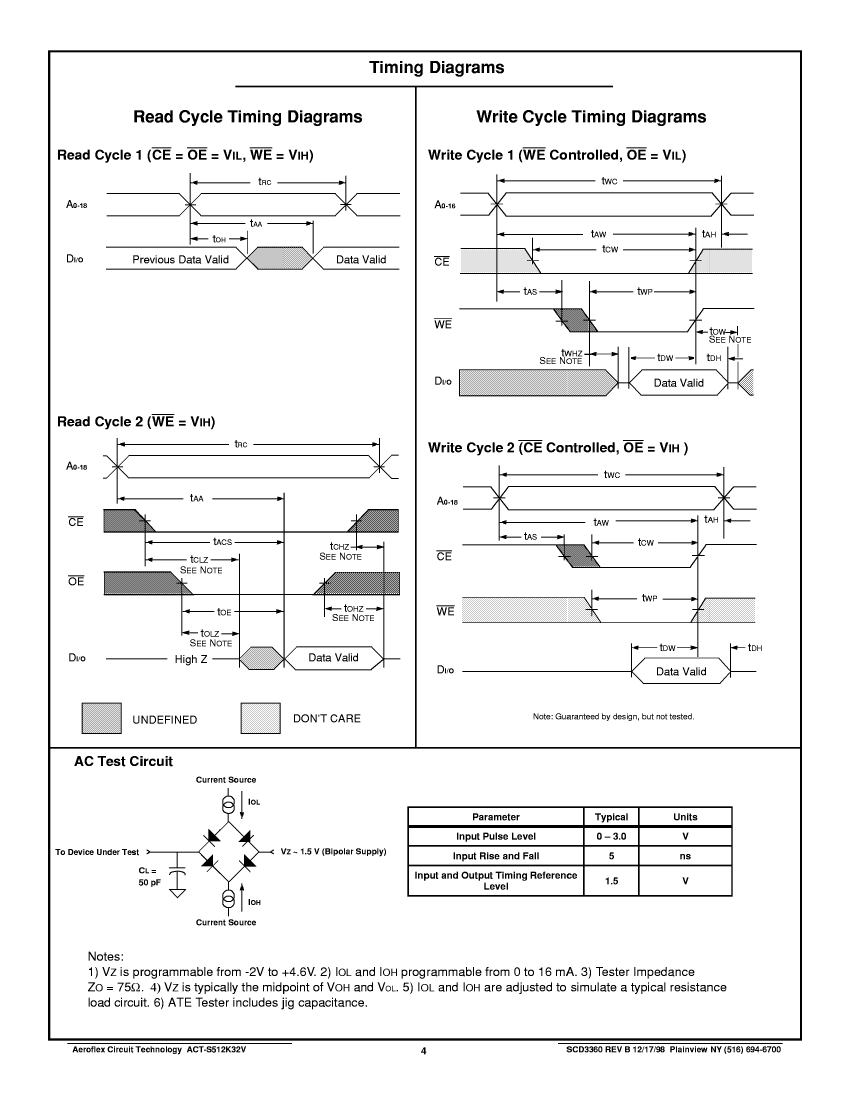

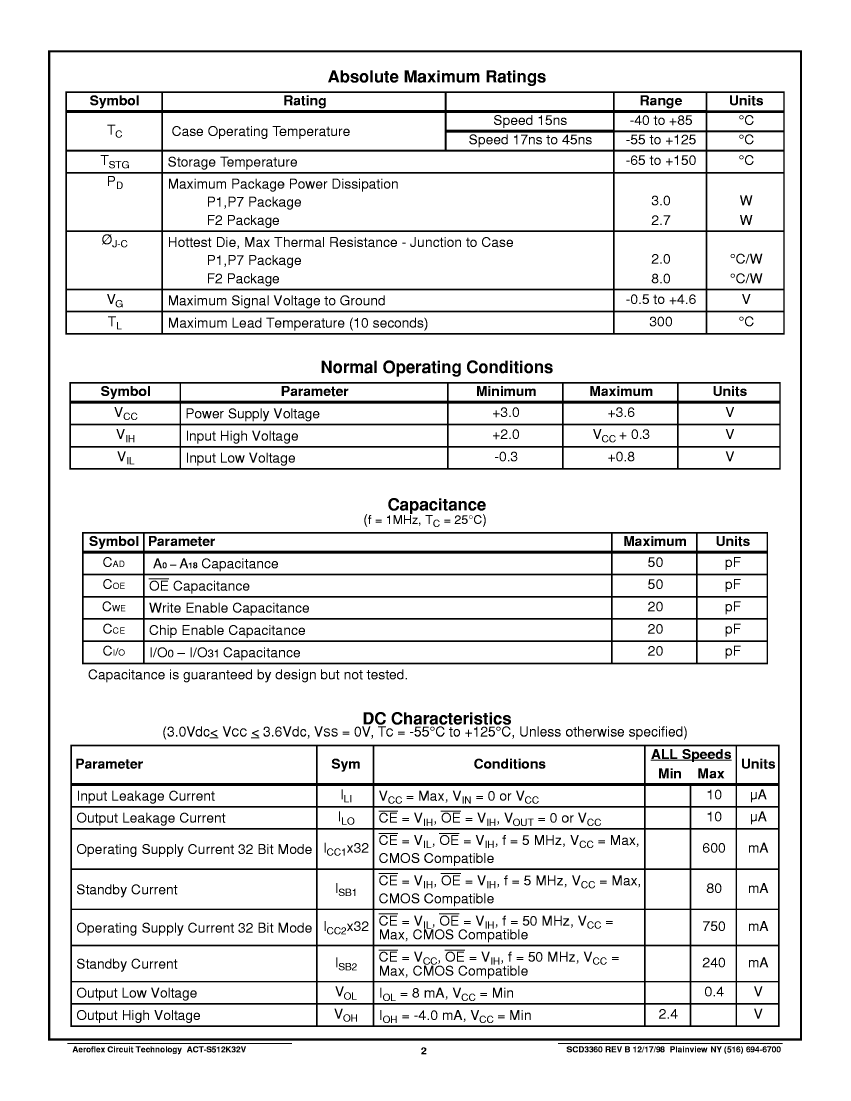

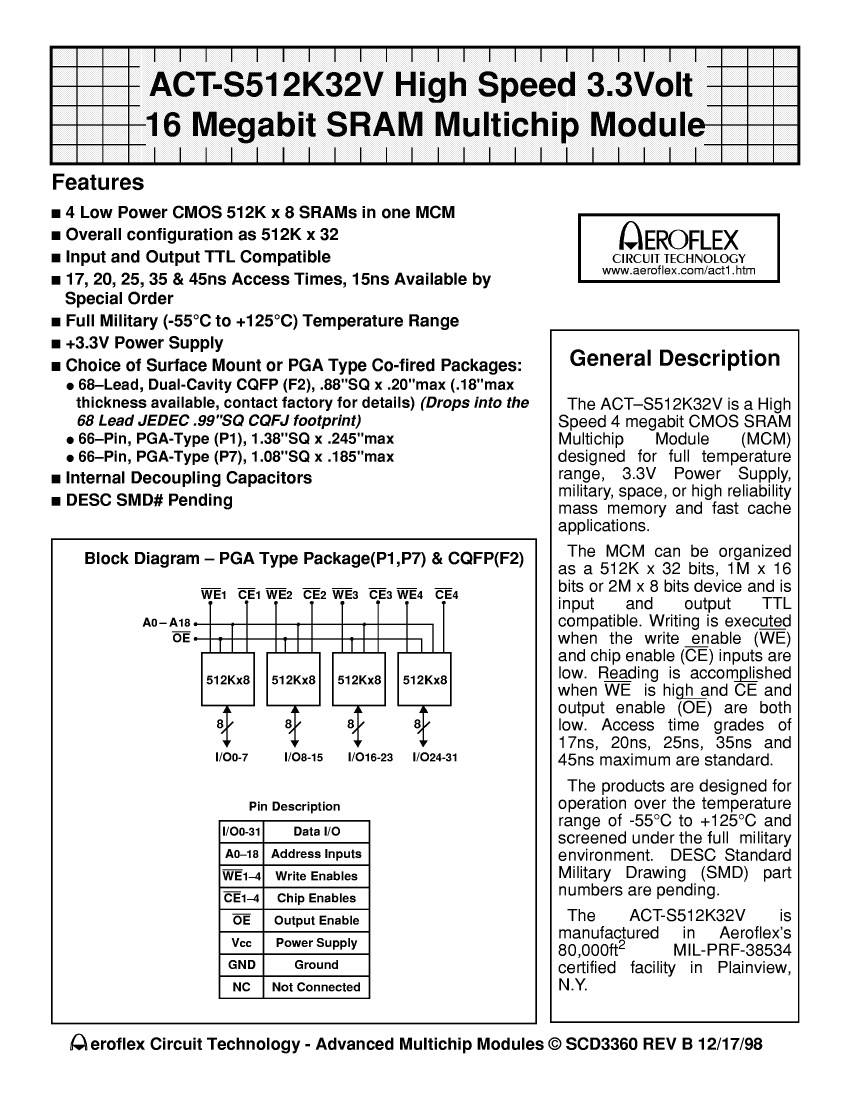

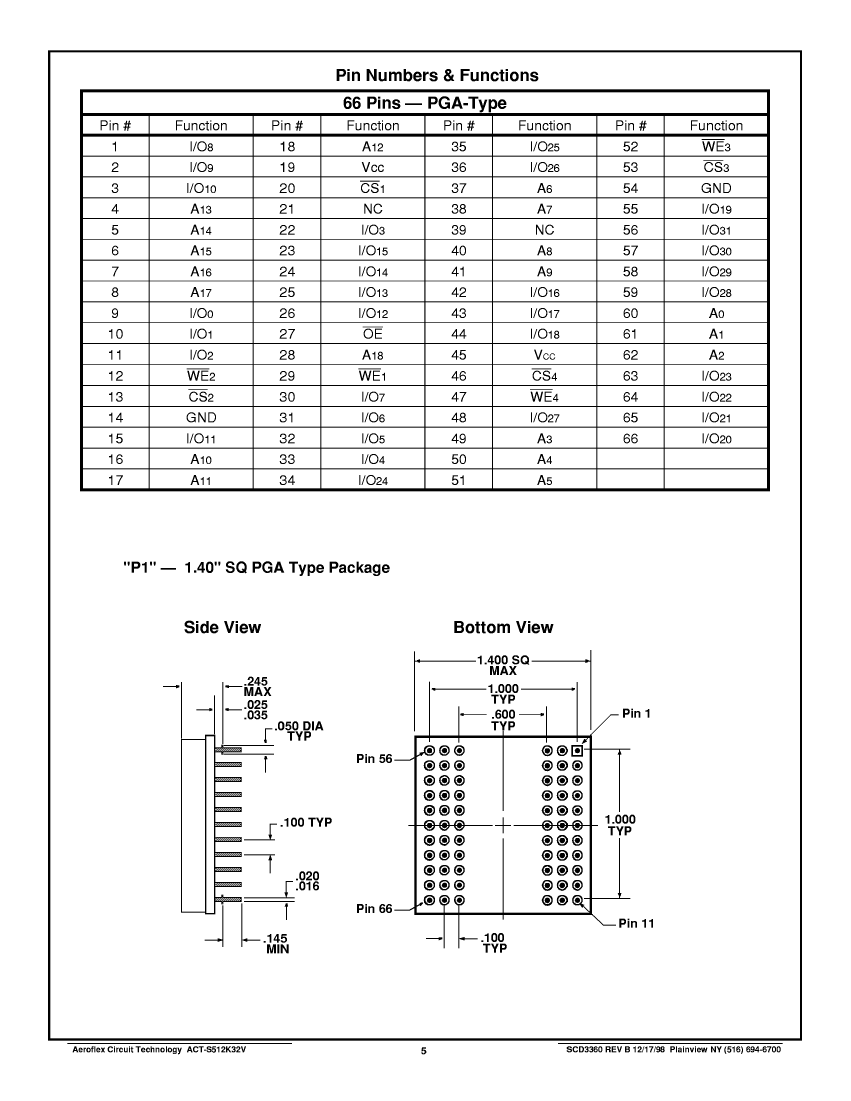

ACT-S512K32V-020P1Q datasheet, PDF

ACT-S512K32V-020P1Q: DescriptionCache SRAM Module, 2MX8, 20ns, CMOS, CPGA66, 1.400 X 1.400 INCH, 0.245 INCH HEIGHT, PGA-66; Categorystorage storage; File Size448KB，8 Pages; ManufacturerCobham PLC

Download Datasheet Parametric View All

ACT-S512K32V-020P1Q Overview

Cache SRAM Module, 2MX8, 20ns, CMOS, CPGA66, 1.400 X 1.400 INCH, 0.245 INCH HEIGHT, PGA-66

Parameter Name	Attribute value
Maker	Cobham PLC
package instruction	PGA,
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Maximum access time	20 ns
Other features	USER CONFIGURABLE AS 512K X 32 OR 1M X 16
JESD-30 code	S-CPGA-P66
memory density	16777216 bit
Memory IC Type	CACHE SRAM MODULE
memory width	8
Number of functions	1
Number of terminals	66
word count	2097152 words
character code	2000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	2MX8
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA
Package shape	SQUARE
Package form	GRID ARRAY
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	6.223 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	PERPENDICULAR
Base Number Matches	1
