B82432-H1682-K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> B82432-H1682-K

B82432-H1682-K: Description1 ELEMENT, 6.8uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size66KB，5 Pages; ManufacturerEPCOS (TDK); Environmental Compliance

Download Datasheet Parametric View All

B82432-H1682-K Overview

1 ELEMENT, 6.8uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD

B82432-H1682-K Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	EPCOS (TDK)
Reach Compliance Code	compliant
ECCN code	EAR99
core material	FERRITE
DC Resistance	0.35 Ω
Nominal inductance(L)	6.8 µH
Inductor Applications	DC-DC CONVERTER
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e4
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Minimum quality factor (at nominal inductance)	20
Maximum rated current	0.66 A
self resonant frequency	36 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	Q MEASURED AT 7.96 MHZ
surface mount	YES
Terminal surface	Silver (Ag)
Terminal location	DUAL ENDED
Terminal shape	J BEND
Test frequency	1 MHz
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

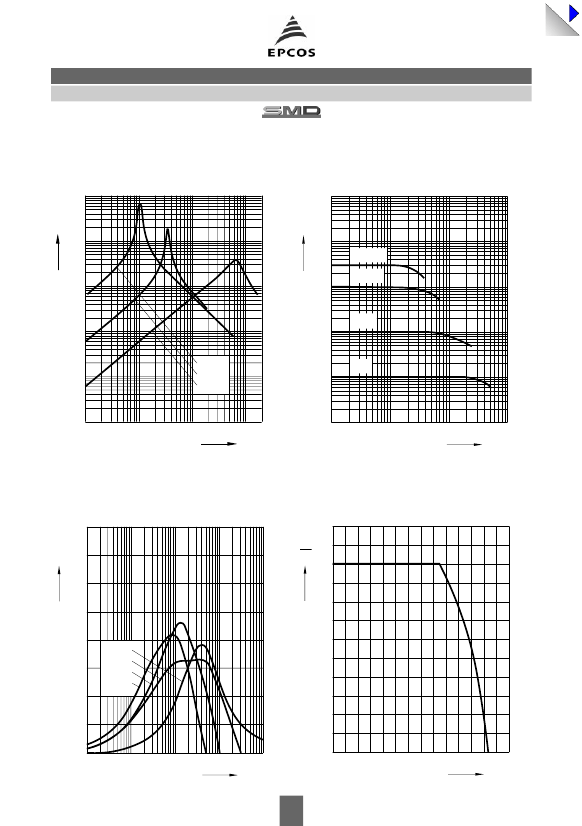

SMT Inductors, SIMID Series

SIMID 1812-H

High-current version

Size 1812 (EIA) or 4532 (IEC)

Rated inductance 1,0 to 330

µH

Rated current 110 to 1100 mA

Construction

Ferrite core

US-welded winding

Flame-retardant encapsulation

B82432-H

Features

High resonance frequency

Suitable for reflow (IR and vapor phase)

and wave soldering

Applications

Filtering of supply voltages, coupling, decoupling

DC/DC converters

Automotive electronics

Telecommunications

Terminals

Silver-plated

1–2

µm

Cu, 4–6

µm

Base material CuSn6

Suitable for soldering and conductive adhesion

No leaching during wave soldering

Marking

Marking on component:

Manufacturer and series mark »–H«

value (in nH) and tolerance of

value (coded),

date of manufacture (coded)

Minimum data on reel:

Manufacturer, part number, ordering code,

value and tolerance of

value,

quantity, date of packing

Delivery mode

12-mm blister tape, wound on 330-mm

∅

reel

For details on taping, packing and packing units

see page 153

122

04/00
