B82144A2145A500 datasheet, PDF

B82144A2145A500: Description1 ELEMENT, 1400uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, AXIAL LEADED, ROHS COMPLIANT; CategoryPassive components inductor; File Size594KB，10 Pages; ManufacturerEPCOS (TDK); Environmental Compliance

Download Datasheet Parametric View All

B82144A2145A500 Overview

1 ELEMENT, 1400uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, AXIAL LEADED, ROHS COMPLIANT

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	EPCOS (TDK)
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Axial
core material	Ferrite
DC Resistance	6 Ω
Nominal inductance(L)	1450 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Lead diameter	0.8 mm
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package diameter	5.2 mm
Package length	12 mm
Package form	Axial

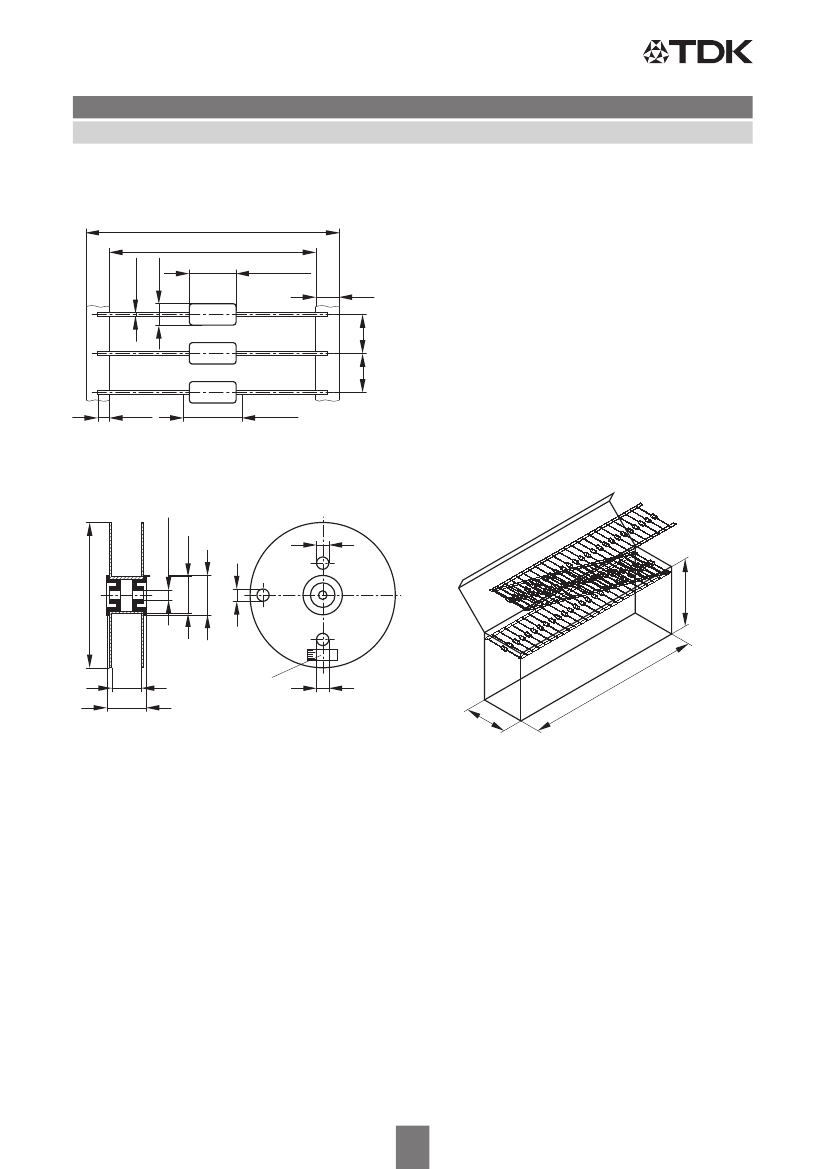

method of packing	TR, 14 INCH
Minimum quality factor (at nominal inductance)	25
Maximum rated current	1.4 A
self resonant frequency	1 MHz
Shape/Size Description	TUBULAR PACKAGE
special characteristics	Q IS MEASURED AT 0.016 MHZ
surface mount	NO
Terminal surface	Tin (Sn)
Terminal location	AXIAL
Terminal shape	WIRE
Test frequency	0.01 MHz
Tolerance	3%
Base Number Matches	1

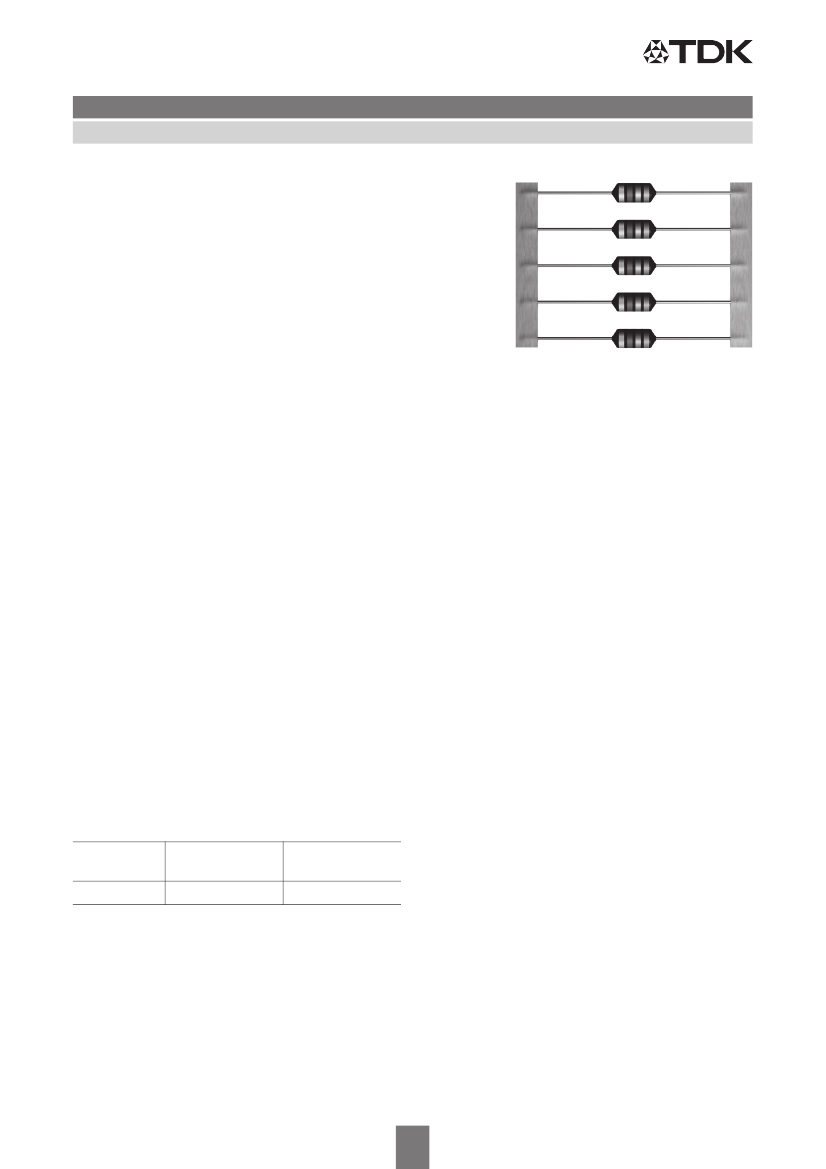

Leaded Inductors

Series/Type:

B82144A

The following products presented in this data sheet are being withdrawn.

Ordering Code

B82144A2984A000

B82144A2535A300

B82144A2305A500

Substitute Product

Date of Withdrawal

2016-02-26

Deadline Last

Orders

2016-08-31

Last Shipments

2017-02-28
