HM2R95PA810FN9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> HM2R95PA810FN9

HM2R95PA810FN9: DescriptionBoard Connector, 225 Contact(s), 9 Row(s), Female, Right Angle, Press Fit Terminal; CategoryThe connector The connector; File Size254KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2R95PA810FN9 Overview

Board Connector, 225 Contact(s), 9 Row(s), Female, Right Angle, Press Fit Terminal

HM2R95PA810FN9 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	25 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE
Connector type	BOARD CONNECTOR
Contact completed and terminated	GOLD (31) OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	HM2R95PA810F
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	9
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	225
Base Number Matches	1

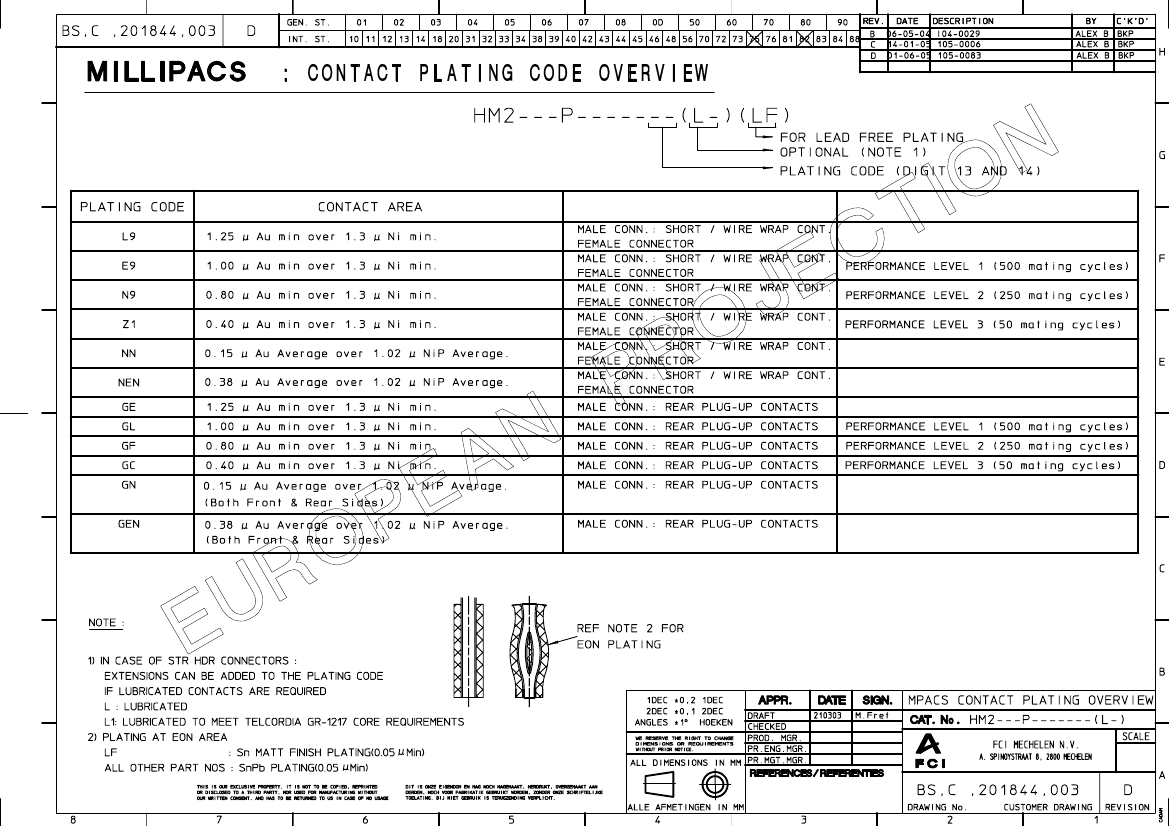

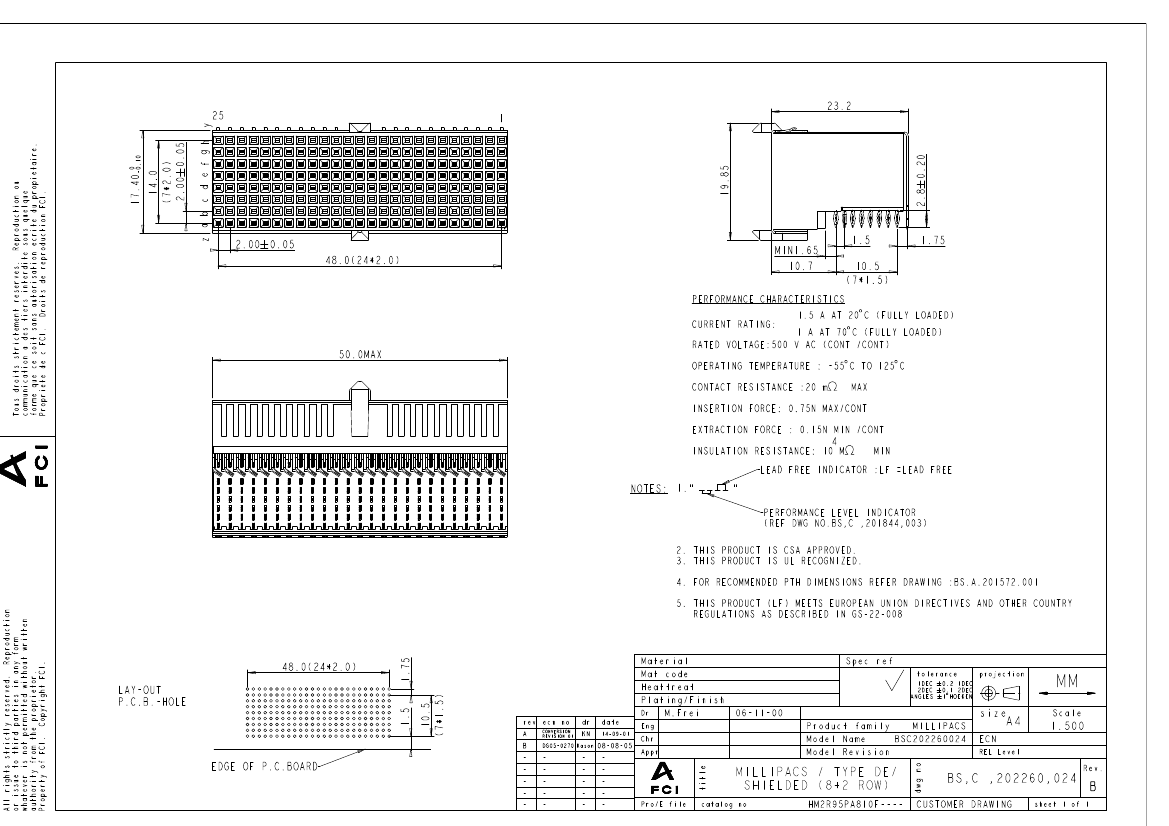

Preview

Download Datasheet

View All

PDM: Rev:B

STATUS:

Released

Printed: Aug 09, 2005

HM2R95PA810FN9 Related Products

	HM2R95PA810FN9	HM2R95PA810FE9LF	HM2R95PA810FE9	HM2R95PA810FZ1LF	HM2R95PA810FZ1
Description	Board Connector, 225 Contact(s), 9 Row(s), Female, Right Angle, Press Fit Terminal	Board Connector, 225 Contact(s), 9 Row(s), Female, Right Angle, Press Fit Terminal, LEAD FREE	Board Connector, 225 Contact(s), 9 Row(s), Female, Right Angle, Press Fit Terminal	Board Connector, 225 Contact(s), 9 Row(s), Female, Right Angle, Press Fit Terminal, LEAD FREE	Board Connector, 225 Contact(s), 9 Row(s), Female, Right Angle, Press Fit Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Other features	25 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE	25 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE	25 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE	25 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE	25 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact completed and terminated	GOLD (31) OVER NICKEL	GOLD (40) OVER NICKEL	GOLD (40) OVER NICKEL	GOLD (16) OVER NICKEL	GOLD (16) OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	HM2R95PA810F	HM2R95PA810F	HM2R95PA810F	HM2R95PA810F	HM2R95PA810F
Mixed contacts	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	9	9	9	9	9
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	225	225	225	225	225
Base Number Matches	1	1	1	1	1
