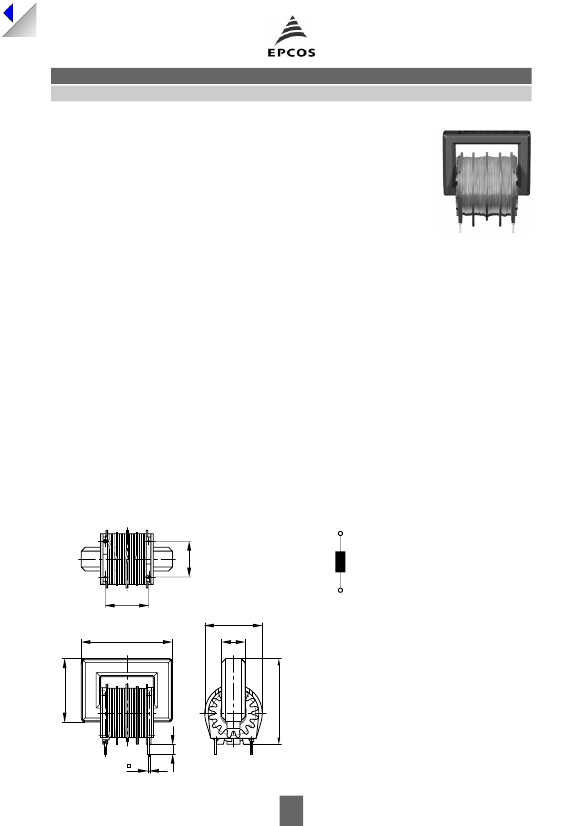

Chokes for Power Lines
Sine-Wave Chokes
Rated voltage 250 Vac
Rated current 0,8 to 2,7 A
Rated inductance 0,5 to 3,0 mH
Construction
s
s
s
s
B82614
Choke consisting of rectangular ferrite core with air gap
Closed polycarbonate coil former with 4 sections
Without encapsulation
One winding
Features
s
Coil former flame-retardant as per UL 94 V-0
s
Recycleable owing to omission of encapsulation and glue
Applications
s
Switch-mode power supplies with current pump
s
Reduced harmonics input current
Terminals
s
Pins 0,7
×
0,7 mm
s
Lead spacing 15
×
12,5 mm
Marking
Manufacturer, ordering code,
rated current, rated inductance, rated current
Dimensional drawing and pin configuration
15±0,2
21 max.
8,1 max.
32,5 max.
23,3 max.
12,5±0,2
0,7
3+0,5
SSB1389-V
31 max.
330
04/00
Chokes for Power Lines
Sine-Wave Chokes
General technical data
Rated inductance
L
R
Measured with HP 4275 A or HP 4284 A;
Measuring frequency:
L
≤
1 mH = 100 kHz
L
> 1 mH = 10 kHz
±
30 %
Typical values, measured at 20°C
250 Vac / 350 Vdc
B82614
Inductance tolerance
DC resistance
R
typ
Rated voltage
V
R
Climatic category
Standards
Weight
Current derating
I
op
/I
R
versus ambient temperature
T
A
In accordance with IEC 60068-1
40/125/56 (– 40
°C/+
125
°C/56
days damp heat test)
The chokes comply with EN 60938-2 und VDE 0565-2
Approx. 30 g
1,4
I
Ι
op
B
I
Ι
R
1,2
R
SSB1102-8
1,0
0,8
0,6
0,4
0,2
0
0
20
40
60
80
100
C 140
T
A
Characteristics and ordering codes
I
R
A
0,8
1,0
1,7
2,0
2,4
2,7
L
R
mH
3,0
2,0
1,5
1,0
0,75
0,5
R
typ
Ω
2,0
1,3
0,62
0,42
0,29
0,23
331
04/00
Ordering code
B82614-R2801-A30
B82614-R2102-A30
B82614-R2172-A30
B82614-R2202-A30
B82614-R2242-A30
B82614-R2272-A30
