SAW Components
SAW IF filter
WiMAX
Series/type:
Ordering code:
Date:
Version:
B5040
B39471-B5040-H810
Mar 16, 2006
2.1
©
EPCOS AG 2006. Reproduction, publication and dissemination of this data sheet, enclosures
hereto and the information contained therein without EPCOS’ prior express consent is prohibited.
SAW Components
SAW IF filter
Data Sheet

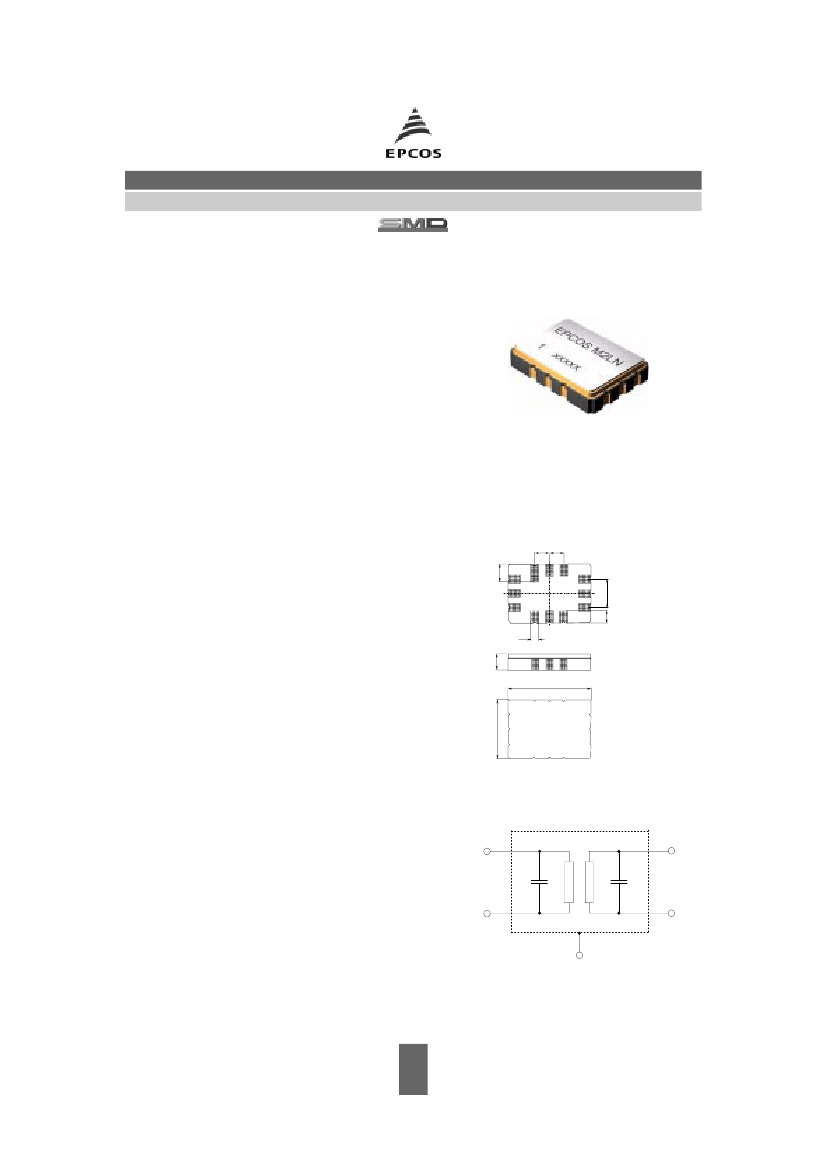

Application
s
Low-loss IF filter for WiMAX
s
Usable passband 4.5 MHz
B5040
468.0 MHz
Features
Package size 7.0 x 5.0 x 1.33 mm
3
Package code QCC12E
RoHS compatible
Approx. weight 0.2 g
Ceramic package for
Surface Mount Technology
(SMT)
s
Ni, gold-plated terminals
s
Electrostatic Sensitive Device
(ESD)
s
s
s
s
s
1,27 1,27
1
2
3
4
1,4
12
1,1 2,54
bottom view
11
10
9
8
7
0,8
1,33
side view
7,0
5,0
6
5
top view
Pin configuration
s
s
s
s
s
s
10
12
4
6
2, 3, 8, 9
1, 5, 7, 11
Input
Input ground
Output
Output ground
To be grounded
Case ground
10
4
12
6
1,5,7,11
Please read
cautions and warnings and
important notes
at the end of this document.
2
Mar 16, 2006
SAW Components
SAW IF filter
Data Sheet
Characteristics
Operating temperature range:
Terminating source impedance:
Terminating load impedance:
T =
Z
S
=
Z
L
=
B5040
468.0 MHz
–40 to 85 ˚C
50
Ω
single ended and matching network
50
Ω
single ended and matching network
min.
typ.
@ 25 ˚C
468.0
11.2
max.
—
13.0
MHz
dB
Nominal frequency
Minimum insertion attenuation
(including matching network)
Amplitude ripple
(p-p)
f
N
±
2.25 MHz
f
N
±
2.50 MHz
Group delay ripple
(p-p)
f
N
±
2.25 MHz
Absolute group delay
f
N
±
2.50 MHz
Relative attenuation
(relative to
α
min
)
f
N
±
3.5 ... f
N
±
5.0 MHz
f
N
±
5.0 ... f
N
±
10.0 MHz
f
N
±
10.0 ... f
N
±
20.0 MHz
30.0 MHz ...
f
N
+
20.0 MHz ...
f
N
+
24.0 MHz ...
Return loss, input
Return loss, output
f
N
−
20.0 MHz
f
N
+
24.0 MHz
1000 MHz
f
N
±
2.25 MHz
f
N
±
2.25 MHz
f
N
α
min
∆α
—
—
—
—
∆τ
—
0.6
1.3
1.2
2.0
dB
dB
120
250
ns
τ
α
rel
—
0.5
1.5
µs
10
35
40
50
45
50
8
8
TC
f
T
0
—
—
15
42
48
57
52
55
12
20
–0.036
20
—
—
—
—
—
—
—
—
—
—
dB
dB
dB
dB
dB
dB
dB
dB
ppm/K
2
˚C
Temperature coefficient of frequency
1)
Turnover temperature
1)
Temperature dependance of f
c
:
f
c
(T
A
) = f
c
(T
0
) (1 + TC
f
(T
A
– T
0
)
2
)
Please read
cautions and warnings and
important notes
at the end of this document.
3
Mar 16, 2006
SAW Components
SAW IF filter
Data Sheet
Matching network to 50
Ω
B5040
468.0 MHz
Ls2
Ls5
C
p1
= not used
L
s2
= 47.0 nH
L
p3
= 22.0 nH
Cp1
Lp3
Lp4
Cp6
L
p4
= not used
L
s5
= 18.0 nH
C
p6
= 18.0 pF
Maximum ratings
Operable temperature range
Storage temperature range
DC voltage
ESD voltage
Input power (average)
Input power (peak)
1)
T
T
stg
V
DC
V
ESD
P
IN
P
IN
–40/+85
–40/+85
0
500
1)
5
15
˚C
˚C
V
V
dBm
dBm
HBM; 5 pulse +/-
acc. to JESD22A-A114-B (Human body model, 5 pulses +/-).
Please read
cautions and warnings and
important notes
at the end of this document.
4
Mar 16, 2006
SAW Components
SAW IF filter
Data Sheet

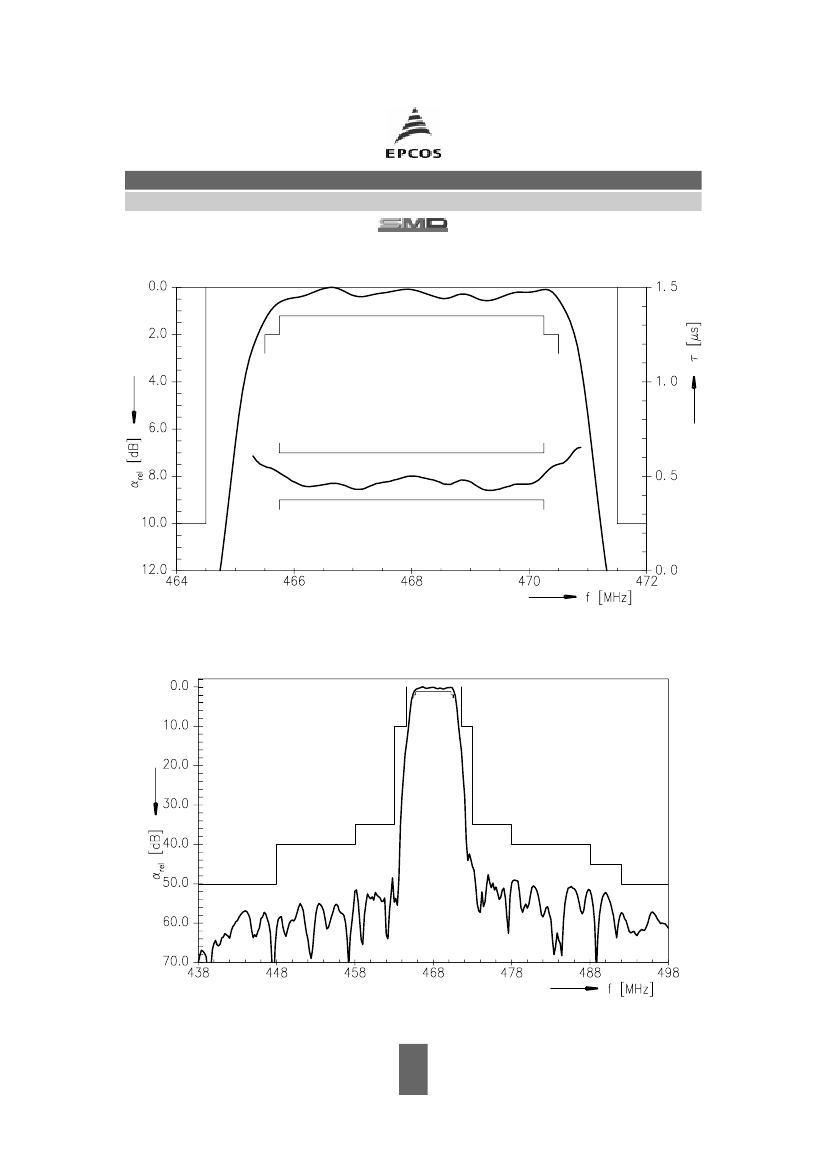

Transfer function
B5040
468.0 MHz
Transfer function
(wideband)
Please read
cautions and warnings and
important notes
at the end of this document.
5
Mar 16, 2006
