SN74LS168ND datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> SN74LS168ND

SN74LS168ND: DescriptionDecade Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, TTL, PDIP16, PLASTIC, DIP-16; Categorylogic logic; File Size150KB，6 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

SN74LS168ND Overview

Decade Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, TTL, PDIP16, PLASTIC, DIP-16

SN74LS168ND Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	unknown
Other features	TCO OUTPUT
Counting direction	BIDIRECTIONAL
series	LS
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
length	19.175 mm
Load capacitance (CL)	15 pF
Load/preset input	YES
Logic integrated circuit type	DECADE COUNTER
Maximum Frequency@Nom-Sup	25000000 Hz
MaximumI(ol)	0.008 A
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	34 mA
propagation delay (tpd)	23 ns
Certification status	Not Qualified
Maximum seat height	4.44 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	POSITIVE EDGE
width	7.62 mm
minfmax	25 MHz
Base Number Matches	1

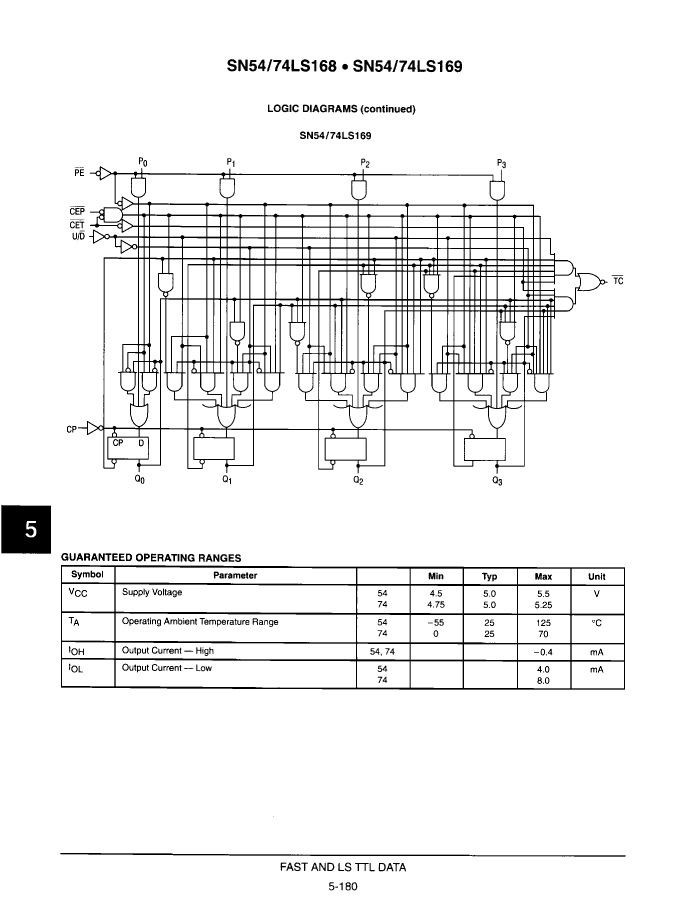

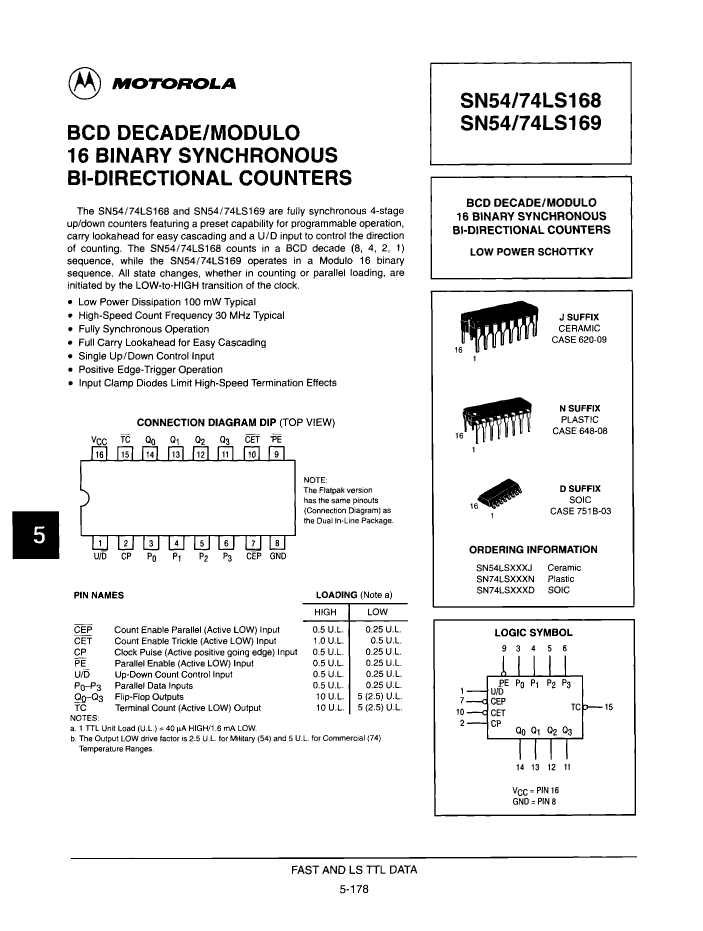

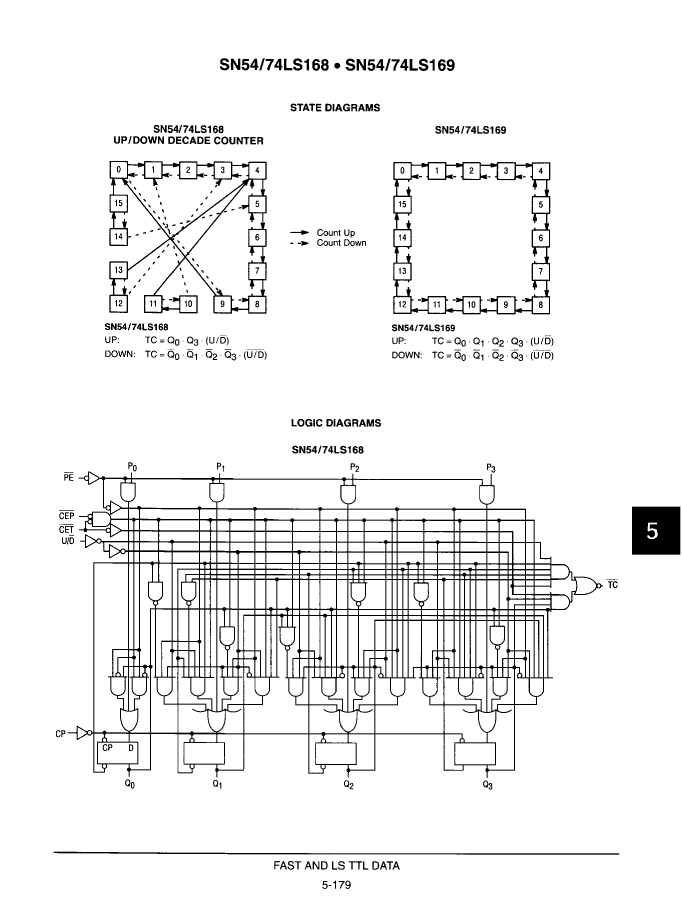

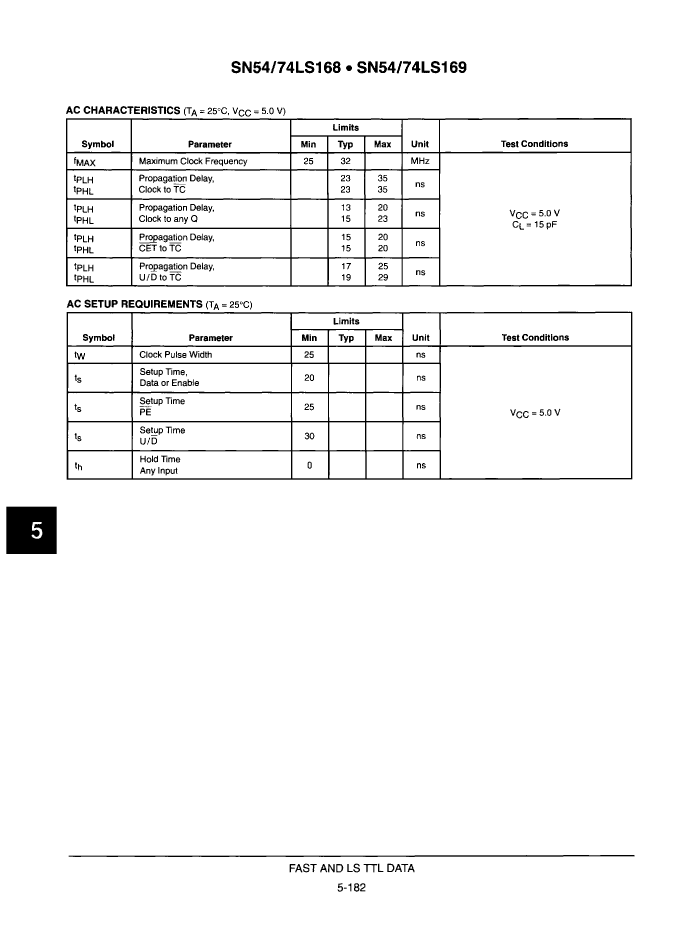

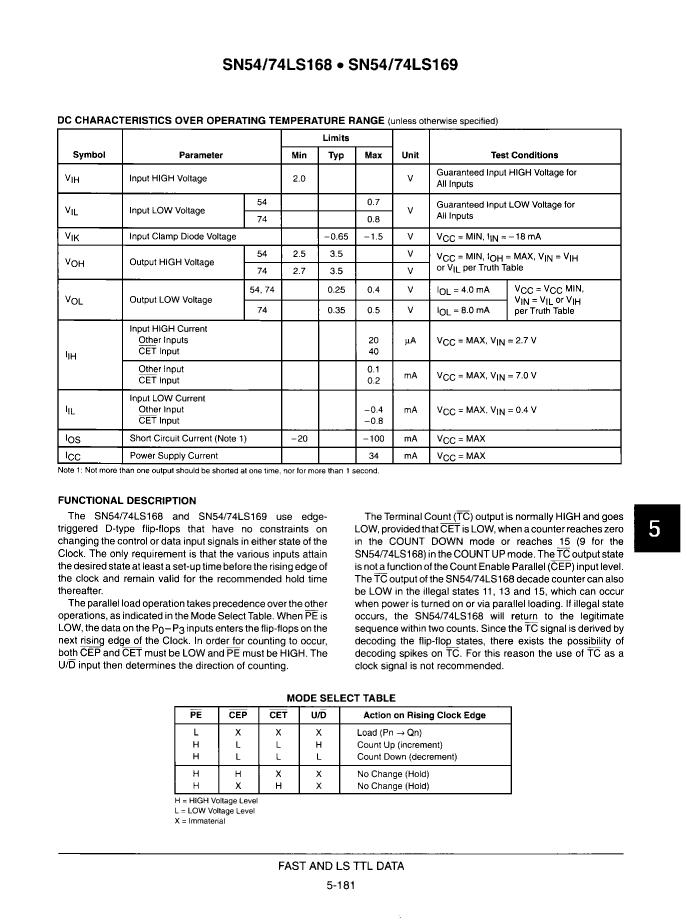

Preview

Download Datasheet

View All

SN74LS168ND Related Products

	SN74LS168ND	SN54LS169JD	SN54LS168JD	SN74LS168DR2	SN74LS169ND	SN74LS169DR2
Description	Decade Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, TTL, PDIP16, PLASTIC, DIP-16	LS SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT BIDIRECTIONAL BINARY COUNTER, CDIP16, CERAMIC, DIP-16	LS SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT BIDIRECTIONAL DECADE COUNTER, CDIP16, CERAMIC, DIP-16	LS SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT BIDIRECTIONAL DECADE COUNTER, PDSO16, PLASTIC, SOIC-16	LS SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT BIDIRECTIONAL BINARY COUNTER, PDIP16, PLASTIC, DIP-16	Binary Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, TTL, PDSO16, PLASTIC, SOIC-16
package instruction	DIP, DIP16,.3	DIP,	DIP,	SOP,	DIP, DIP16,.3	SOP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	TCO OUTPUT	TCO OUTPUT	TCO OUTPUT	TCO OUTPUT	TCO OUTPUT	TCO OUTPUT
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
series	LS	LS	LS	LS	LS	LS
JESD-30 code	R-PDIP-T16	R-GDIP-T16	R-GDIP-T16	R-PDSO-G16	R-PDIP-T16	R-PDSO-G16
length	19.175 mm	19.3 mm	19.3 mm	9.9 mm	19.175 mm	9.9 mm
Load capacitance (CL)	15 pF	15 pF	15 pF	15 pF	15 pF	15 pF
Load/preset input	YES	YES	YES	YES	YES	YES
Logic integrated circuit type	DECADE COUNTER	BINARY COUNTER	DECADE COUNTER	DECADE COUNTER	BINARY COUNTER	BINARY COUNTER
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Number of digits	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16
Maximum operating temperature	70 °C	125 °C	125 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	SOP	DIP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE
Maximum supply current (ICC)	34 mA	34 mA	34 mA	34 mA	34 mA	34 mA
propagation delay (tpd)	23 ns	23 ns	23 ns	23 ns	23 ns	23 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.44 mm	4.19 mm	4.19 mm	1.75 mm	4.44 mm	1.75 mm
Maximum supply voltage (Vsup)	5.25 V	5.5 V	5.5 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.5 V	4.5 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	YES	NO	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
width	7.62 mm	7.62 mm	7.62 mm	3.9 mm	7.62 mm	3.9 mm
minfmax	25 MHz	25 MHz	25 MHz	25 MHz	25 MHz	25 MHz
Base Number Matches	1	1	1	1	1	1
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	-
