GS1M: DescriptionRectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-214AC, SMA, 2 PIN; CategoryDiscrete semiconductor diode; File Size415KB，2 Pages; ManufacturerDCCOM [ DC COMPONENTS ]

Download Datasheet Parametric Compare View All

GS1M Overview

Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-214AC, SMA, 2 PIN

GS1M Parametric

Parameter Name	Attribute value
Maker	DCCOM [ DC COMPONENTS ]
package instruction	SMA, 2 PIN
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-214AC
JESD-30 code	R-PDSO-C2
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum repetitive peak reverse voltage	1000 V
surface mount	YES
Terminal form	C BEND
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

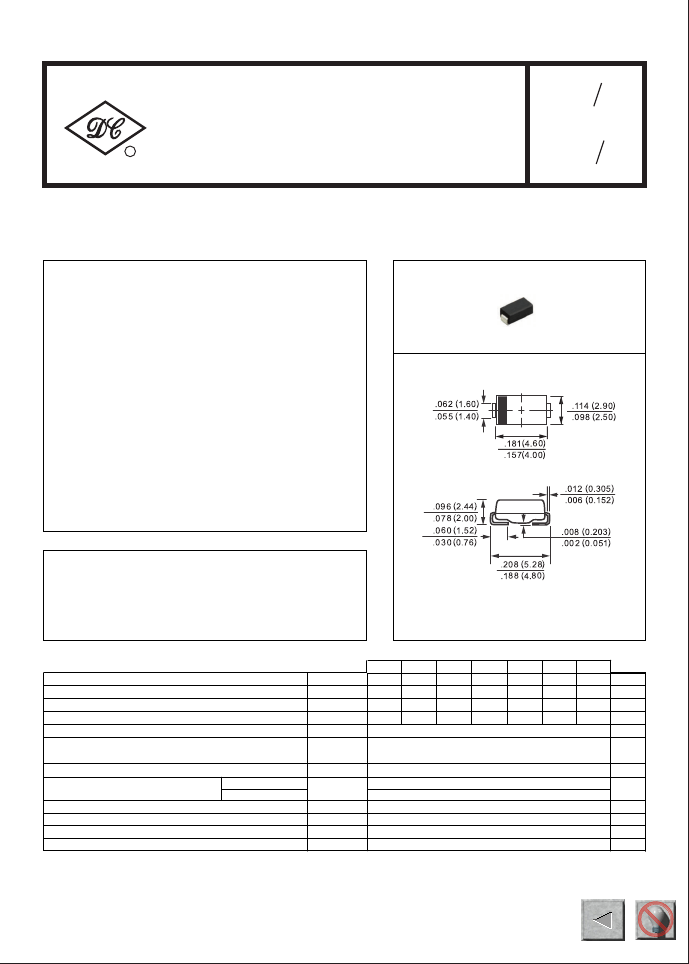

DC COMPONENTS CO., LTD.

R

GS1A M1

THRU

GS1M M7

RECTIFIER SPECIALISTS

TECHNICAL SPECIFICATIONS OF SURFACE MOUNT SILICON RECTIFIER

VOLTAGE RANGE 50 to 1000 Volts

CURRENT 1.0 Ampere

FEATURES

* ldeal for surface mounted applications

* Low leakage current

* Glass passivated junction

SMA ( DO-214AC )

MECHANICAL DATA

* Case: Molded plastic

* Epoxy: UL 94V-0 rate flame retardant

*Terminals: Solder plated, solderable per

MIL-STD-750, Method 2026

* Polarity: As marked

* Mounting position: Any

* Weight: 0.064 gram

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25

o

C ambient temperature unless otherwise specified.

Single phase, half wave, 60 Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

Dimensions in inches and (millimeters)

SYMBOL

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC Blocking Voltage

Maximum Average Forward Rectified Current at T

A

= 75

o

C

Peak Forward Surge Current I

FM

(surge): 8.3 ms single half sine-wave

superimposed on rated load (JEDEC method)

Maximum Forward Voltage at 1.0A DC

Maximum DC Reverse Current at

Rated DC Blocking Voltage

Maximum Reverse Recovery Time (Note 3)

Typical Thermal Resistance (Note 2)

Typical Junction Capacitance (Note 1)

Operating and Storage Temperature Range

@T

A

= 25

o

C

@T

A

= 125

o

C

V

RRM

V

RMS

V

DC

I

O

I

FSM

V

F

I

R

trr

RθJL

C

J

T

J

, T

STG

GS1A

M1

50

35

50

GS1B

M2

100

70

100

GS1D

M3

200

140

200

GS1G

M4

400

280

400

1.0

30

1.1

5.0

50

2.5

30

15

-65 to + 175

GS1J

M5

600

420

600

GS1K

M6

800

560

800

GS1M

UNITS

M7

Volts

1000

700

1000

Volts

Amps

Volts

uAmps

uSec

0

C/ W

pF

0

C

NOTES : 1. Measured at 1.0 MHz and applied reverse voltage of 4.0VDC

2. Thermal Resistance (Junction to Ambient), .24in

2

(6.0mm

2

) copper pads to each terminal.

3. Test Conditions: IF=0.5A, IR=1.0A, IRR=0.25A.

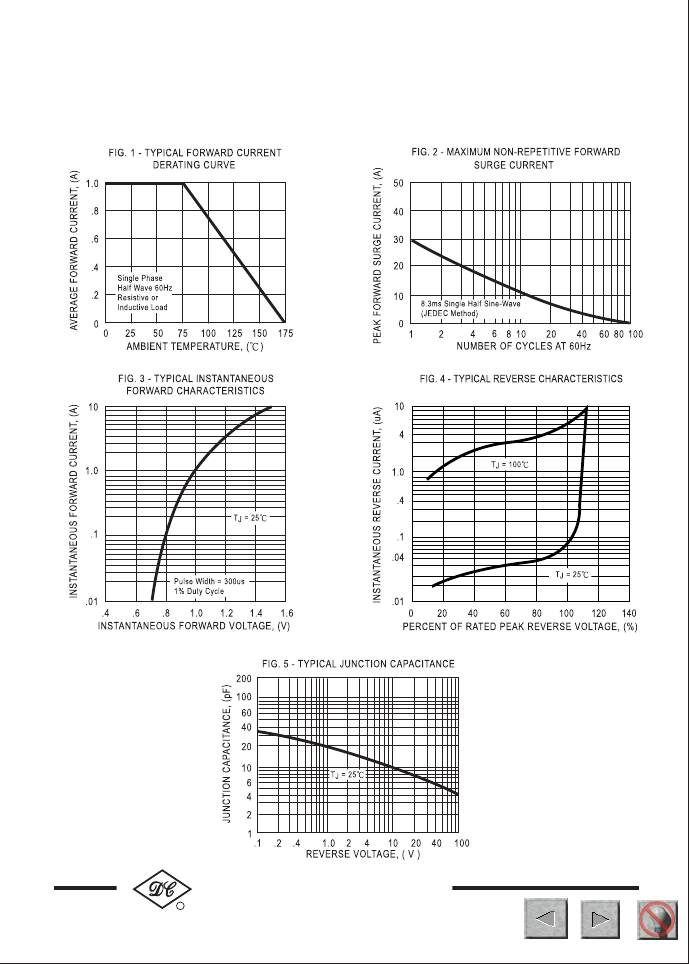

340

BACK

GS1M Related Products

	GS1M	GS1K	GS1J	GS1D	GS1A
Description	Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-214AC, SMA, 2 PIN	Rectifier Diode, 1 Element, 1A, 800V V(RRM), Silicon, DO-214AC, SMA, 2 PIN	Rectifier Diode, 1 Element, 1A, 600V V(RRM), Silicon, DO-214AC, SMA, 2 PIN	Rectifier Diode, 1 Element, 1A, 200V V(RRM), Silicon, DO-214AC, SMA, 2 PIN	Rectifier Diode, 1 Element, 1A, 50V V(RRM), Silicon, DO-214AC, SMA, 2 PIN
Maker	DCCOM [ DC COMPONENTS ]	DCCOM [ DC COMPONENTS ]	DCCOM [ DC COMPONENTS ]	DCCOM [ DC COMPONENTS ]	DCCOM [ DC COMPONENTS ]
package instruction	SMA, 2 PIN	SMA, 2 PIN	SMA, 2 PIN	R-PDSO-C2	SMA, 2 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	DO-214AC	DO-214AC	DO-214AC	DO-214AC	DO-214AC
JESD-30 code	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
Number of components	1	1	1	1	1
Number of terminals	2	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	1 A	1 A	1 A	1 A	1 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Maximum repetitive peak reverse voltage	1000 V	800 V	600 V	200 V	50 V
surface mount	YES	YES	YES	YES	YES
Terminal form	C BEND	C BEND	C BEND	C BEND	C BEND
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1	1
