BYY53-150

Description
Rectifier Diode, 1 Phase, 1 Element, 25A, 150V V(RRM), Silicon, HERMETICALLY SEALED, 2 PIN
CategoryDiscrete semiconductor    diode
File Size213KB,6 Pages
ManufacturerZetex Semiconductors
Websitehttp://www.zetex.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

BYY53-150 Overview

Rectifier Diode, 1 Phase, 1 Element, 25A, 150V V(RRM), Silicon, HERMETICALLY SEALED, 2 PIN

BYY53-150 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerZetex Semiconductors
package instructionO-MUPF-D1
Reach Compliance Codeunknown
ECCN codeEAR99
applicationGENERAL PURPOSE
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)1.1 V
JESD-30 codeO-MUPF-D1
JESD-609 codee3
Maximum non-repetitive peak forward current425 A
Number of components1
Phase1
Number of terminals1
Maximum operating temperature200 °C
Maximum output current25 A
Package body materialMETAL
Package shapeROUND
Package formPRESS FIT
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum repetitive peak reverse voltage150 V
surface mountNO
Terminal surfaceMatte Tin (Sn)
Terminal formSOLDER LUG
Terminal locationUPPER
Maximum time at peak reflow temperatureNOT SPECIFIED
Base Number Matches1

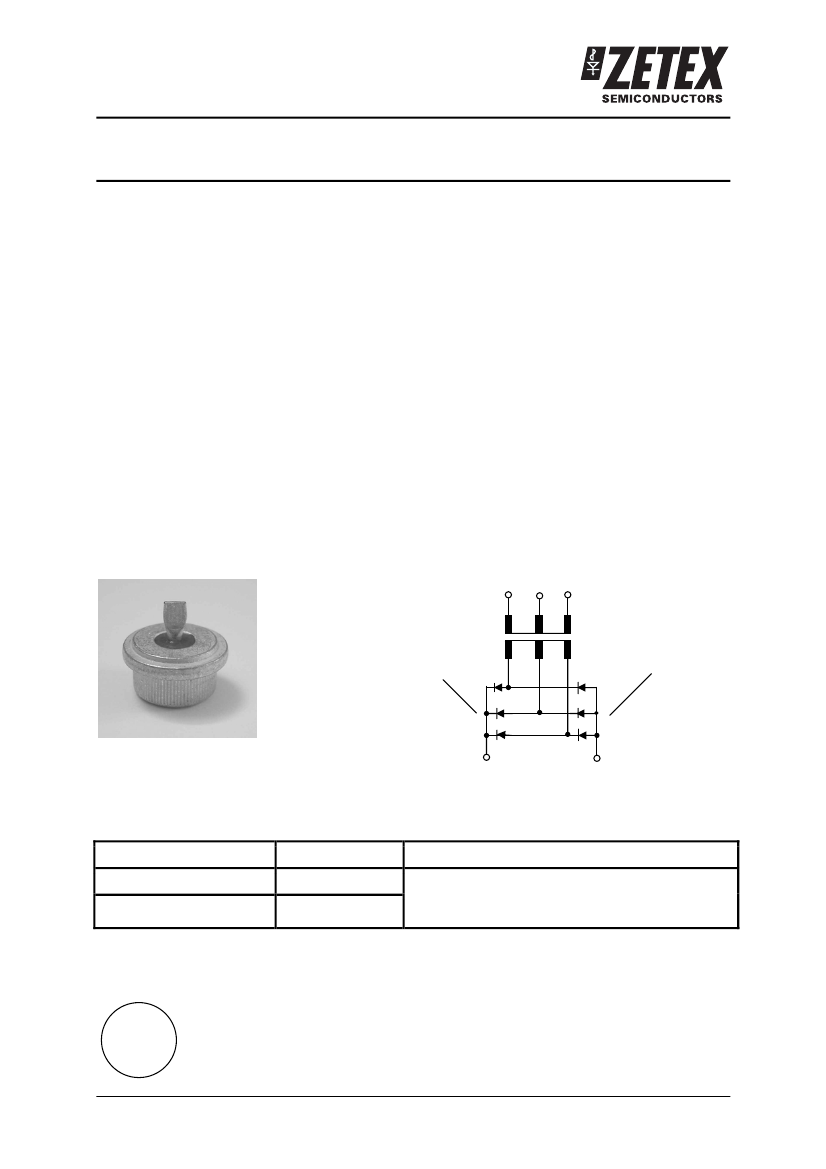

BYY53 / BYY54
25A Silicon Power Rectifier Diode
Part no.
Description
The BYY53/54 are hermetically sealed 25A-
diodes, which are available in different reverse
voltage classes up to 1500V.
The diodes can be delivered with limited forward
voltage
and reverse current differences for
parallel connecting in rectifier stacks and back-
off-diodes
Features
Applications
Forward current 25A
Reverse voltage 75V – 1500V
Hermetic press-fit package
Available in different modifications of the
package
Power supplies
Rectifier diode in car generators
Rectifier bridges/stacks
Back-off-diodes
Pinout details
Typical application circuit
Six pulse
bridge
connection
~
~
~
1
3 x BYY53-1200
3 x BYY54-1200
2
BYY53: 1 – cathode; 2 - anode
BYY54: 1 – anode; 2 - cathode
+
-
Ordering information
Device
BYY53-75; …; BYY53-1500
BYY54-75; …; BYY54-1500
Quantity per box
500
500
Options
The package quantities for the different package
modifications are included in
“PressFitPackageModifications.pdf”
Device marking
Devices are identified by type. Colour of marking: BYY53- black, BYY54 – red
422........................................……. date code 422 = 2004 week 22
ZETEX
BYY53………………………………... diode type
400………………………………….. repetitive peak reverse voltage V
RRM
(in V) 400
Issue 2 – November 2006
© Zetex Semiconductors plc 2006
1
www.zetex.com

BYY53-150 Related Products

BYY53-150 BYY54-1200
Description Rectifier Diode, 1 Phase, 1 Element, 25A, 150V V(RRM), Silicon, HERMETICALLY SEALED, 2 PIN Rectifier Diode, 1 Phase, 1 Element, 25A, 1200V V(RRM), Silicon, HERMETICALLY SEALED, 2 PIN
Is it Rohs certified? conform to conform to
Maker Zetex Semiconductors Zetex Semiconductors
package instruction O-MUPF-D1 O-MUPF-D1
Reach Compliance Code unknown unknown
ECCN code EAR99 EAR99
application GENERAL PURPOSE GENERAL PURPOSE
Configuration SINGLE SINGLE
Diode component materials SILICON SILICON
Diode type RECTIFIER DIODE RECTIFIER DIODE
Maximum forward voltage (VF) 1.1 V 1.15 V
JESD-30 code O-MUPF-D1 O-MUPF-D1
JESD-609 code e3 e3
Maximum non-repetitive peak forward current 425 A 425 A
Number of components 1 1
Phase 1 1
Number of terminals 1 1
Maximum operating temperature 200 °C 200 °C
Maximum output current 25 A 25 A
Package body material METAL METAL
Package shape ROUND ROUND
Package form PRESS FIT PRESS FIT
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED
Certification status Not Qualified Not Qualified
Maximum repetitive peak reverse voltage 150 V 1200 V
surface mount NO NO
Terminal surface Matte Tin (Sn) Matte Tin (Sn)
Terminal form SOLDER LUG SOLDER LUG
Terminal location UPPER UPPER
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED
Base Number Matches 1 1
