NK502C4AB5: DescriptionRESISTOR, TEMPERATURE DEPENDENT, NTC; CategoryPassive components The resistor; File Size195KB，1 Pages; ManufacturerThermometrics

Download Datasheet Parametric Compare View All

NK502C4AB5 Overview

RESISTOR, TEMPERATURE DEPENDENT, NTC

NK502C4AB5 Parametric

Parameter Name	Attribute value
Maker	Thermometrics
package instruction	,
Reach Compliance Code	unknown
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-40 °C
Package height	7 mm
Package length	3 mm
Package form	Radial
Package width	3 mm
method of packing	TAPE
resistance	5000 Ω
Resistor type	NTC THERMISTOR
surface mount	NO
Terminal location	RADIAL
Terminal shape	WIRE
Thermal sensitivity index	3436 K
Thermistor Applications	TEMPERATURE COMPENSATION
Tolerance	5%
Base Number Matches	1

Preview

Download Datasheet

View All

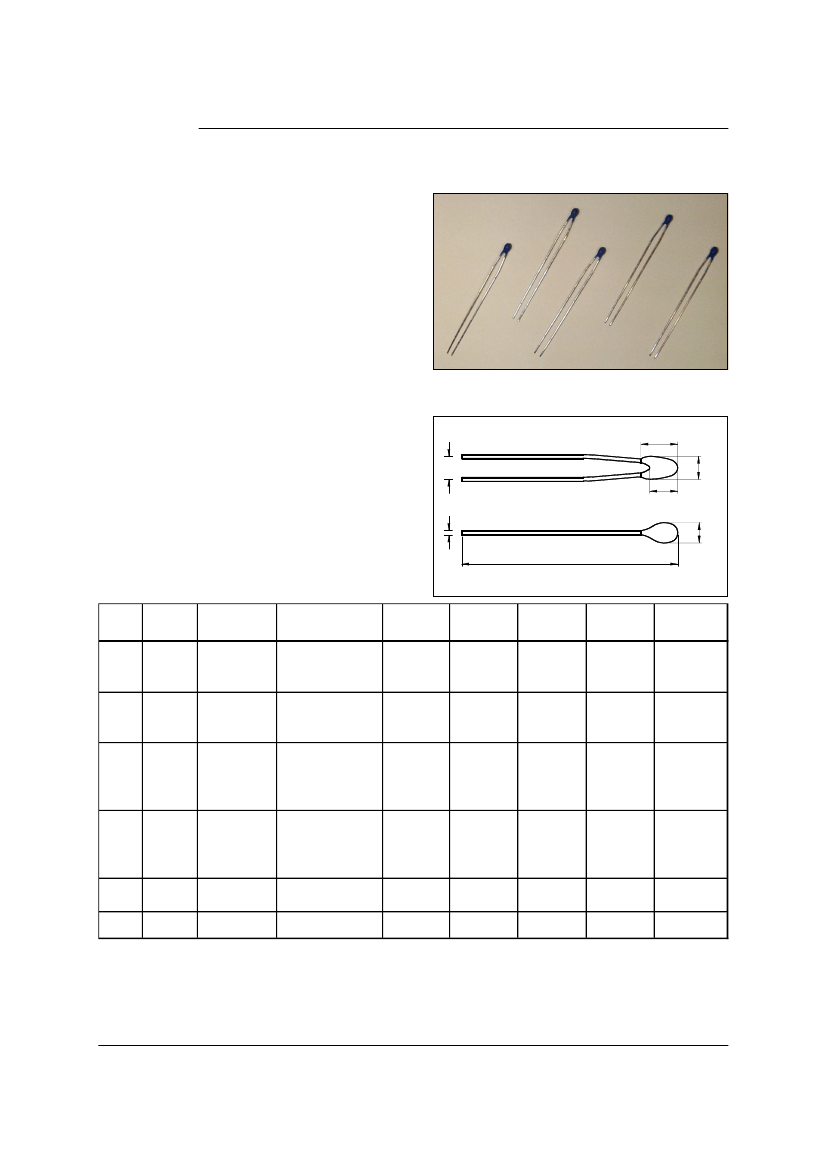

NTC THERMISTORS: TYPE NK

CHIP THERMISTOR WITH SOLDER-COATED WIRES

DESCRIPTION:

A range of NTC chip thermistors with solder-coated

steel wires and epoxy resin coating.

FEATURES:

•

Designed for accurate temperature measurement,

control & compensation

•

Tight tolerances on resistance and B value

•

Operation up to 155°C with excellent stability

•

Small body diameter

•

Fast response

•

Limited heat conduction along steel wires

•

Available on bandolier to IEC 286-2

•

Suitable for automotive, HVAC & white goods

applications

DIMENSIONS:

2.5 nom

7 m ax

3.0 m ax

5 m ax

3.0 m ax

40 m in

Ø 0.5

DATA

Minimum operating temperature ..........

-40°C

Maximum operating temperature ....

See table

Thermal time constant ..............

15s (cooling)

................................... 2.4s (ambient change)

Dissipation factor ...........................

2.2mW/K

Mass ..................................................

0.18g

Packing / MOQ .....................

1000/box (loose)

.................................. 2000/reel (bandoliered)

R25

Ω

500

1000

2000

500

1000

2000

2200

2700

5000

10000

2200

2700

5000

10000

5000

10000

12000

Material

system

B 25/85

3540

3627

3977

0.75%

3977

0.75%

3977

0.75%

3977

0.75%

3960

3435

3740

1.5%

3740

1.5%

Maximum operating

temperature

”C

125

155

NK222C1*1

NK272C1*1

NK502C1*1

NK103C1*1

Code

R25

±1%

Dimensions in mm

Code

R25

±2%

NK501C2*2

NK102C2*2

NK202C2*2

Code

R25

±3%

NK501C2*3

NK102C2*3

NK202C2*3

Code

R25

±5%

NK501C2*5

NK102C2*5

NK202C2*5

Code

R25

±10%

NK501C2*10

NK102C2*10

NK202C2*10

NK501C2A*2 NK501C2A*3 NK501C2A*5 NK501C2A*10

NK102C2A*2 NK102C2A*3 NK102C2A*5 NK102C2A*10

NK202C2A*2 NK202C2A*3 NK202C2A*5 NK202C2A*10

NK222C1*2

NK272C1*2

NK502C1*2

NK103C1*2

NK222C1*3

NK272C1*3

NK502C1*3

NK103C1*3

NK222C3*3

NK272C3*3

NK502C3*3

NK103C3*3

NK222C1*5

NK272C1*5

NK502C1*5

NK103C1*5

NK222C3*5

NK272C3*5

NK502C3*5

NK103C3*5

NK222C1*10

NK272C1*10

NK502C1*10

NK103C1*10

NK222C3*10

NK272C3*10

NK502C3*10

NK103C3*10

NK502C4A*1 NK502C4A*2 NK502C4A*3 NK502C4A*5 NK502C4A*10

NK103C4A*1 NK103C4*2 NK103C4A*3 NK103C4A*5 NK103C4A*10

NK103C5*1 NK103C5*2 NK103C5*3 NK103C5*5 NK103C5*10

NK123C5*1 NK123C5*2 NK123C5*3 NK123C5*5 NK123C5*10

See separate tables for resistance - temperature data

OPTIONS:

•

Other resistance values within the ranges shown

e.g. code NK701C2*2 for 700Ω

2% at 25°C

•

Reference temperatures other than 25°C

•

Wire lengths 12 to 40mm (±1mm)

Crown Industrial Estate, Priorswood Rd

Taunton, Somerset TA2 8QY UK

Tel +44 (0)1823 335200

Fax +44 (0)1823 332637

CODING

Replace * in the codes shown above as follows:

Loose-packed ............................................

Bandoliered ...............................................

Data sheet D-NK-3

808 US Highway 1

Edison, New Jersey 08817-4695 USA

Tel +1 (732) 287 2870

Fax +1 (732) 287 8847

967 Windfall Road

St Marys, Pennsylvania 15857-3397 USA

Tel +1 (814) 834 9140

Fax +1 (814) 781 7969

NK502C4AB5 Related Products

	NK502C4AB5	NK502C4AR2	NK502C4AR3	NK502C4AR10	NK502C4AB3	NK103C1B2
Description	RESISTOR, TEMPERATURE DEPENDENT, NTC	RESISTOR, TEMPERATURE DEPENDENT, NTC	RESISTOR, TEMPERATURE DEPENDENT, NTC	RESISTOR, TEMPERATURE DEPENDENT, NTC	RESISTOR, TEMPERATURE DEPENDENT, NTC	RESISTOR, TEMPERATURE DEPENDENT, NTC
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	155 °C	155 °C	155 °C	155 °C	155 °C	155 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package height	7 mm	7 mm	7 mm	7 mm	7 mm	7 mm
Package length	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm
Package form	Radial	Radial	Radial	Radial	Radial	Radial
Package width	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm
method of packing	TAPE	BULK	BULK	BULK	TAPE	TAPE
resistance	5000 Ω	5000 Ω	5000 Ω	5000 Ω	5000 Ω	10000 Ω
Resistor type	NTC THERMISTOR	NTC THERMISTOR	NTC THERMISTOR	NTC THERMISTOR	NTC THERMISTOR	NTC THERMISTOR
surface mount	NO	NO	NO	NO	NO	NO
Terminal location	RADIAL	RADIAL	RADIAL	RADIAL	RADIAL	RADIAL
Terminal shape	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Thermal sensitivity index	3436 K	3436 K	3436 K	3436 K	3436 K	3977 K
Thermistor Applications	TEMPERATURE COMPENSATION	TEMPERATURE COMPENSATION	TEMPERATURE COMPENSATION	TEMPERATURE COMPENSATION	TEMPERATURE COMPENSATION	TEMPERATURE COMPENSATION
Tolerance	5%	2%	3%	10%	3%	2%
Base Number Matches	1	1	1	1	1	1
Maker	Thermometrics	Thermometrics	Thermometrics	Thermometrics	Thermometrics	-
