ALD13B50N-5L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> ALD13B50N-5L

ALD13B50N-5L: DescriptionIC 1-OUTPUT 150 W DC-DC UNREG PWR SUPPLY MODULE, ROHS COMPLIANT, SIXTEENTH BRICK PACKAGE-5, Power Supply Module; CategoryPower/power management The power supply circuit; File Size2MB，15 Pages; ManufacturerArtysen Embedded Technologies

Download Datasheet Parametric View All

ALD13B50N-5L Overview

IC 1-OUTPUT 150 W DC-DC UNREG PWR SUPPLY MODULE, ROHS COMPLIANT, SIXTEENTH BRICK PACKAGE-5, Power Supply Module

ALD13B50N-5L Parametric

Parameter Name	Attribute value
Maker	Artysen Embedded Technologies
Parts packaging code	MODULE
package instruction	,
Contacts	5
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC UNREGULATED POWER SUPPLY MODULE
Maximum input voltage	60 V
Minimum input voltage	38 V
Nominal input voltage	48 V
JESD-30 code	R-XDMA-P5
length	33.02 mm
Number of functions	1
Output times	1
Number of terminals	5
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output voltage	15 V
Minimum output voltage	8.7 V
Nominal output voltage	12 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
Maximum seat height	9.3 mm
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal form	PIN/PEG
Terminal pitch	7.62 mm
Terminal location	DUAL
Maximum total power output	150 W
Fine-tuning/adjustable output	NO
width	22.86 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Technical Reference Note

Embedded Power for

Business-Critical Continuity

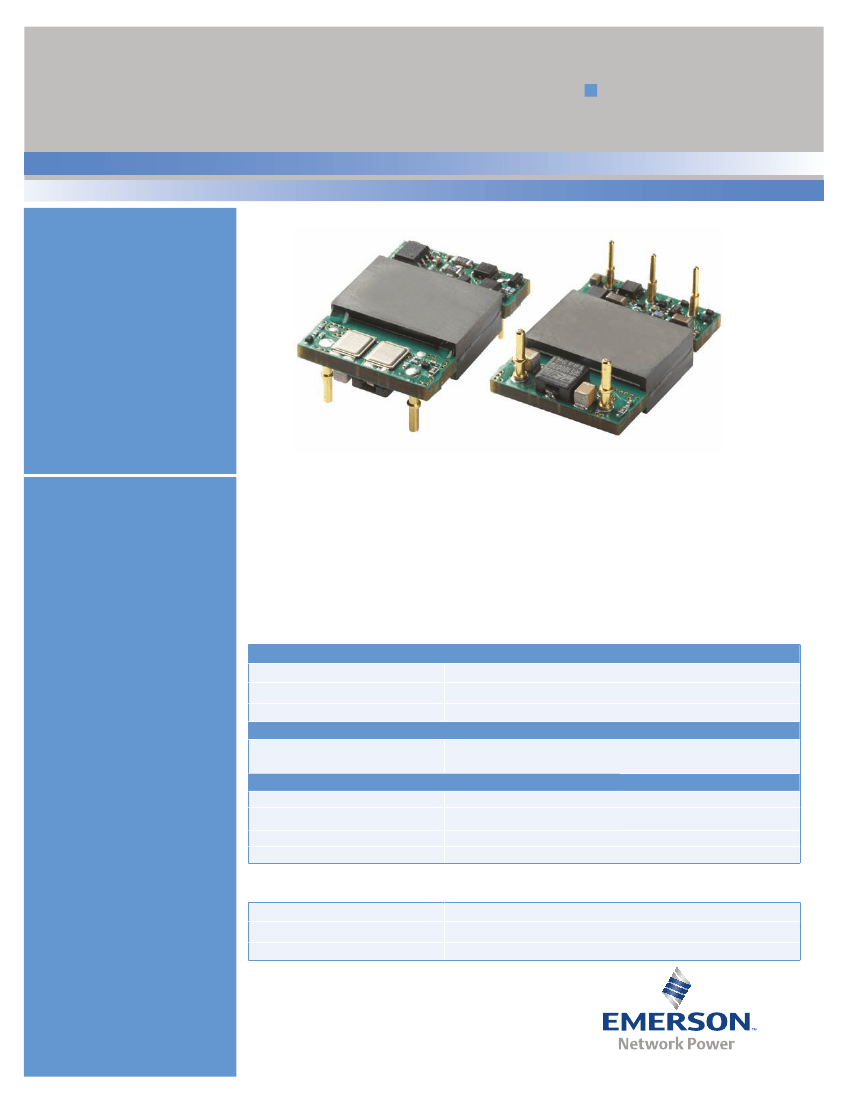

ALD/AED13B50 Series

Sixteenth Brick Bus Converter

Total Power:

Input Voltage:

150 Watts

48 V

Rev. 06.10.09

ALD_AED13B50 Series

1 of 15

Product Description

Special Features

• 48 V input with isolated 12 V

output

• High efficiency, 95% typical

• High capacitive load limit on

start-up

• Fixed switching frequency

• Industry standard fearures: INput

UVLO; Enable; non-latching OVP,

OCP and OTP

• Wide operating ambient

temperature range

• Meets basic insulation

requirements of EN60950-1

• RoHS compliant

The ALD13B50 and AED13B50 series is Emerson Network Power’s latest 4:1 fixed ratio

open-loop Bus Converter offering in an industry standard 16th brick package. It’s designed to

operate from an input voltage range of 38 V to 60 V and to deliver 150 W of output power at

95% efficiency. The converters are offered either in low profile openframe (ALD) or with inte-

grated heatplate/heatsink (AED) construction for optimum flexibility. The series comes with

industry standard features such as Input UVLO and OVP; non-latching OCP and OTP. With its

wide operating temperature range of -40°C to 85°C ambient and construction options, the

converters are deployable into almost any environment.

Electrical Specifications

Input

Input range:

Input surge:

Input OVP:

38 - 60 Vdc

72 V/100 ms

110% Vin, max (typ)

Positive or Negative Logic

Enable Options

Up to 13 A max

180 mVp-p (typ)

200% Io, max

110

°C (min)

Control

Enable:

Output

Safety

cURs 60950 (equivalent to UL + cUL)

TUV EN 60950

CB Report through TUV-PS

Output current:

Ripple and noise:

Over current protection:

Over temperature protection:

Environmental Specifications

Operating temperature:

Storage temperature:

MTBF:

-40 °C to +85 °C

-55

°C to 125 °C

> 1 million hours

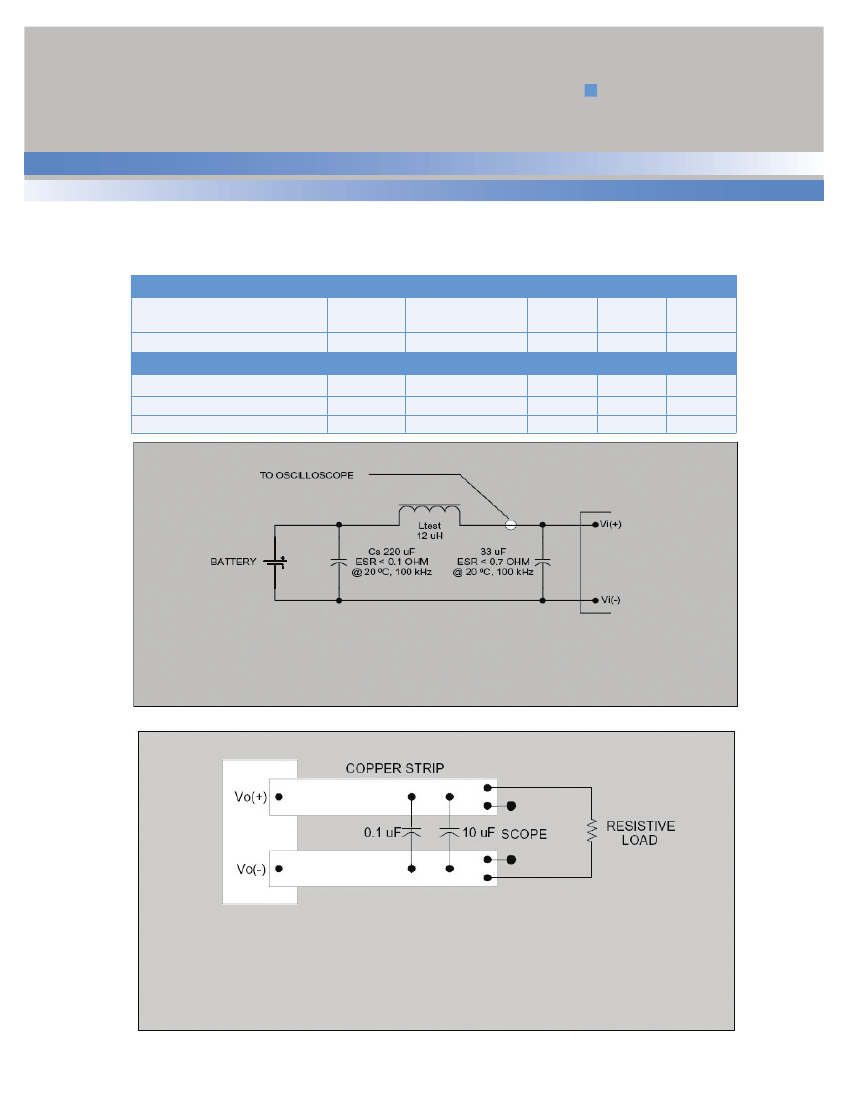

Embedded Power for

Business-Critical Continuity

Basic Operation and Features

Input Under Voltage Lockout

Rev. 06.10.09

ALD_AED13B50 Series

5 of 15

To prevent any false system turn on and turn off, the converter has been designed to turn-on once VIN is in the voltage

range of 33 - 38 Vdc. Likewise, it has also been programmed to turn-off when VIN drops down to 32 - 36 Vdc.

Output Enable

The converter comes with an Enable pin (PIN 2), which is primarily used to turn ON/OFF the converter. Both a Positive (no

“N” suffix required) and a Negative (suffix “N” required) Enable Logic options are being offered. Please refer to Table 2 for

the Part Numbering Scheme.

For Positive Enable, the converter is turned on when the Enable pin is at logic HIGH or left open. The unit turns off when the

Enable pin is at logic LOW or directly connected to -VIN. On the other hand, the Negative Enable version turns unit on when

the Enable pin is at logic LOW or directly connected to -VIN. The unit turns off when the Enable pin is at Logic HIGH.

Input Over Voltage Protection (OVP)

OVP sensing is taken from the input line voltage. The Input Over Voltage Protection circuit is non-latching - auto recovery

mode. The converter will shut down once the input voltage reaches the OVP range. The converter will recover automatically

once the input voltage falls below the input OVP range.

Over Current Protection (OCP)

The Over Current Protection is non-latching - auto recovery mode. The converter shuts down once the output current

reaches the OCP range. The converter will attempt to restart until the fault is removed. There is a 20 - 50ms lockout period

between restart attempts. Note that the OCP threshold will be reduced proportionally with the output voltage trim up

and/or remote sense compensation. The percent rise in output voltage will be proportional to the reduction in OCP current

inception.

Over Temperature Protection (OTP)

The Over Temperature Protection circuit will shutdown the converter once the average PCB temperature reaches the OTP

range. This feature prevents the unit from overheating and consequently going into thermal runaway, which may further

damage the converter and the end system. Such overheating may be an effect of operation outside the given power thermal

derating conditions. Restart is possible once the temperature of the sensed

location drops to less than 110 °C.

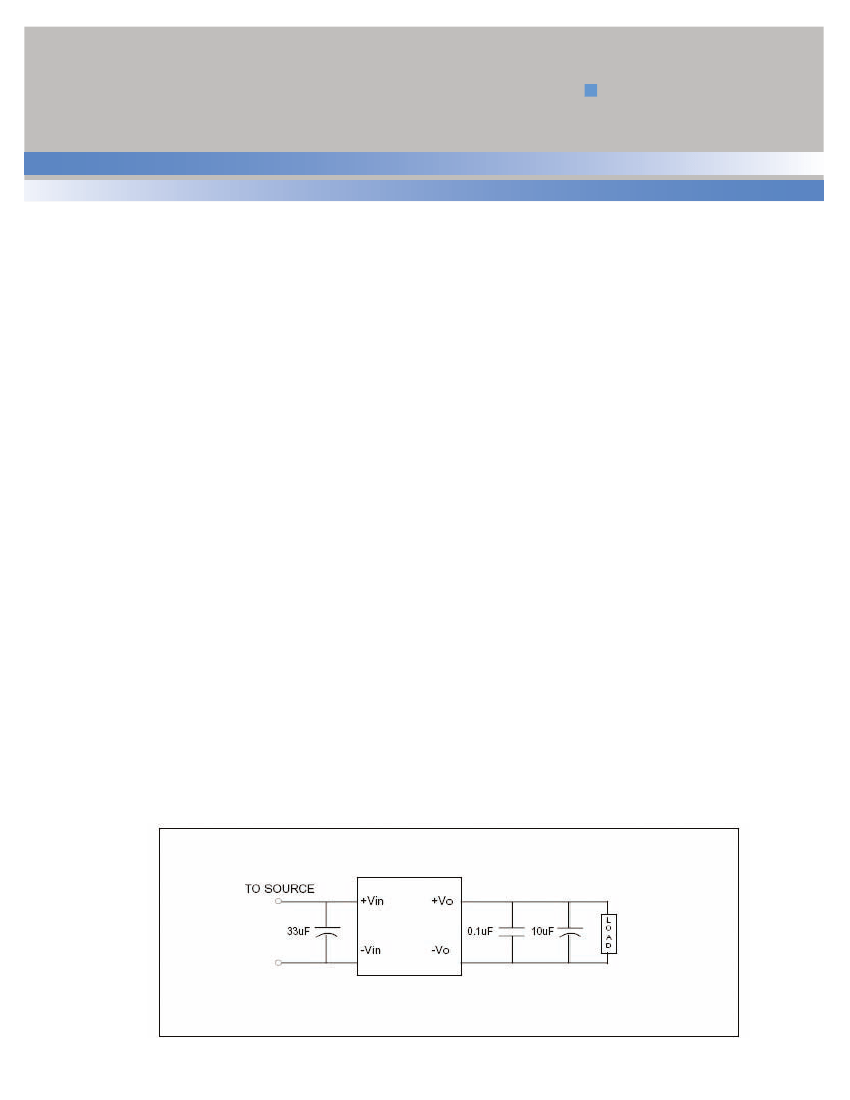

Figure 3. Typical Application Circuit
