EHA0-2515-6 datasheet, PDF - EEWORLD Datasheet

EHA0-2515-6: DescriptionOperational Amplifier, 1 Func, 10000uV Offset-Max, BIPolar, DIE; CategoryAnalog mixed-signal IC Amplifier circuit; File Size2MB，19 Pages; ManufacturerELANTEC (Renesas )

Download Datasheet Parametric Compare View All

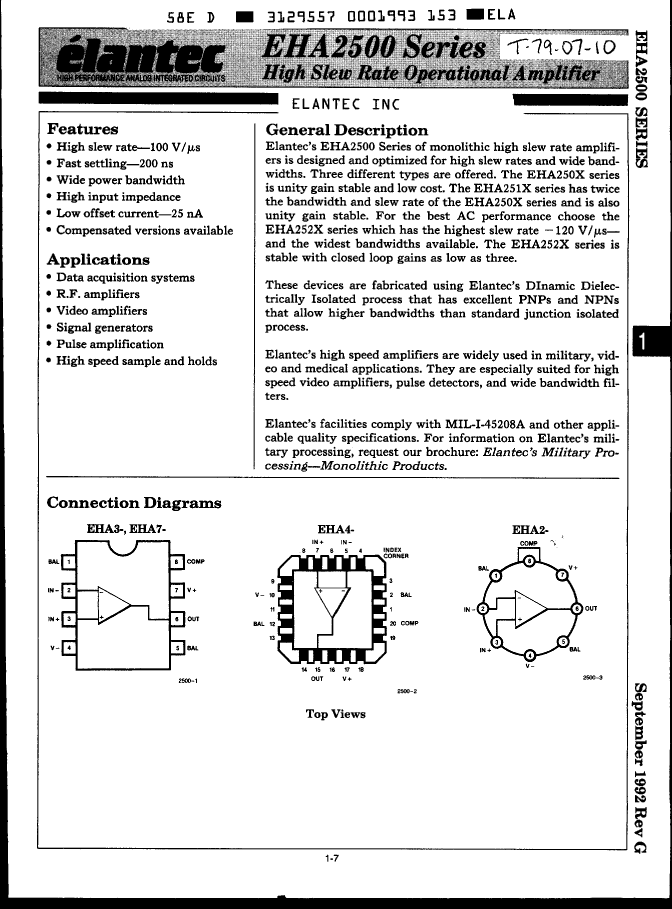

EHA0-2515-6 Overview

Operational Amplifier, 1 Func, 10000uV Offset-Max, BIPolar, DIE

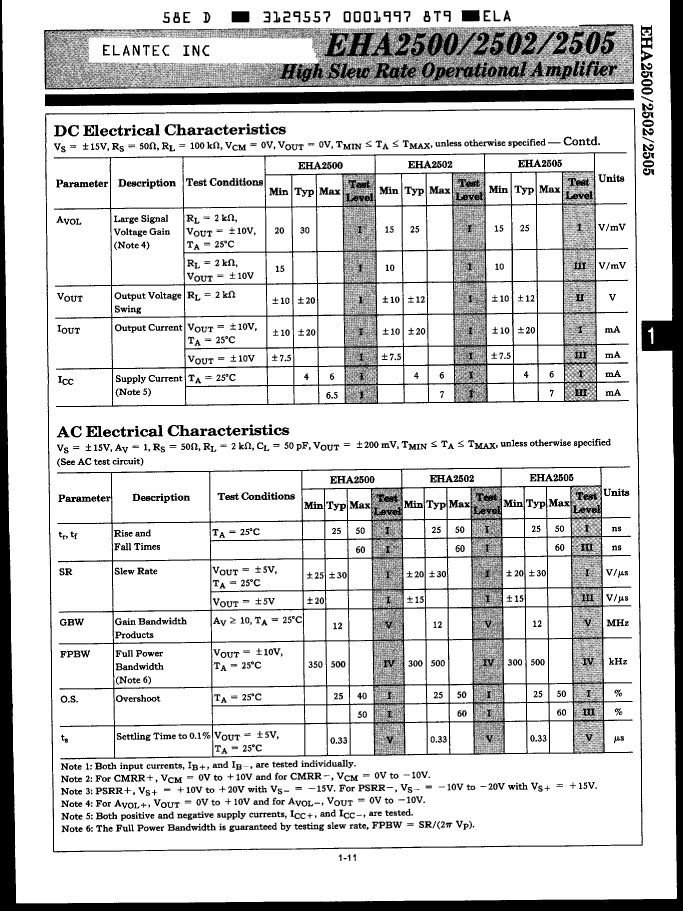

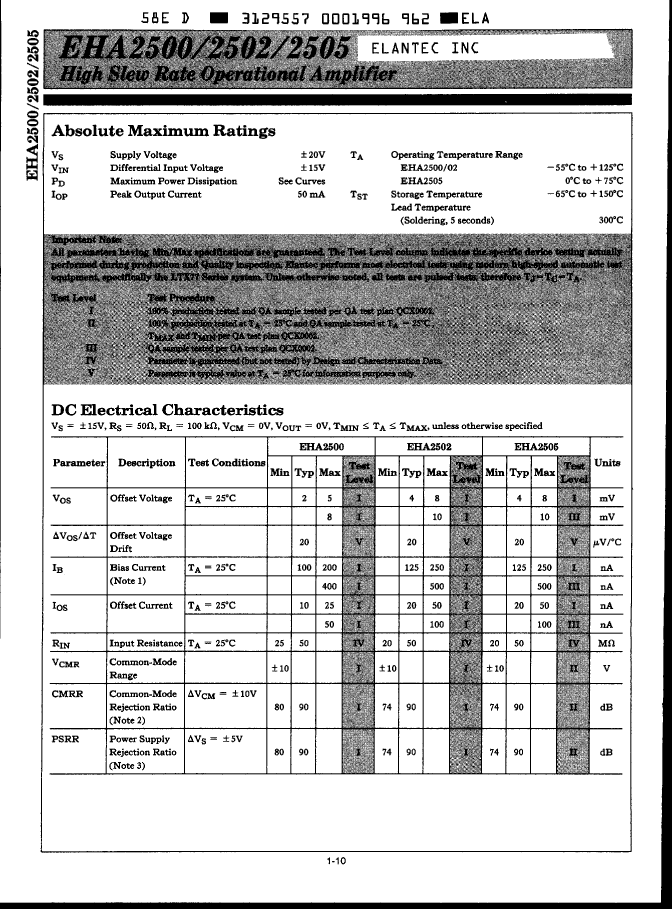

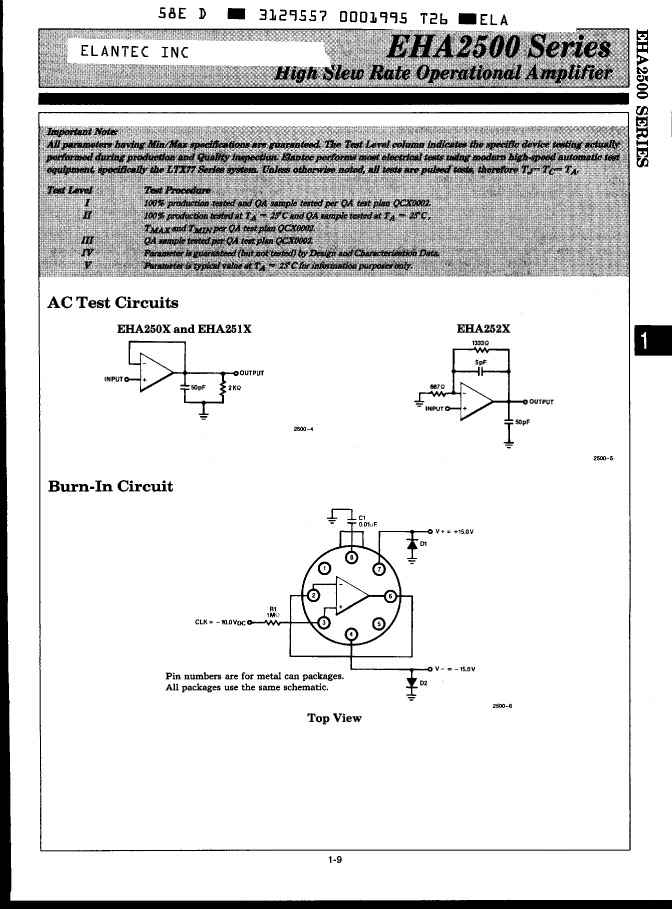

Parameter Name	Attribute value
Maker	ELANTEC (Renesas )
package instruction	DIE
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.25 µA
Maximum bias current (IIB) at 25C	0.25 µA
frequency compensation	YES
Maximum input offset voltage	10000 µV
JESD-30 code	X-XUUC-N
low-dissonance	NO
Negative supply voltage upper limit	-20 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	UNSPECIFIED
Encapsulate equivalent code	DIE OR CHIP
Package shape	UNSPECIFIED
Package form	UNCASED CHIP
power supply	+-15 V
Certification status	Not Qualified
minimum slew rate	40 V/us
Nominal slew rate	60 V/us
Maximum slew rate	6 mA
Supply voltage upper limit	20 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal location	UPPER
Nominal Uniform Gain Bandwidth	12000 kHz
Minimum voltage gain	7500
Base Number Matches	1

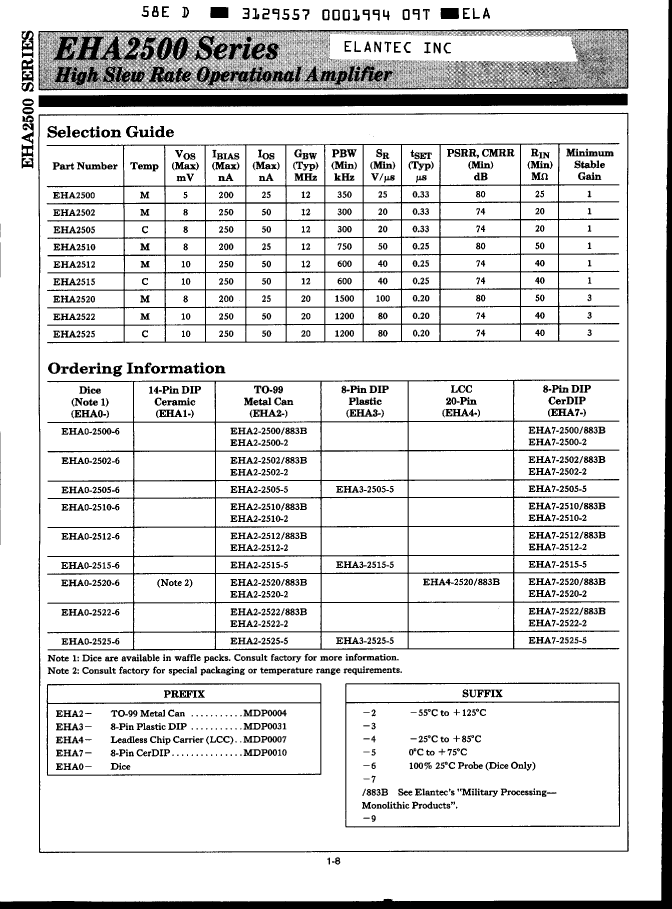

	EHA0-2515-6	EHA0-2525-6
Description	Operational Amplifier, 1 Func, 10000uV Offset-Max, BIPolar, DIE	Operational Amplifier, 1 Func, 10000uV Offset-Max, BIPolar, DIE
Maker	ELANTEC (Renesas )	ELANTEC (Renesas )
package instruction	DIE	DIE
Reach Compliance Code	unknown	unknown
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.25 µA	0.25 µA
Maximum bias current (IIB) at 25C	0.25 µA	0.25 µA
frequency compensation	YES	YES (AVCL>=3)
Maximum input offset voltage	10000 µV	10000 µV
JESD-30 code	X-XUUC-N	X-XUUC-N
low-dissonance	NO	NO
Negative supply voltage upper limit	-20 V	-20 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V
Number of functions	1	1
Maximum operating temperature	70 °C	70 °C
Package body material	UNSPECIFIED	UNSPECIFIED
Encapsulate equivalent code	DIE OR CHIP	DIE OR CHIP
Package shape	UNSPECIFIED	UNSPECIFIED
Package form	UNCASED CHIP	UNCASED CHIP
power supply	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified
minimum slew rate	40 V/us	80 V/us
Nominal slew rate	60 V/us	120 V/us
Maximum slew rate	6 mA	6 mA
Supply voltage upper limit	20 V	20 V
Nominal supply voltage (Vsup)	15 V	15 V
surface mount	YES	YES
technology	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD
Terminal location	UPPER	UPPER
Nominal Uniform Gain Bandwidth	12000 kHz	20000 kHz
Minimum voltage gain	7500	7500
Base Number Matches	1	1
