5962-9954401HYC datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> 5962-9954401HYC

5962-9954401HYC: DescriptionDC-DC Regulated Power Supply Module, 1 Output, 66W, Hybrid,; CategoryPower/power management The power supply circuit; File Size463KB，16 Pages; ManufacturerCrane Co.

Download Datasheet Parametric View All

5962-9954401HYC Overview

DC-DC Regulated Power Supply Module, 1 Output, 66W, Hybrid,

5962-9954401HYC Parametric

Parameter Name	Attribute value
Maker	Crane Co.
package instruction	, MODULE,12LEAD,2.5
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	40 V
Minimum input voltage	16 V
Nominal input voltage	28 V
JESD-30 code	R-MDFM-F12
JESD-609 code	e4
Number of functions	1
Output times	1
Number of terminals	12
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output current	20 A
Maximum output voltage	3.35 V
Minimum output voltage	3.25 V
Nominal output voltage	3.3 V
Package body material	METAL
Encapsulate equivalent code	MODULE,12LEAD,2.5
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Qualified
Filter level	MIL-PRF-38534
surface mount	YES
technology	HYBRID
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	FLAT
Terminal location	DUAL
Maximum total power output	66 W
Fine-tuning/adjustable output	YES
Base Number Matches	1

Preview

Download Datasheet

View All

EATURES

•

–55°C to +125°C operation

16 to 40 VDC input

Fully isolated

Magnetic feedback

MODELS

Fixed frequency 550 kHz typ.

VDC O

UTPUT

Topology – Single Ended Forward

SINGLES

DUALS

Will withstand transients of

3.3

±3.3

up to 50 V for up to 120 msec.

±5

Output trim 60% to 110%

6.3

±6.3

Input and output side inhibit

9.5

±9.5

Remote sense

±12

±15

Synchronization

Parallel up to 5 units

Size (max): 3.005 x 1.505 x 0.400 inches (76.33 x 38.23 x 10.16 mm) case U2

Output short circuit protection

Case U2 (flanged, short leads) and case Z (tabbed, leads bent down)

Up to 80 W/in

, 87% efficiency

are shown in the picture. Also available: flanged – leads bent down

(case V); tabbed – short leads (case Y) and leads bent up (case W).

See Section B8, cases U2, V, W, Y, and Z for dimensions and options.

Weight:

110 grams typical

Screening: Standard, ES, or 883 (Class H). See Section C2 for screening options,

see Section A5 for ordering information.

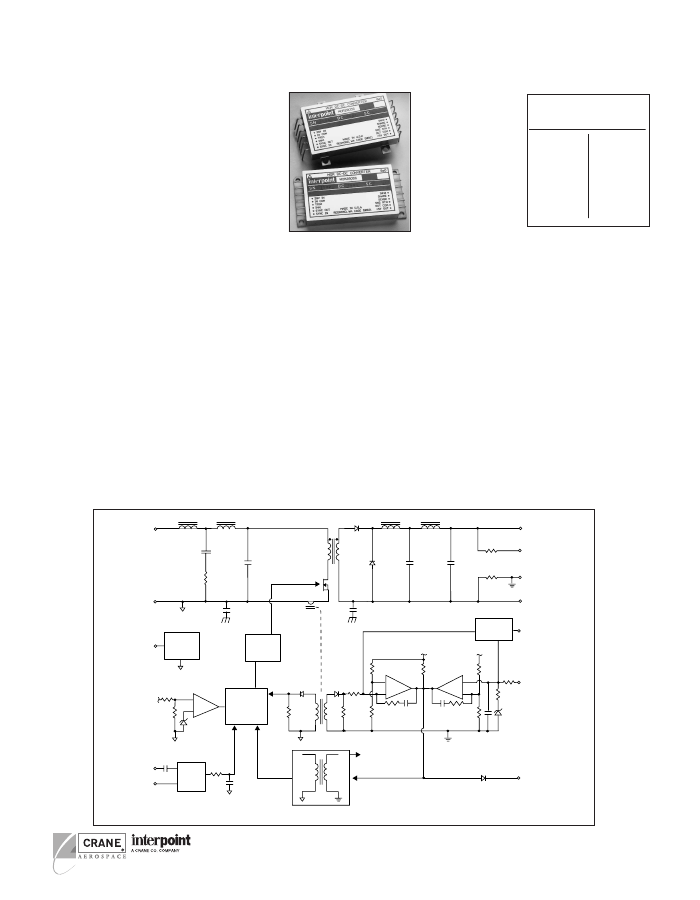

DC/DC C

ONVERTERS

28 V

OLT

NPUT

MOR SERIES

120 WATT

DESCRIPTION

With up to 120 watts of output power, the MOR Series™ of DC/DC

converters operates from a standard 28 volt bus and offers a wide

input range of 16 to 40 VDC. Full operation over the military temper-

ature range, –55°C to +125°C, makes the MOR Series an ideal

choice for military, aerospace, space, and other high reliability appli-

cations. In compliance with MIL-STD-704D, the converters will with-

stand transients of up to 50 volts for up to 120 milliseconds. Use

Interpoint’s FME28-461 EMI filter to pass MIL-STD-461C, CE03

requirements.

The MOR Series converters incorporate a single-ended forward

topology which uses a constant frequency Pulse Width Modulator

1.7

µΗ

Positive

Input

µF

0.1

Ω

Input

Common

0.015

µF

500 V

Bias

Supply

0.015

µF

500 V

Function

FET

Driver

Secondary V

S+

600

µF

100

Ω

600

µF

100

Ω

0.5

µΗ

3:2

(PWM) current mode control design and switches at 550 kHz,

nominal. The converters also provide short circuit protection by

restricting the current to 125% of the full load output current. All

models offer two inhibits, one referenced to input common and one

referenced to output common. A remote sense function is available

on single output models.

Using the trim function, the MOR Series can provide any output from

2 to 33 VDC. For example, trimming the two 15 volt outputs of the

15 dual (MOR2815D) to 14 volts, and then stacking the outputs will

provide a 28 volt output. See Figure 11.

1.3

µΗ

0.1

µΗ

Positive

Output

Positive

Sense

Return

Output

Common

Inhibit 1

UVLO

PWM

Controller

Ref

Trim

Secondary V

Sync In

Sync Out

Sync

In / Out

Inhibit 2

IGURE

1: S

IMPLIFIED

CHEMATIC

– MOR2805S, S

INGLE

5 V

OLT

UTPUT

– T

YPICAL

ALUES
