54LS160A/BEAJC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54LS160A/BEAJC

54LS160A/BEAJC: DescriptionLS SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP DECADE COUNTER, CDIP16, CERDIP-16; Categorylogic logic; File Size175KB，6 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54LS160A/BEAJC Overview

LS SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP DECADE COUNTER, CDIP16, CERDIP-16

54LS160A/BEAJC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
Parts packaging code	DIP
package instruction	DIP,
Contacts	16
Reach Compliance Code	unknown
Other features	TCO OUTPUT
Counting direction	UP
series	LS
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
length	19.3 mm
Load capacitance (CL)	50 pF
Load/preset input	YES
Logic integrated circuit type	DECADE COUNTER
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum supply current (ICC)	32 mA
propagation delay (tpd)	48 ns
Certification status	Not Qualified
Maximum seat height	4.19 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	POSITIVE EDGE
width	7.62 mm
minfmax	22 MHz
Base Number Matches	1

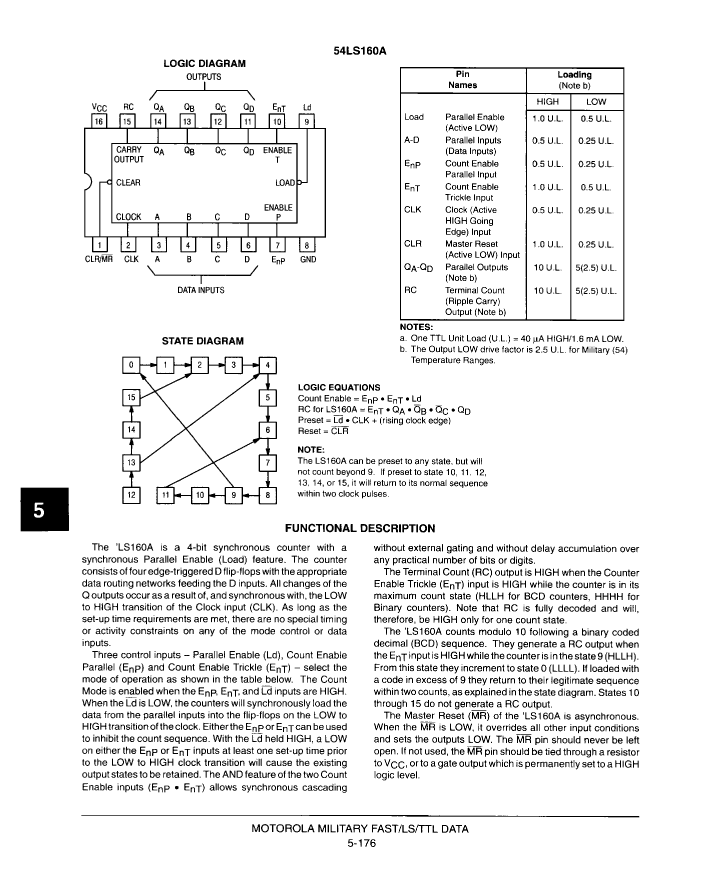

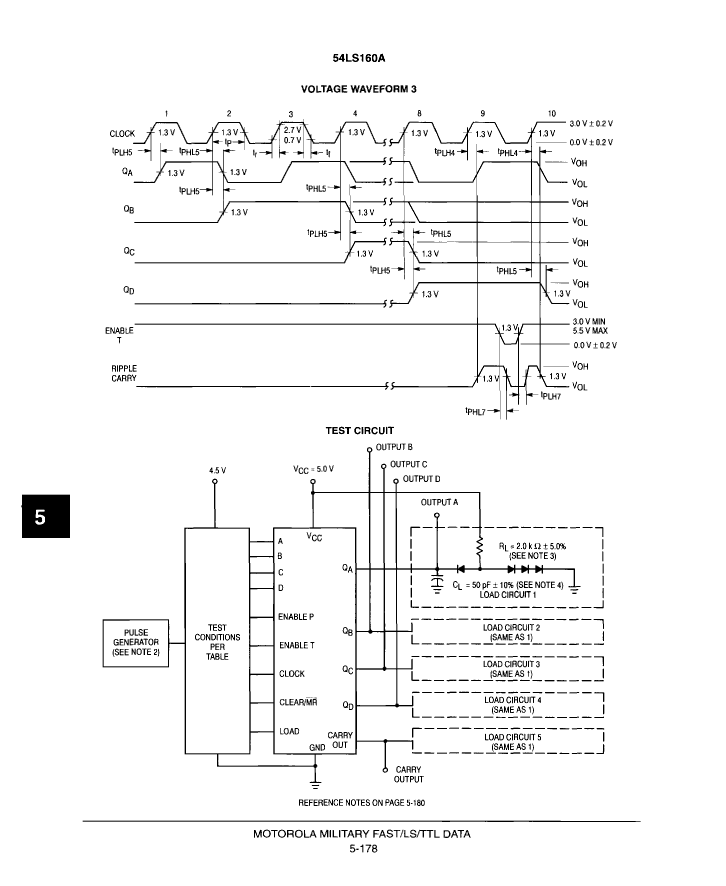

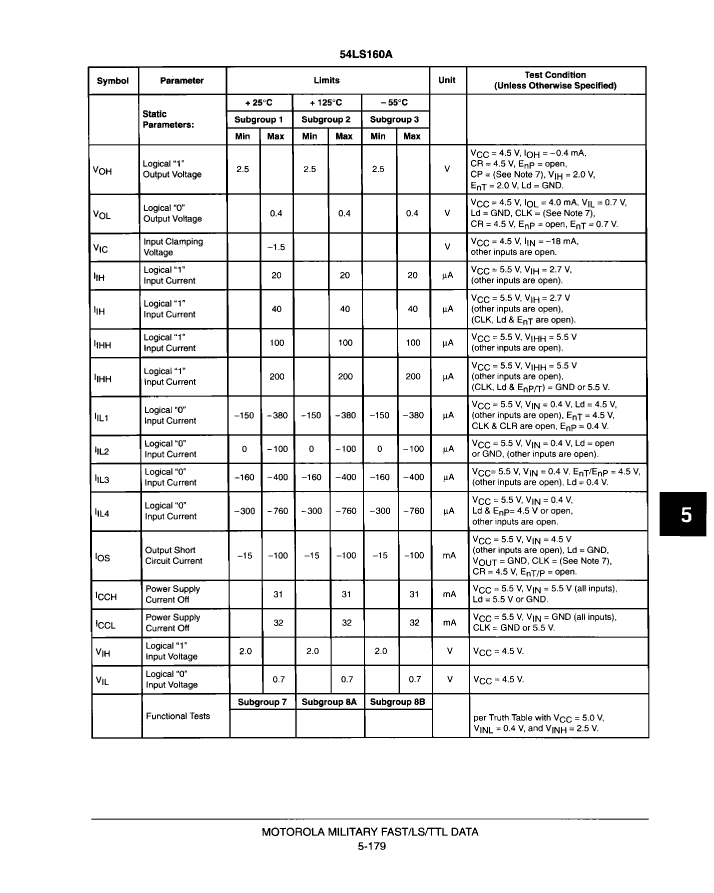

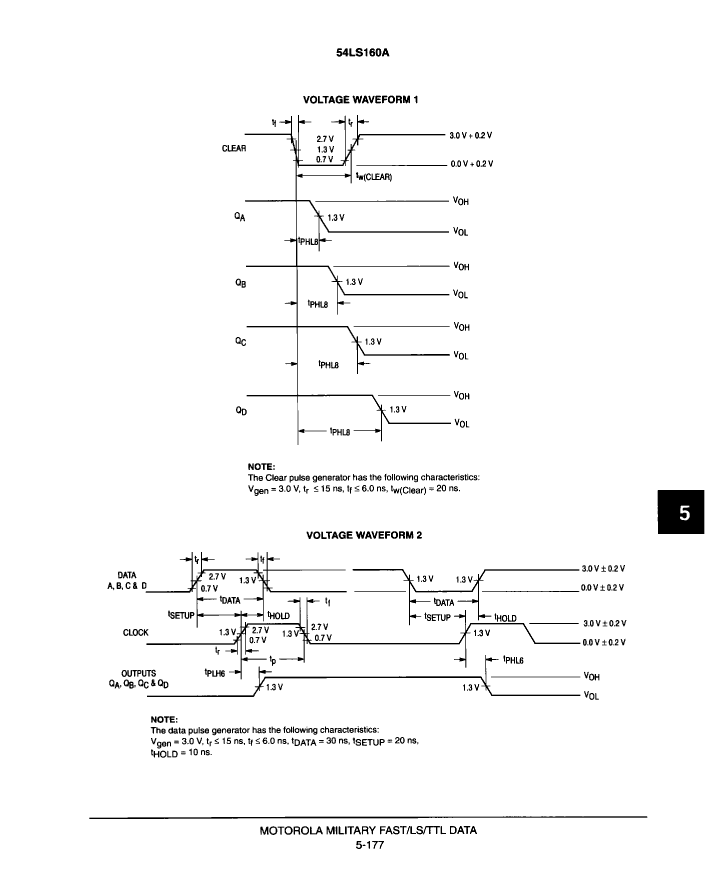

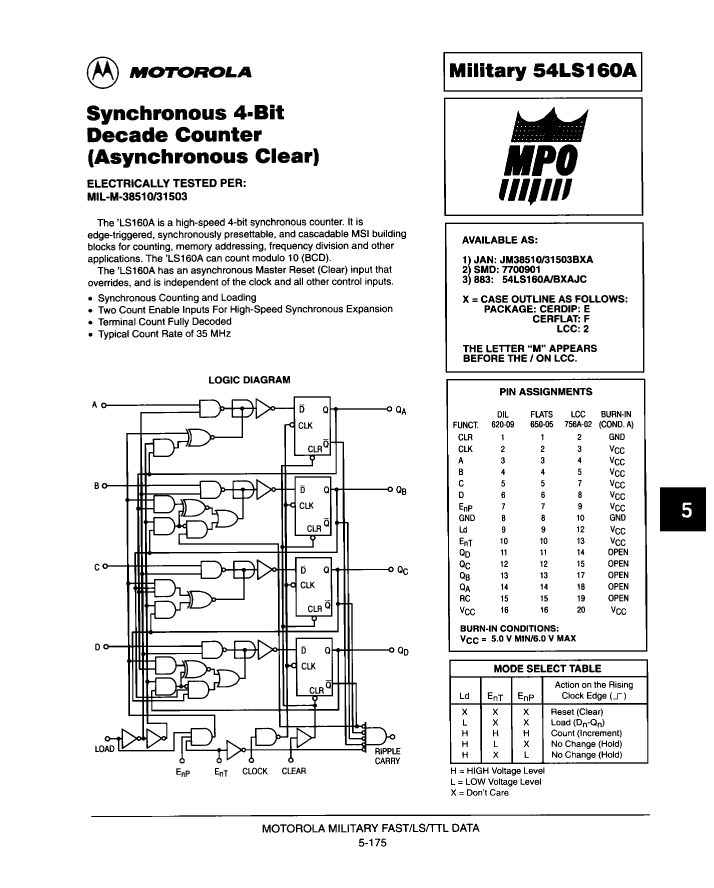

Preview

Download Datasheet

View All

54LS160A/BEAJC Related Products

	54LS160A/BEAJC	77009012A	54LS160A/BFAJC	7700901FA	7700901EX	7700901EA	7700901FX	54LS160AM/B2AJC	77009012X
Description	LS SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP DECADE COUNTER, CDIP16, CERDIP-16	LS SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP DECADE COUNTER, CQCC20, CERAMIC, LCC-20	Decade Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, CDFP16, CERAMIC, FP-16	Decade Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, CDFP16, CERAMIC, FP-16	Decade Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, CDIP16, CERAMIC, DIP-16	Decade Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, CDIP16, CERDIP-16	Decade Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, CDFP16, CERAMIC, DFP-16	Decade Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, CQCC20, CERAMIC, LCC-20	Decade Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, CQCC20,
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
package instruction	DIP,	QCCN,	DFP, FL16,.3	DFP,	DIP,	DIP,	DFP,	QCCN, LCC20,.35SQ	QCCN,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Counting direction	UP	UP	UP	UP	UP	UP	UP	UP	UP
series	LS	LS	LS	LS	LS	LS	LS	LS	LS
JESD-30 code	R-GDIP-T16	S-CQCC-N20	R-GDFP-F16	R-GDFP-F16	R-GDIP-T16	R-GDIP-T16	R-GDFP-F16	S-CQCC-N20	S-CQCC-N20
Load/preset input	YES	YES	YES	YES	YES	YES	YES	YES	YES
Logic integrated circuit type	DECADE COUNTER	DECADE COUNTER	DECADE COUNTER	DECADE COUNTER	DECADE COUNTER	DECADE COUNTER	DECADE COUNTER	DECADE COUNTER	DECADE COUNTER
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Number of digits	4	4	4	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	16	20	16	16	16	16	16	20	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	QCCN	DFP	DFP	DIP	DIP	DFP	QCCN	QCCN
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE
Package form	IN-LINE	CHIP CARRIER	FLATPACK	FLATPACK	IN-LINE	IN-LINE	FLATPACK	CHIP CARRIER	CHIP CARRIER
propagation delay (tpd)	48 ns	48 ns	48 ns	48 ns	48 ns	48 ns	48 ns	48 ns	48 ns
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES	NO	NO	YES	YES	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	NO LEAD	FLAT	FLAT	THROUGH-HOLE	THROUGH-HOLE	FLAT	NO LEAD	NO LEAD
Terminal location	DUAL	QUAD	DUAL	DUAL	DUAL	DUAL	DUAL	QUAD	QUAD
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
minfmax	22 MHz	22 MHz	22 MHz	22 MHz	20 MHz	22 MHz	20 MHz	22 MHz	22 MHz
Base Number Matches	1	1	1	1	1	1	1	1	1
Parts packaging code	DIP	QLCC	DFP	DFP	DIP	DIP	DFP	QLCC	-
Contacts	16	20	16	16	16	16	16	20	-
Other features	TCO OUTPUT	TCO OUTPUT	TCO OUTPUT	TCO OUTPUT	-	TCO OUTPUT	-	TCO OUTPUT	TCO OUTPUT
length	19.3 mm	8.885 mm	9.65 mm	9.65 mm	-	19.3 mm	-	8.89 mm	8.885 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	-	50 pF	-	50 pF	-
Maximum supply current (ICC)	32 mA	32 mA	32 mA	32 mA	-	32 mA	-	32 mA	-
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified
Maximum seat height	4.19 mm	1.9 mm	2.15 mm	2.15 mm	-	4.19 mm	-	1.9 mm	1.9 mm
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	1.27 mm	-	2.54 mm	-	1.27 mm	1.27 mm
width	7.62 mm	8.885 mm	6.415 mm	6.415 mm	-	7.62 mm	-	8.89 mm	8.885 mm
