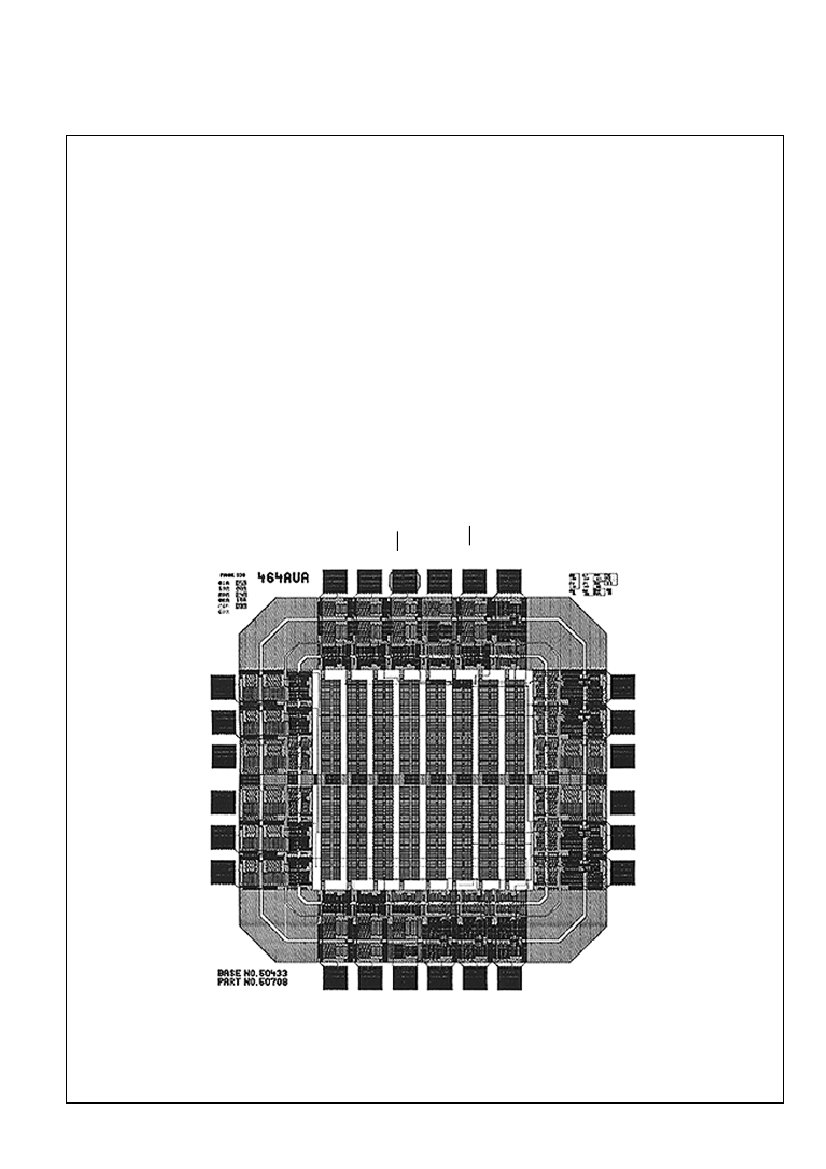

ACS541MS
January 1996
Radiation Hardened Octal Buffer/
Line Driver Three-State
Pinouts
20 LEAD CERAMIC DUAL-IN-LINE
MIL-STD-1835 DESIGNATOR,
CDIP2-T20, LEAD FINISH C
TOP VIEW
OE1
A0
A1
A2
A3
A4
A5
A6
A7
1
2
3
4
5
6
7
8
9
20 VCC
19 OE2
18 Y0
17 Y1
16 Y2
15 Y3
14 Y4
13 Y5
12 Y6
11 Y7
Features
• Devices QML Qualified in Accordance with MIL-PRF-38535
• Detailed Electrical and Screening Requirements are Contained in
SMD# 5962-96710 and Intersil’s QM Plan
• 1.25 Micron Radiation Hardened SOS CMOS
• Total Dose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >300K RAD (Si)
• Single Event Upset (SEU) Immunity: <1 x 10
-10
Errors/Bit/Day
(Typ)
• SEU LET Threshold . . . . . . . . . . . . . . . . . . . . . . . >100 MEV-cm
2
/mg
• Dose Rate Upset . . . . . . . . . . . . . . . . >10
11
RAD (Si)/s, 20ns Pulse
• Dose Rate Survivability . . . . . . . . . . . >10
12
RAD (Si)/s, 20ns Pulse
• Latch-Up Free Under Any Conditions
• Military Temperature Range . . . . . . . . . . . . . . . . . . -55
o
C to +125
o
C
• Significant Power Reduction Compared to ALSTTL Logic
• DC Operating Voltage Range . . . . . . . . . . . . . . . . . . . . 4.5V to 5.5V
• Input Logic Levels
- VIL = 30% of VCC Max
- VIH = 70% of VCC Min
• Input Current
≤
1µA at VOL, VOH
• Fast Propagation Delay . . . . . . . . . . . . . . . . 17ns (Max), 12ns (Typ)
GND 10
20 LEAD CERAMIC FLATPACK
MIL-STD-1835 DESIGNATOR,
CDFP4-F20, LEAD FINISH C
TOP VIEW
OE1
A0
A1
A2
A3
A4
1
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
14
13
12
11
VCC
OE2
Y0
Y1
Y2
Y3
Y4
Y5
Y6
Y7
Description
The Intersil ACS541MS is a Radiation Hardened Octal Buffer/Line
Driver, with three-state outputs. The output enable pins OE1, OE2 con-
trol the Three-State outputs. If either enable is high the output will be in a
high impedance state. For data output both enables must be low.
The ACS541MS utilizes advanced CMOS/SOS technology to achieve
high-speed operation. This device is a member of a radiation hardened,
high-speed, CMOS/SOS Logic family.
The ACS541MS is supplied in a 20 lead Ceramic Flatpack (K suffix) or a
Ceramic Dual-In-Line package (D suffix).
A5
A6
A7
GND
Ordering Information
PART NUMBER
5962F9671001VRC
5962F9671001VXC
ACS541D/Sample
ACS541K/Sample
ACS541HMSR
TEMPERATURE RANGE
-55
o
C to +125
o
C
-55
o
C to +125
o
C
25
o
C
25
o
C
25
o
C
SCREENING LEVEL
MIL-PRF-38535 Class V
MIL-PRF-38535 Class V
Sample
Sample
Die
PACKAGE
20 Lead SBDIP
20 Lead Ceramic Flatpack
20 Lead SBDIP
20 Lead Ceramic Flatpack
Die
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 321-724-7143 | Copyright © Intersil Corporation 1999
Spec Number
1
518856
File Number
4085
ACS541MS

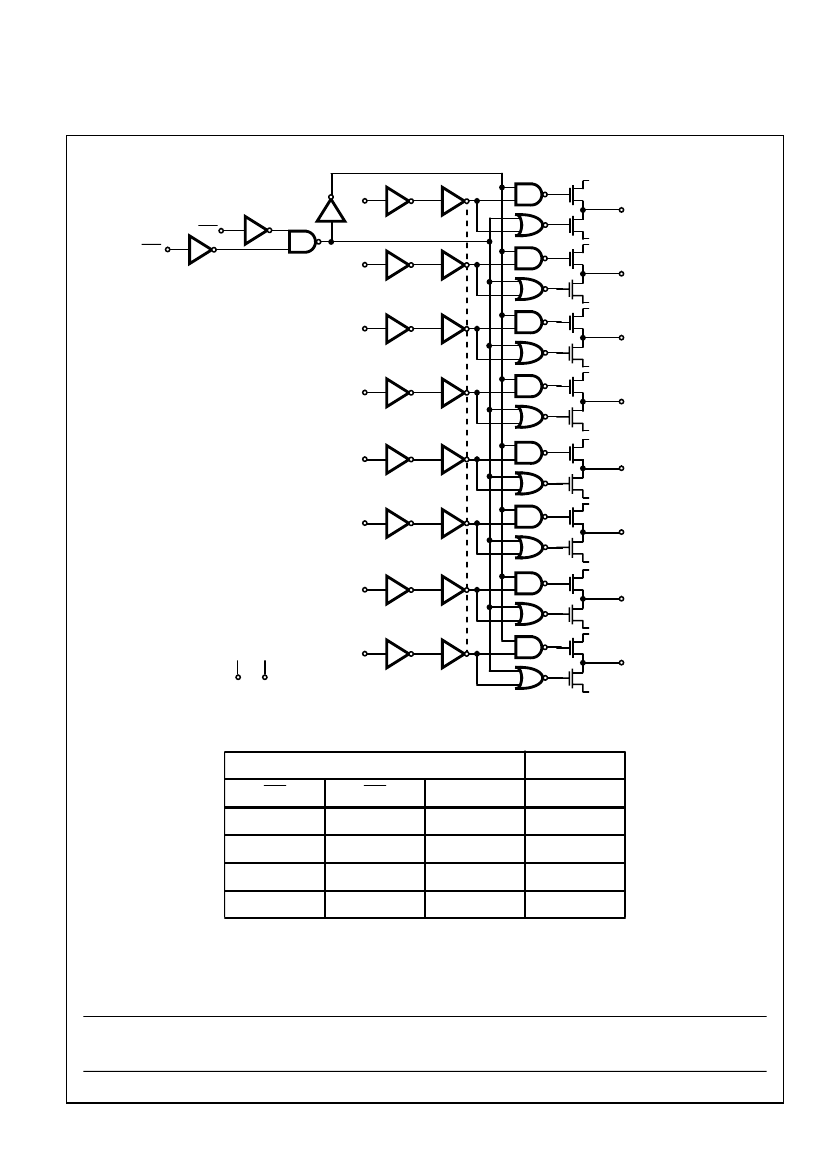

Functional Diagram
2
A0
OE1
OE2
19
3
A1
1
GND
VCC
17
Y1
GND
VCC
4
A2
16
Y2
GND
VCC
15
Y3
GND
VCC
6
A4
14
Y4
GND
VCC
7
A5
13
Y5
GND
VCC
12
Y6
GND
VCC
11
Y7
10
20
GND
VCC
18
Y0
5
A3
8
A6
9
GND VCC
A7
TRUTH TABLE
INPUTS
OE1
L
L
H
X
OE2
L
L
X
H
An
H
L
X
X
OUTPUTS
Yn
H
L
Z
Z
NOTE: L = Low Logic Level, H = High Logic Level, Z = High Impedance
All Intersil semiconductor products are manufactured, assembled and tested under
ISO9000
quality systems certification.
Intersil products are sold by description only. Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time without
notice. Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate
and reliable. However, no responsibility is assumed by Intersil or its subsidiaries for its use; nor for any infringements of patents or other rights of third parties which
may result from its use. No license is granted by implication or otherwise under any patent or patent rights of Intersil or its subsidiaries.
For information regarding Intersil Corporation and its products, see web site
http://www.intersil.com
Spec Number
2
518856
