ACTS244MS
January 1996
Radiation Hardened Octal
Non-Inverting Three-State Buffer
Pinouts
20 PIN CERAMIC DUAL-IN-LINE
MIL-STD-1835 DESIGNATOR CDIP2-T20,
LEAD FINISH C
TOP VIEW
AE
1
2
3
4
5
6
7
8
9
20 VCC
19 BE
18 AO1
17 BI4
16 AO2
15 BI3
14 AO3
13 BI2
12 AO4
11 BI1
Features
• Devices QML Qualified in Accordance with MIL-PRF-38535
• Detailed Electrical and Screening Requirements are Contained in
SMD# 5962-96718 and Intersil’s QM Plan
• 1.25 Micron Radiation Hardened SOS CMOS
• Total Dose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >300K RAD (Si)
• Single Event Upset (SEU) Immunity: <1 x 10
-10
Errors/Bit/Day
(Typ)
• SEU LET Threshold . . . . . . . . . . . . . . . . . . . . . . . >100 MEV-cm
2
/mg
• Dose Rate Upset . . . . . . . . . . . . . . . . >10
11
RAD (Si)/s, 20ns Pulse
• Dose Rate Survivability . . . . . . . . . . . >10
• Latch-Up Free Under Any Conditions
• Military Temperature Range . . . . . . . . . . . . . . . . . . -55
o
C to +125
o
C
• Significant Power Reduction Compared to ALSTTL Logic
• DC Operating Voltage Range . . . . . . . . . . . . . . . . . . . . 4.5V to 5.5V
• Input Logic Levels
- VIL = 0.8V Max
- VIH = VCC/2 Min
• Input Current
≤
1µA at VOL, VOH
• Fast Propagation Delay . . . . . . . . . . . . . . . 14.5ns (Max), 10ns (Typ)
12
AI1
BO4
AI2
BO3
AI3
BO2
AI4
BO1
RAD (Si)/s, 20ns Pulse
GND 10
20 PIN CERAMIC FLATPACK
MIL-STD-1835 DESIGNATOR CDFP4-F20,
LEAD FINISH C
TOP VIEW
AE
AI1
BO4
AI2
BO3
AI3
BO2
AI4
BO1
GND
1
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
14
13
12
11
VCC
BE
AO1
BI4
AO2
BI3
AO3
BI2
AO4
BI1
Description
The Intersil ACTS244MS is a Radiation Hardened Octal Non-Inverting
Three-State Buffer having two active low enable inputs.
The ACTS244MS utilizes advanced CMOS/SOS technology to achieve
high-speed operation. This device is a member of radiation hardened,
high-speed, CMOS/SOS Logic Family.
The ACTS244MS is supplied in a 20 lead Ceramic Flatpack (K suffix) or
a Dual-In-Line Ceramic Package (D suffix).
Ordering Information
PART NUMBER
5962F9671801VRC
5962F9671801VXC
ACTS244D/Sample
ACTS244K/Sample
ACTS244HMSR
TEMPERATURE RANGE
-55
o
C to +125
o
C
-55
o
C to +125
o
C
25
o
C
25
o
C
25
o
C
SCREENING LEVEL
MIL-PRF-38535 Class V
MIL-PRF-38535 Class V
Sample
Sample
Die
PACKAGE
20 Lead SBDIP
20 Lead Ceramic Flatpack
20 Lead SBDIP
20 Lead Ceramic Flatpack
Die
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
http://www.intersil.com or 407-727-9207
|
Copyright
©
Intersil Corporation 1999
Spec Number
File Number
1
518784
3187.1
ACTS244MS
Die Characteristics
DIE DIMENSIONS:
100 x 100 (mils)
2.54 x 2.54 (mm)
METALLIZATION:
Type: AlSi
Metal 1 Thickness: 7.125k
Å
±1.125k
Å
Metal 2 Thickness: 9k
Å
±1k
Å
GLASSIVATION:
Type: SiO
2
Thickness: 8k
Å
±1k
Å
WORST CASE CURRENT DENSITY:
< 2.0 x 10
5
A/cm
2
BOND PAD SIZE:
110 x 110 (µm)
4.4 x 4.4 (mils)

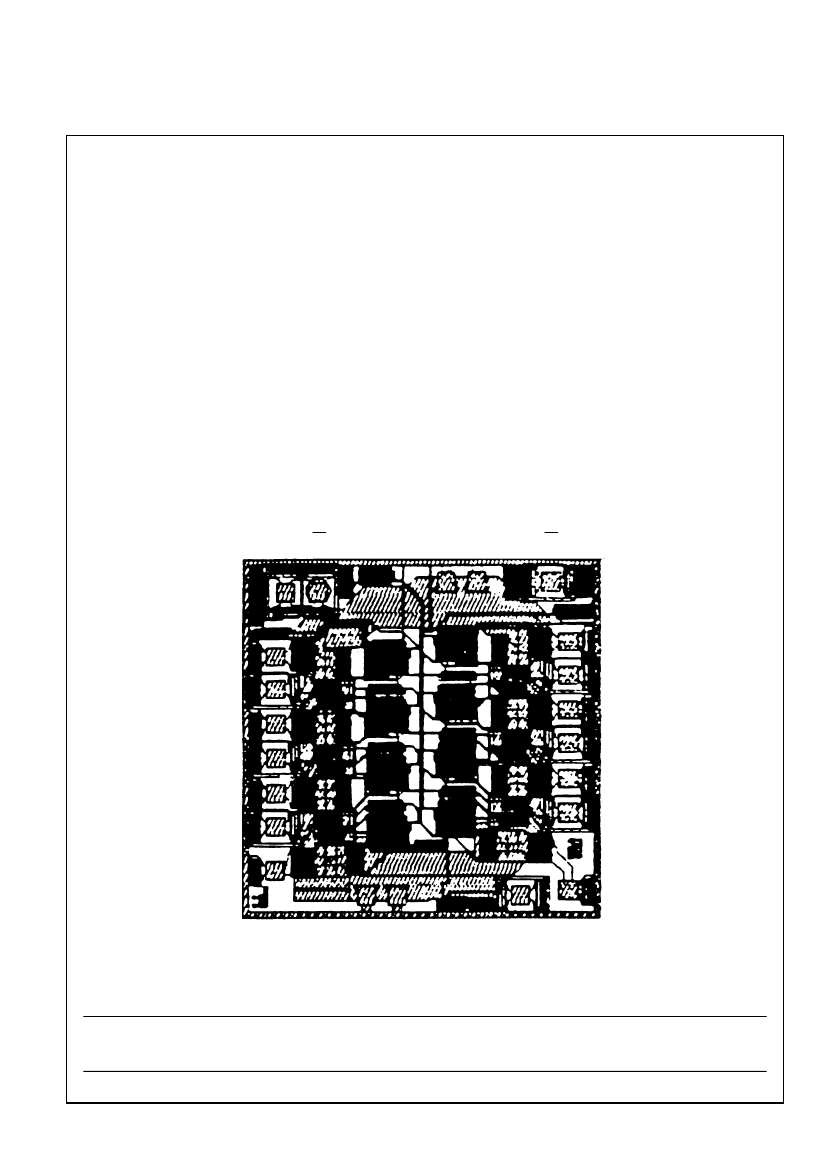

Metallization Mask Layout
ACTS244MS
AI1
(2)
AE
(1)
VCC
(20)
VCC
(20)
BE
(19)
(18) AO1
BO4 (3)
(17) BI4
AI2 (4)
(16) AO2
BO3 (5)
(15) BI3
AI3 (6)
(14) AO3
BO2 (7)
(13) BI2
AI4 (8)
BO1 (9)
AO4 (12)
(10) (10)
GND GND
(11)
BI1
All Intersil semiconductor products are manufactured, assembled and tested under
ISO9000
quality systems certification.
Intersil products are sold by description only. Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time without
notice. Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate
and reliable. However, no responsibility is assumed by Intersil or its subsidiaries for its use; nor for any infringements of patents or other rights of third parties which
may result from its use. No license is granted by implication or otherwise under any patent or patent rights of Intersil or its subsidiaries.
For information regarding Intersil Corporation and its products, see web site
http://www.intersil.com
Spec Number
3
518784
