54F353/B2AJC: DescriptionF/FAST SERIES, DUAL 4 LINE TO 1 LINE MULTIPLEXER, INVERTED OUTPUT, CQCC20, CERAMIC, LCC-20; Categorylogic logic; File Size98KB，5 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54F353/B2AJC Overview

F/FAST SERIES, DUAL 4 LINE TO 1 LINE MULTIPLEXER, INVERTED OUTPUT, CQCC20, CERAMIC, LCC-20

54F353/B2AJC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
package instruction	CERAMIC, LCC-20
Reach Compliance Code	unknown
series	F/FAST
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
length	8.89 mm
Logic integrated circuit type	MULTIPLEXER
MaximumI(ol)	0.02 A
Number of functions	2
Number of entries	4
Output times	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	23 mA
Prop。Delay @ Nom-Sup	16 ns
propagation delay (tpd)	14 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	1.9 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	8.89 mm
Base Number Matches	1

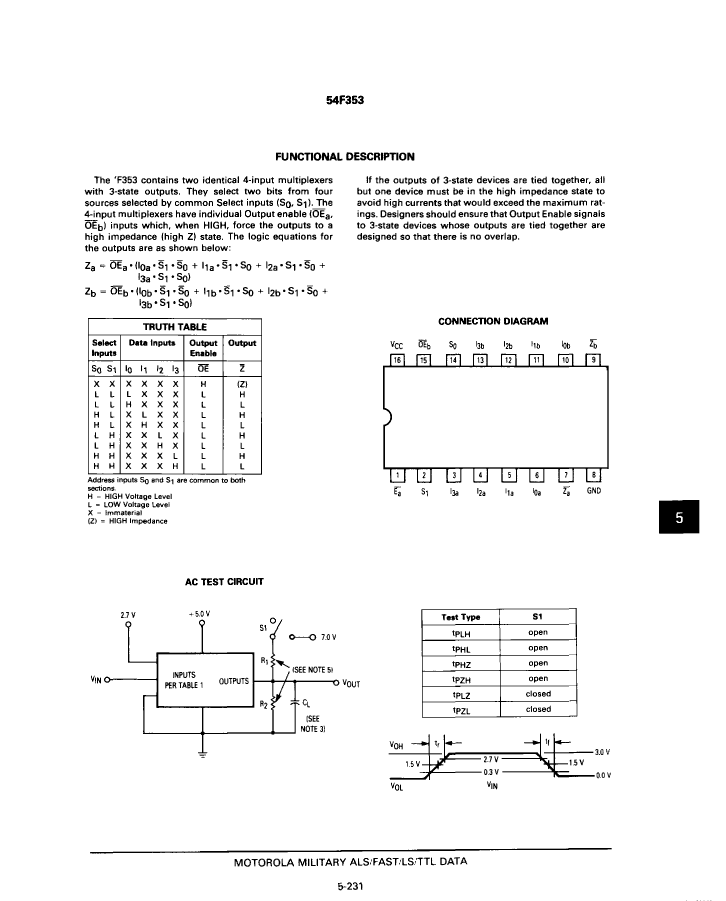

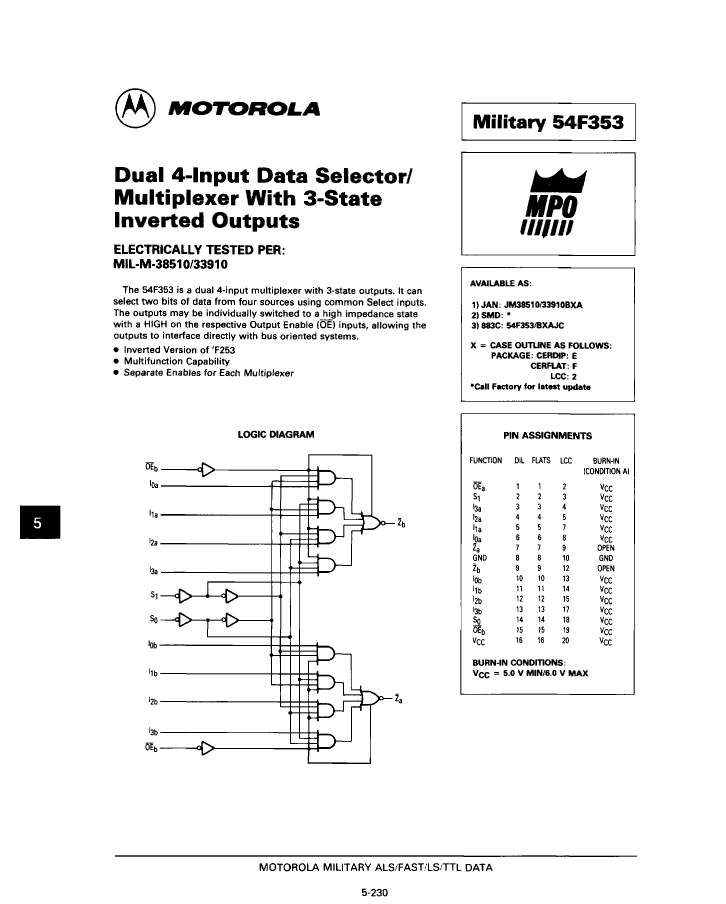

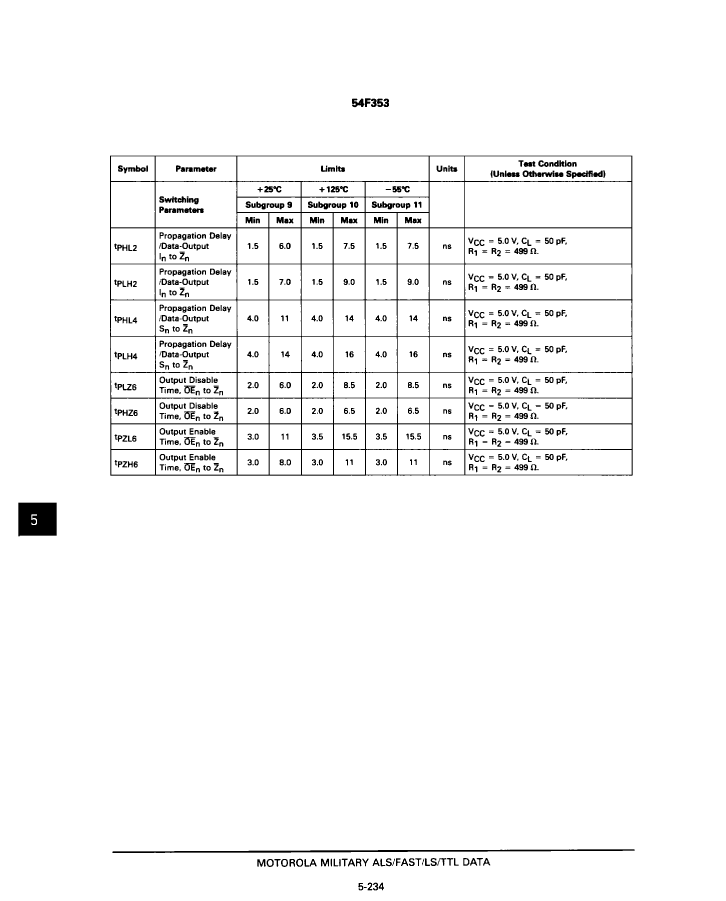

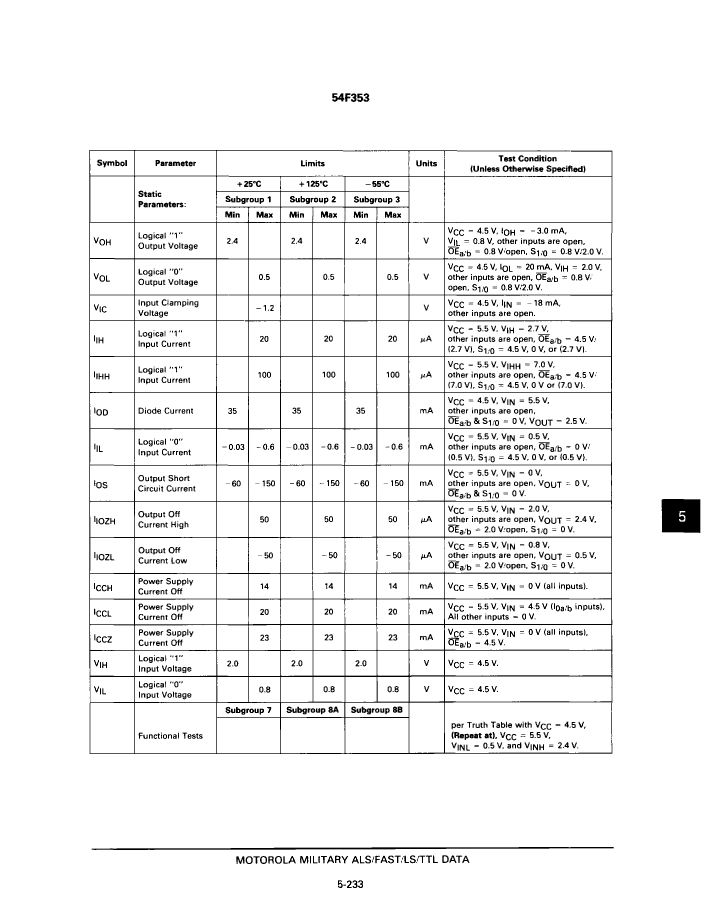

Preview

Download Datasheet

View All

54F353/B2AJC Related Products

	54F353/B2AJC	54F353/BFAJC	JM38510/33910BFA	JM38510/33910BEA	JM38510/33910B2A
Description	F/FAST SERIES, DUAL 4 LINE TO 1 LINE MULTIPLEXER, INVERTED OUTPUT, CQCC20, CERAMIC, LCC-20	F/FAST SERIES, DUAL 4 LINE TO 1 LINE MULTIPLEXER, INVERTED OUTPUT, CDFP16, CERFLAT-16	Multiplexer, F/FAST Series, 2-Func, 4 Line Input, 1 Line Output, Inverted Output, TTL, CDFP16, CERFLAT-16	F/FAST SERIES, DUAL 4 LINE TO 1 LINE MULTIPLEXER, INVERTED OUTPUT, CDIP16, CERDIP-16	F/FAST SERIES, DUAL 4 LINE TO 1 LINE MULTIPLEXER, INVERTED OUTPUT, CQCC20, CERAMIC, LCC-20
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
package instruction	CERAMIC, LCC-20	CERFLAT-16	CERFLAT-16	DIP,	QCCN,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
series	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST
JESD-30 code	S-CQCC-N20	R-GDFP-F16	R-GDFP-F16	R-GDIP-T16	S-CQCC-N20
length	8.89 mm	9.65 mm	9.65 mm	19.3 mm	8.89 mm
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER
Number of functions	2	2	2	2	2
Number of entries	4	4	4	4	4
Output times	1	1	1	1	1
Number of terminals	20	16	16	16	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	DFP	DFP	DIP	QCCN
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE
Package form	CHIP CARRIER	FLATPACK	FLATPACK	IN-LINE	CHIP CARRIER
propagation delay (tpd)	14 ns	14 ns	14 ns	14 ns	14 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.9 mm	2.15 mm	2.15 mm	4.19 mm	1.9 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	NO	YES
technology	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	NO LEAD	FLAT	FLAT	THROUGH-HOLE	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	QUAD	DUAL	DUAL	DUAL	QUAD
width	8.89 mm	6.415 mm	6.415 mm	7.62 mm	8.89 mm
Base Number Matches	1	1	1	-	-
