5962-9212801MPA datasheet, PDF

5962-9212801MPA: DescriptionComparator, 1 Func, 7000uV Offset-Max, BIPolar, CDIP8,; CategoryAnalog mixed-signal IC Amplifier circuit; File Size456KB，13 Pages; ManufacturerELANTEC (Renesas )

Download Datasheet Parametric Compare View All

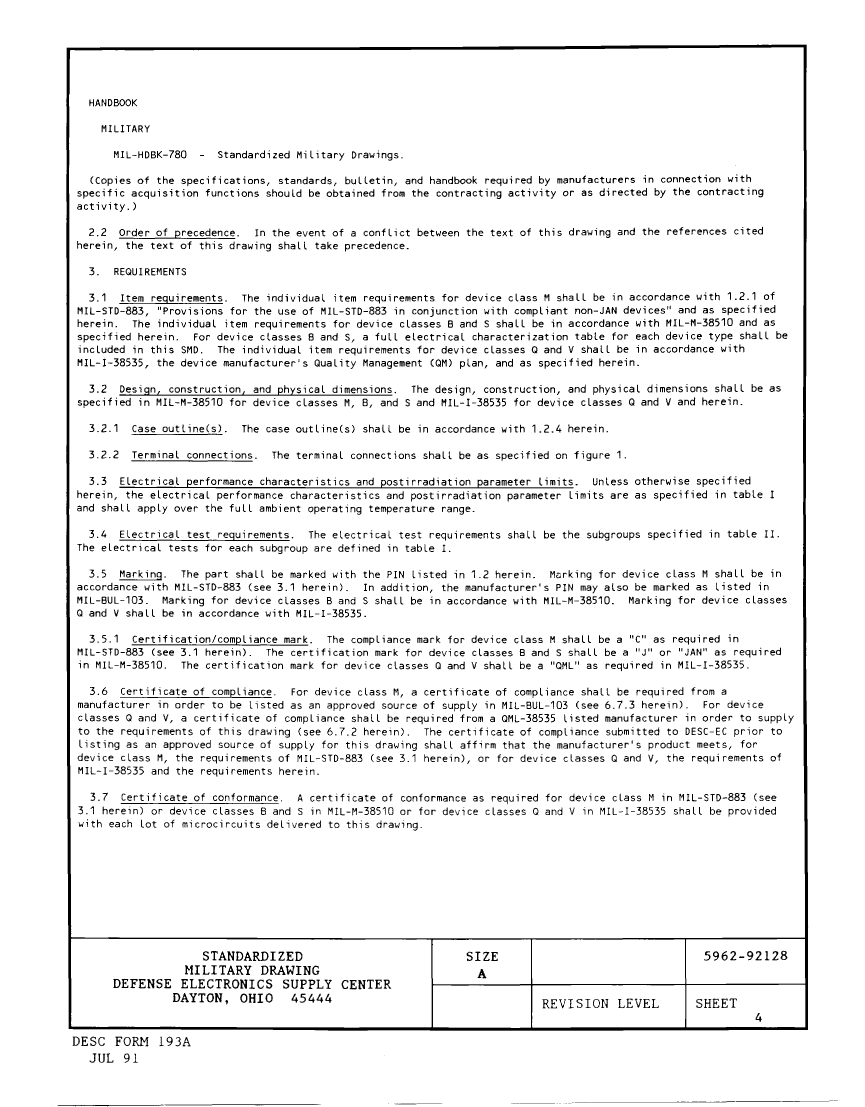

5962-9212801MPA Overview

Comparator, 1 Func, 7000uV Offset-Max, BIPolar, CDIP8,

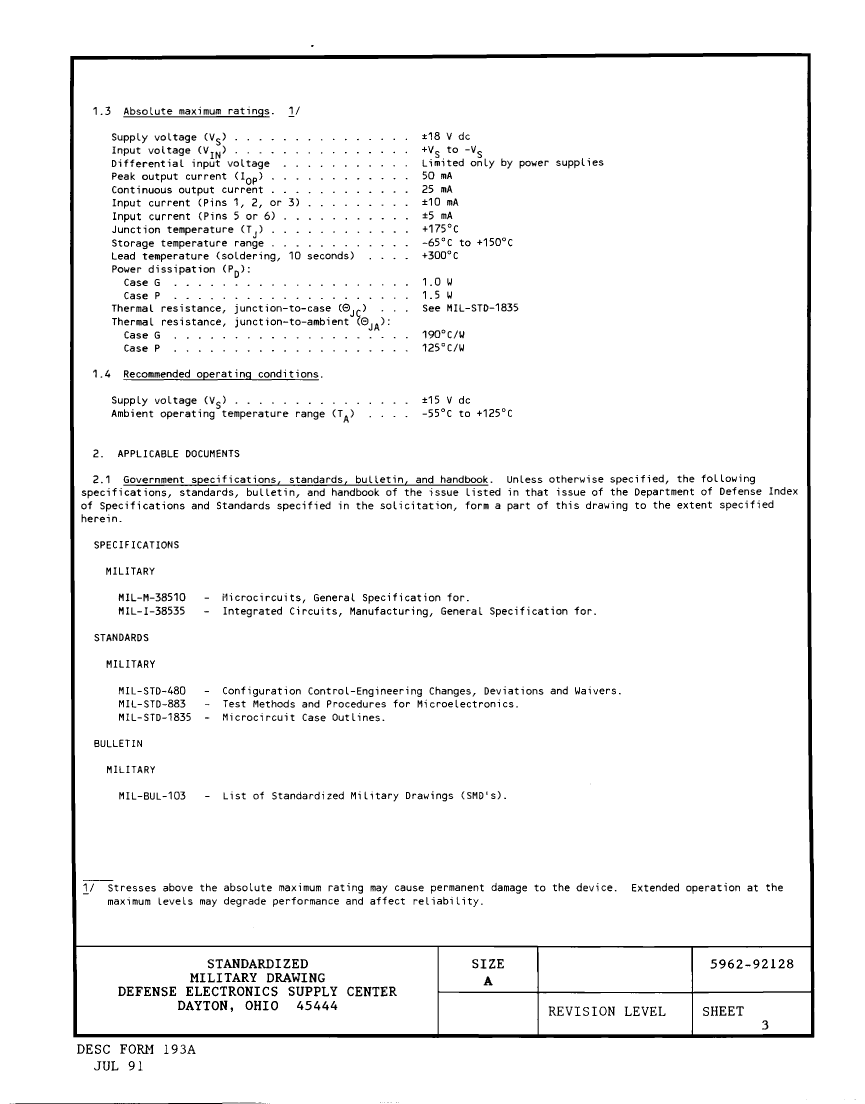

Parameter Name	Attribute value
Maker	ELANTEC (Renesas )
Reach Compliance Code	unknown
Amplifier type	COMPARATOR

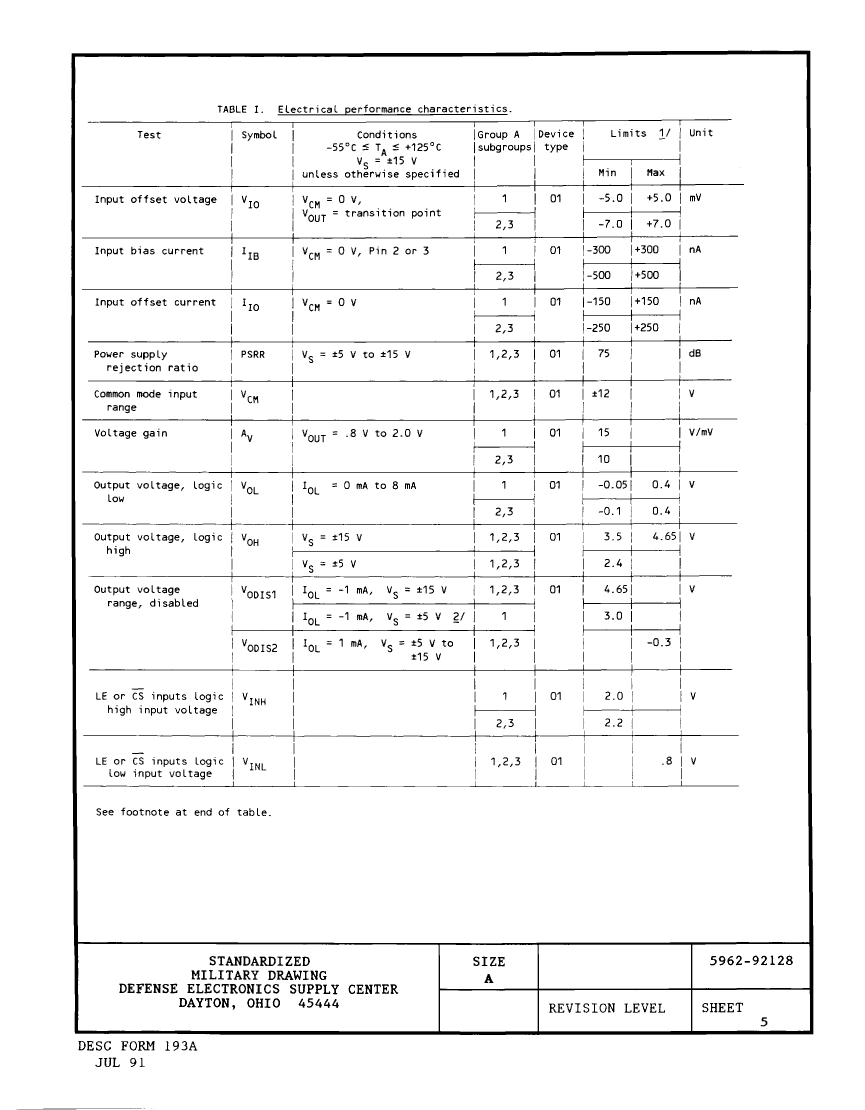

Maximum average bias current (IIB)	0.5 µA
Maximum input offset voltage	7000 µV
JESD-30 code	R-CDIP-T8
JESD-609 code	e0
Negative supply voltage upper limit	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

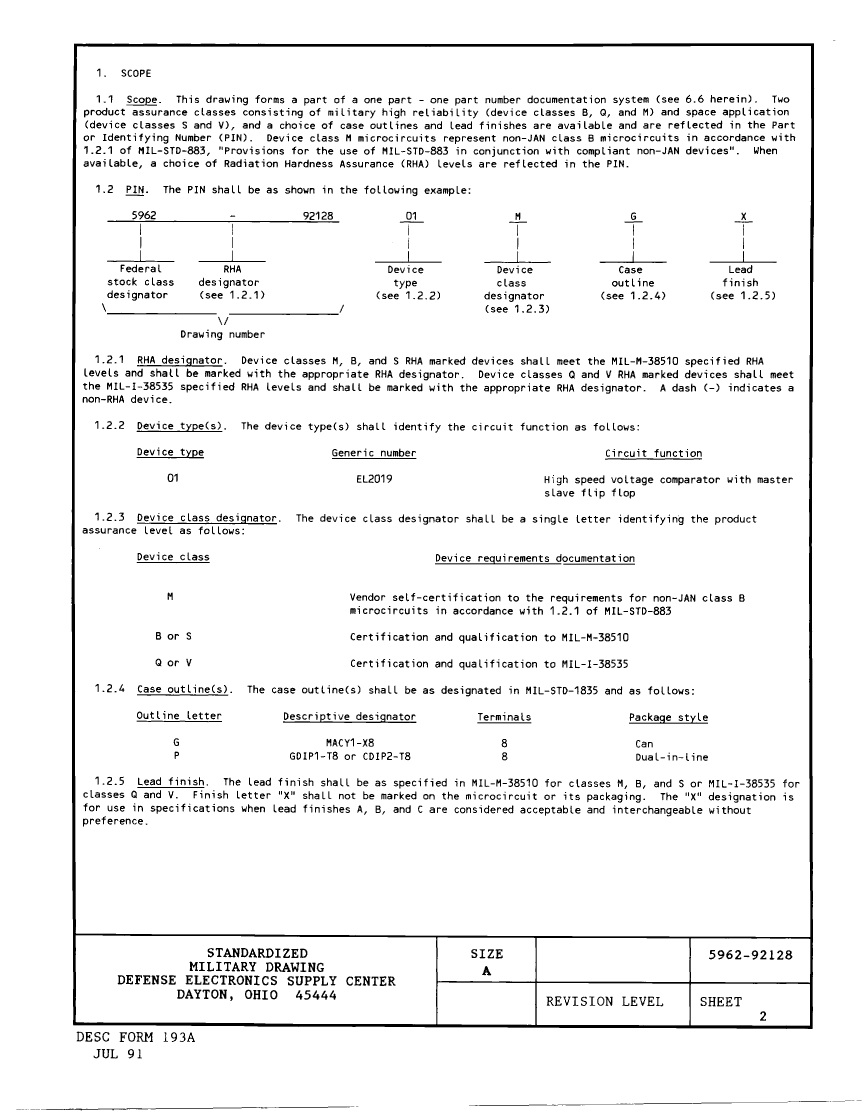

	5962-9212801MPA	5962-9212801MGA	5962-9212801MPX
Description	Comparator, 1 Func, 7000uV Offset-Max, BIPolar, CDIP8,	Comparator, 1 Func, 7000uV Offset-Max, BIPolar, MBCY8,	Comparator, 1 Func, 7000uV Offset-Max, BIPolar, CDIP8, CERAMIC, DIP-8
Reach Compliance Code	unknown	unknown	unknown
Amplifier type	COMPARATOR	COMPARATOR	COMPARATOR
Maximum average bias current (IIB)	0.5 µA	0.5 µA	0.5 µA
Maximum input offset voltage	7000 µV	7000 µV	7000 µV
JESD-30 code	R-CDIP-T8	O-MBCY-W8	R-CDIP-T8
Negative supply voltage upper limit	-18 V	-18 V	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V
Number of functions	1	1	1
Number of terminals	8	8	8
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	METAL	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	ROUND	RECTANGULAR
Package form	IN-LINE	CYLINDRICAL	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified
Supply voltage upper limit	18 V	18 V	18 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V
surface mount	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	WIRE	THROUGH-HOLE
Terminal location	DUAL	BOTTOM	DUAL
Base Number Matches	1	1	1
Maker	ELANTEC (Renesas )	ELANTEC (Renesas )	-
JESD-609 code	e0	e0	-
encapsulated code	DIP	-	DIP
Terminal surface	TIN LEAD	TIN LEAD	-
