5962-8952212XA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Telecom circuit> 5962-8952212XA

5962-8952212XA: DescriptionMIL-STD-1553 Data Bus Transceiver,; CategoryWireless rf/communication Telecom circuit; File Size166KB，8 Pages; ManufacturerCobham Semiconductor Solutions

Download Datasheet Parametric View All

5962-8952212XA Overview

MIL-STD-1553 Data Bus Transceiver,

5962-8952212XA Parametric

Parameter Name	Attribute value
Maker	Cobham Semiconductor Solutions
package instruction	DIP,
Reach Compliance Code	unknown
JESD-609 code	e0
length	48.13 mm
Number of functions	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	UNSPECIFIED
encapsulated code	DIP
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	5.3 mm
Nominal supply voltage	5 V
surface mount	NO
Telecom integrated circuit types	MIL-STD-1553 DATA BUS TRANSCEIVER
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Standard Products

ACT4453 Single Supply Dual Transceiver

for MIL-STD-1553A/B, MIL-STD-1760 & SAE-AS15531

www.aeroflex.com/Avionics

November 24, 2009

FEATURES

❑

Single +5V power supply

Outstanding MIL-STD-1553 / SAE-AS15531 performance

Monolithic construction

Input and output TTL compatible design

Designed for aerospace and high reliability space applications

MIL-PRF-38534 compliant devices available

Aeroflex Plainview is a Class H & K MIL-PRF-38534 manufacturer

1.9"L x .78"W, 24 lead, Dual-in-line or Flat package, hermetic package

Available on DSCC SMD 5962–89522

GENERAL DESCRIPTION

The radiation tolerant ACT4453 is the next generation monolithic transceiver design which provides full

compliance with MIL-STD-1553A/B, MIL-STD-1760 and meets SAE-AS15531 requirements in the smallest

packages with low power consumption and single power supply operation. The series performs the front-end

analog function of inputting and outputting data through a transformer to the MIL-STD-1553 data bus.

Design of these transceivers reflects particular attention to active filter performance. This results in low bit and

word error rate with superior waveform purity and minimal zero crossover distortion. Efficient transmitter

electrical and thermal design provides low internal power dissipation and heat rise at high as well as low duty

cycles.

Each channel of the dual transceiver is completely separate from the other and fully independent. This includes

power leads as well as signal lines. Hence, each channel may be connected to a different data bus with no

interaction.

TRANSMITTER

The Transmitter section accepts bi-phase TTL data at the input and when coupled to the data bus with a 1:2.12

ratio transformer the data bus signal is typically 7.0 Volts P-P at A-A' (See Figure 5). When both DATA and

DATA inputs are held low or high, the transmitter output becomes a high impedance and is “removed” from the

line. In addition, an overriding “INHIBIT input provides for the removal of the transmitter output from the line.

A logic “1” applied to the “INHIBIT” takes priority over the condition of the data inputs and disables the

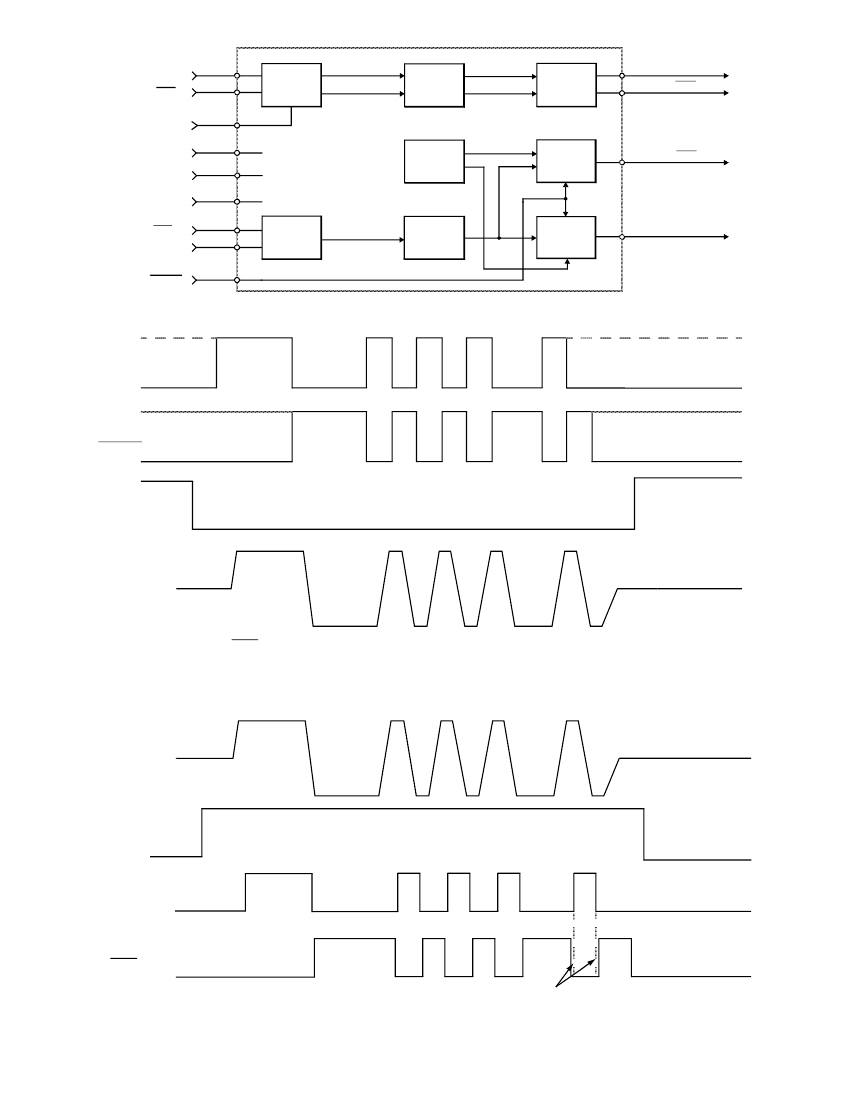

transmitter (See Figure 1 Transmitter Logic Waveform). The Transmitter may be safely operated for an

indefinite period with the bus (point A-A') short circuited at 100% duty cycle.

RECEIVER

The Receiver section accepts bi-phase differential data at the input and produces two TTL signals at the output.

The outputs are DATA and DATA, and represent positive and negative excursions of the input beyond a

pre-determined threshold (See Figure 2 Receiver Logic Waveform).

The pre-set internal thresholds will detect data bus signals exceeding 1.20 Volts P-P and reject signals less than

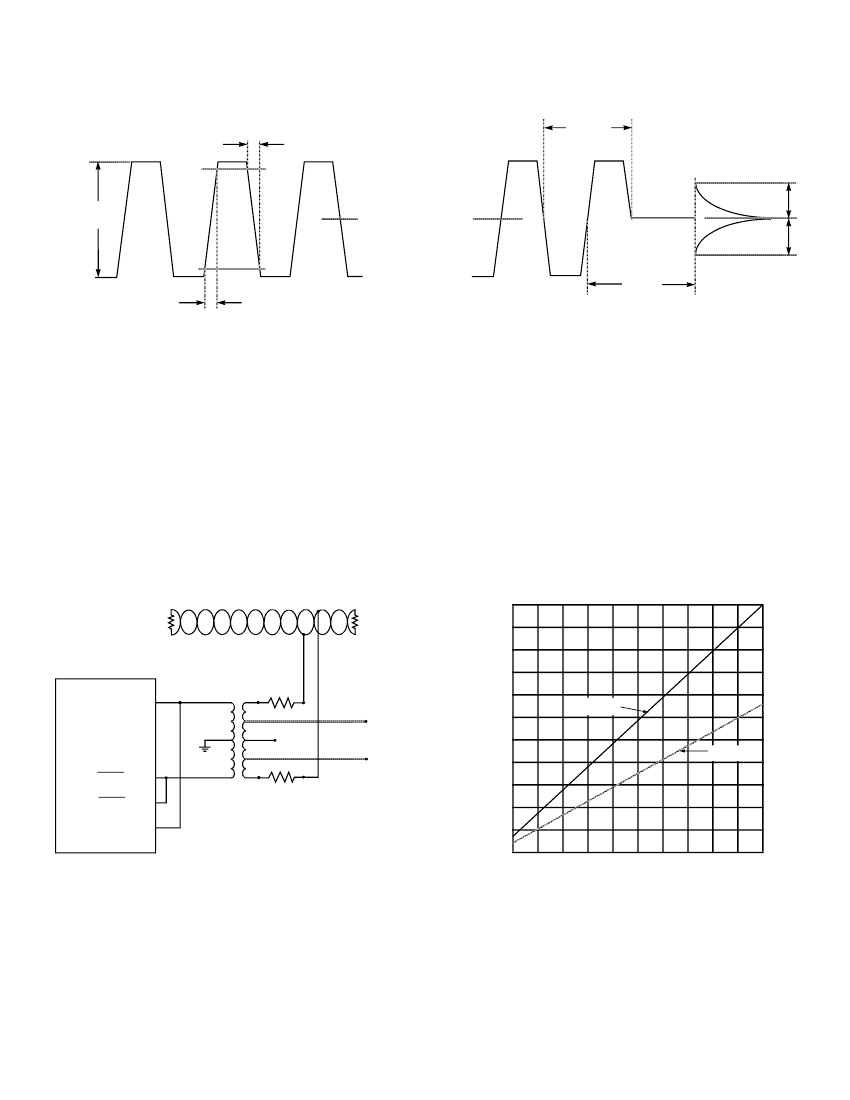

0.6 Volts P-P when used with a transformer (See Figure 5 for transformer data and typical connections).

A low level at the Strobe input inhibits the DATA and DATA outputs

(Pin is internally pulled up).

SCD4453 Rev D
