5410-1110: DescriptionCard Edge Connector, 11 Contact(s), 1 Row(s), Right Angle, 0.1 inch Pitch, Solder Terminal, Locking; CategoryThe connector The connector; File Size35KB，1 Pages; ManufacturerLeamax Enterprise Co., Ltd.

Download Datasheet Parametric Compare View All

5410-1110 Overview

Card Edge Connector, 11 Contact(s), 1 Row(s), Right Angle, 0.1 inch Pitch, Solder Terminal, Locking

5410-1110 Parametric

Parameter Name	Attribute value
Maker	Leamax Enterprise Co., Ltd.
Reach Compliance Code	unknown
Other features	NONE
body width	0.18 inch
subject depth	0.264 inch
body length	1.315 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	SN
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.1 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	11
Base Number Matches	1

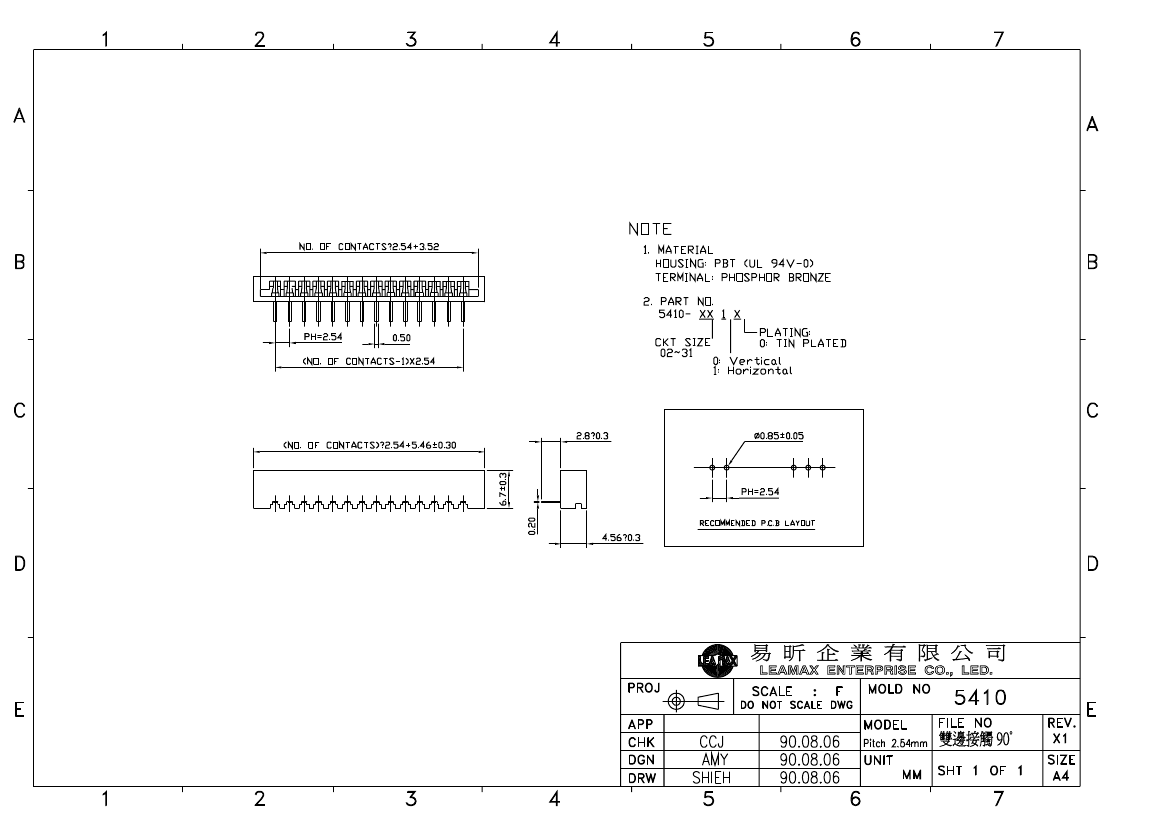

Preview

Download Datasheet

View All

5410-1110 Related Products

	5410-1110	5410-1810	5410-1710	5410-1610	5410-1510	5410-1910	5410-1100	5410-1310	5410-1210	5410-1410
Description	Card Edge Connector, 11 Contact(s), 1 Row(s), Right Angle, 0.1 inch Pitch, Solder Terminal, Locking	Card Edge Connector, 18 Contact(s), 1 Row(s), Right Angle, 0.1 inch Pitch, Solder Terminal, Locking	Card Edge Connector, 17 Contact(s), 1 Row(s), Right Angle, 0.1 inch Pitch, Solder Terminal, Locking	Card Edge Connector, 16 Contact(s), 1 Row(s), Right Angle, 0.1 inch Pitch, Solder Terminal, Locking	Card Edge Connector, 15 Contact(s), 1 Row(s), Right Angle, 0.1 inch Pitch, Solder Terminal, Locking	Card Edge Connector, 19 Contact(s), 1 Row(s), Right Angle, 0.1 inch Pitch, Solder Terminal, Locking	Card Edge Connector, 10 Contact(s), 1 Row(s), Right Angle, 0.1 inch Pitch, Solder Terminal, Locking	Card Edge Connector, 13 Contact(s), 1 Row(s), Right Angle, 0.1 inch Pitch, Solder Terminal, Locking	Card Edge Connector, 12 Contact(s), 1 Row(s), Right Angle, 0.1 inch Pitch, Solder Terminal, Locking	Card Edge Connector, 14 Contact(s), 1 Row(s), Right Angle, 0.1 inch Pitch, Solder Terminal, Locking
Maker	Leamax Enterprise Co., Ltd.	Leamax Enterprise Co., Ltd.	Leamax Enterprise Co., Ltd.	Leamax Enterprise Co., Ltd.	Leamax Enterprise Co., Ltd.	Leamax Enterprise Co., Ltd.	Leamax Enterprise Co., Ltd.	Leamax Enterprise Co., Ltd.	Leamax Enterprise Co., Ltd.	Leamax Enterprise Co., Ltd.
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	NONE	NONE	NONE	NONE	NONE	NONE	NONE	NONE	NONE	NONE
body width	0.18 inch	0.18 inch	0.18 inch	0.18 inch	0.18 inch	0.18 inch	0.18 inch	0.18 inch	0.18 inch	0.18 inch
subject depth	0.264 inch	0.264 inch	0.264 inch	0.264 inch	0.264 inch	0.264 inch	0.264 inch	0.264 inch	0.264 inch	0.264 inch
body length	1.315 inch	2.015 inch	1.915 inch	1.815 inch	1.715 inch	2.115 inch	1.215 inch	1.515 inch	1.415 inch	1.615 inch
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	SN	SN	SN	SN	SN	SN	SN	SN	SN	SN
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	1	1	1	1	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1	1	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.11 inch	0.11 inch	0.11 inch	0.11 inch	0.11 inch	0.11 inch	0.11 inch	0.11 inch	0.11 inch	0.11 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	11	18	17	16	15	19	10	13	12	14
Base Number Matches	1	1	1	1	1	1	1	1	1	1
