54LS295A/BABJC

Description
Shift Register, 4-Bit, TTL, CDFP14
Categorylogic    logic
File Size174KB，4 Pages
ManufacturerMotorola ( NXP )
Websitehttps://www.nxp.com
Download Datasheet Parametric Compare View All

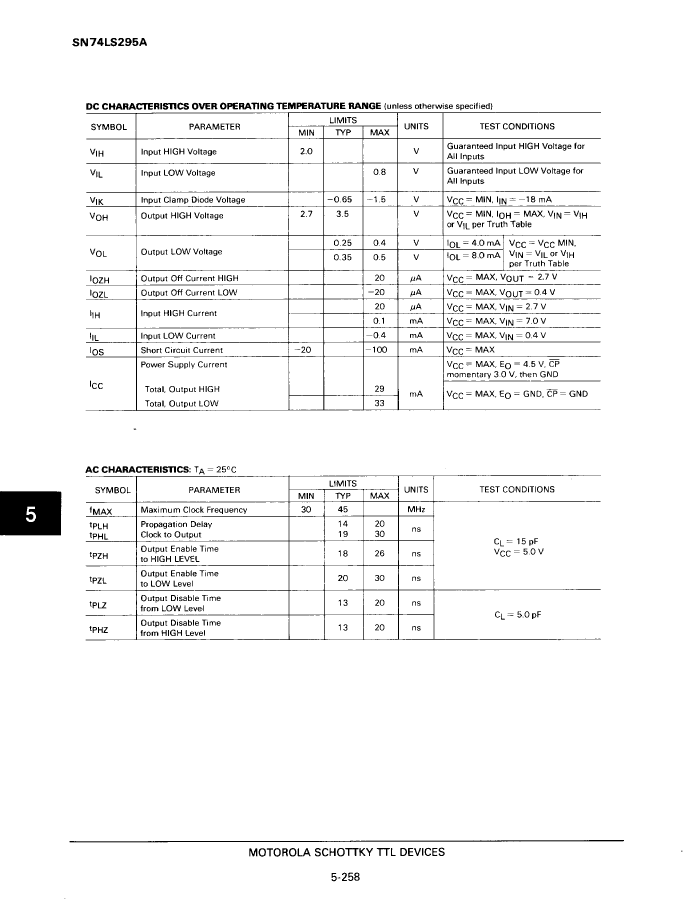

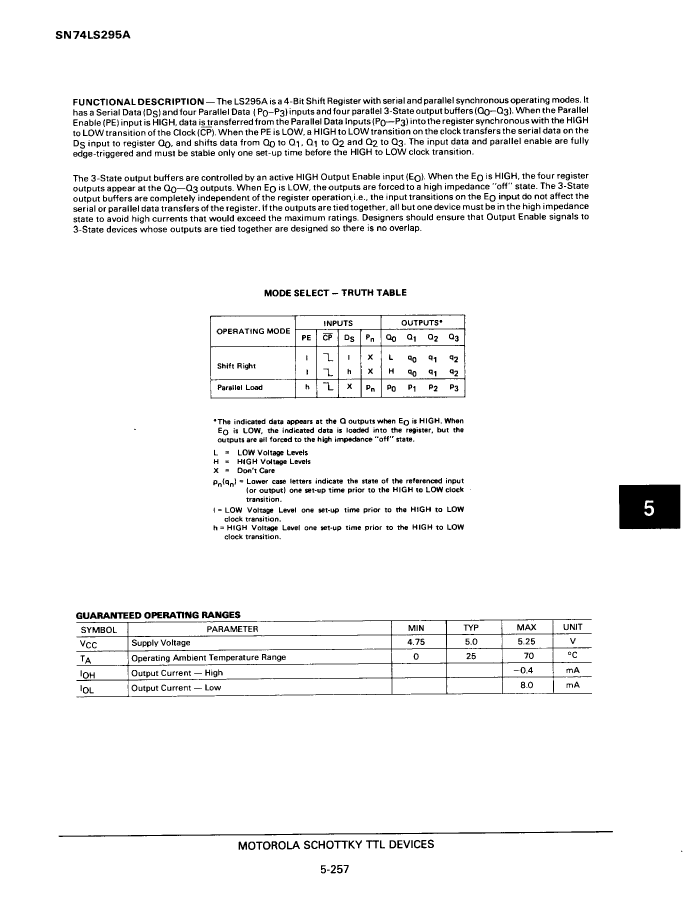

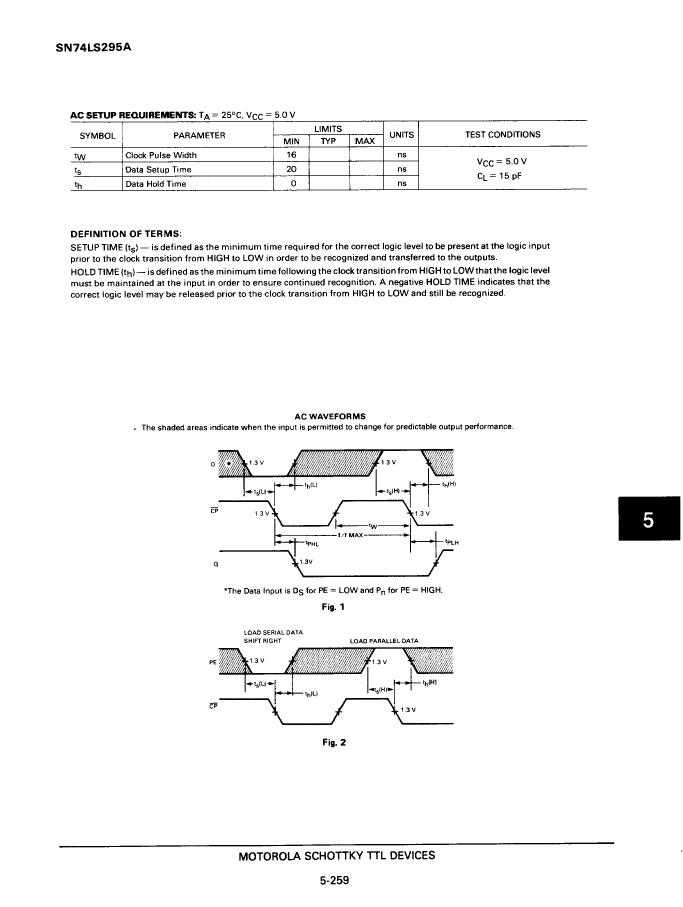

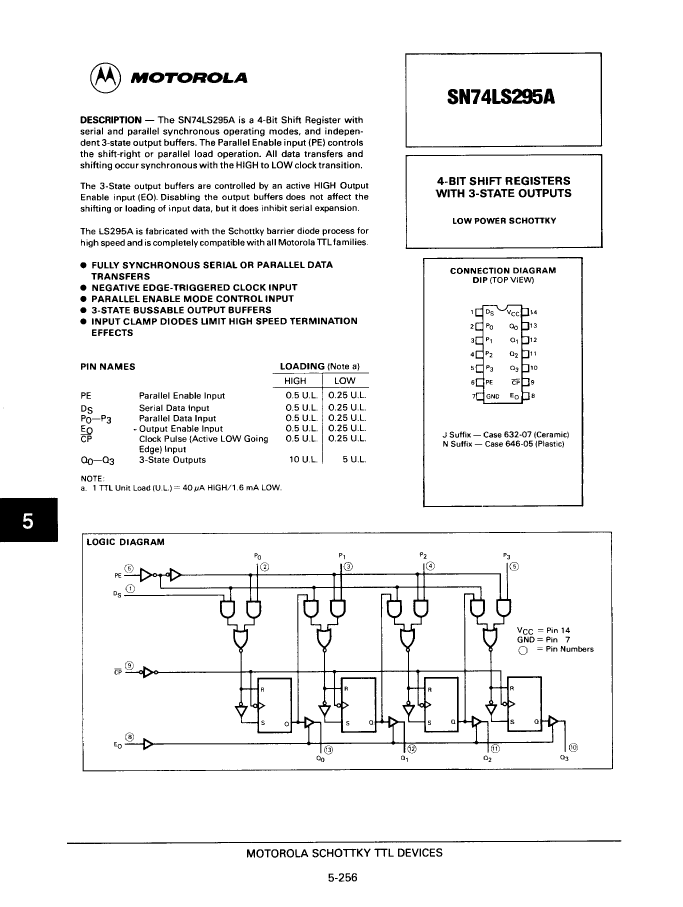

54LS295A/BABJC Overview

Shift Register, 4-Bit, TTL, CDFP14

54LS295A/BABJC Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerMotorola ( NXP )
Reach Compliance Codeunknown
JESD-30 codeR-XDFP-F14
JESD-609 codee0
Number of digits4
Number of functions1
Number of terminals14
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC
encapsulated codeDFP
Encapsulate equivalent codeFL14,.3
Package shapeRECTANGULAR
Package formFLATPACK
power supply5 V
Certification statusNot Qualified
Filter level38535Q/M;38534H;883B
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyTTL
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formFLAT
Terminal pitch1.27 mm
Terminal locationDUAL
Base Number Matches1

Preview

Download Datasheet

54LS295A/BABJC Related Products

54LS295A/BABJC 54LS295A/BCBJC SN74LS295AND SN74LS295ANS SN74LS295AJDS
Description Shift Register, 4-Bit, TTL, CDFP14 IC,SHIFT REGISTER,LS-TTL,DIP,14PIN,CERAMIC Parallel In Parallel Out, LS Series, 4-Bit, Right Direction, True Output, TTL, PDIP14, 646-05 Parallel In Parallel Out, LS Series, 4-Bit, Right Direction, True Output, TTL, PDIP14, 646-05 Parallel In Parallel Out, LS Series, 4-Bit, Right Direction, True Output, TTL, CDIP14, CERAMIC, DIP-14
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible
Maker Motorola ( NXP ) Motorola ( NXP ) Motorola ( NXP ) Motorola ( NXP ) Motorola ( NXP )
Reach Compliance Code unknown unknown unknown unknown unknown
JESD-30 code R-XDFP-F14 R-XDIP-T14 R-PDIP-T14 R-PDIP-T14 R-GDIP-T14
JESD-609 code e0 e0 e0 e0 e0
Number of digits 4 4 4 4 4
Number of functions 1 1 1 1 1
Number of terminals 14 14 14 14 14
Maximum operating temperature 125 °C 125 °C 70 °C 70 °C 70 °C
Package body material CERAMIC CERAMIC PLASTIC/EPOXY PLASTIC/EPOXY CERAMIC, GLASS-SEALED
encapsulated code DFP DIP DIP DIP DIP
Encapsulate equivalent code FL14,.3 DIP14,.3 DIP14,.3 DIP14,.3 DIP14,.3
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form FLATPACK IN-LINE IN-LINE IN-LINE IN-LINE
power supply 5 V 5 V 5 V 5 V 5 V
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Nominal supply voltage (Vsup) 5 V 5 V 5 V 5 V 5 V
surface mount YES NO NO NO NO
technology TTL TTL TTL TTL TTL
Temperature level MILITARY MILITARY COMMERCIAL COMMERCIAL COMMERCIAL
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form FLAT THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE
Terminal pitch 1.27 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm
Terminal location DUAL DUAL DUAL DUAL DUAL
package instruction - DIP, DIP14,.3 646-05 DIP, DIP14,.3 CERAMIC, DIP-14
Peak Reflow Temperature (Celsius) - NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Maximum time at peak reflow temperature - NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Counting direction - - RIGHT RIGHT RIGHT
series - - LS LS LS
length - - 18.86 mm 18.86 mm 19.495 mm
Logic integrated circuit type - - PARALLEL IN PARALLEL OUT PARALLEL IN PARALLEL OUT PARALLEL IN PARALLEL OUT
Output characteristics - - 3-STATE 3-STATE 3-STATE
Output polarity - - TRUE TRUE TRUE
propagation delay (tpd) - - 30 ns 30 ns 30 ns
Maximum seat height - - 5.08 mm 5.08 mm 5.08 mm
Maximum supply voltage (Vsup) - - 5.25 V 5.25 V 5.25 V
Minimum supply voltage (Vsup) - - 4.75 V 4.75 V 4.75 V
Trigger type - - NEGATIVE EDGE NEGATIVE EDGE NEGATIVE EDGE
width - - 7.62 mm 7.62 mm 7.62 mm
minfmax - - 45 MHz 45 MHz 45 MHz
