54ALS08M/B2AJC datasheet, PDF - EEWORLD Datasheet

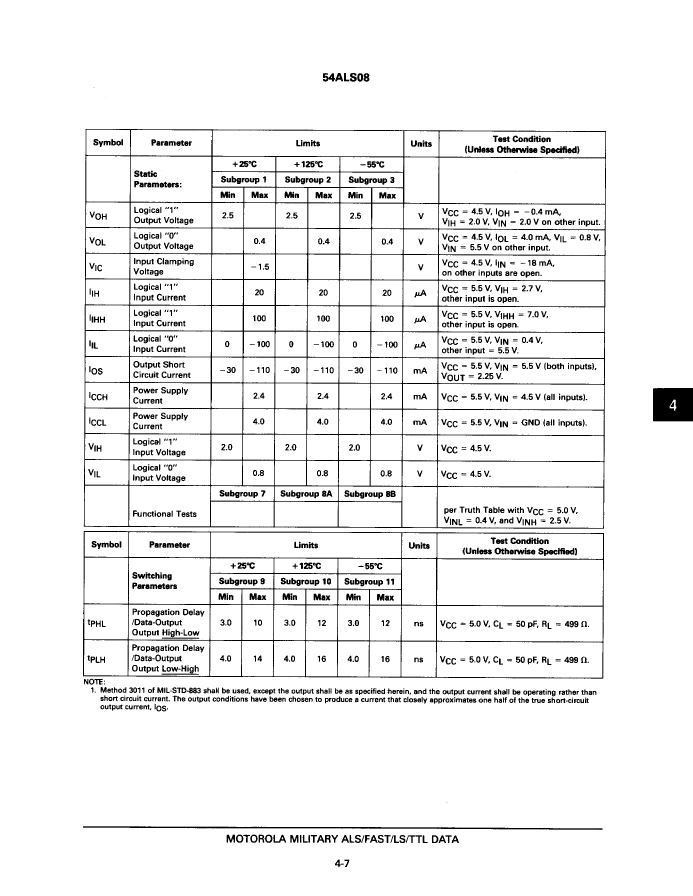

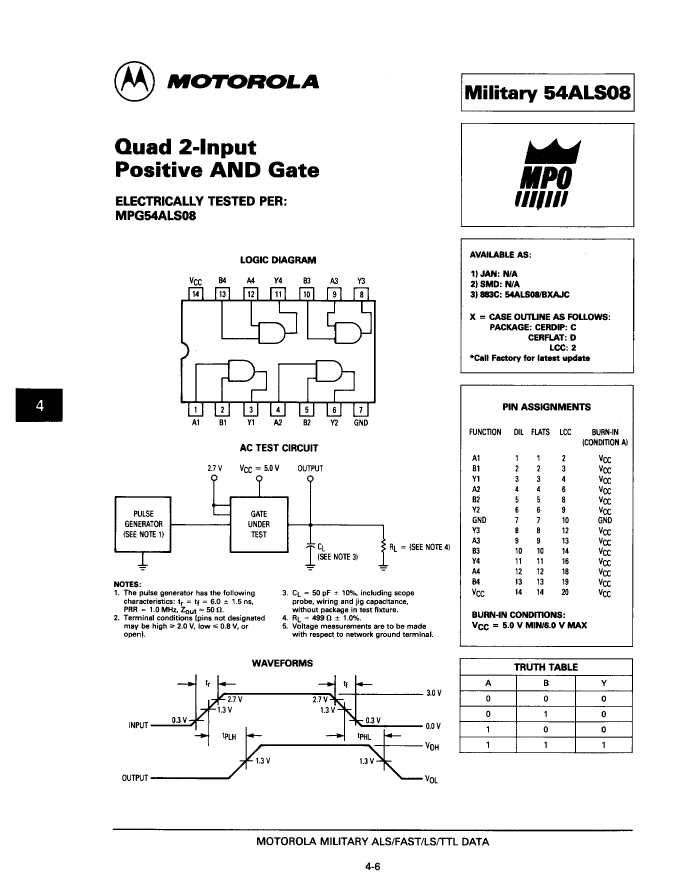

54ALS08M/B2AJC: DescriptionAND Gate, TTL, CQCC20; Categorylogic logic; File Size95KB，2 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54ALS08M/B2AJC Overview

AND Gate, TTL, CQCC20

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
Reach Compliance Code	unknown
JESD-30 code	S-XQCC-N20
JESD-609 code	e0
Logic integrated circuit type	AND GATE
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Base Number Matches	1

	54ALS08M/B2AJC	SN74ALS08N	SN74ALS08ND	SN74ALS08NS
Description	AND Gate, TTL, CQCC20	AND Gate, TTL, PDIP14	AND Gate, TTL, PDIP14	AND Gate, TTL, PDIP14
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
Reach Compliance Code	unknown	unknown	unknown	unknown
JESD-30 code	S-XQCC-N20	R-PDIP-T14	R-PDIP-T14	R-PDIP-T14
JESD-609 code	e0	e0	e0	e0
Logic integrated circuit type	AND GATE	AND GATE	AND GATE	AND GATE
Number of terminals	20	14	14	14
Maximum operating temperature	125 °C	70 °C	70 °C	70 °C
Package body material	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCN	DIP	DIP	DIP
Encapsulate equivalent code	LCC20,.35SQ	DIP14,.3	DIP14,.3	DIP14,.3
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V
Schmitt trigger	NO	NO	NO	NO
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	NO
technology	TTL	TTL	TTL	TTL
Temperature level	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	QUAD	DUAL	DUAL	DUAL
Certification status	Not Qualified	Not Qualified	-	Not Qualified
Base Number Matches	1	1	1	-
package instruction	-	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3
