PWRG5435% datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> The resistor> PWRG5435%

Preview

PWRG5435%: DescriptionFixed Resistor, Metal Glaze/thick Film, 5W, 43ohm, 5% +/-Tol, 100ppm/Cel, Through Hole Mount, RADIAL LEADED; CategoryPassive components The resistor; File Size53KB，1 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/; Environmental Compliance

Download Datasheet Parametric View All

PWRG5435% Overview

Fixed Resistor, Metal Glaze/thick Film, 5W, 43ohm, 5% +/-Tol, 100ppm/Cel, Through Hole Mount, RADIAL LEADED

PWRG5435% Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TT Electronics plc
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	FLAME PROOF
JESD-609 code	e3
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	250 °C
Package shape	RECTANGULAR PACKAGE
Rated power dissipation(P)	5 W
Rated temperature	85 °C
resistance	43 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Terminal surface	Matte Tin (Sn)
Terminal shape	WIRE
Tolerance	5%
Base Number Matches	1

Preview

Download Datasheet

View All

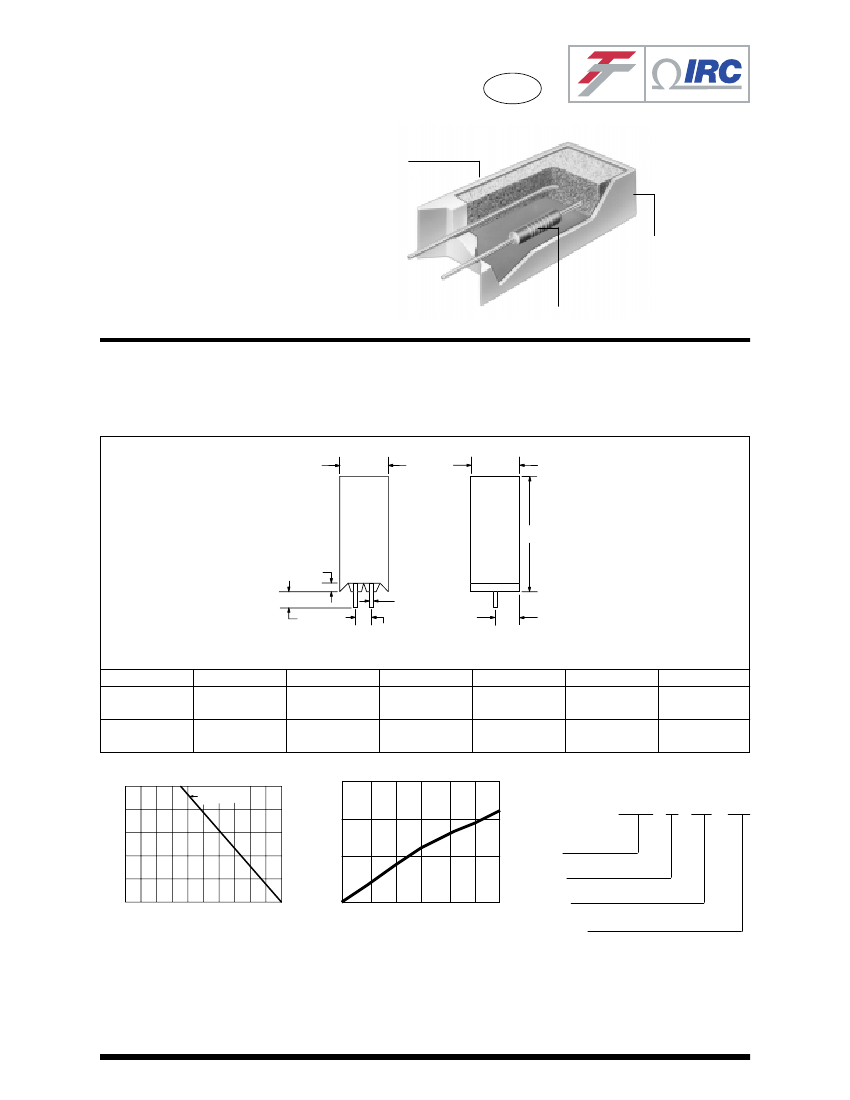

GENERAL PURPOSE POWER

METAL GLAZE RESISTOR

ISO-9001

Registered

PWRG

SERIES

•

3 and 5 watts

1 ohm to 1 Megohm range

Radial leads for PC mount

TCR from ±100 ppm/°C

Fireproof high

temperature ceramic

case with stand-off

Inorganic fireproof

encapsulant

Metal Glaze™ thick film

resistive element

SPECIFICATIONS:

- Power Rating: 3 and 5 watts

- Resistance Range: 1Ω to 1 MΩ

- Tolerance: ±1%, ±2%, ±5%, and ±10%

- Flameproof inorganic construction

DIMENSIONS

(Inches and (mm)):

A

B

C

0.080

±0.032

Meniscus

permitted to

bottom of feet

LD

0.170

±0.062

D

E

IRC Type

PWRG-3

PWRG-5

A

0.475 ±0.030

(12.0 ±0.8)

0.500 ±0.030

(12.7 ±0.8)

B

0.320 ±0.30

(8.1 ±0.8)

0.350 ±0.030

(8.9 ±0.8)

C

1.00 ±0.030

(25.4 ±0.8)

1.00 ±0.030

(25.4 ±0.8)

D

0.200 ±0.062

(5.8 ±1.6)

0.200 ±0.062

(5.08 ±1.6)

E

0.175 ±0.062

(4.44 ±1.6)

0.175 ±0.062

(0.44 ±1.6)

LD

0.032 ±0.002

(0.81 ±0.05)

0.032 ±0.002

(0.81 ±0.05)

POWER DERATING:

100

85

HOT SPOT TEMP. RISE:

300

Hot Spot Temperature (°C)

HOW TO ORDER:

Sample Part No.:

PWRG

5

12K

10%

PWRG-3, 5

Percent Rated Load

80

60

40

20

0

200

PWRG-3, 5

100

Type

Power

0

50

100

150

200

250

0

20

Ambient Temperature (°C)

40

60

80 100

Percent Rated Power

120

Range

Tolerance

WIREWOUND AND FILM TECHNOLOGIES DIVISION

736 Greenway Road • Boone, North Carolina 28607-1860 • Tel: 828-264-8861 • Fax: 828-264-8866 • www.irctt.com

1
