HS-6617RH-T
Data Sheet
July 1999
File Number
4608.1
Radiation Hardened 2K x 8 CMOS PROM
Intersil’s Satellite Applications Flow
TM
(SAF) devices are fully
tested and guaranteed to 100kRAD total dose. These QML
Class T devices are processed to a standard flow intended
to meet the cost and shorter lead-time needs of large
volume satellite manufacturers, while maintaining a high
level of reliability.
The Intersil HS-6617RH-T is a radiation hardened 16k
CMOS PROM, organized in a 2K word by 8-bit format. The
chip is manufactured using a radiation hardened CMOS
process, and is designed to be functionally equivalent to the
HM-6617. Synchronous circuit design techniques combine
with CMOS processing to give this device high speed
performance with very low power dissipation.
On chip address latches are provided, allowing easy
interfacing with recent generation microprocessors that use
multiplexed address/data bus structure, such as the
HS-80C86RH. The output enable control (G) simplifies
microprocessor system interfacing by allowing output data
bus control, in addition to, the chip enable control.
Synchronous operation of the HS-6617RH-T is ideal for high
speed pipe-lined architecture systems and also in
synchronous logic replacement functions.
Features
• QML Class T, Per MIL-PRF-38535
• Radiation Performance
- Gamma Dose (γ) 1 x 10
5
RAD(Si)
- SEU LET 16MeV/mg/cm
2
- SEL LET 100MeV/mg/cm
2
• Field Programmable Nicrome Fuse Links
• Low Standby Power 1.1mW Max
• Low Operating Power 137.5mW/MHz Max
• Fast Access Time 100ns Max
• TTL Compatible Inputs/Outputs
• Synchronous Operation
• On Chip Address Latches, Three-State Outputs
Pinouts
HS1-6617RH-T (SBDIP), CDIP2-T24
TOP VIEW
A7
A6
A5
A4
A3
A2
A1
A0
Q0
1
2
3
4
5
6
7
8
9
24 V
DD
23 A8
22 A9
21 P
20 G
19 A10
18 E
17 Q7
16 Q6
15 Q5
14 Q4
13 Q3
Specifications
Specifications for Rad Hard QML devices are controlled by
the Defense Supply Center in Columbus (DSCC). The SMD
numbers listed below must be used when ordering.
Detailed Electrical Specifications for the HS-6617RH-T
are contained in SMD 5962-95708.
A “hot-link” is provided
from our website for downloading.
www.intersil.com/spacedefense/newsafclasst.asp
Intersil’s Quality Management Plan (QM Plan), listing all
Class T screening operations, is also available on our
website.
www.intersil.com/quality/manuals.asp
Q1 10
Q2 11
GND 12
HS9-6617RH-T (FLATPACK), CDFP4-F24
TOP VIEW
A7
A6
A5
A4
A3
A2
A1
A0
Q0
Q1
Q2
GND
1
2
3
4
5
6
7
8
9
10
11
12
24
23
22
21
20
19
18
17
16
15
14
13
V
DD
A8
A9
P
†
G
A10
E
Q7
Q6
Q5
Q4
Q3
Ordering Information
ORDERING
NUMBER
5962R9570801TJC
HS1-6617RH/Proto
5962R9570801TXC
HS9-6617RH/Proto
PART NUMBER
HS1-6617RH-T
HS1-6617RH/Proto
HS9-6617RH-T
HS9-6617RH/Proto
TEMP.
RANGE
(
o
C)
-55 to 125
-55 to 125
-55 to 125
-55 to 125
NOTE:
Minimum order quantity for -T is 150 units through
distribution, or 450 units direct.
†
P must be hardwired at all times to V
DD
, except during
programming.
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
www.intersil.com or 407-727-9207
|
Copyright
©
Intersil Corporation 1999
Satellite Applications Flow™ (SAF) is a trademark of Intersil Corporation.
HS-6617RH-T
Die Characteristics
DIE DIMENSIONS:
(4166µm x 6350µm x 483µm
±25.4µm)
164 x 250 x 19mils
±1mil
METALLIZATION:
Type: Silicon - Aluminum
Thickness: 13.0k
Å
±2k
Å
SUBSTRATE POTENTIAL:
V
DD
BACKSIDE FINISH:
Silicon
PASSIVATION:
Type: Silox (S
i
O
2
)
Thickness: 8.0k
Å
±1k
Å
WORST CASE CURRENT DENSITY:
< 2.0e5 A/cm
2
PROCESS:
SSAJIIV-RH

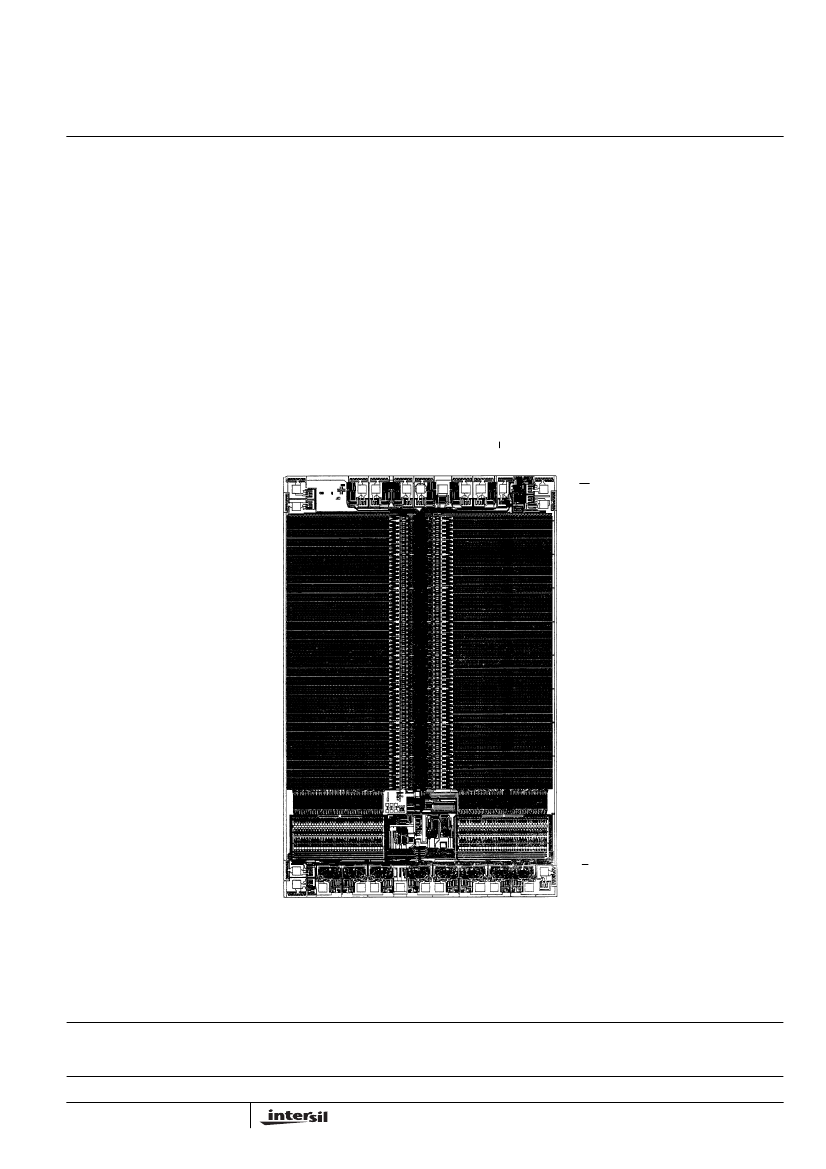

Metallization Mask Layout
HS-6617RH-T
(24)V
DD
(23) A8
(22) A9
(5) A3
(4) A4
(3)A5
(2) A6
(1) A7
(21) P
(20) G
A2 (6)
(19) A10
A1 (7)
A0 (8)
GND (12)
Q1 (10)
Q2 (11)
Q3 (13)
Q4 (14)
Q5 (15)
Q6 (16)
Q7 (17)
Q0 (9)
(18) E
