HS-390RH-T
Data Sheet
July 1999
File Number
4604.1
Radiation Hardened
CMOS Dual SPDT Analog Switch
Intersil’s Satellite Applications Flow
TM
(SAF) devices are fully
tested and guaranteed to 100kRAD total dose. This QML
Class T device is processed to a standard flow intended to
meet the cost and shorter lead-time needs of large volume
satellite manufacturers, while maintaining a high level of
reliability.
The HS-390RH-T analog switch is a monolithic device
fabricated using Radiation Hardened CMOS technology and
the Intersil dielectric isolation process for latch-up free
operation. Improved total dose hardness is obtained by
layout (thin oxide tabs extending to a channel stop) and
processing (hardened gate oxide). These switches offer low-
resistance switching performance for analog voltages up to
the supply rails. “ON” resistance is low and stays reasonably
constant over the full range of operating voltage and current.
“ON” resistance also stays reasonably constant when
exposed to radiation, being typically 30Ω pre-rad and 35Ω
post 100kRAD(Si). Break-before-make switching is
controlled by 5V digital inputs.
Features
• QML Class T, Per MIL-PRF-38535
• Radiation Performance
- Gamma Dose (γ) 1 x 10
5
RAD(Si)
- No Latch-Up, Dielectrically Isolated Device Islands
• Pin for Pin Compatible with Intersil HI-390 Series Analog
Switches
• Analog Signal Range 15V
• Low Leakage . . . . . . . . . . . . . . . . 100nA (Max, Post Rad)
• Low r
ON
. . . . . . . . . . . . . . . . . . . . . . 60Ω (Max, Post Rad)
• Low Operating Power . . . . . . . . . . 100µA (Max, Post Rad)
Pinouts
HS1-390RH (SBDIP), CDIP2-T16
TOP VIEW
D1
NC
D3
S3
S4
1
2
3
4
5
6
7
8
16 S1
15 IN1
14 V-
13 GND
12 NC
11 V+
10 IN2
9 S2
Specifications
Specifications for Rad Hard QML devices are controlled by
the Defense Supply Center in Columbus (DSCC). The SMD
numbers listed below must be used when ordering.
Detailed Electrical Specifications for the HS-390RH-T
are contained in SMD 5962-95813.
A “hot-link” is provided
from our website for downloading.
www.intersil.com/spacedefense/newsafclasst.asp
Intersil’s Quality Management Plan (QM Plan), listing all
Class T screening operations, is also available on our
website.
www.intersil.com/quality/manuals.asp
D4
NC
D2
HS9-390RH (FLATPACK), CDFP4-F16
TOP VIEW
D1
NC
D3
S3
S4
D4
NC
6
7
8
11
10
9
1
2
3
4
5
16
15
14
13
12
S1
IN1
V-
GND
NC
V+
IN2
S2
Ordering Information
ORDERING
NUMBER
5962R9581303TEC
5962R9581303TYC
PART
NUMBER
HS1-390RH-T
HS9-390RH-T
TEMP.
RANGE
(
o
C)
-55 to 125
-55 to 125
D2
Functional Diagram
N
P
D
IN
NOTE:
Minimum order quantity for -T is 150 units through
distribution, or 450 units direct.
TRUTH TABLE
LOGIC
0
1
SW1 SW2
OFF
ON
SW3 SW4
ON
OFF
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
www.intersil.com or 407-727-9207
|
Copyright
©
Intersil Corporation 1999
Satellite Applications Flow™ (SAF) is a trademark of Intersil Corporation.
HS-390RH-T
Die Characteristics
DIE DIMENSIONS:
(2130µm x 1930µm x 279µm
±25.4µm)
84 x 76 x 11mils
±1mil
METALLIZATION:
Type: Al
Thickness: 12.5k
Å
±2k
Å
SUBSTRATE POTENTIAL:
Unbiased (DI)
BACKSIDE FINISH:
Gold
PASSIVATION:
Type: Silox (S
i
O
2
)
Thickness: 8.0k
Å
±1.0k
Å
WORST CASE CURRENT DENSITY:
< 2.0e5 A/cm
2
TRANSISTOR COUNT:
76
PROCESS:
Metal Gate CMOS, Dielectric Isolation

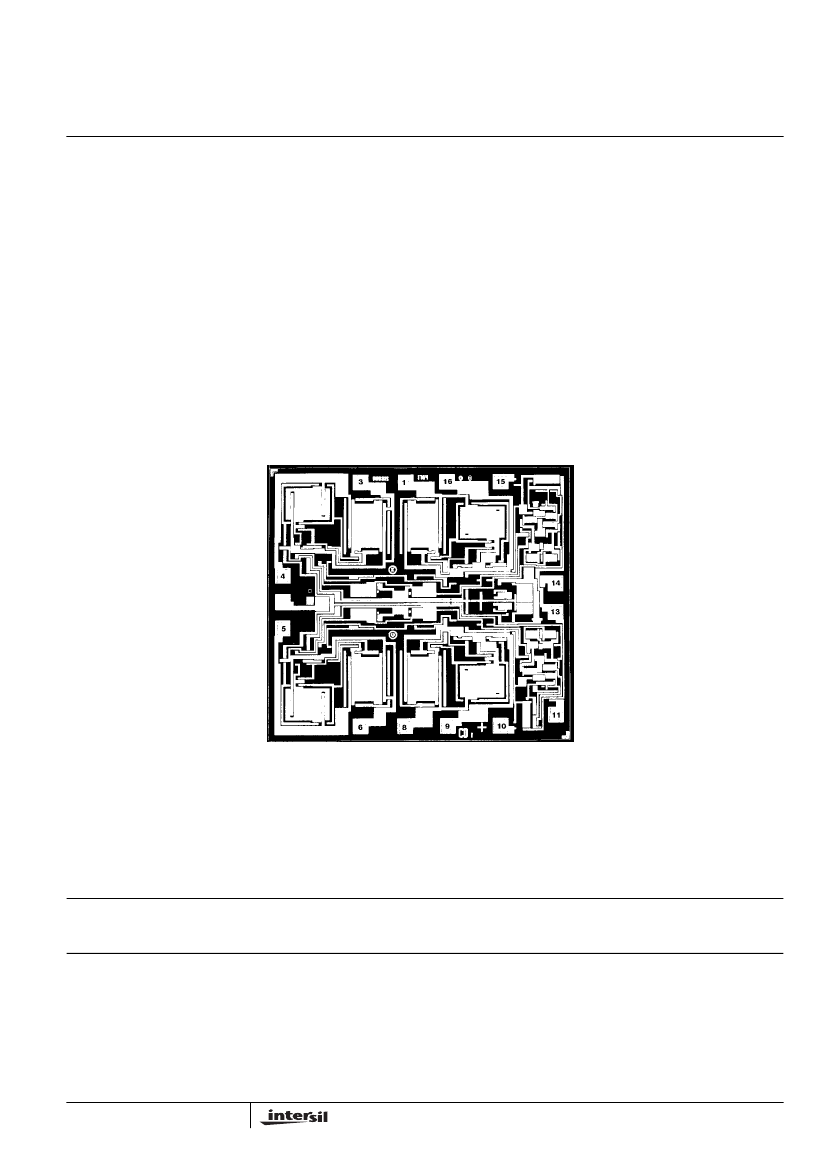

Metallization Mask Layout
HS-390RH-T
IN1
D3
D1
S1
S3
V-
GND
S4
V+
All Intersil semiconductor products are manufactured, assembled and tested under
ISO9000
quality systems certification.
